HB-2L Air Compressor
HB-2L Air Compressor - Single Compressor is backordered and will ship as soon as it is back in stock.
Description
Description
SMALL THINGS COME IN GREAT PACKAGES
Size doesn't always dictate performance, and our HornBlasters 2L Air Compressor is living proof. Specifically designed for those on a budget or with builds where space is a premium, this mini compressor packs a punch well above its weight class.
- Rapid Refill: Fills a 1.5-gallon air tank from 90-120 PSI in a jaw-dropping 35 seconds, ensuring you're always ready to make some noise.
- Weather-Resistant: Comes with an air filter relocation kit, safeguarding your unit against the harshest elements.
- Quality Components: Features a 1/4" NPT stainless steel leader hose and check valve, highlighting our commitment to durability and performance.
- 25% Duty Cycle: Designed to perform, it offers a 25% duty cycle at 100 PSI, promising longer operational time between rests.
Get your HornBlasters 2L Air Compressor today and experience the bliss of high performance in a compact package. (Viable replacement for Viair 275c)

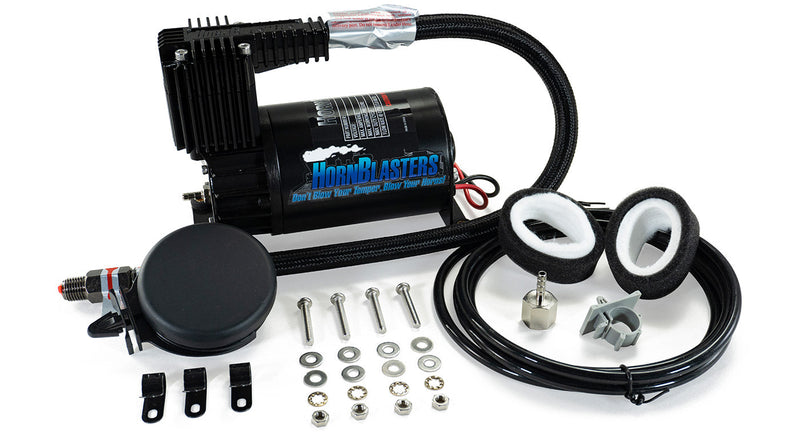

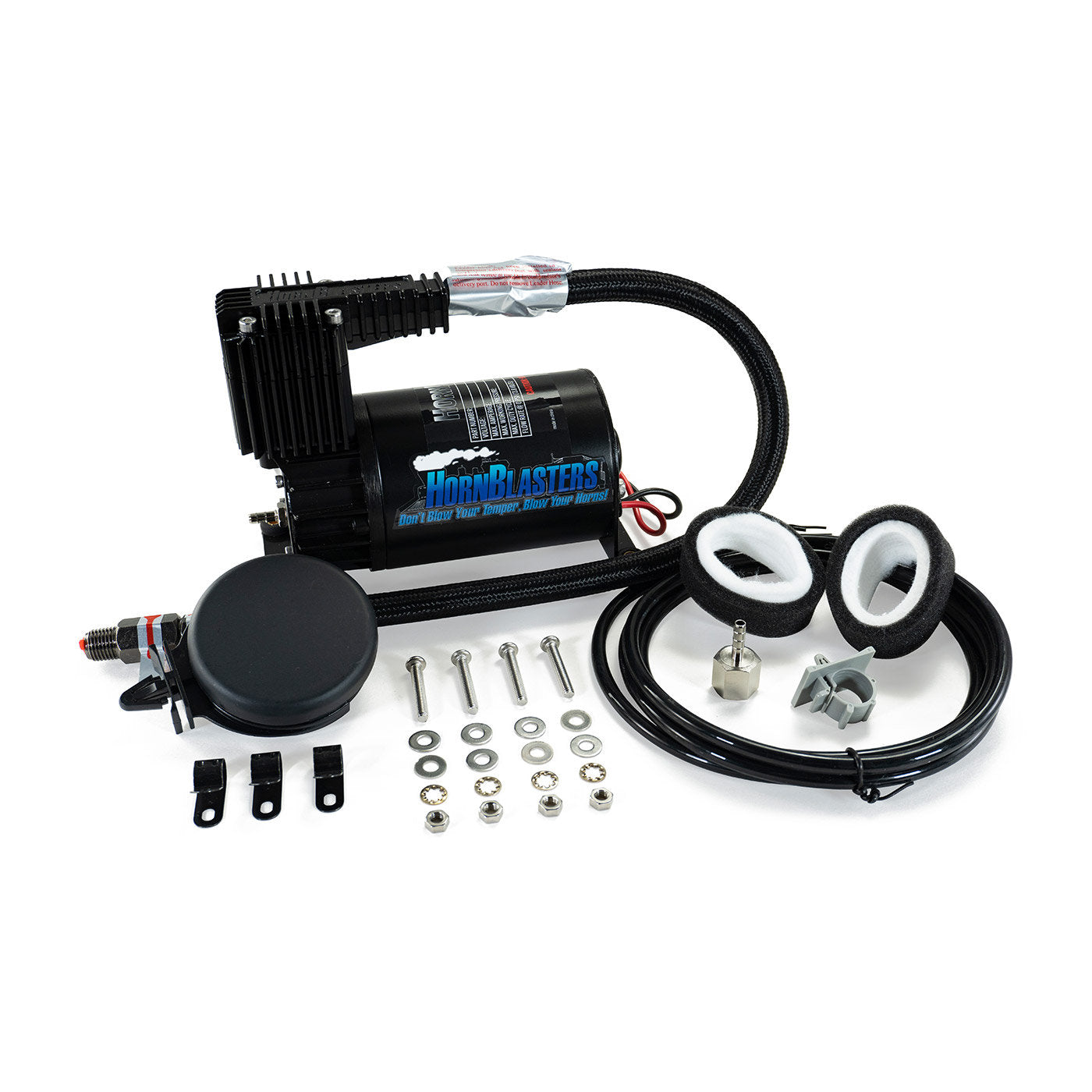

- HB-2L AIR COMPRESSOR
- 1/4" NPT STAINLESS STEEL LEADER HOSE & CHECK VALVE
- AIR FILTER HOUSING & SPARE AIR FILTERS
- NECESSARY COMPONENTS FOR RELOCATING THE AIR FILTER
- STAINLESS MOUNTING HARDWARE
| SPECIFICATION | |
| Part number | AC-2L |
| Leader Hose/Check Valve | 1/4" NPT |
| Leader Hose Length | 21" (533.4 mm) |
| Max Tank Size | 2.5-Gallons (9.5 Liters) |
| Max amperage | 18 Amps |
| Maximum duty cycle | 25% @ 100 PSI |
| Flow Rate @ 0 PSI | 2.03 CFM |
| Maximum working pressure | 150 PSI |

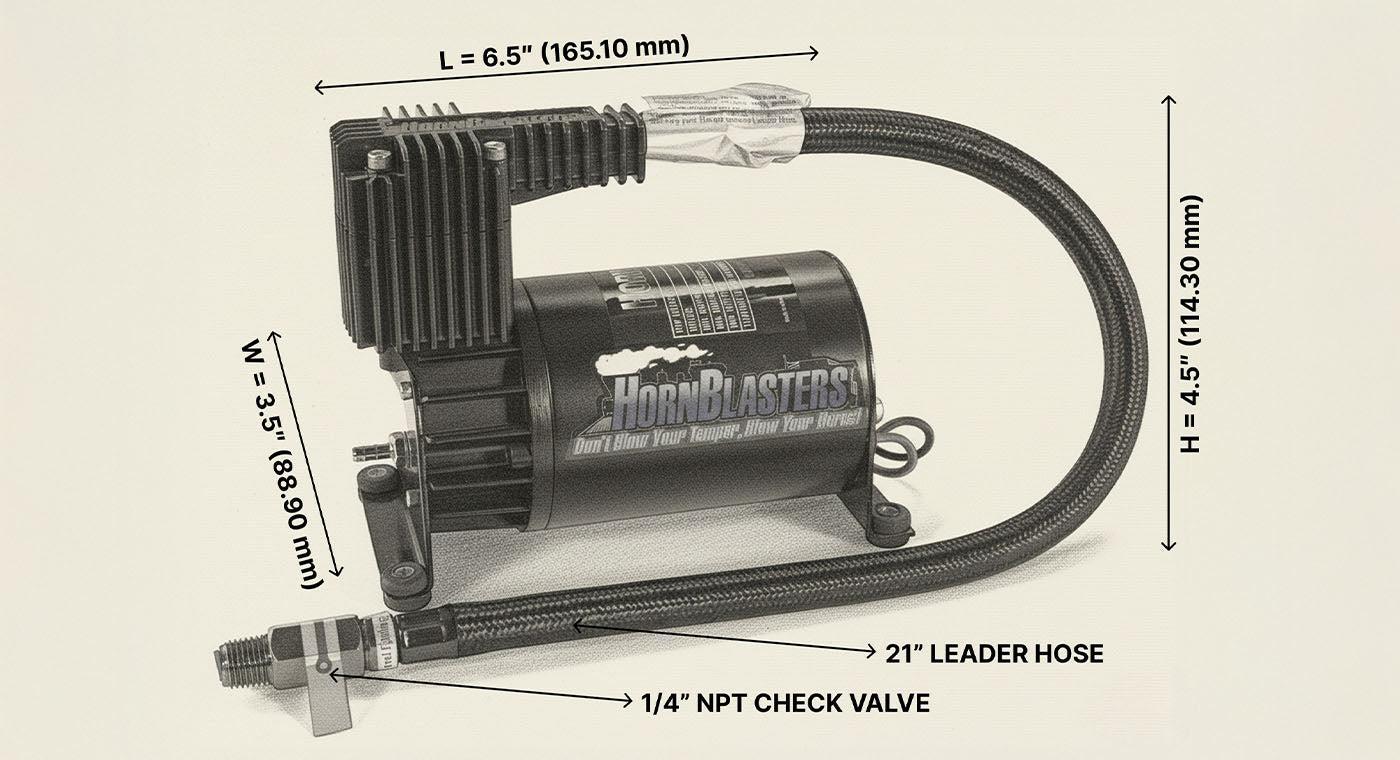

| Compressor length | 6.5″ (165.10 mm) |
| Compressor width | 3.5″ (88.90 mm) |
| Compressor height | 4.5″ (114.30 mm) |
| Weight | 5.2 lb (2.36 Kg) |
| 1.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 05 sec. (± 10 sec.) |
| 85 to 105 PSI | 14 sec. (± 5 sec.) |
| 0 to 150 PSI | 1 min. 39 sec. (± 10 sec.) |
| 110 to 150 PSI | 28 sec. (± 05 sec.) |
| 1.5 GALLON TANK | FILL RATE |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 29 sec. (± 10 sec.) |
| 85 to 105 PSI | 36 sec. (± 5 sec.) |
| 0 to 150 PSI | 4 min. 7 sec. (± 10 sec.) |
| 110 to 150 PSI | 1 min. 28 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1.0 | 32.0 | 13 |
| 20 | 1.11 | 13 | 2.0 | 30.0 | 14 |
| 30 | 1.04 | 15 | 3.0 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4.0 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5.0 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6.0 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7.0 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8.0 | 20.0 | 18 |
| 90 | 0.79 | 17 | 9.0 | 18.5 | 18 |
| 100 | 0.76 | 18 | 10.0 | 17.0 | 17 |
| 110 | 0.72 | 18 | |||
| 120 | 0.69 | 18 | |||
| 130 | 0.65 | 18 | |||
| 140 | 0.62 | 17 | |||
| 150 | 0.57 | 17 |
* Supply Voltage: 13.8 Volts
-
