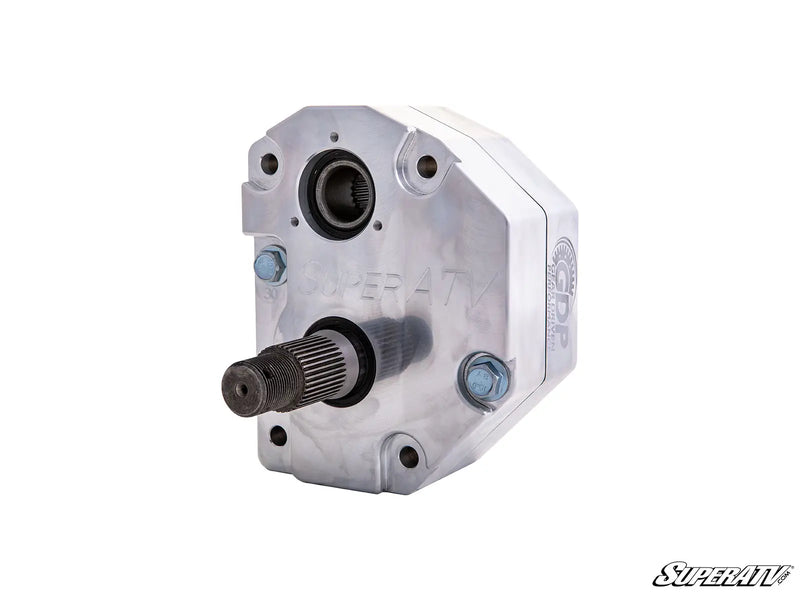

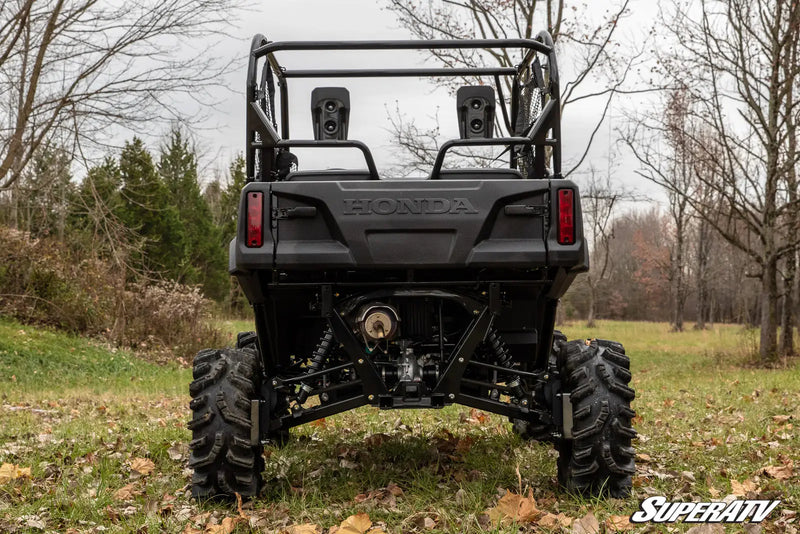

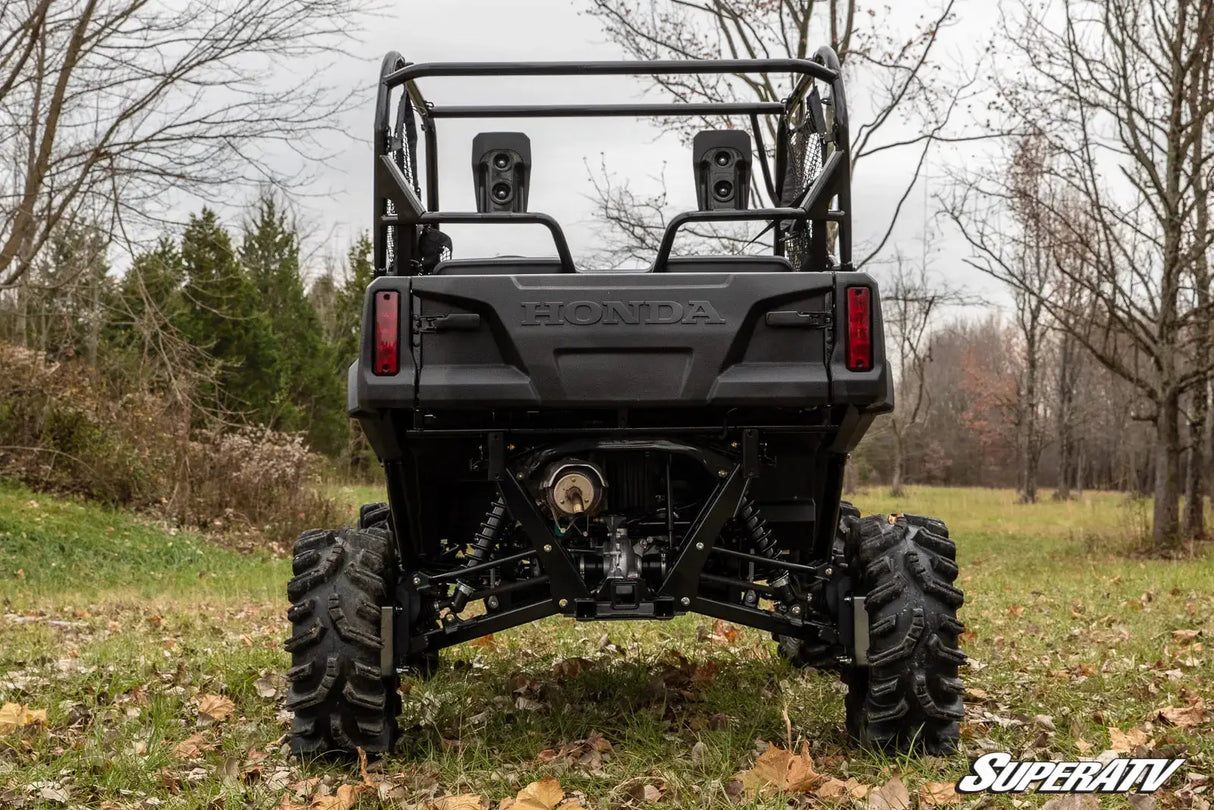

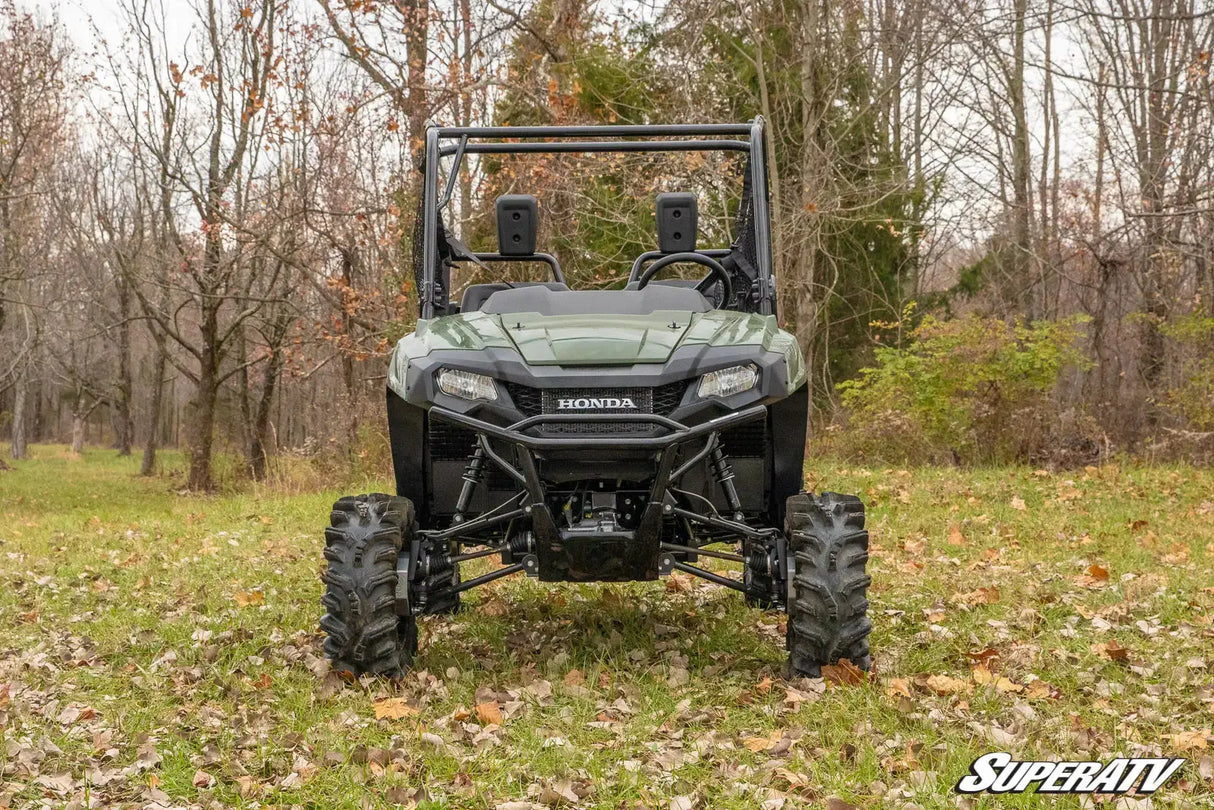

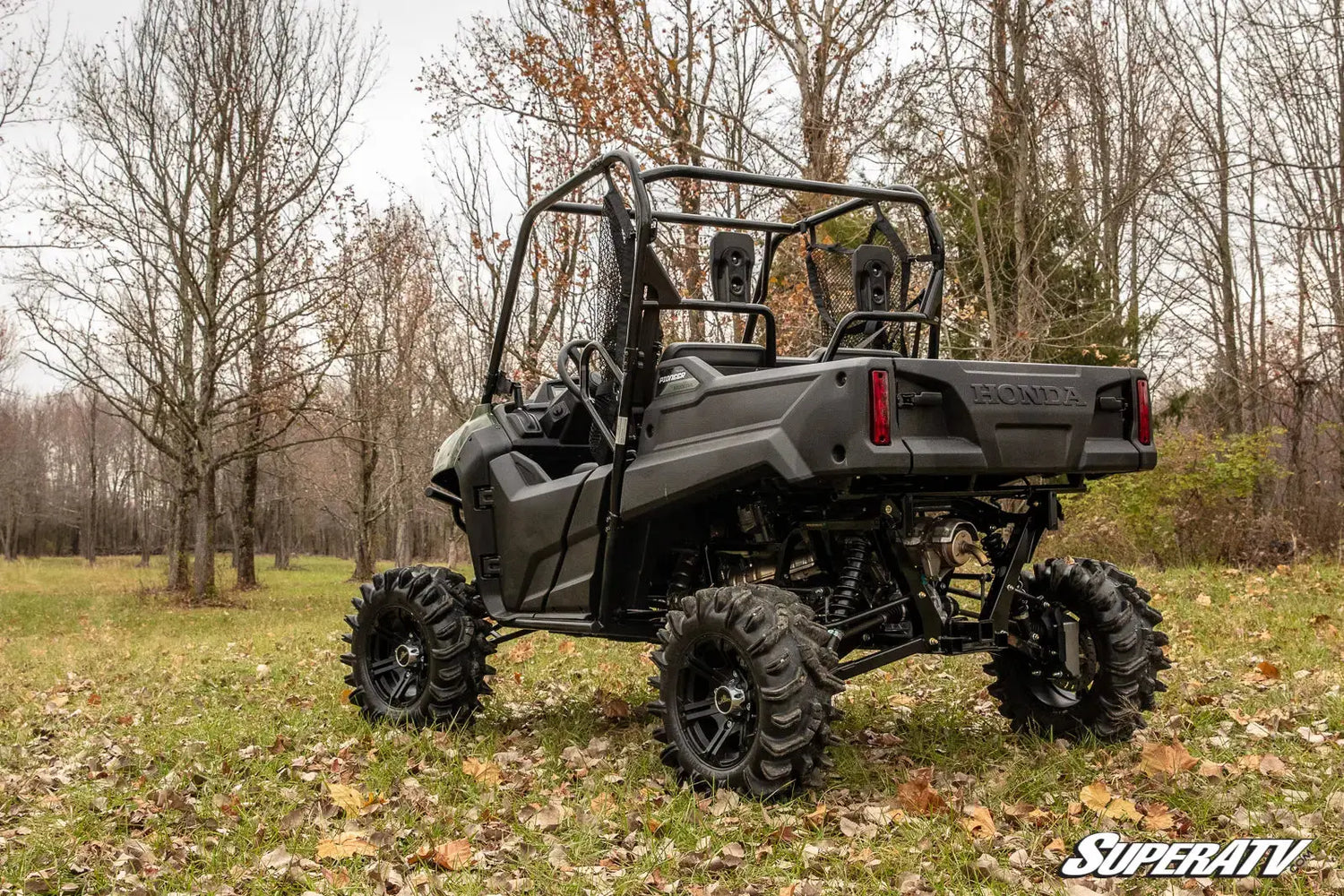

HONDA PIONEER 500 4" PORTAL GEAR LIFT
HONDA PIONEER 500 4" PORTAL GEAR LIFT
Regular price
$3,699.95 USD
Regular price
Sale price
$3,699.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
GDP Portals Give You Strength and Performance

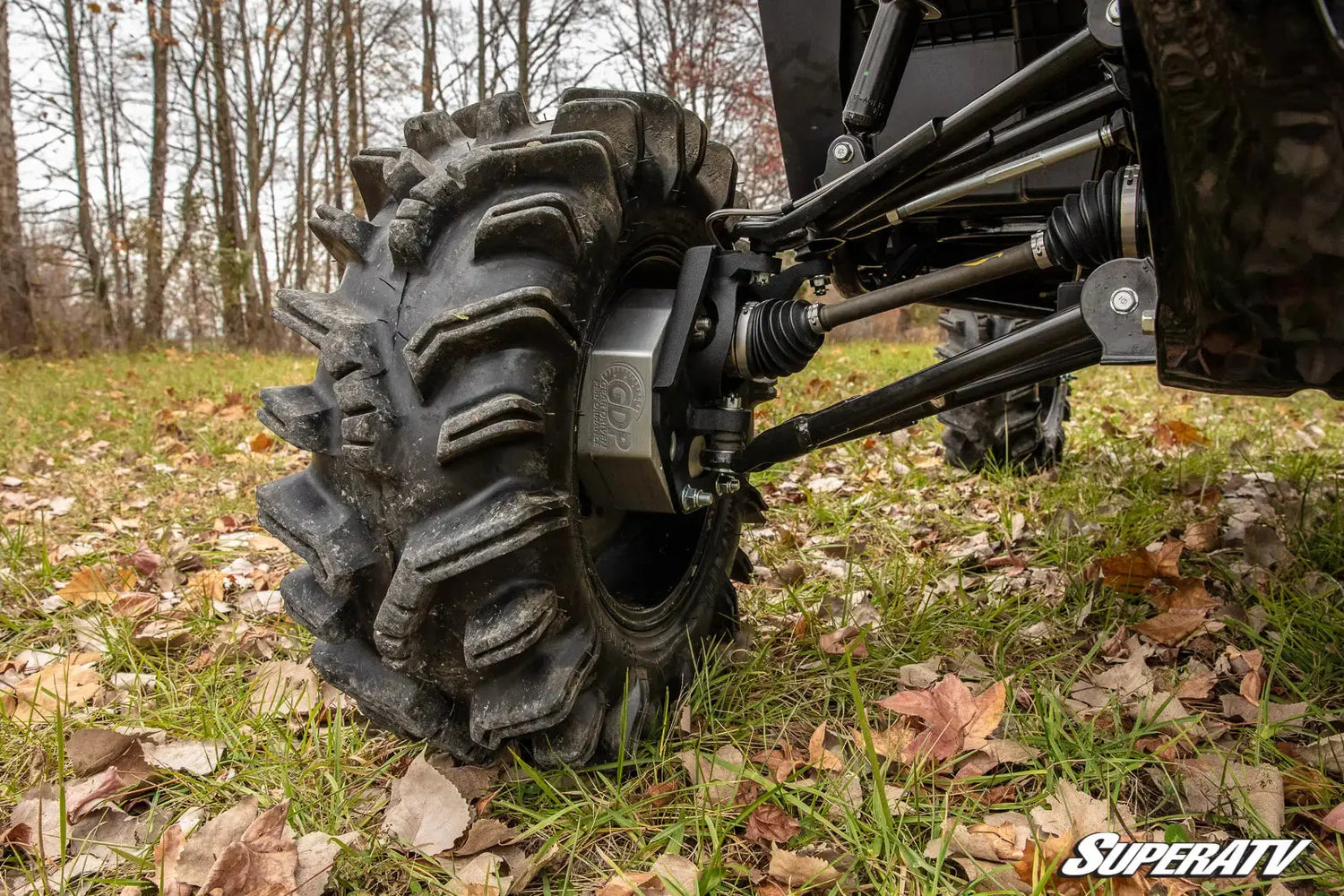

SuperATV’s GDP 4” Portal Gear Lift for the Honda Pioneer 500 gives you power and performance that you can’t get anywhere else. Get it with a 15% or 30% gear reduction to give you the punchy torque you need, and pair it with your choice of housing to get your perfect portal. If you want unbeatable strength, opt for our dual-idler configuration. You have the power to make work easier and weekends more fun.

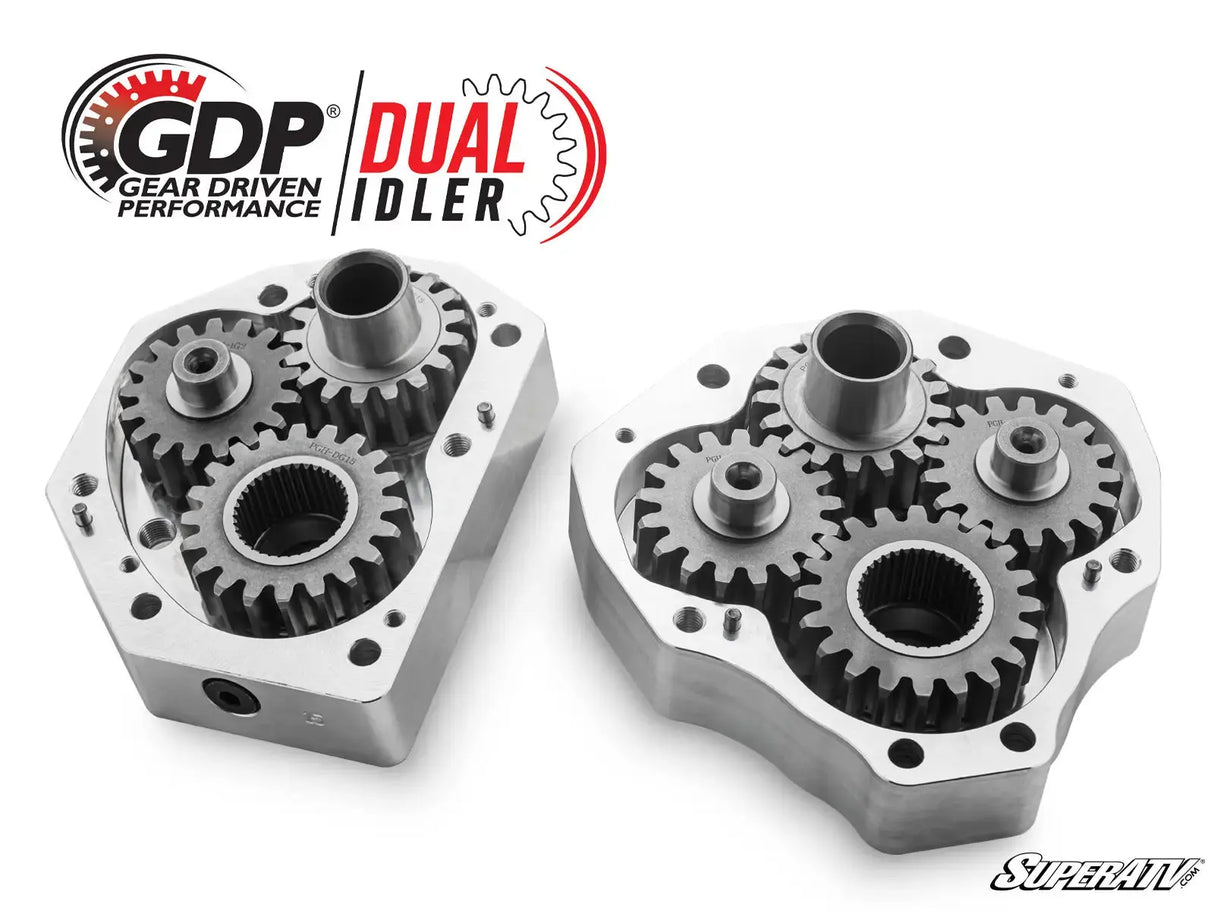

What Is a Dual Idler®?

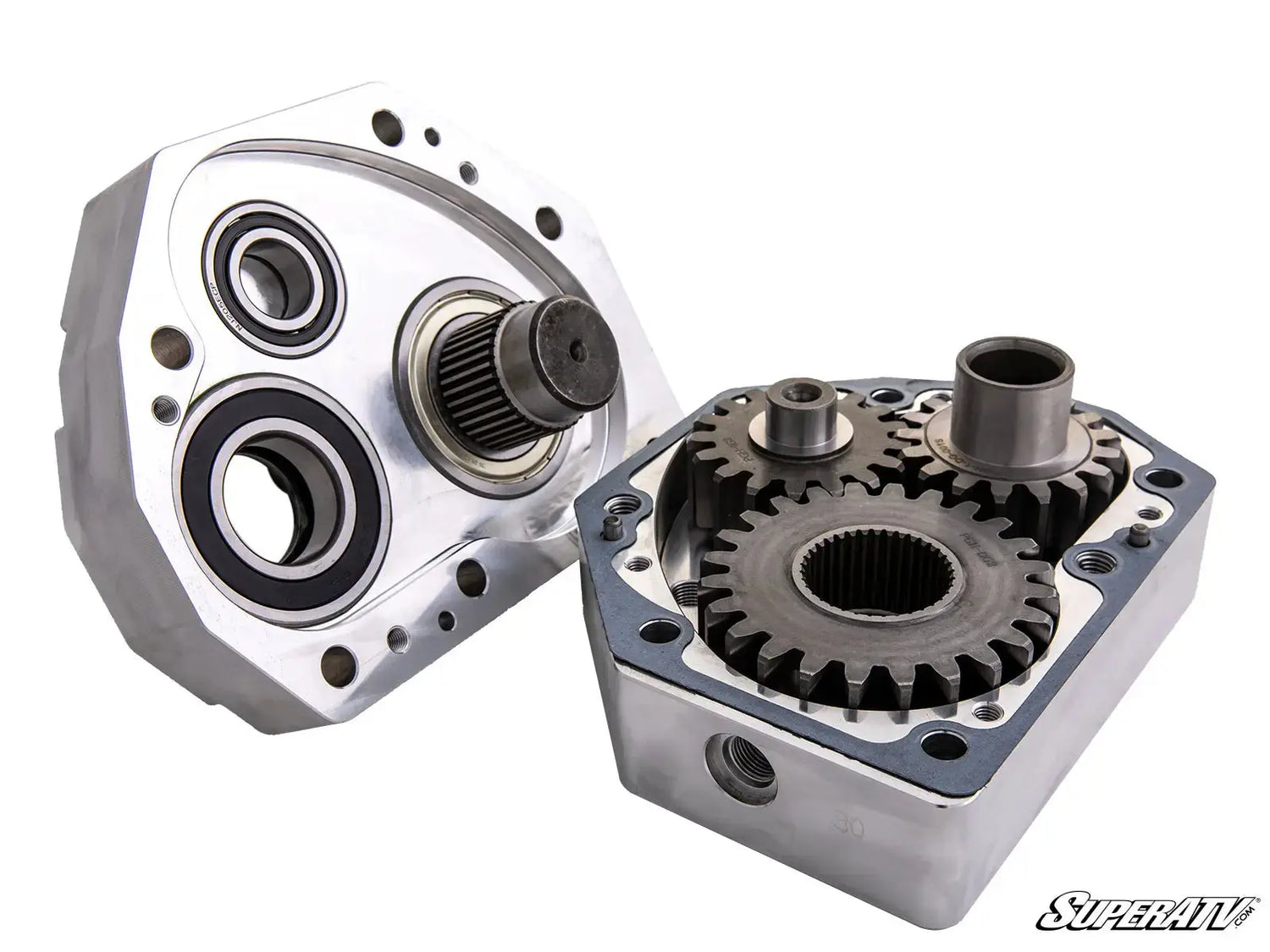

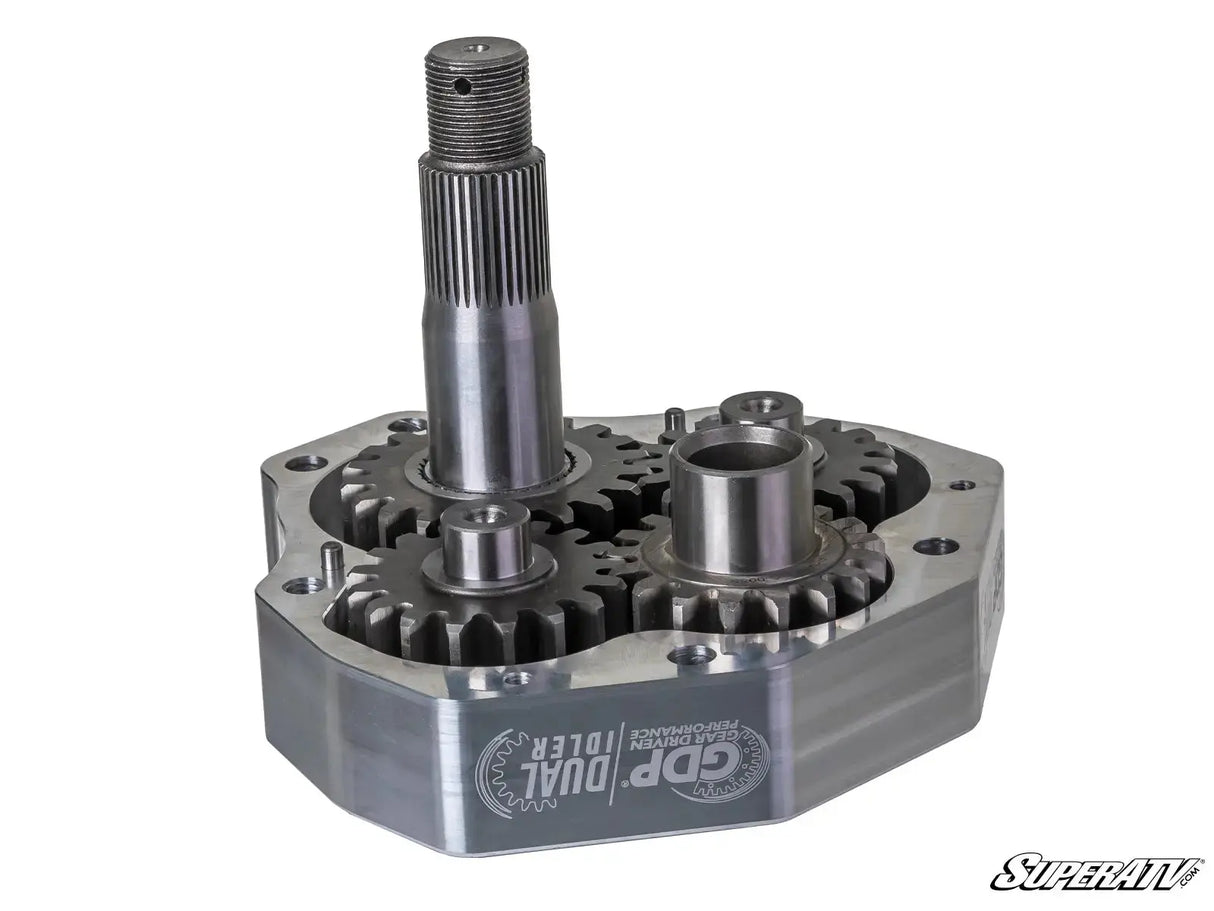

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Perfect for All Kinds of Rides
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can chew through the thickest bounty holes. It’s also perfect for rocks where you get the torque you need to crawl over boulders like they’re not even there. Usually stick to chores and trails? Go with a 15% gear reduction. You’ll have the clearance and power you need to push through ruts and ditches easily all while towing a trailer full of supplies. Plus, you’ll still have enough speed to cruise down the road and take on trails easily.
A Gear Reduction That Protects Your Drivetrain
With portal lifts, the gear reduction is placed in the hub instead of in the transmission. This means your drivetrain doesn’t have to work as hard, so those important components will last longer. Of all the benefits of a portal gear lift, reduced stress on your axles, differential, prop shaft, and transmission is definitely at the top of the list.
The Toughest Portals in the Industry
It takes a lot of hard work to make GDP Portal Gear Lifts the strongest in the world. We’ve put in years of research and testing to bring you portals that are strong enough to keep up with even the most rugged off-road lifestyle. Between our beefed up cast or billet aluminum housings and our advanced alloy backing plates, there’s nothing that will stop you.
Advanced Gaskets, Seals, and Bearings
Our portals use:
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Patent # 11,299,042
Patent # 11,318,787
SuperATV’s GDP 4” Portal Gear Lift for the Honda Pioneer 500 gives you power and performance that you can’t get anywhere else. Get it with a 15% or 30% gear reduction to give you the punchy torque you need, and pair it with your choice of housing to get your perfect portal. If you want unbeatable strength, opt for our dual-idler configuration. You have the power to make work easier and weekends more fun.
What Is a Dual Idler®?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Perfect for All Kinds of Rides
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can chew through the thickest bounty holes. It’s also perfect for rocks where you get the torque you need to crawl over boulders like they’re not even there. Usually stick to chores and trails? Go with a 15% gear reduction. You’ll have the clearance and power you need to push through ruts and ditches easily all while towing a trailer full of supplies. Plus, you’ll still have enough speed to cruise down the road and take on trails easily.
A Gear Reduction That Protects Your Drivetrain
With portal lifts, the gear reduction is placed in the hub instead of in the transmission. This means your drivetrain doesn’t have to work as hard, so those important components will last longer. Of all the benefits of a portal gear lift, reduced stress on your axles, differential, prop shaft, and transmission is definitely at the top of the list.
The Toughest Portals in the Industry
It takes a lot of hard work to make GDP Portal Gear Lifts the strongest in the world. We’ve put in years of research and testing to bring you portals that are strong enough to keep up with even the most rugged off-road lifestyle. Between our beefed up cast or billet aluminum housings and our advanced alloy backing plates, there’s nothing that will stop you.

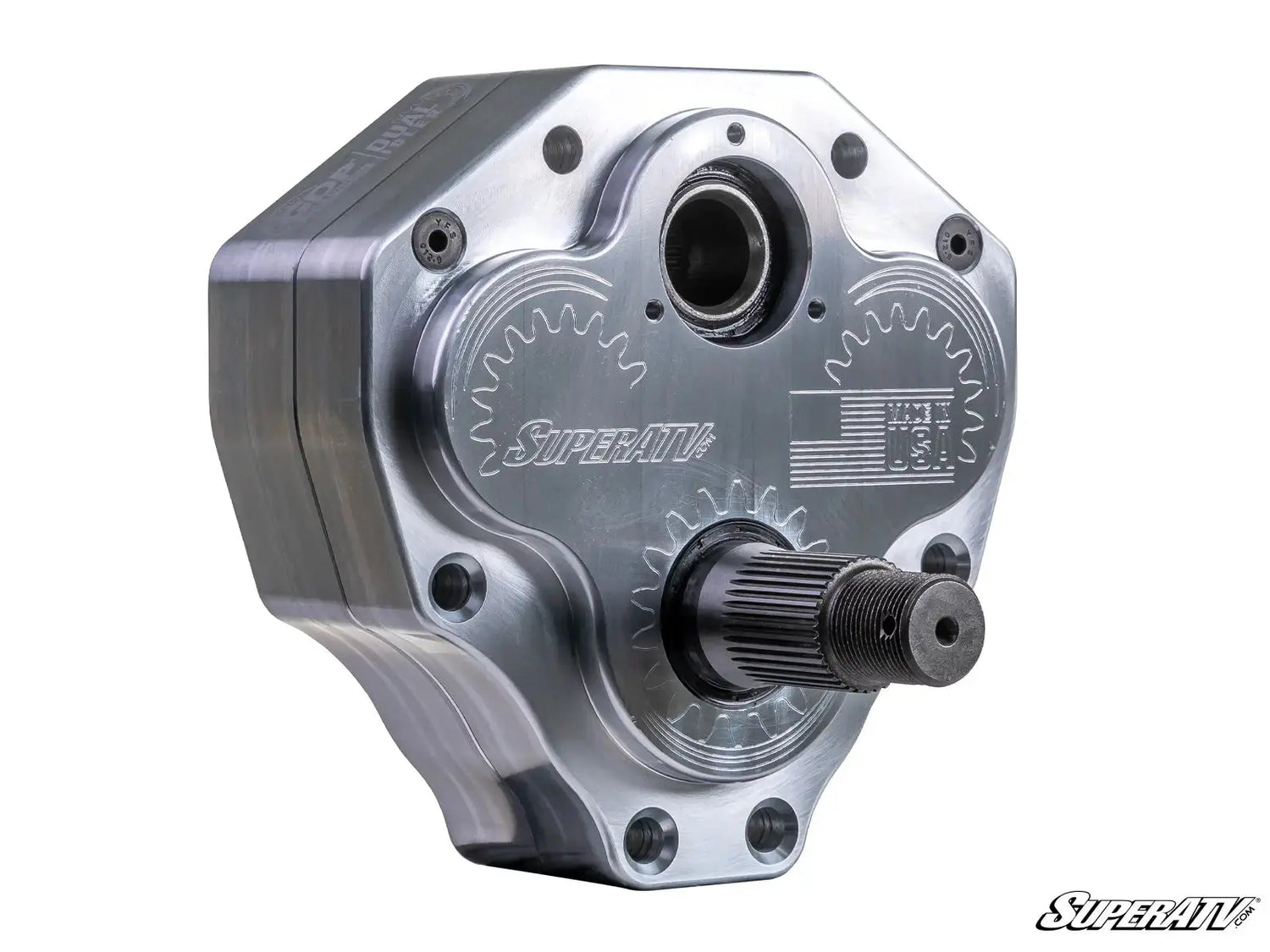

- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| 6” Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (4) Caliper mounting plate shims | ||
| (2) Steel steering arms | ||
| (8) Bushings | ||
| (4) Sleeves | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Steering stop kit | ||
Patent # 11,299,042
Patent # 11,318,787
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
WARRANTY & RETURNS
|
Limited Lifetime Warranty When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty. SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, rotors, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE. Procedures for obtaining warranty service: Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives. If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA. Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge. If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee. Replacement bearings, seals and gaskets can be found at https://platinumhpsolutions.com/ Thank you for your business! |
