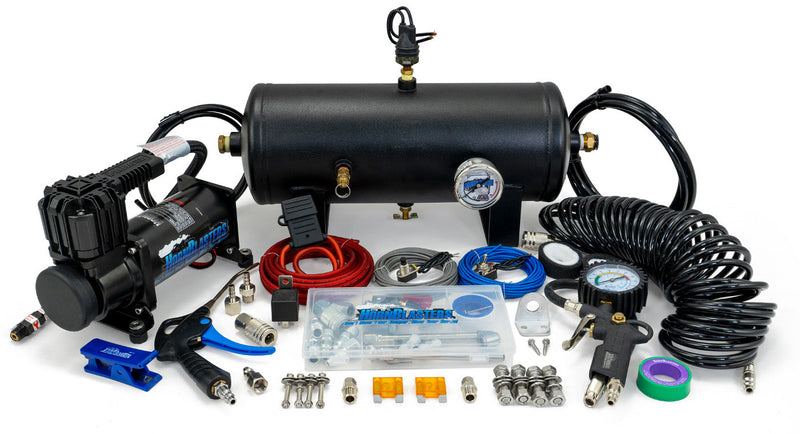

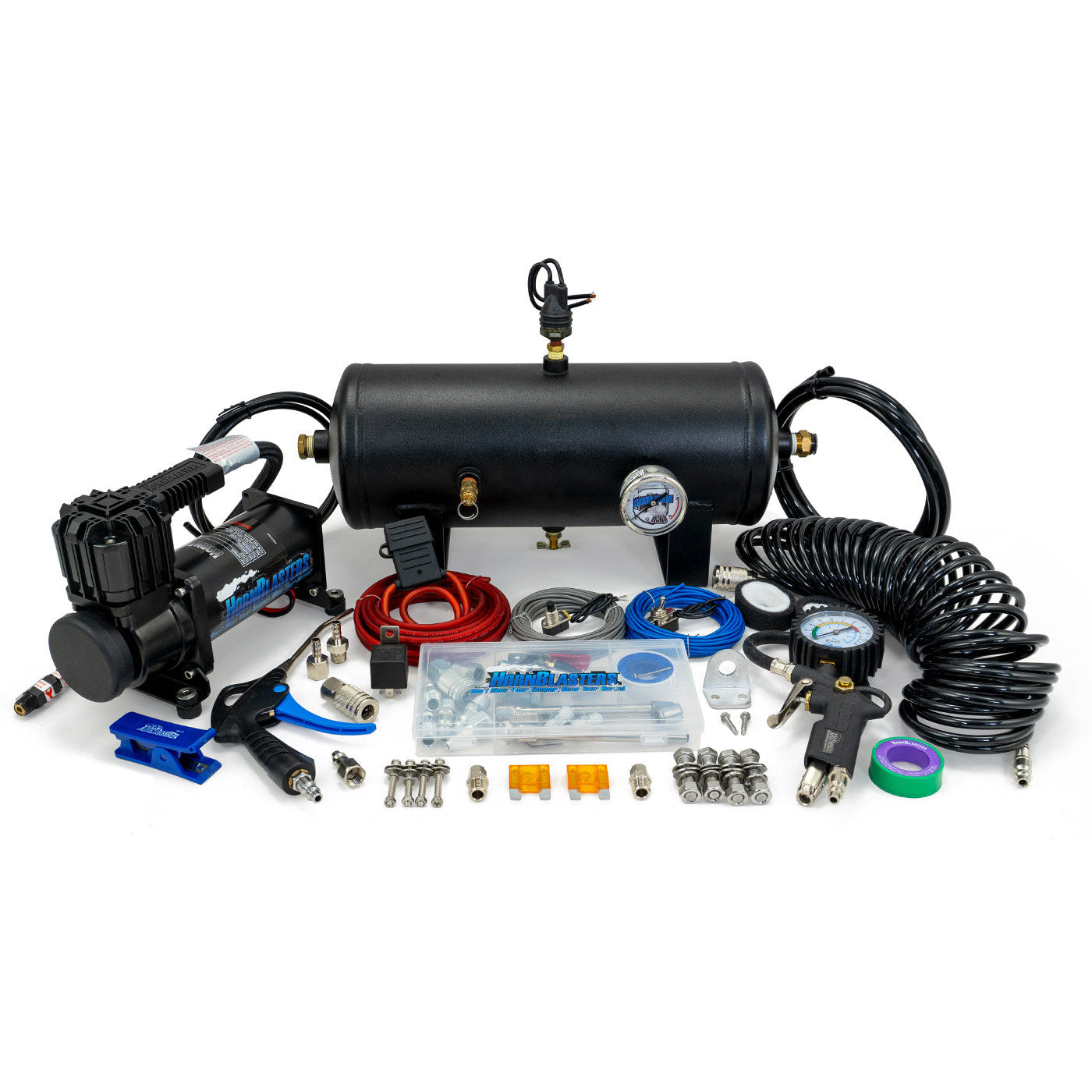

HornAir 232 24-Volt Onboard Air System
HornAir 232 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
HornAir 232 24-Volt Onboard Air System
HornAir 232 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
THE BEST ALL-AROUND 24V AIR SOURCE.
Kick off your HornBlasters experience with the HornAir 232 24 Volt Onboard Air System, a lightweight and efficient solution providing 2 gallons of 150 PSI air. The quick-filling 24 Volt air compressor recharges the tank in under 50 seconds, while the fitting kit allows for easy accessory installation. Ideal for load-leveling air springs and 24 Volt train/air horns, this affordable package enhances your truck's capabilities. Note that an air valve kit is required for horn connections.
- 24 Volt Air System
- Designed For HornBlasters Shocker Horns
- All-inclusive Train Horn Air Solution!
- Fast Filling Compressor Perfect For Train Horns
- Comes With Standard 1/2" Push-to-Pull Fitting
- Complete Fitting Kit With Safety Valve & Drain Cock
- All Standard Mounting Hardware
Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.
**This unit requires a 24 Volt Electrical System!!**
- ac-2 24 Volt Air Compressor
- Horn Air 2 Gallon US Made Air Tank

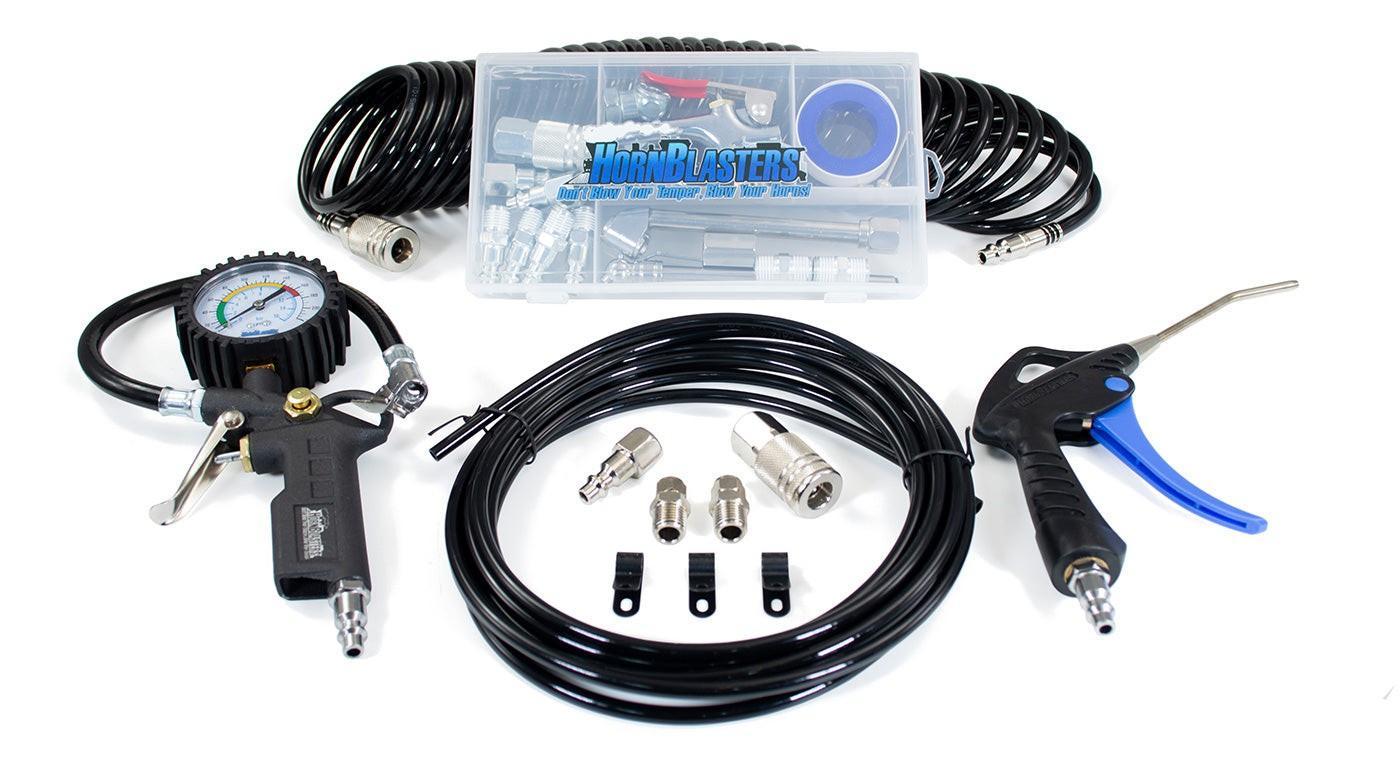

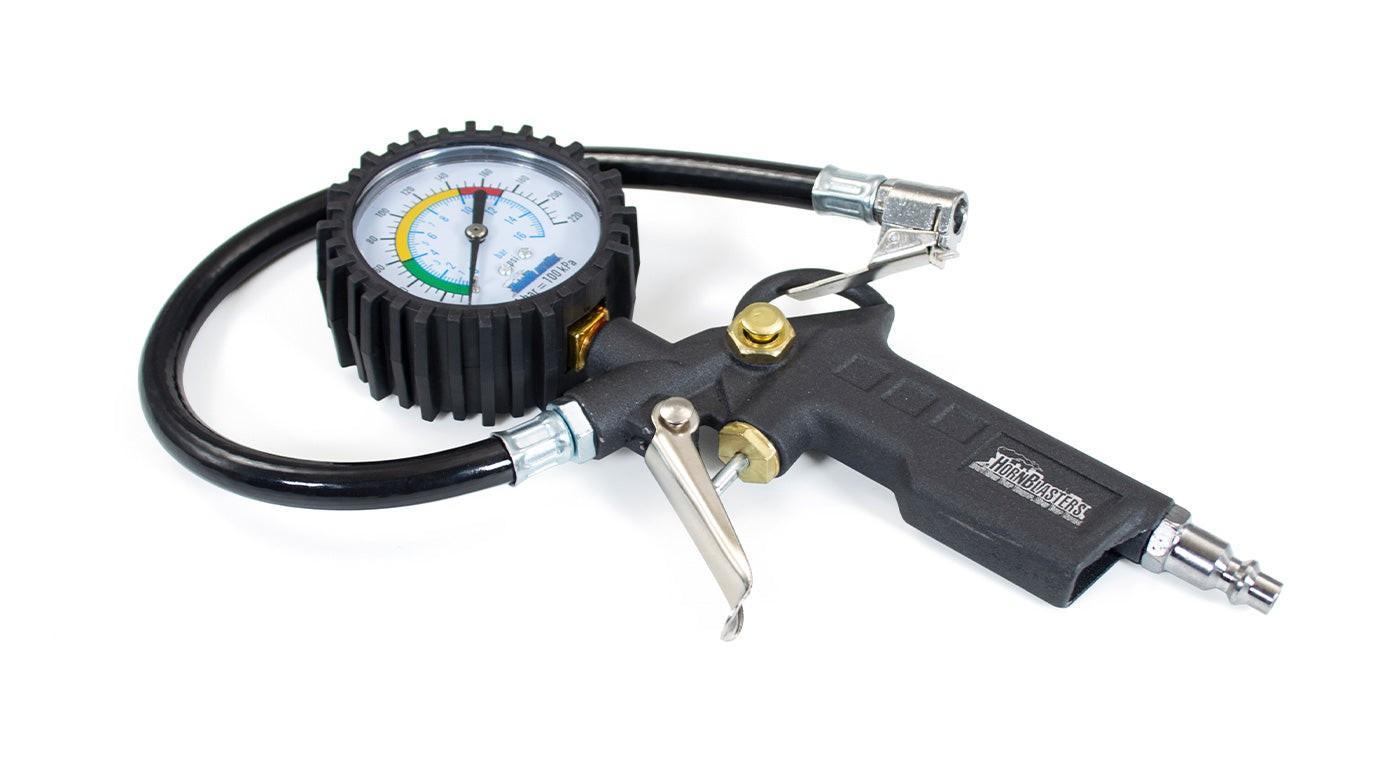

- HornBlasters Tire Inflation Kit
- 110/150 PSI Pressure Switch
- 24-Volt 40 Amp Relay
- 1/2in Push-to-Pull Air Line Fitting
- Safety Blow-Off
- Drain Cock

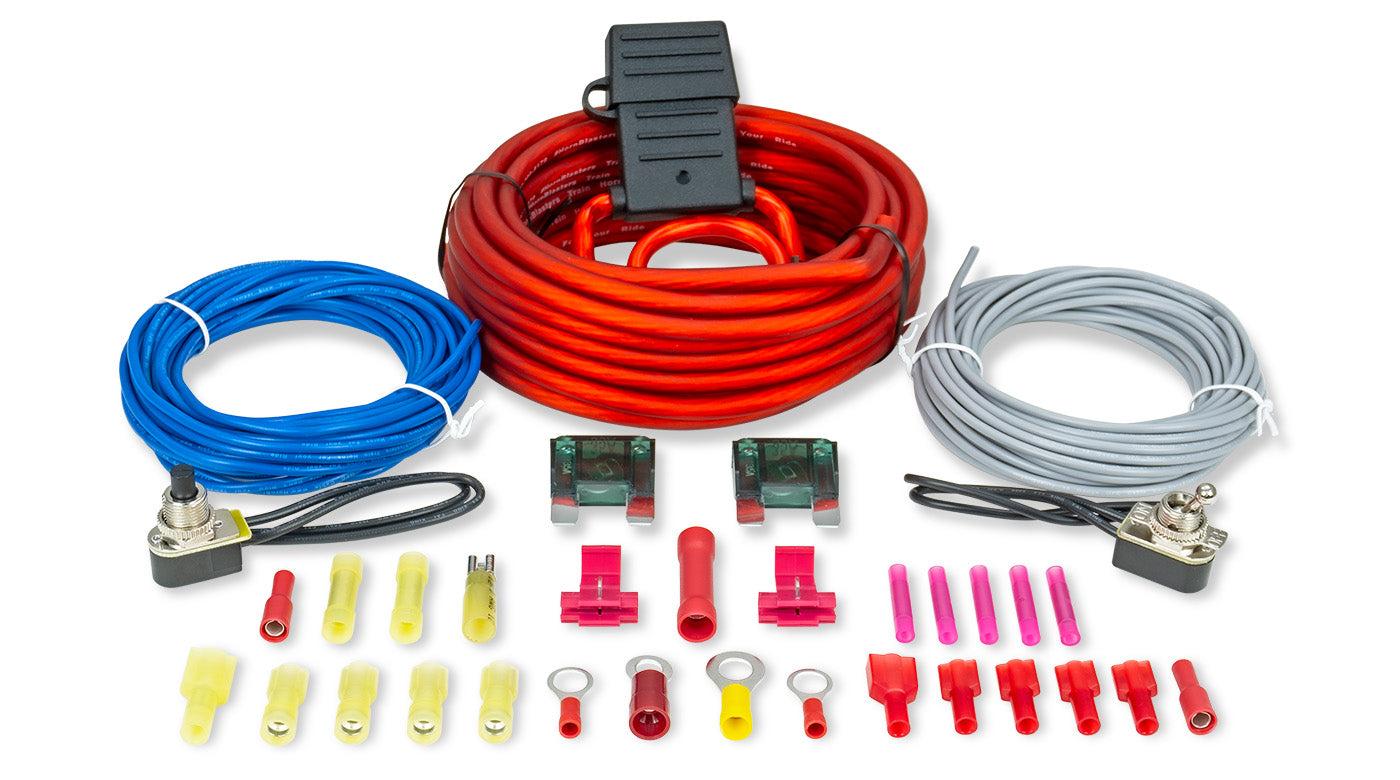

- 17ft 10ga Wire
- 17ft 18ga Wire
- Inline Fuse Holder
- Terminal Kit
- Detailed Instructions
| Tank | 2 Gallon Tank |
| Tank Length | 17" (431.8 mm) |
| Tank Diameter | 6" (152.4 mm) |
| Tank Height | 8″ (203.2 mm)(With Legs) |
| Weight | 10 lb (4.54 Kg) |
| Voltage | 24 volts DC |
| Air Flow | 1.80 CFM at Free Flow |
| Average Fill Time | 1 Min 10 Sec |
| Max Amperage | 13 amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Maximum Working Pressure | 150 PSI |
| Compressor Length | 8.54″ (217 mm) |
| Compressor Width | 3.93″ (100 mm) |
| Compressor Height | 6.75″ (171.5 mm) |
| Compressor Weight | 4.30 lb (2.4 Kg) |
| Pressure Switch | 24 Volt 110/150 PSI Pressure Switch |
| Voltage | 24 volts DC |
2-Gallon Air Tank Dimensional Drawing
-
