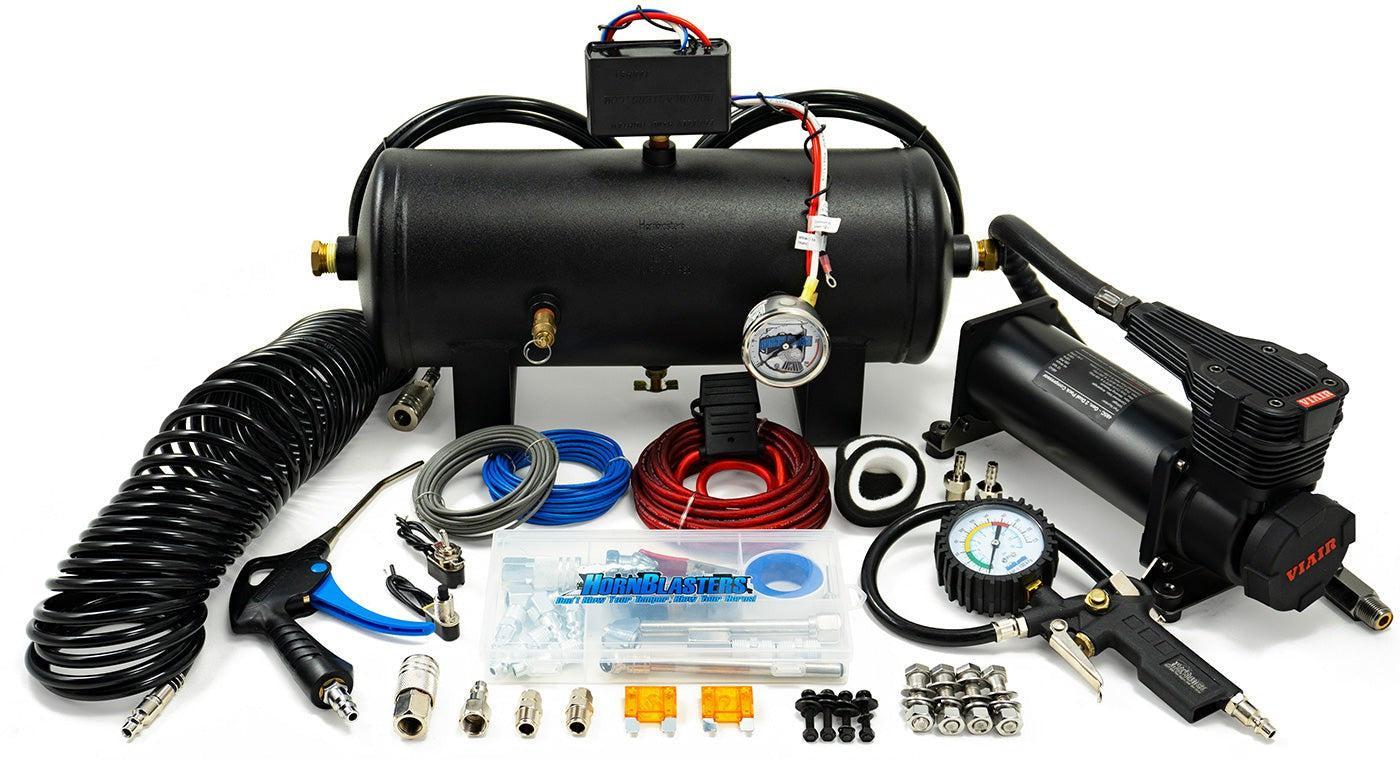

HornAir 2485K Nightmare Edition Onboard Air System

This kit is not to be underestimated. Despite it being a 2-gallon (7.5 liters) reservoir, the included air pump is a powerhouse. This Viair 485C air compressor is the most heavy-duty compressor that Viair offers. It’s designed specifically for smaller vehicles where larger tanks may not fit. The compressor is overpowered (200 PSI capable, constant duty, and powerful!) to ensure the best reliability, and only pulls 22 amps at its peak.

An increasing number of people are using this for more than just blasting horns! With a system like the 2485K, you can also use the air supply to:

• Adjust Tire Pressure
• Moderate Pneumatic Use
• Inflate Water Toys and Safety Gear
• Supply Air to Load Leveling Bags
• Supply Air for Differential Lockers
• Blow up Kids Toys
• And lots more!

Please note that if you use horns, you will still need an air valve kit to connect the system properly.

Unlike some other air systems, HornAir kits come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard ¹/₂in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.

RECOMMENDED FOR USE WITH THE FOLLOWING:

 Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

* Supply Voltage: 13.8 Volts

* Supply Voltage: 13.8 Volts

• Designed for HornBlasters Shocker horns
• All-inclusive onboard air solution!
• Top-end 200 PSI capable compressor perfect for train horns
• Comes with a standard 1/2" push-to-pull fitting
• Complete fitting kit with safety valve & drain cock
• All standard mounting hardware

• 2-gallon 6 port air tank

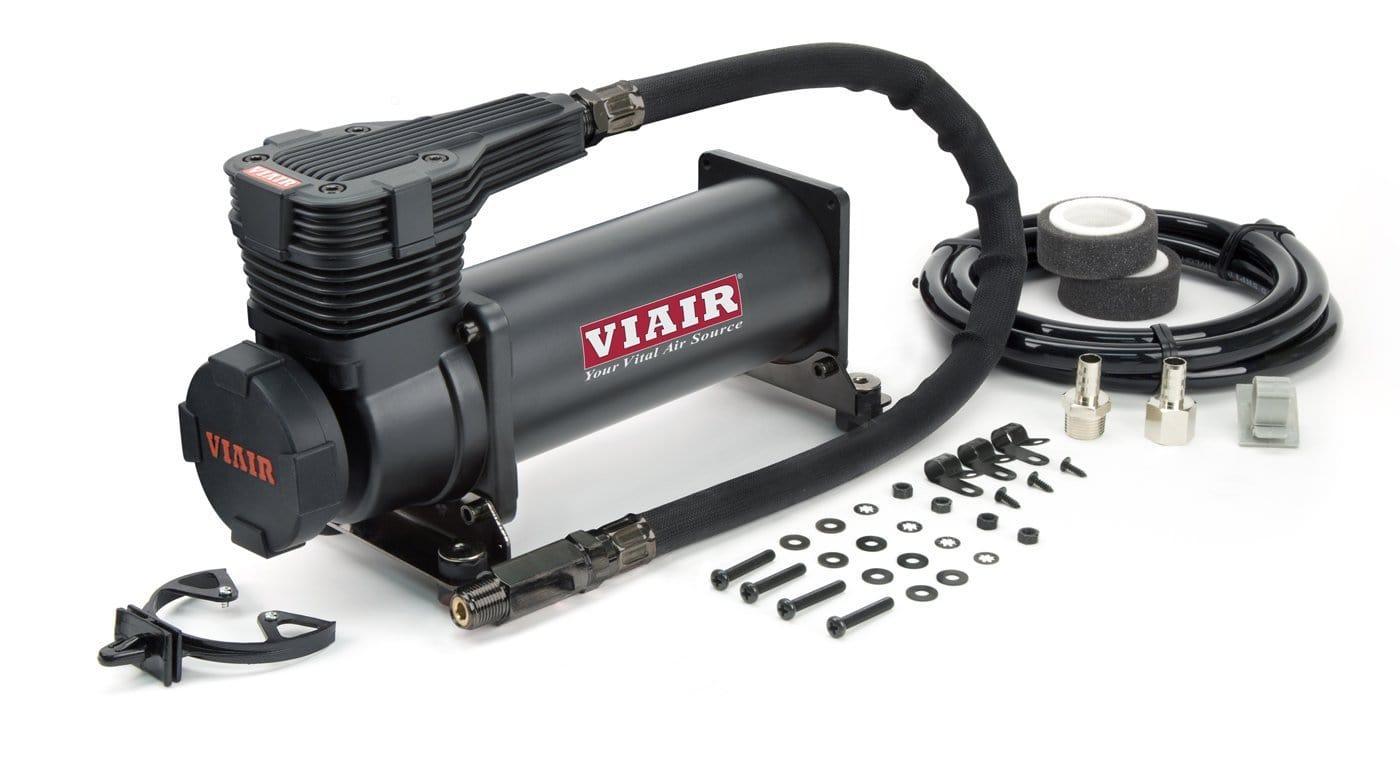

• Viair 485C stealth black air compressor
• 110/150 PSI pressure switch WITH 40 AMP RELAY

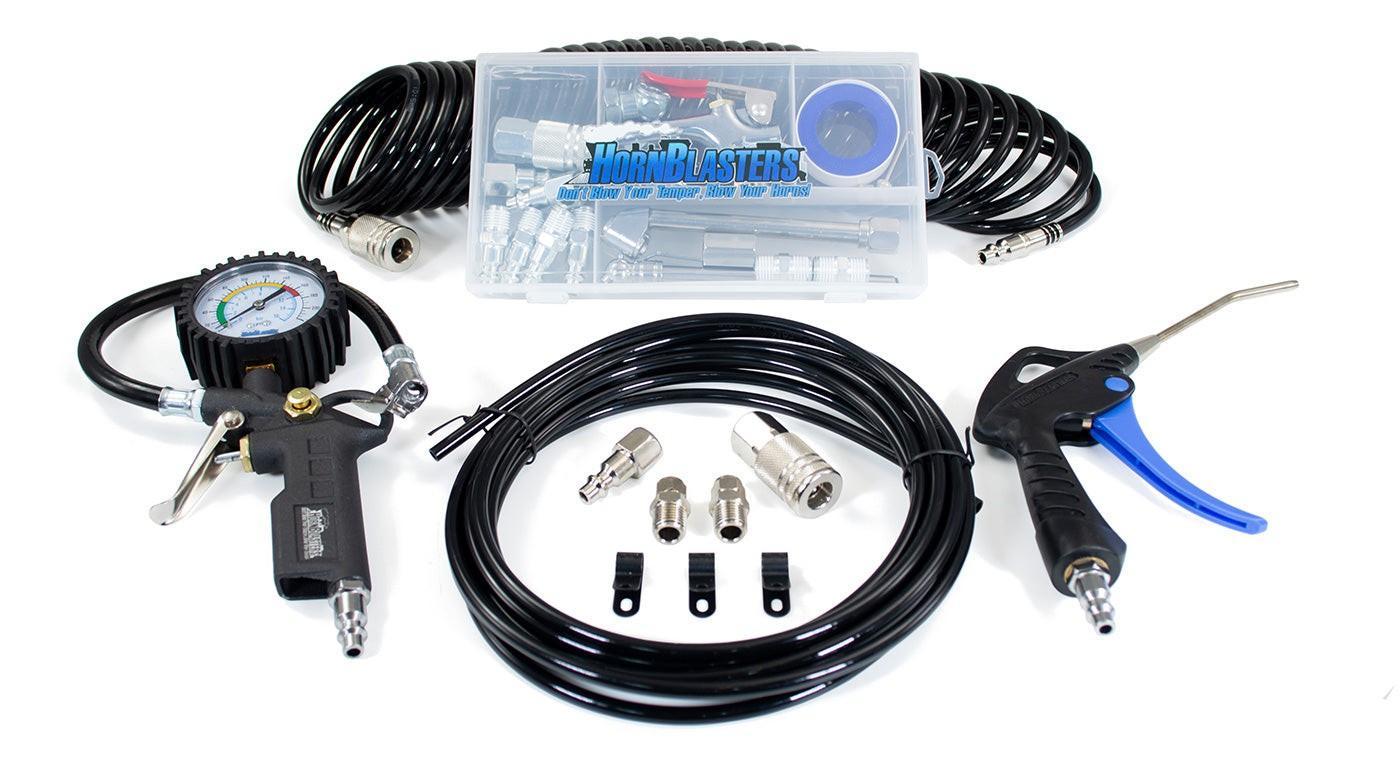

• HORNBLASTERS TIRE INFLATION KIT
• Remote mountable intake filter assembly
• Spare air filter elements

• 6ft ⅜" air line (for air compressors air intake)
• 22ft of 10-gauge red wire

• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• Brass NPT fitting kit with safety blow-off & drain cock

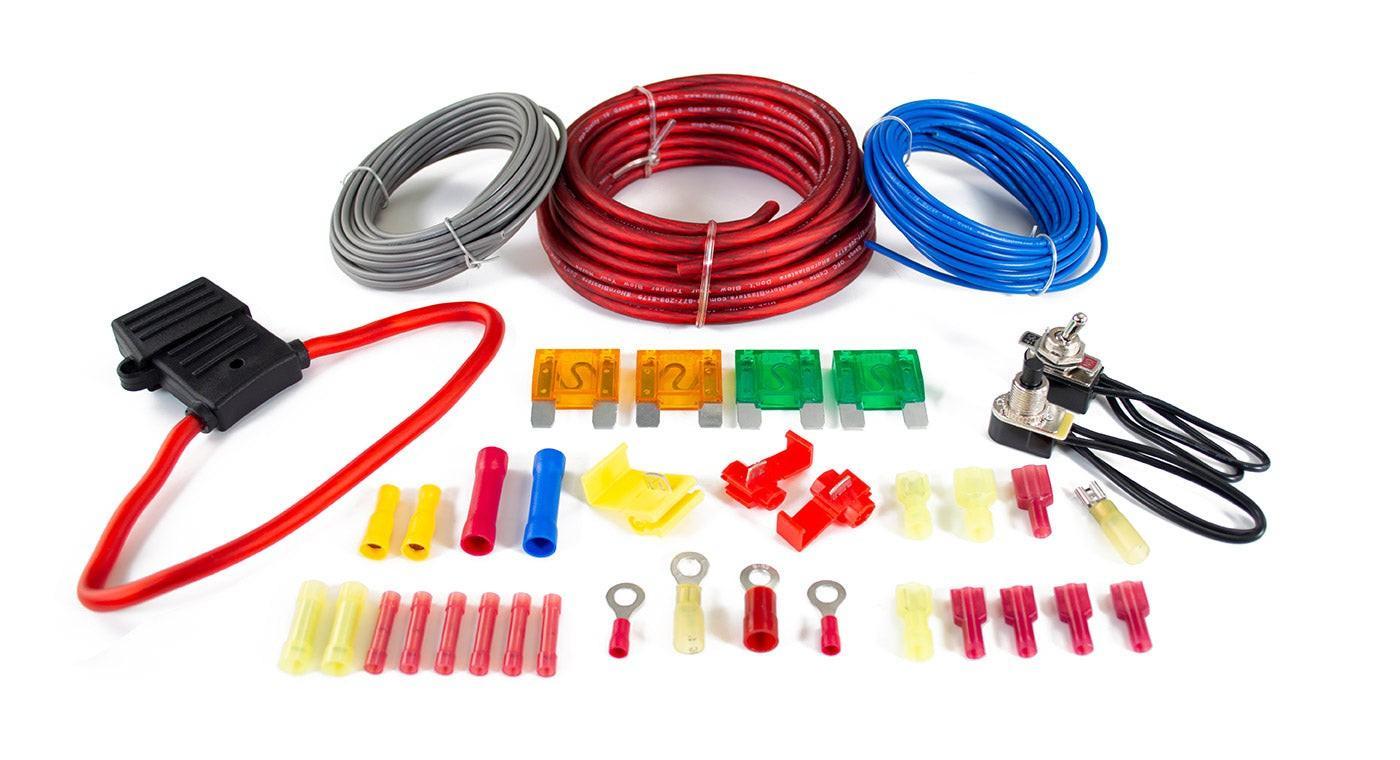

• Complete wiring kit with fuse holder & fuses

• Mounting hardware

• Air line cutter
• Detailed instructions
• Earplugs

• Part Number: HA-2485K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC

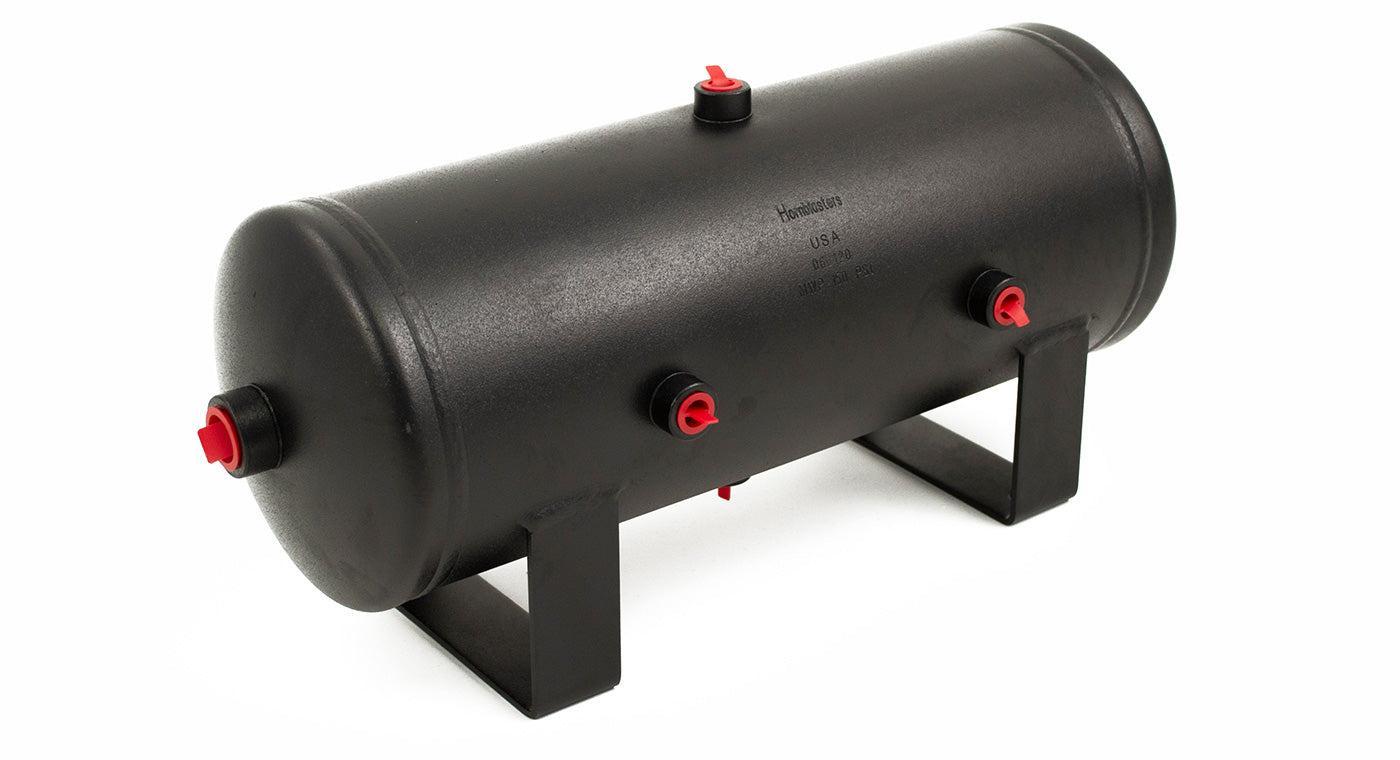

• Air Tank: 2-gallon 6 port air tank
• Tank Length: 17" (431.8 mm)
• Tank Diameter: 6" (152.4 mm)
• Tank Height: 8″ (203.2 mm)(With Legs)
• Tank Weight: 10 lb (4.54 Kg)
• Tank Ports: x2 1/2" NPT, x4 1/4" NPT
• Operating Pressure: 150 PSI

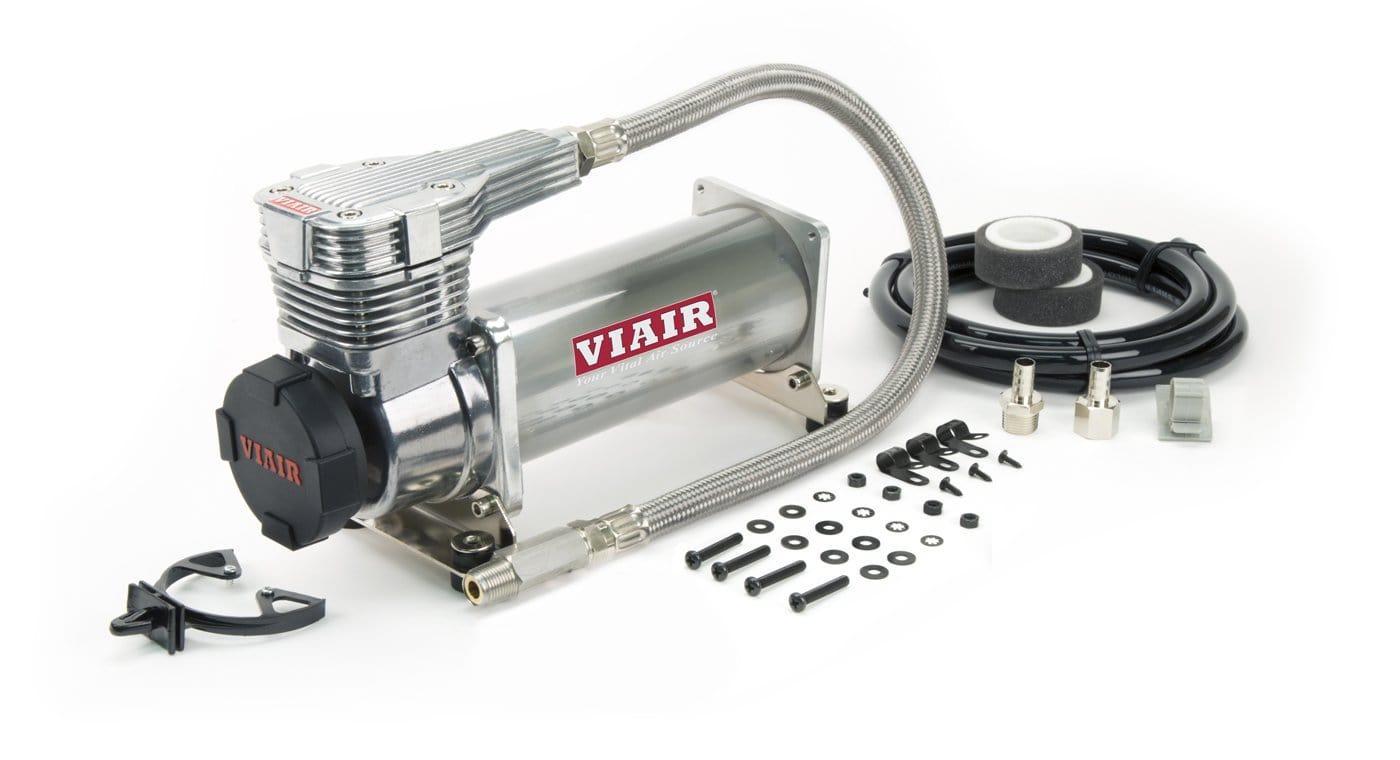

• Air Compressor: Viair 485c air compressor
• Average Fill Time: 1 Min 30 Sec
• Air Flow: 2.24 CFM at Free Flow
• Max Amperage: 23 amps

• Maximum Duty Cycle: 100% @ 200 PSI
• Compressor Length: 10.63″ (270 mm)
• Compressor Width: 4.1″ (104.14 mm)
• Compressor Height: 6.44″ (163.57 mm)

• Viair 485C air compressor manual
• Viair 485C air compressor dimensional drawing
• HornAir 2485K onboard air system instruction manual
• HornAir 2485K air compressor wiring diagram
