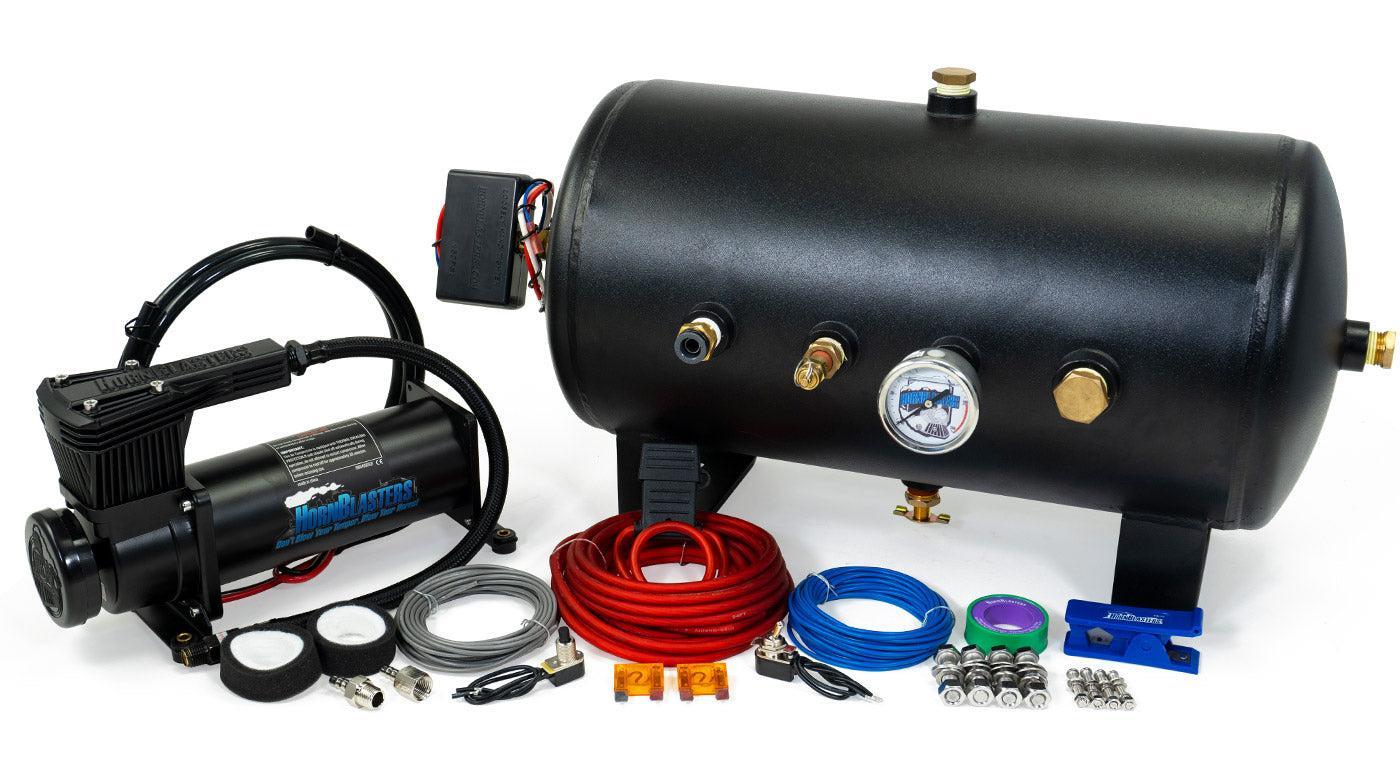

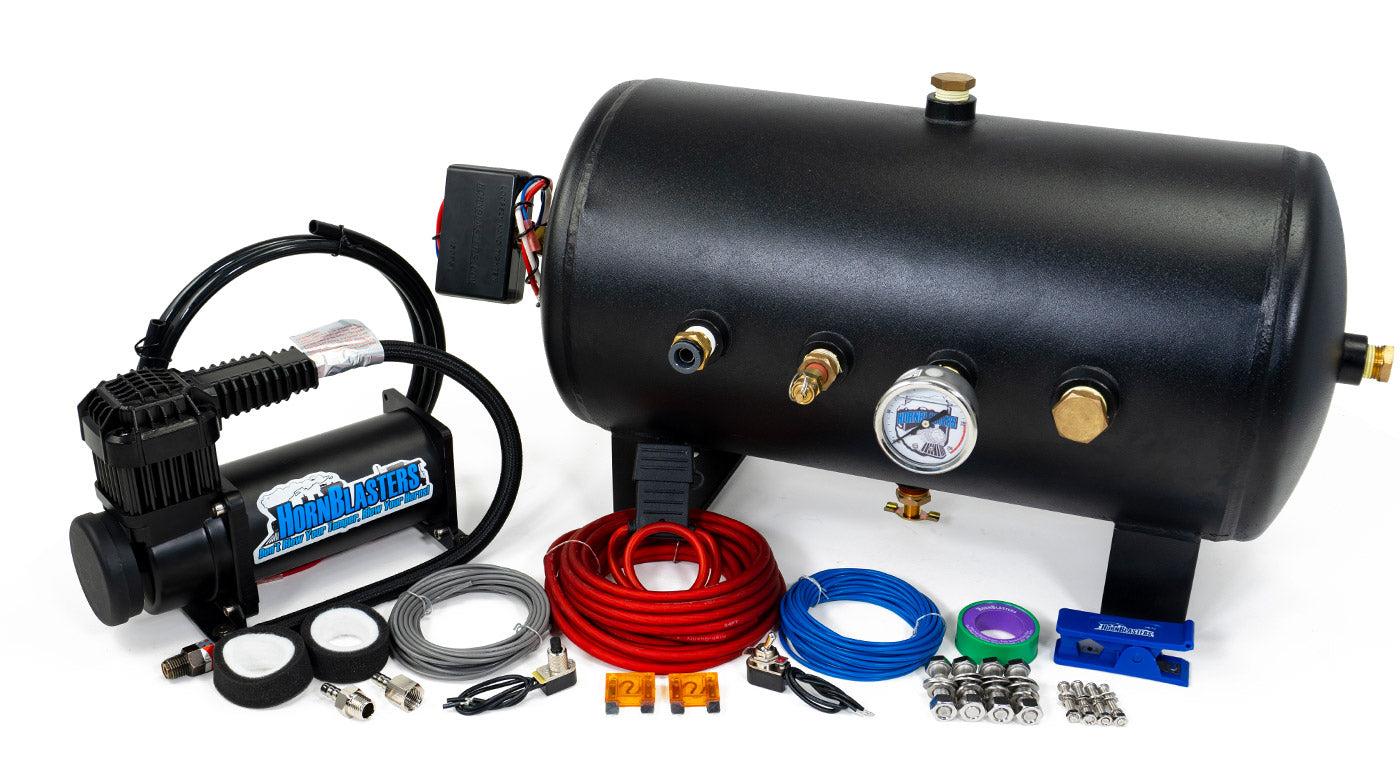

HornAir 5-Gallon Onboard Air System
HornAir 5-Gallon Onboard Air System - Medium-Duty (Honking + Moderate Pneumatic Use) / With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HornAir 5-Gallon Onboard Air System
HornAir 5-Gallon Onboard Air System - Medium-Duty (Honking + Moderate Pneumatic Use) / With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
MORE AIR THAN MICHAEL JORDAN.

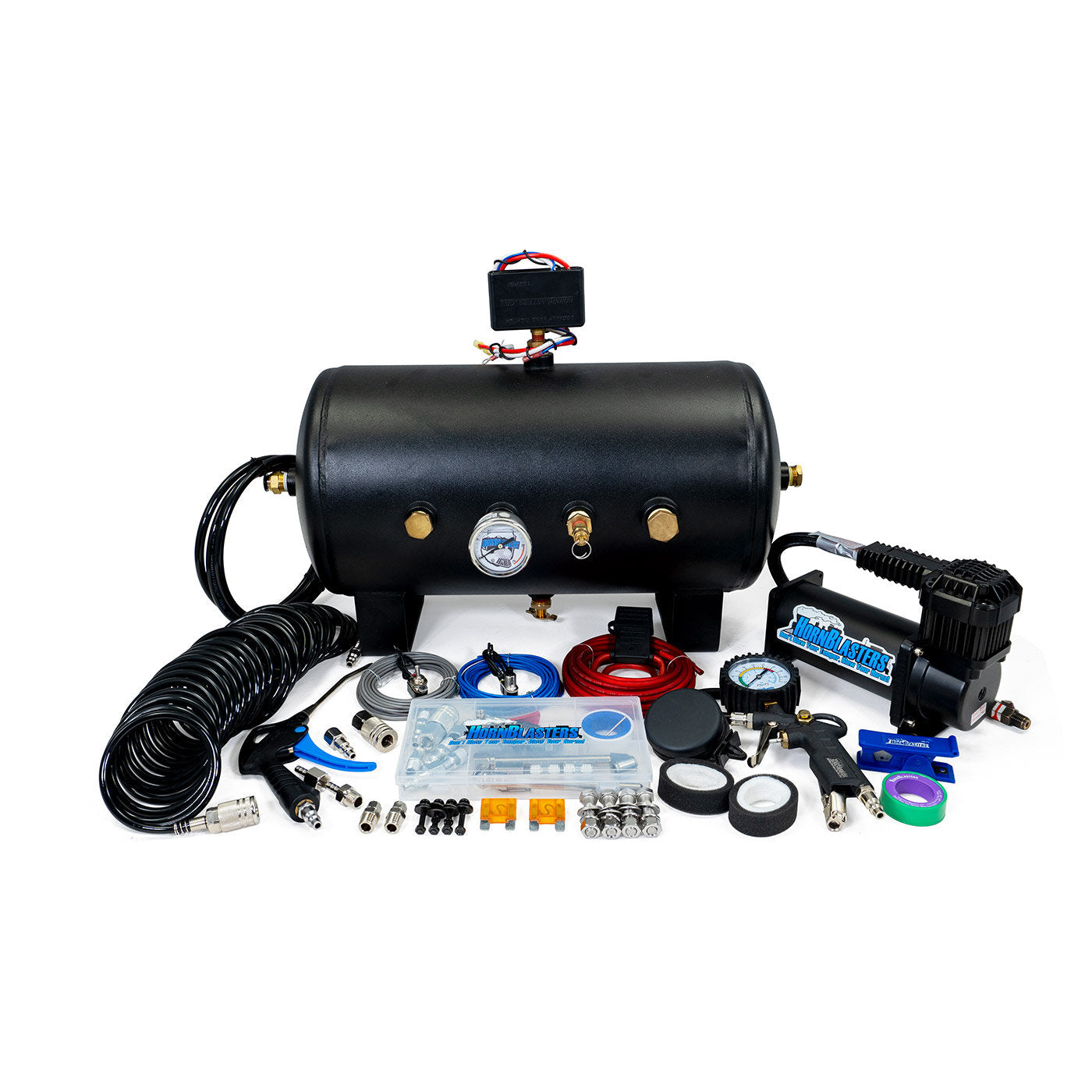

Presenting the HornAir 5HB, a symphony of cutting-edge design and fierce performance! Created for enthusiasts who never settle for less, the 5HB offers a combination of powerful honks and efficient recovery to ensure you never miss a beat.
- Beastly Reservoir: Boasting a spacious 5-gallon air tank, the 5HB ensures you've got the power to roar with honks lasting a commanding 5-7 seconds.
- Designed for the Intense: Perfectly tailored for extreme train horns, this system promises up to roughly 7-12 seconds of honk time with a swift 165-second recovery. Never be caught waiting!
- All-in-One Air Mastery: Our complete kit delivers everything you require: a powerful air compressor, a robust air tank, essential wiring, complete brass fitting kit with a 1/2" Push-to-Pull fitting, and all necessary mounting hardware. One package, zero hassles.
- Precision at its Peak: Monitor your air with pinpoint accuracy using the stainless steel liquid-filled air pressure gauge, ensuring your system's always at its best.
With the HornAir 5HB, you're not just investing in an onboard air system; you're empowering your vehicle with a roar that demands attention. Let the streets know you've arrived. Ready to unleash the beast?
RECOMMENDED FOR USE WITH THE FOLLOWING:
- HORNBLASTERS 5-gallon air tank
- AC-2 air compressor
- 110/150 PSI pressure switch w/ built-in 40 amp relay

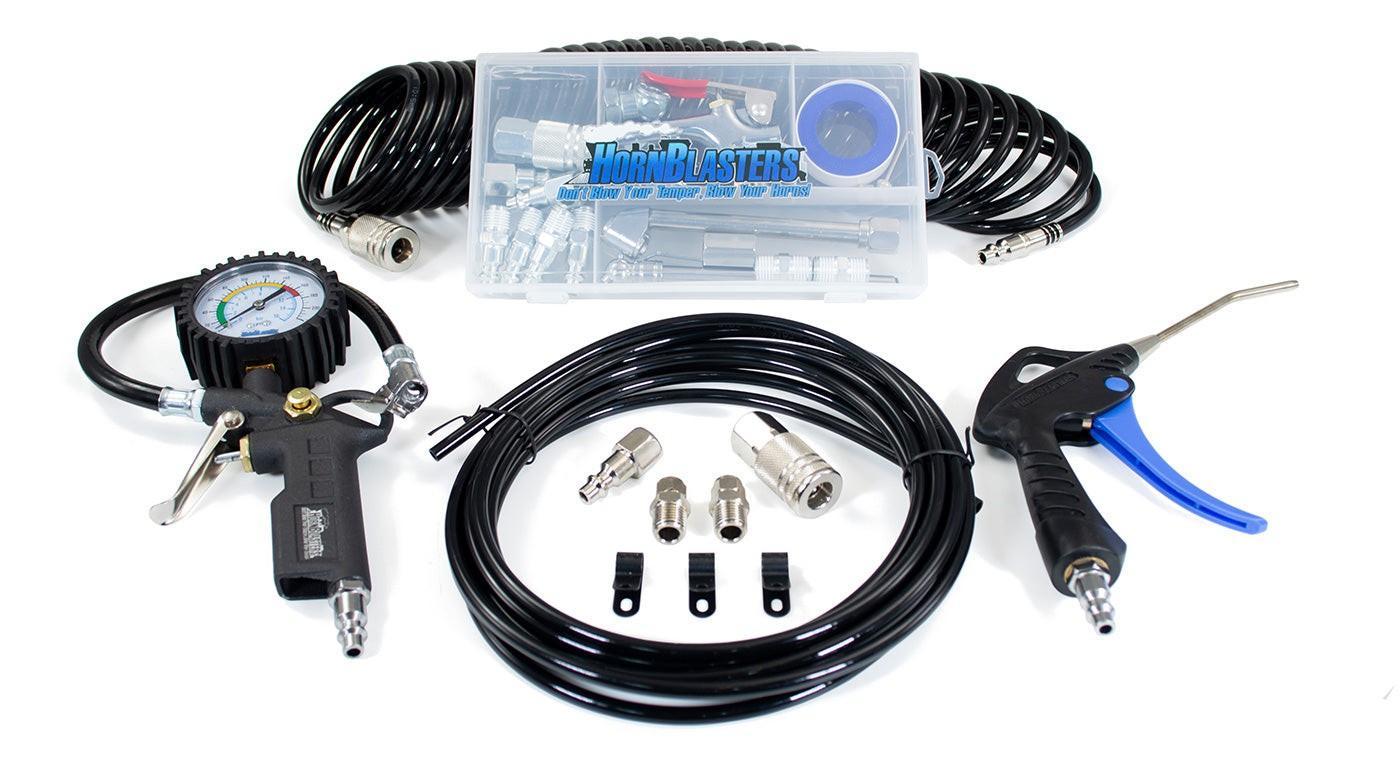

- HORNBLASTERS TIRE INFLATION KIT
- Remote mountable intake filter assembly
- Spare air filter elements
- 6ft ⅜" air line (for air compressors air intake)
- 22ft of red 10-gauge wire
- 22ft of blue 18-gauge wire
- 22ft of grey 18-gauge wire
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fittings kit with safety blow-off & drain cock

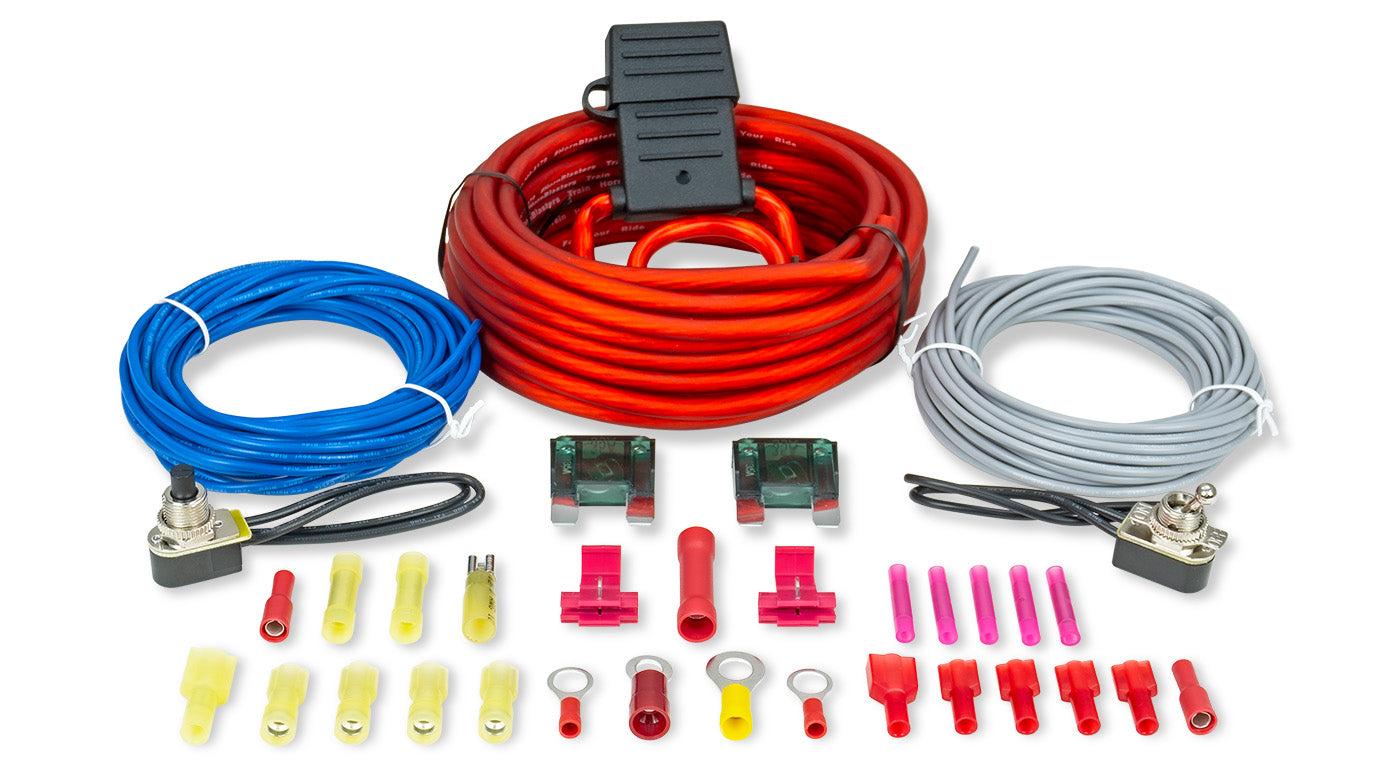

- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
| Air Tank | HornAir 5-gallon air tank |
| Tank Length | 20.5" (520.7 mm) |
| Tank Diameter | 9.5" (241.3 mm) |
| Tank Height (With Legs) | 11.5" (292.1 mm) |
| Tank Weight | 20 lb (9.07 Kg) |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12 volts DC |
| Air Compressor Length | 8.75" (222.25 mm) |
| Air Compressor Width | 4" (101.6 mm) |
| Air Compressor Height | 6.6" (167.64 mm) |
| Max Amp Draw | 25 Amps |
5-Gallon Air Tank Dimensional Drawing
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
This product is backed by our 2-year manufacturer's defect warranty! -
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
5 GALLONS OF AIR POWER.

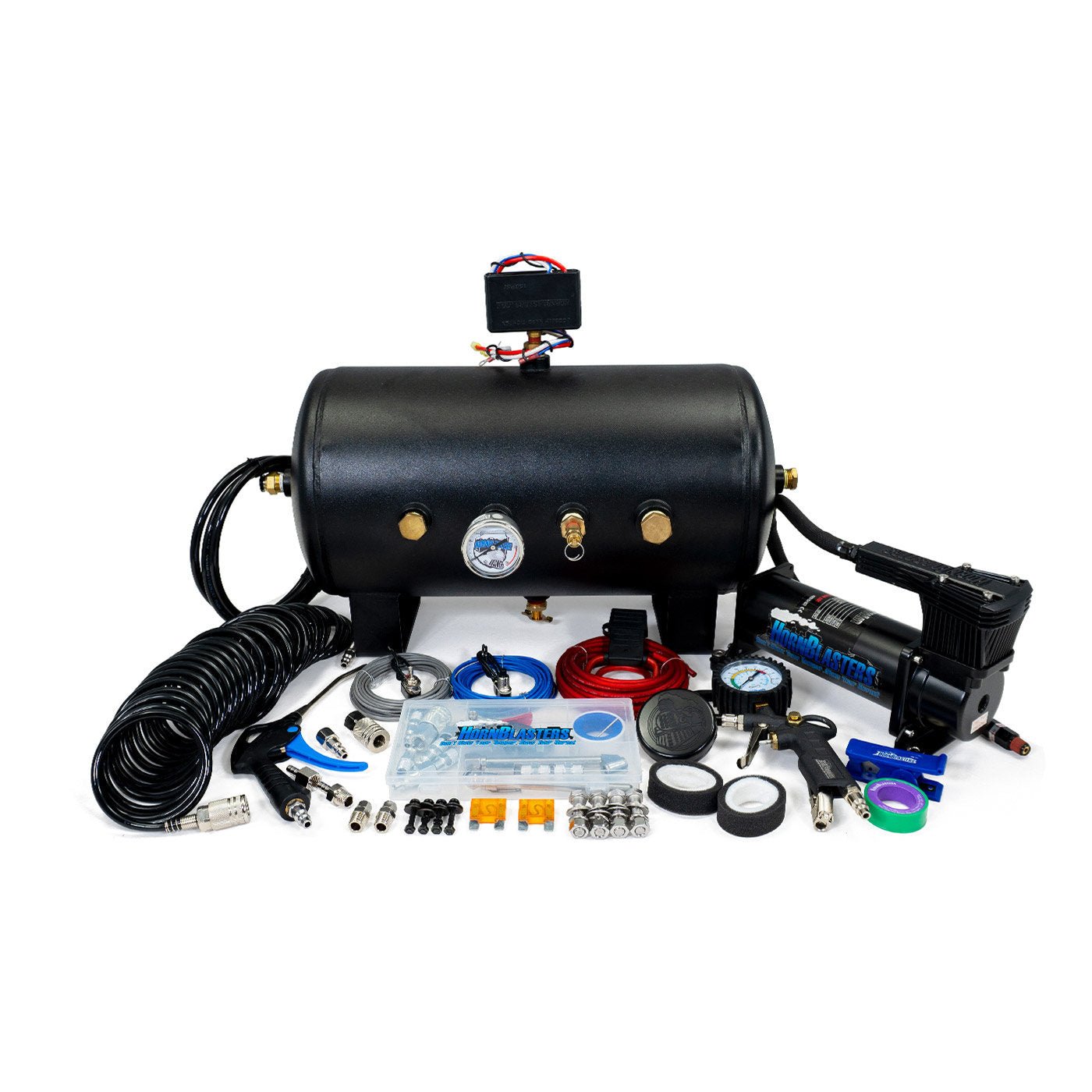

Discover the HornAir 544K, the ideal onboard air system tailored for those who demand reliability without breaking the bank. From train horn enthusiasts to those needing a quick tire top-off, this system promises uncompromised performance.
-
Air Supply Excellence: A 5-gallon tank boasts seven ½-inch ports and an additional ¾ port, crafted for optimal airflow and fuss-free draining.
- Unyielding Work Ethic: The stealthy black 1NM compressor doesn't just look good—it's built for the long haul. Expect unparalleled durability, a 100% duty cycle, and ultra-fast recharge times.
- Versatility at Its Peak: Whether you're making a statement with train horns or simply inflating tires, the HornAir 544K won't let you down.
- Complete Air Mastery: Dive into the world of onboard air effortlessly. Our package ensures you have everything at your fingertips, creating a seamless air experience.
Choose the HornAir 544K for a potent mix of power, versatility, and trustworthy performance. It's not just an air system—it's a commitment to excellence!
RECOMMENDED FOR USE WITH THE FOLLOWING:

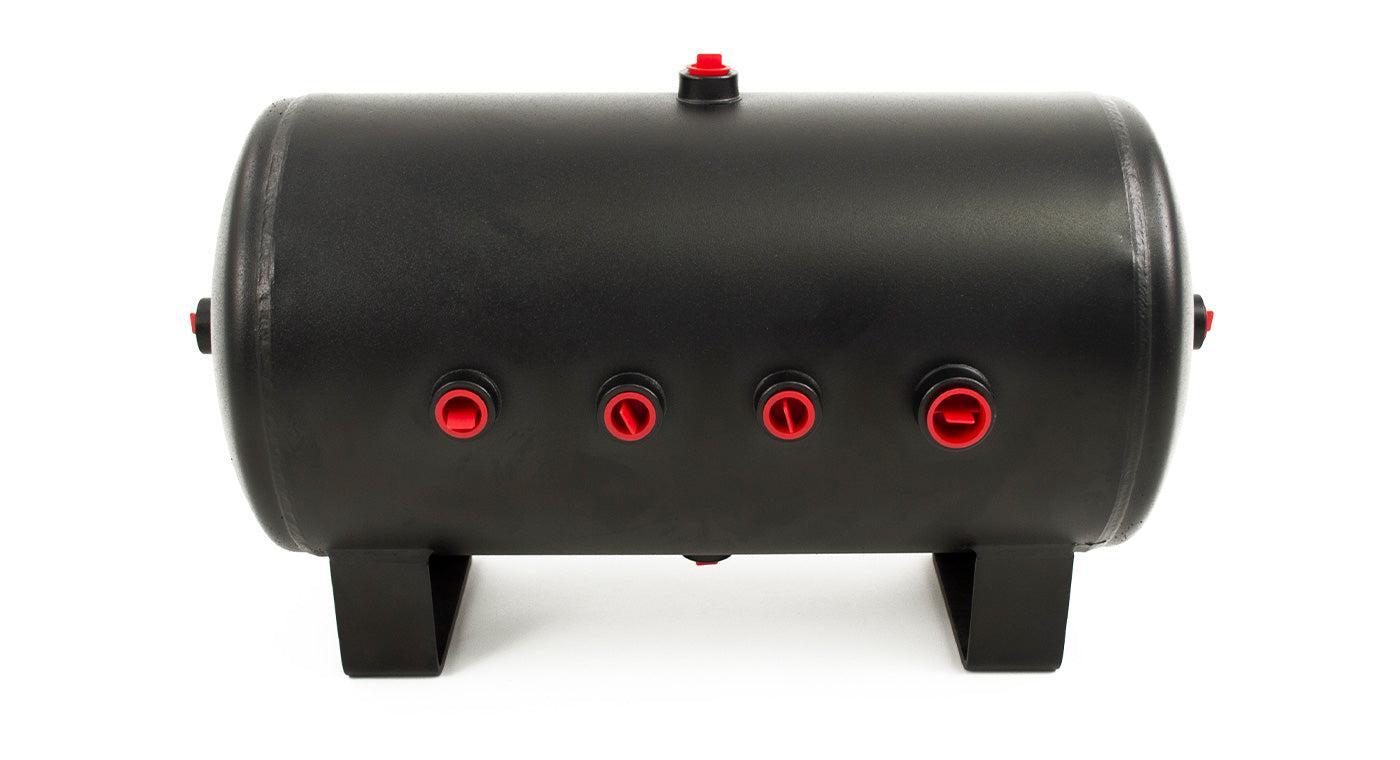

- HORNBLASTERS 5-gallon 8 port air tank

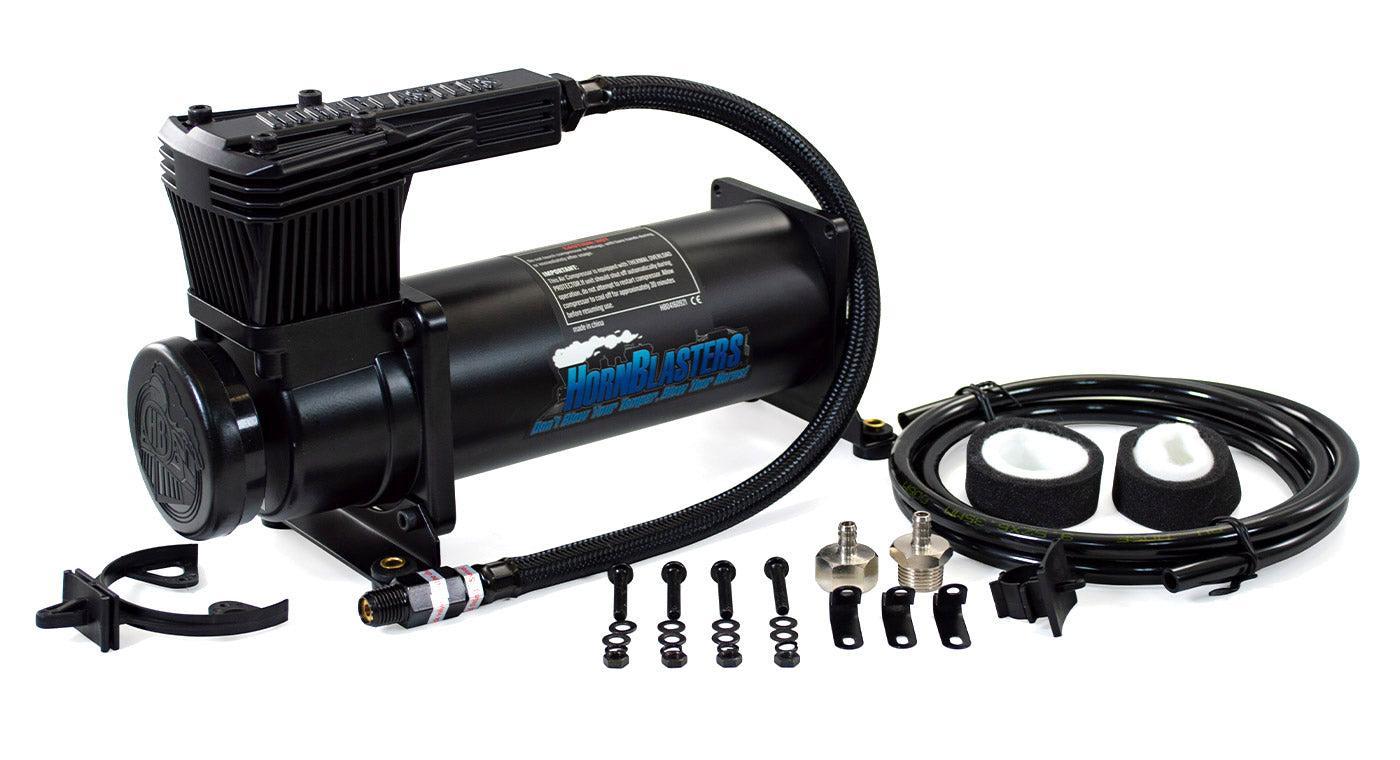

- HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
- 110/150 PSI pressure switch WITH 40 AMP RELAY
- HORNBLASTERS TIRE INFLATION KIT
- Remote mountable intake filter assembly
- Spare air filter elements
- 6ft of 3/8" air line (for air compressors air intake)
- 22ft of red 8-gauge wire
- 22ft of blue 18-gauge wire
- 22ft of grey 18-gauge wire
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fitting kit with safety blow-off & drain cock
- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutters
- Detailed instructions
- Earplugs
| Part Number | HA-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Air Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5" (520.7 mm) |
| Tank Diameter | 9.5" (241.3 mm) |
| Tank Height (With Legs) | 11.5" (292.1 mm) |
| Tank Weight | 20 lb (9.07 Kg) |
| Leader Hose/Check Valve | 1/4" NPT |
| Max amperage | 25 Amps |
| Maximum duty cycle | 100% @ 100 PSI |
| Flow Rate @ 0 PSI | 1.75 CFM |
| Compressor length | 10.75″ (273.05 mm) |
| Compressor width | 4″ (101.6 mm) |
| Compressor height | 6.75″ (171.45 mm) |
| Weight | 10.1 lb (4.58 Kg) |
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
5-Gallon Air Tank Dimensional Drawing
-
