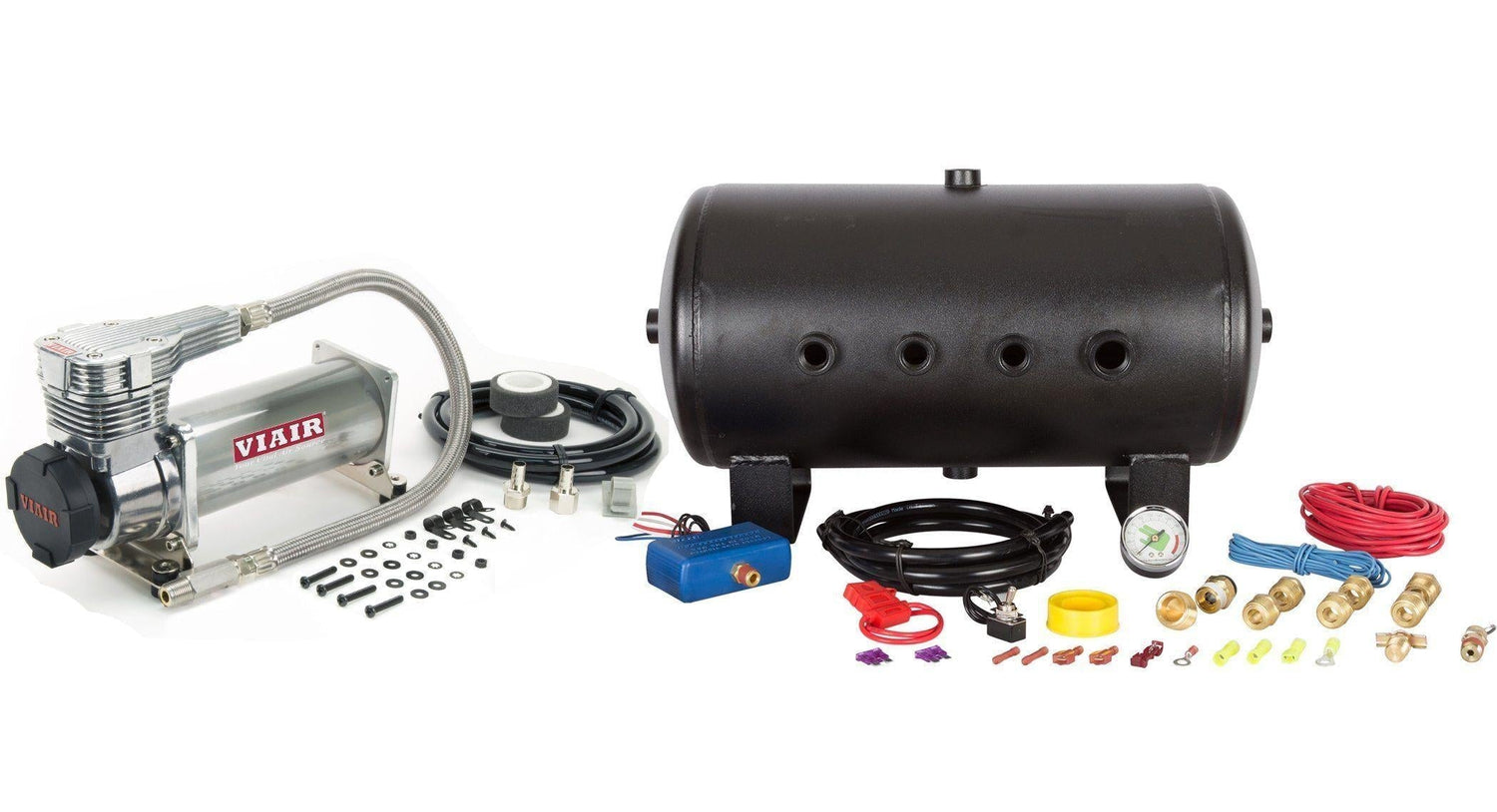

HornAir 5485 Platinum Onboard Air System
HornAir 5485 Platinum Onboard Air System is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
HornAir 5485 Platinum Onboard Air System
HornAir 5485 Platinum Onboard Air System is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
This model has been discontinued. You can find similar models here!
This kit is not to be underestimated. Despite it being a 5-gallon (18.92 liters) reservoir, the included air pump is a powerhouse. This oversized pump can handle up to 5 gallons of air and will provide all the air you need.
This package is perfect for filling upload leveling air springs. If your truck has air springs without a compressor setup, this is the perfect compliment. Also perfect for air tools or other Pneumatic Uses. Please note that if you use horns, you will still need an air valve kit to connect the system properly.
Unlike some other air systems, HornAir kits come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.
An increasing number of people are using this for more than just blasting horns! With a system like the 5485, you can also use the air supply to:
- Adjust Tire Pressure
- Moderate Pneumatic Use
- Inflate Water Toys and Safety Gear
- Supply Air to Load Leveling Bags
- Supply Air for Differential Lockers
- Blow up Kids Toys
- And lots more!
RECOMMENDED FOR USE WITH THE FOLLOWING:
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 7 min. 15 sec. (± 15 sec.) |
| 110 to 150 PSI | 1 min. 50 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Designed For Extreme Train Horns
- All-inclusive Train Horn Air Solution!
- Top-End 200 PSI Compressor Perfect For Train Horns
- Comes With Standard 1/2" Push-to-Pull Fitting
- Complete Fitting Kit With Safety Valve & Drain Cock
- All Standard Mounting Hardware
- Horn Air 5 Gallon Air Tank
- Viair 485C Platinum Air Compressor
- Viair 110/150 PSI Pressure Switch
- Remote Mountable Intake Filter Assembly
- Air Filter Cartridges
- 6ft ⅜in Air Line (For Compressor Intake)
- 17 ft of 10ga & 18ga Gauge Power Wire
- HornBlasters 200 PSI Air Gauge
- Brass NPT Fittings Kit Including Safety Valve and Blowoff
- Wiring & Plumbing Kit
- Compressor Mounting Hardware
- Detailed Instructions
- Earplugs
- Tank: HornAir 5 Gallon Tank
- Tank Length: 20.5″ (520.7 mm)
- Tank Diameter: 9.5″ (241.3 mm)
- Tank Height: 11.5″ (292.1 mm) (With Legs)
- Tank Weight: 20 lb (9.07 Kg)
- Compressor: Viair 485c Platinum Air Compressor
- Average Fill Time: 1 Min 30 Sec
- Voltage: 12 volts DC
- Air Flow: 2.24 CFM at Free Flow
-
Max Amperage: 23 amps
- Maximum Duty Cycle: 100% @ 200 PSI
- Maximum Working Pressure: 200 PSI
- Compressor Length: 10.63″ (270 mm)
- Compressor Width: 4.1″ (104.14 mm)
- Compressor Height: 6.44″ (163.57 mm)
5-Gallon Air Tank Dimensional Drawing
-
