Hotchkis 64-72 GM A-Body Lower A-Arms

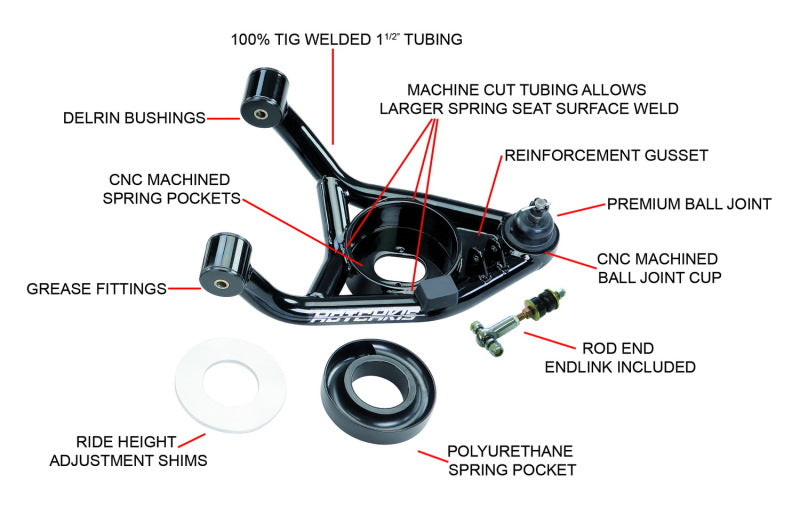

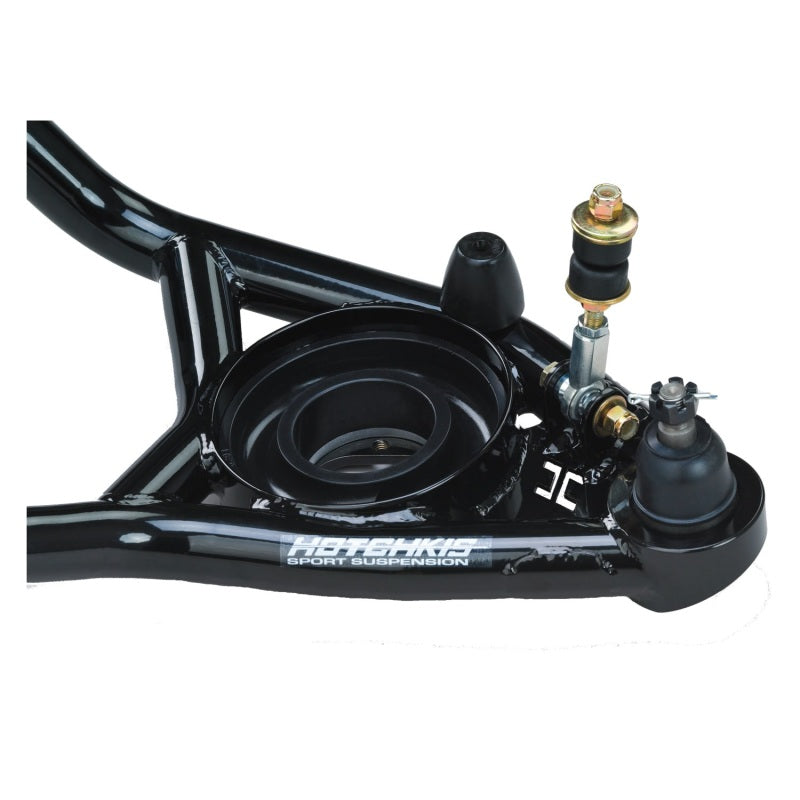

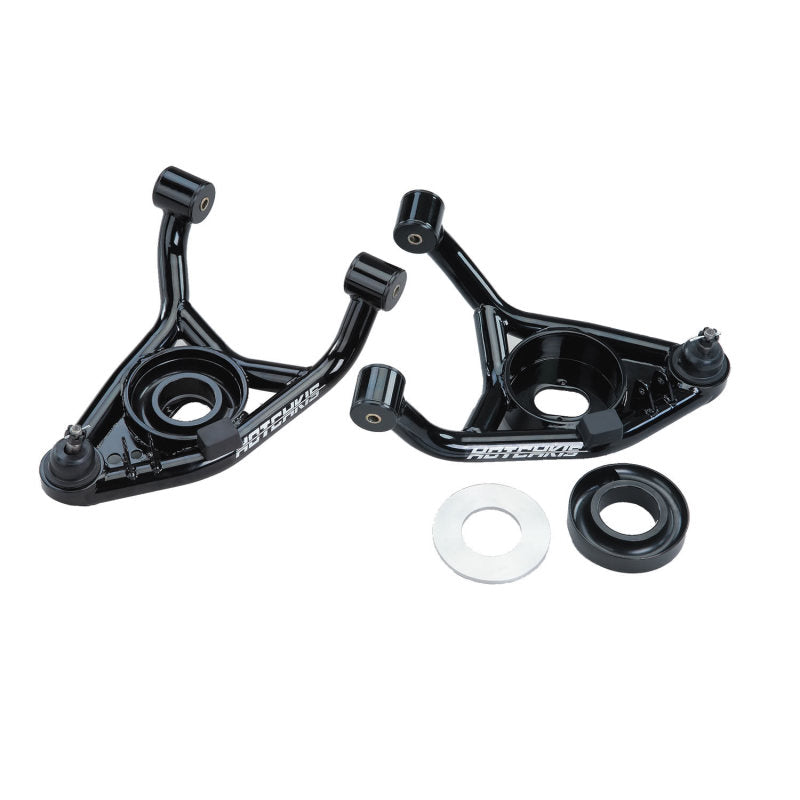

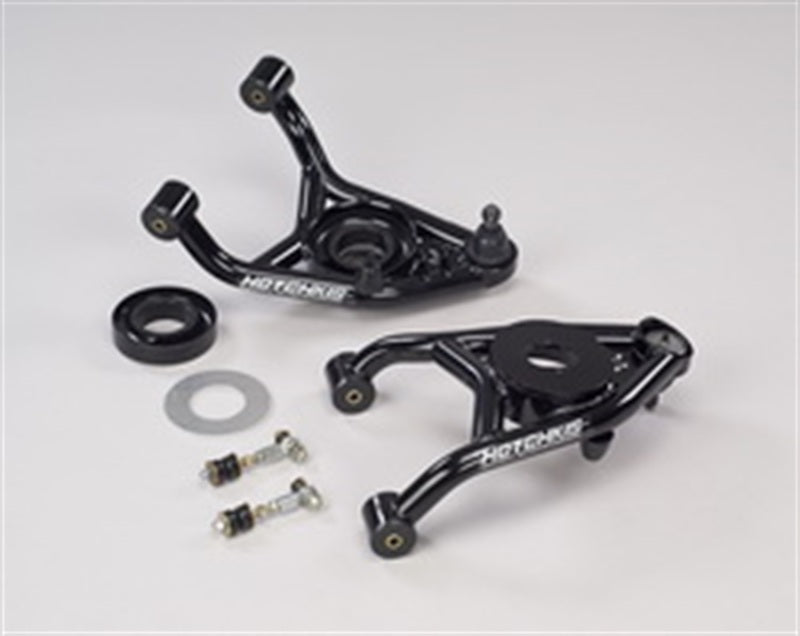

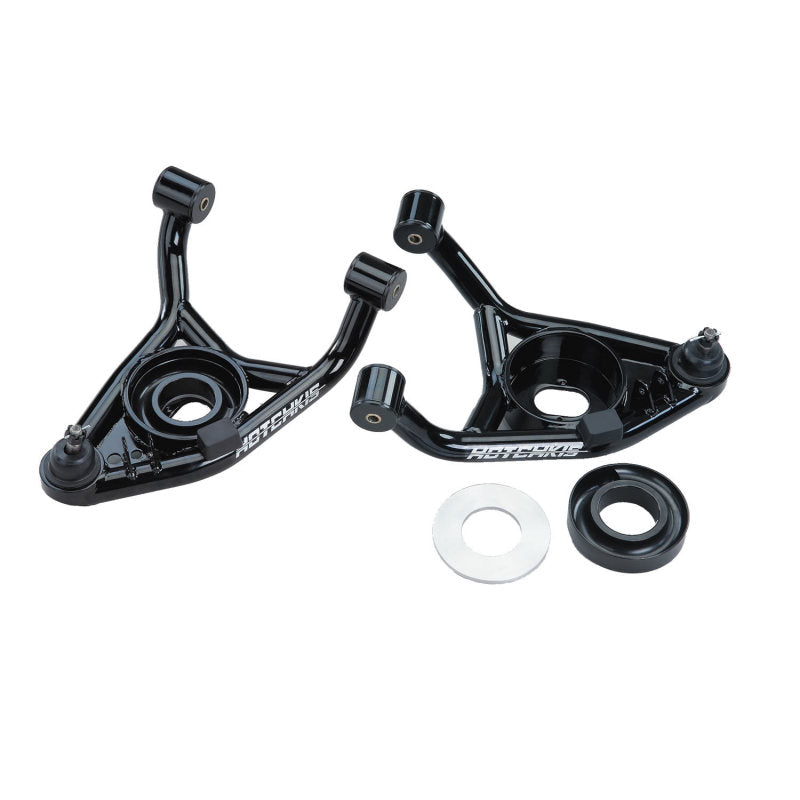

Hotchkis Sport Suspension 1104 1964-1972 GM A-Body Tubular Lower Control Arms. Install the Geometry Corrected Hotchkis Tubular Lower A-Arms on your 64-72 GM A-Body including Chevelle El Camino GTO and 442 and gain vastly increased handling and control. These TIG-welded bolt-on control arms offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the control arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Tubular Upper A-Arms. Features: 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims. Polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo. Gloss black powder coat finish. Includes Rod End style end links. Benefits: CAD designed and analyzed by FEA software for ultimate strength. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Want to learn more about A-Arms? Visit our FAQ at www.hotchkis.net
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1967-1972	Oldsmobile	Cutlass Supreme	Base
1964-1972	Oldsmobile	F85	Base
1964-1966	Oldsmobile	F85	Deluxe
1966	Oldsmobile	F85	Holiday
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1964-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970,1973	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1963-1965,1968-1969	Pontiac	Tempest	Safari
