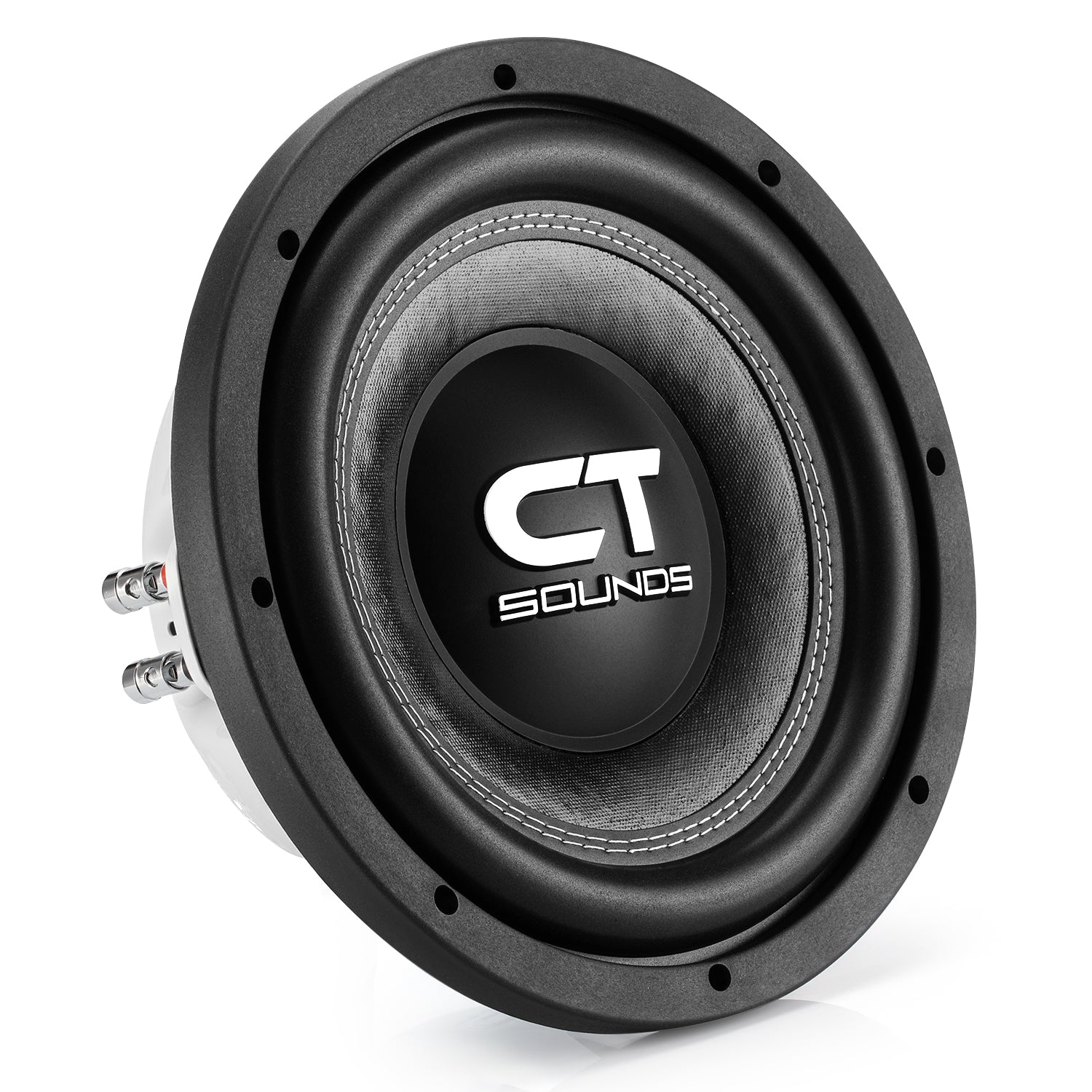

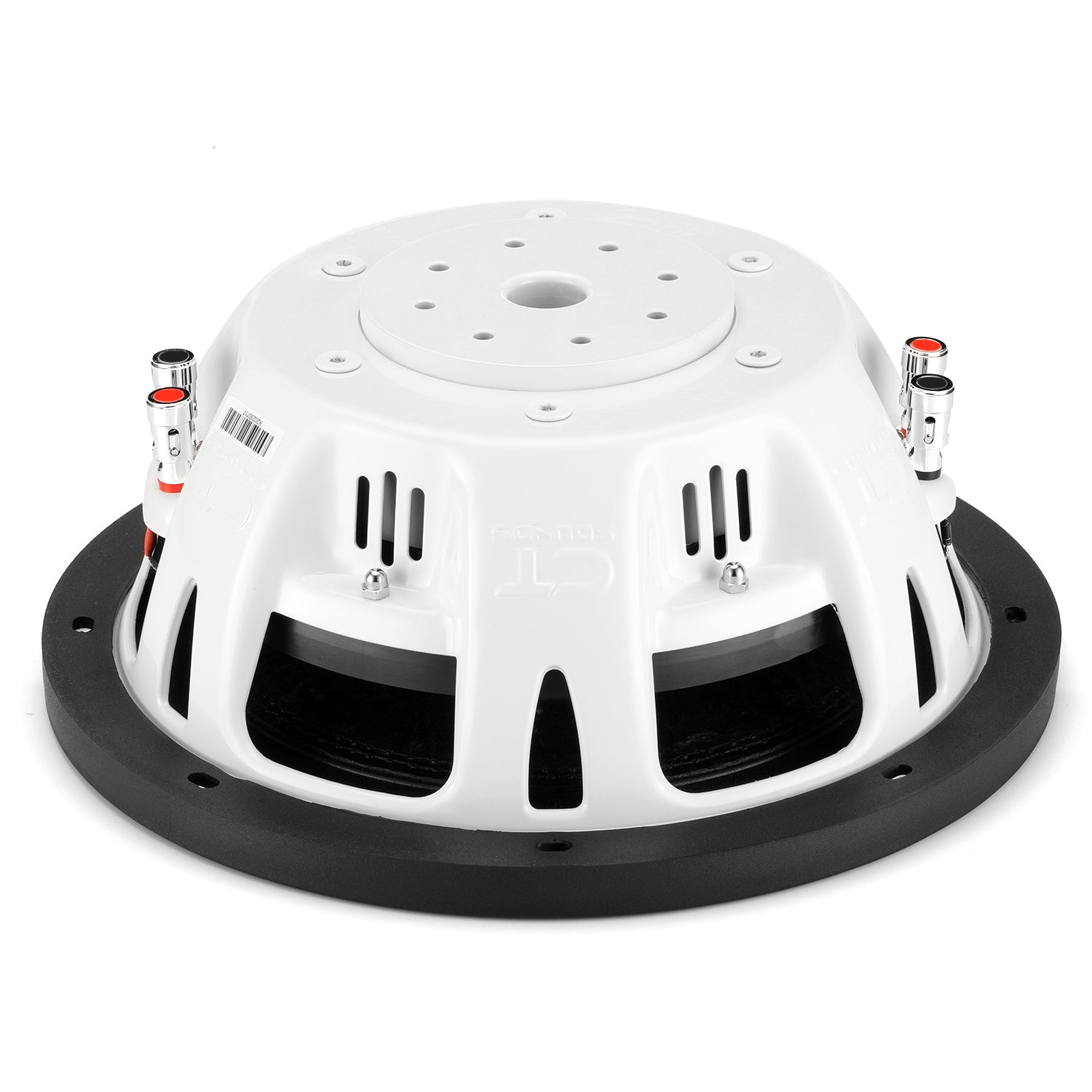

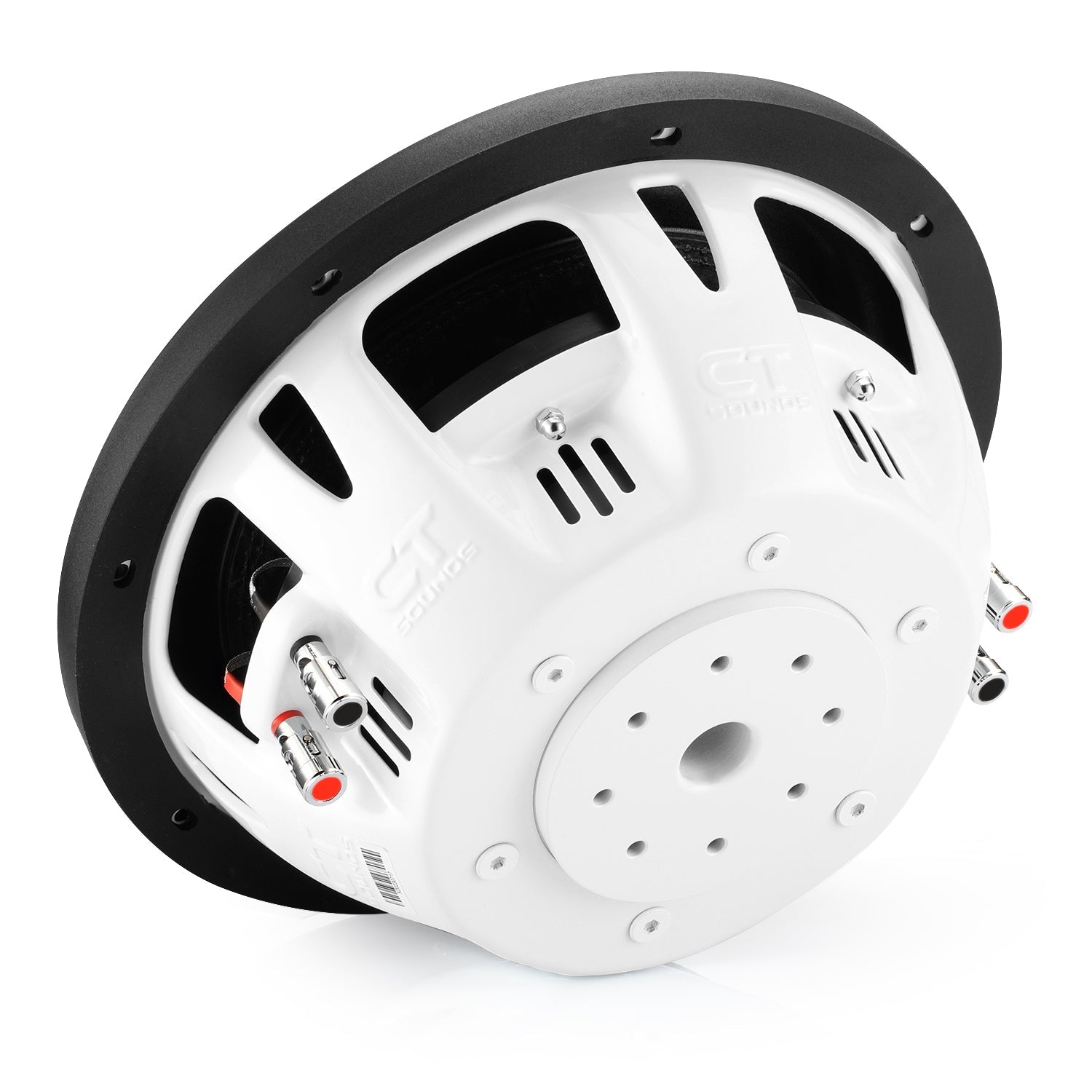

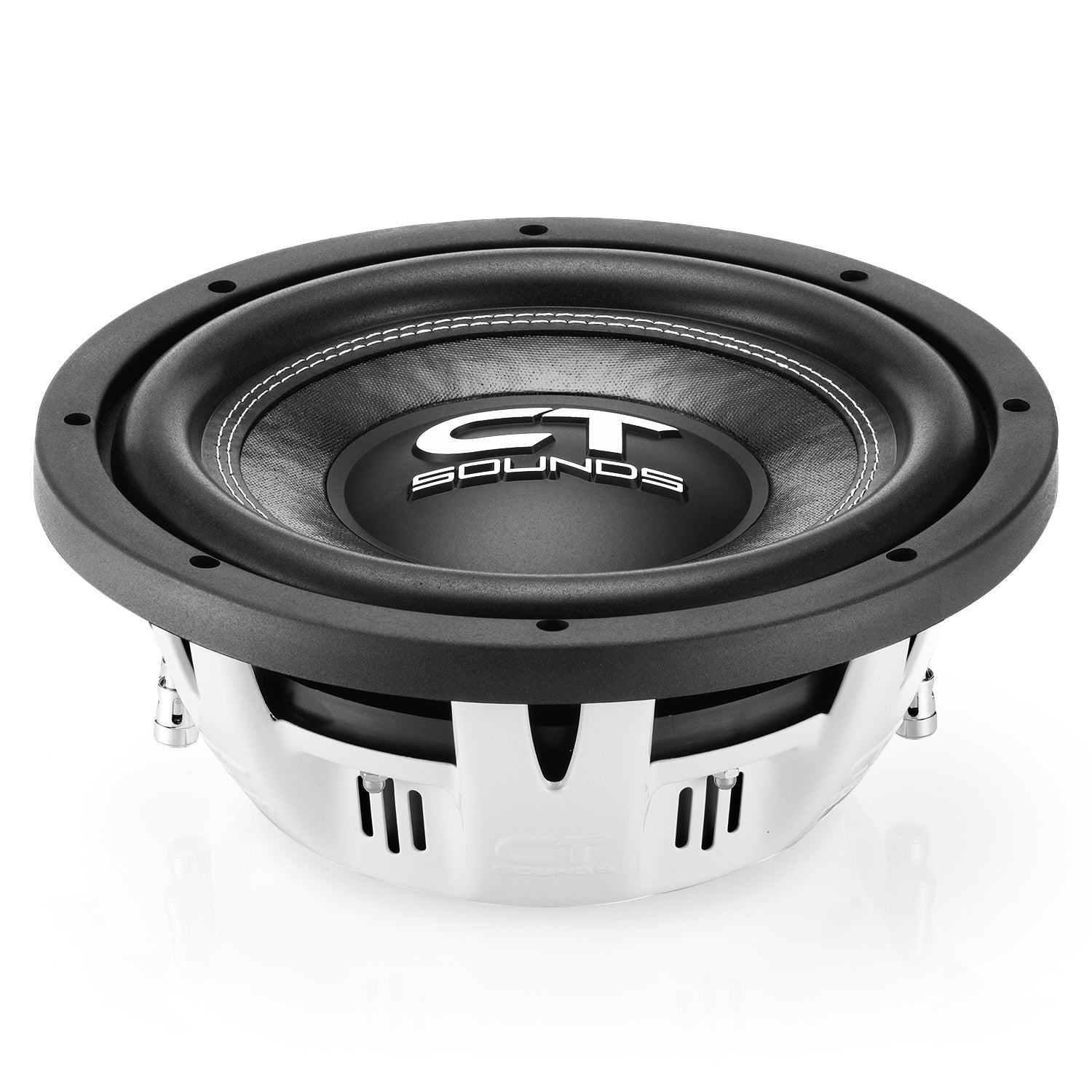

HYDRO-10 // 500 Watts RMS 10 Inch Shallow-Mount Subwoofer
HYDRO-10 // 500 Watts RMS 10 Inch Shallow-Mount Subwoofer - DUAL 2 OHM is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 500-watt 10” shallow-mount subwoofer with a mounting depth below 4” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.
| Quick Facts: | |
| RMS Power: | 500 Watts |
| MAX Power: | 1000 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Use Cases: | Sealed & Ported Enclosures |
Our 1st prototype utilized a 61.1 mm voice coil & 50 oz magnet resulting in a high QES rating of 0.915 and low EBP of 39.46. The 2nd prototype utilized a 50.8 mm voice coil & 50 oz magnet resulting in a slightly lower QES rating of 0.736 and a slightly higher EBP of 49.27. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 4”.
The 3rd and final prototype uses a 61.1 mm voice coil & 70 oz magnet resulting in a reduced QES rating of 0.504 and a balanced EBP of 76.29. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is a 10” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 10" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 500 Watts |
| MAX Power: | 1000 Watts |
| Voice Coil Type: | 2.40 Inch - 4 Layer High-Temperature Copper Voice Coil |
| Magnet Type: | Y35 |
| Bottom Plate Type: | Low Carbon Iron |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 3% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Single Braided Flat Copper Tinsel Leads |
| Terminal Type: | 12 Gauge Push Terminals |
| Basket Type: | Stamped Steel |
| Spider Material: | Poly-Cotton Blend |
| T/S Parameters: | |
| Qes: | 0.504 |
| Qms: | 5.837 |
| Qts: | 0.465 |
| Fs: | 38.45 Hz |
| Vas: | 19.878 L |
| Mms: | 152.787 g |
| Cms: | 0.112 m/N |
| Re: | 3.9 Ω |
| Bl: | 16.889 Tm |
| Le: | / |
| Sd: | 356 cm² |
| Xmax - Single Way (mm): | 10 mm |
| Xmax - Single Way (cm): | 1 cm |
| Vd (Sd*Xmax): | 356 cm² |
| SPL: | 85.52 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 9.3" |
| Overall diameter | 10.86" |

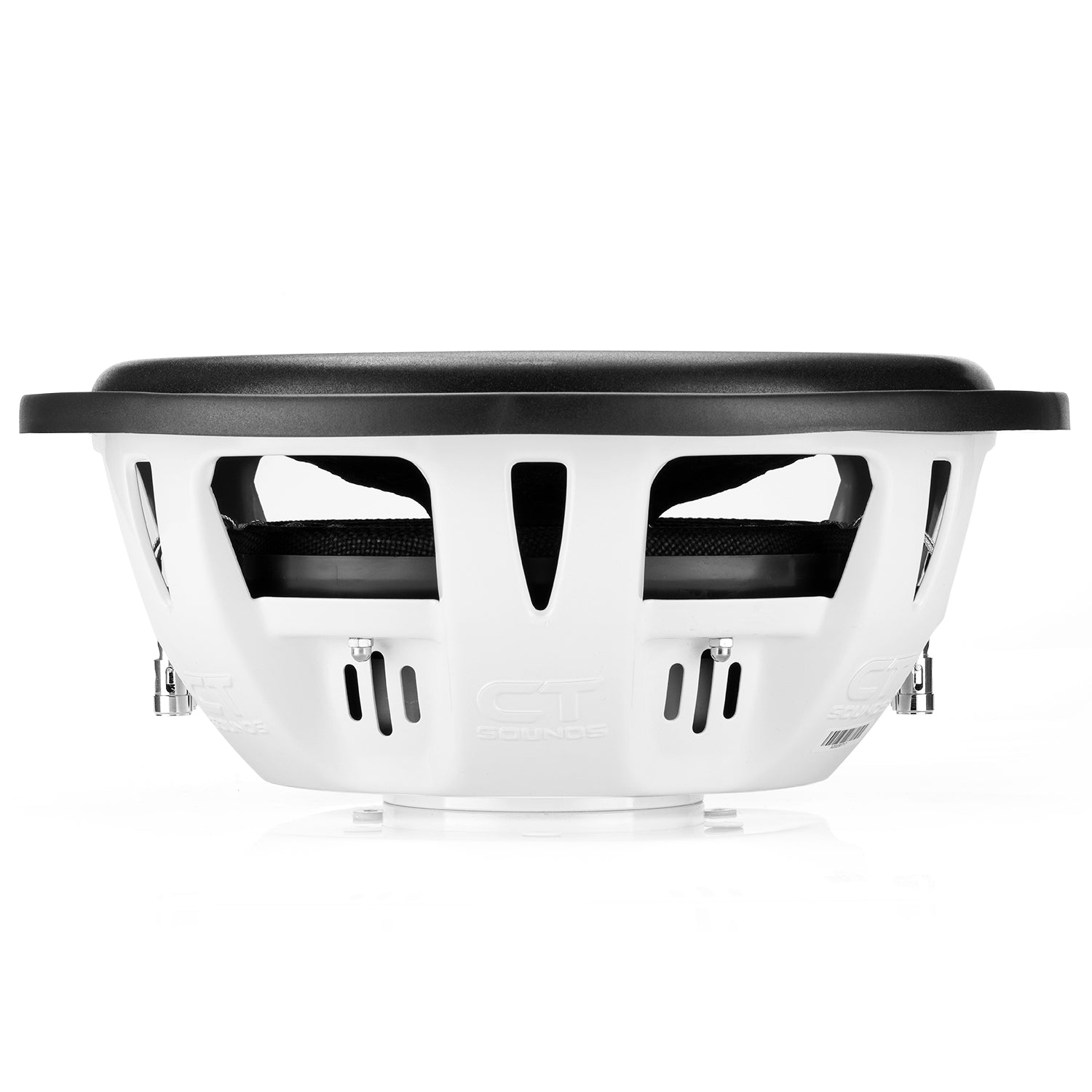

| Mounting depth | 3.89" |
| Box Specifications: | |
| Displacement | 0.04 ft3 |
| Box Recommendations: | |
| Sealed | 0.5 ft3 |
| Ported | 1 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 16 in2 |
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 500-watt 10” shallow-mount subwoofer with a mounting depth below 4” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.
| Quick Facts: | |
| RMS Power: | 500 Watts |
| MAX Power: | 1000 Watts |
| Coil Configuration: | Dual 4 Ohm |
| Use Cases: | Sealed & Ported Enclosures |
Our 1st prototype utilized a 61.1 mm voice coil & 50 oz magnet resulting in a high QES rating of 1.03 and low EBP of 38.22. The 2nd prototype utilized a 50.8 mm voice coil & 50 oz magnet resulting in a slightly lower QES rating of 0.831 and a slightly higher EBP of 47.37. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 4”.
The 3rd and final prototype uses a 61.1 mm voice coil & 70 oz magnet resulting in a reduced QES rating of 0.569 and a balanced EBP of 69.19. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is a 10” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 10" |
| Voice Coil Configuration: | Dual 4 Ohm |
| RMS Power: | 500 Watts |
| MAX Power: | 1000 Watts |
| Voice Coil Type: | 2.40 Inch - 4 Layer High-Temperature Copper Voice Coil |
| Magnet Type: | Y35 |
| Bottom Plate Type: | Low Carbon Iron |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 3% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Single Braided Flat Copper Tinsel Leads |
| Terminal Type: | 12 Gauge Push Terminals |
| Basket Type: | Stamped Steel |
| Spider Material: | Poly-Cotton Blend |
| T/S Parameters: | |
| Qes: | 0.569 |
| Qms: | 5.762 |
| Qts: | 0.518 |
| Fs: | 39.37 Hz |
| Vas: | 20.596 L |
| Mms: | 140.610 g |
| Cms: | 0.116 m/N |
| Re: | 6.6 Ω |
| Bl: | 20.089 Tm |
| Le: | / |
| Sd: | 356 cm² |
| Xmax - Single Way (mm): | 10 mm |
| Xmax - Single Way (cm): | 1 cm |
| Vd (Sd*Xmax): | 356 cm² |
| SPL: | 85.47 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 9.3" |
| Overall diameter | 10.86" |
| Mounting depth | 3.89" |
| Box Specifications: | |
| Displacement | 0.04 ft3 |
| Box Recommendations: | |
| Sealed | 0.5 ft3 |
| Ported | 1 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 16 in2 |
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
