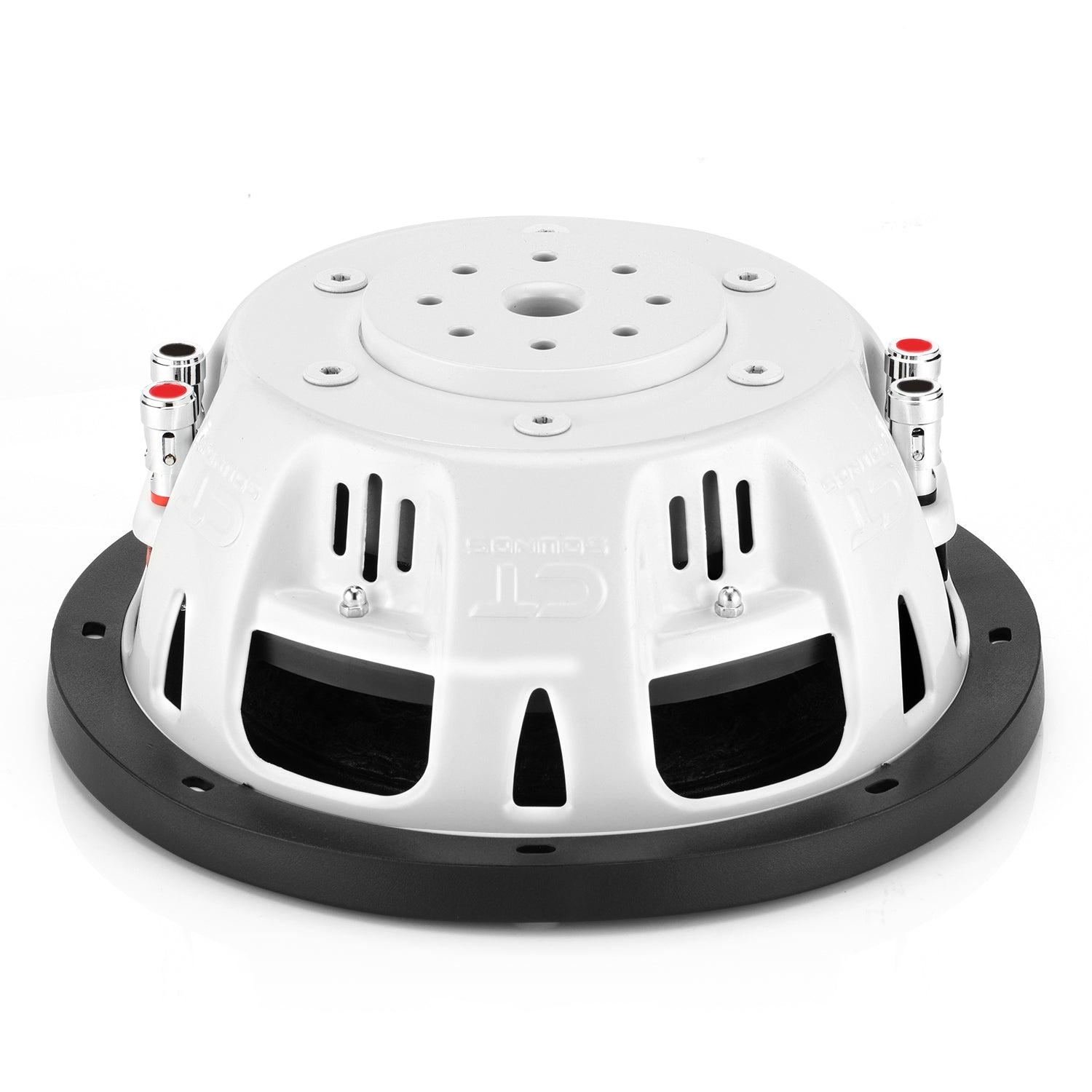

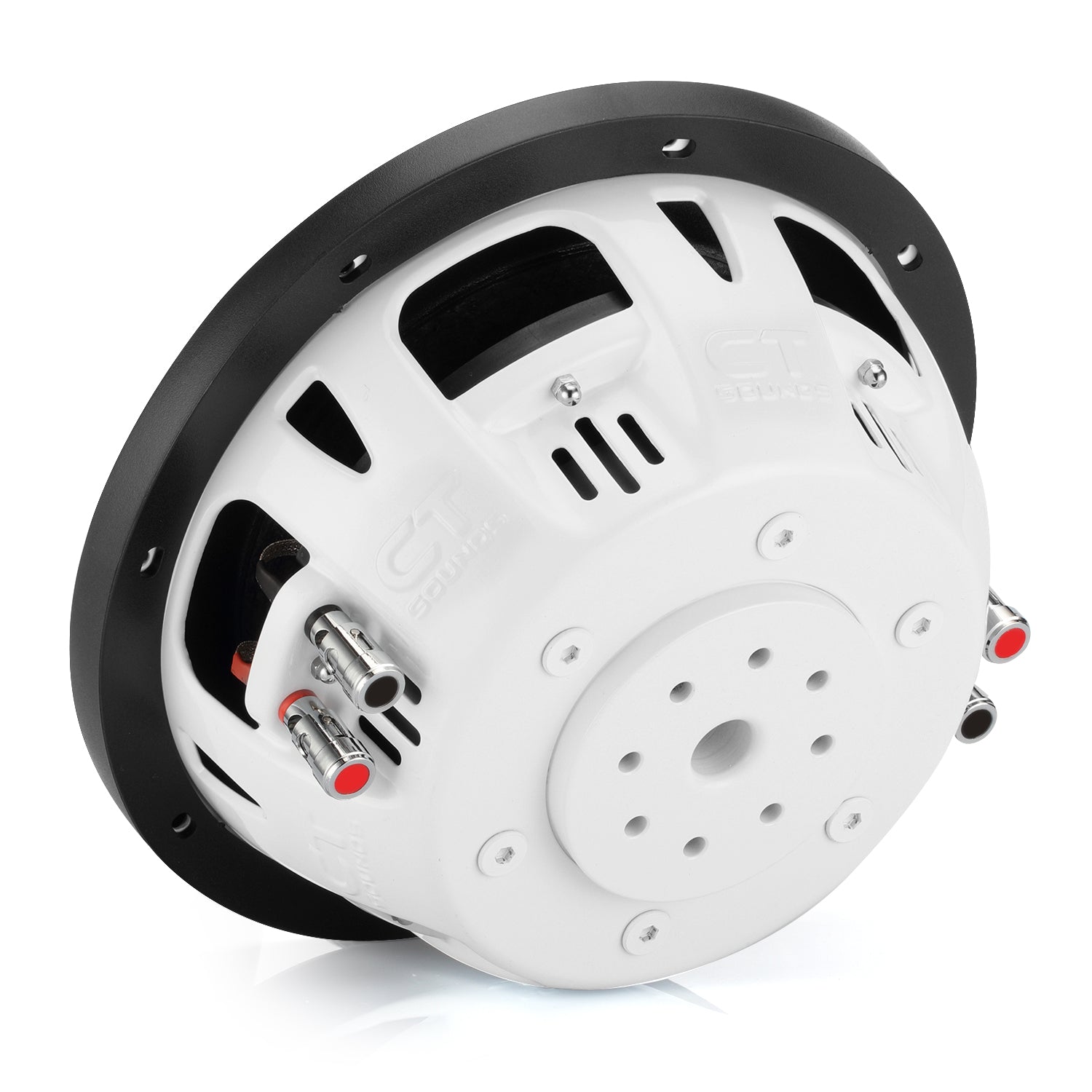

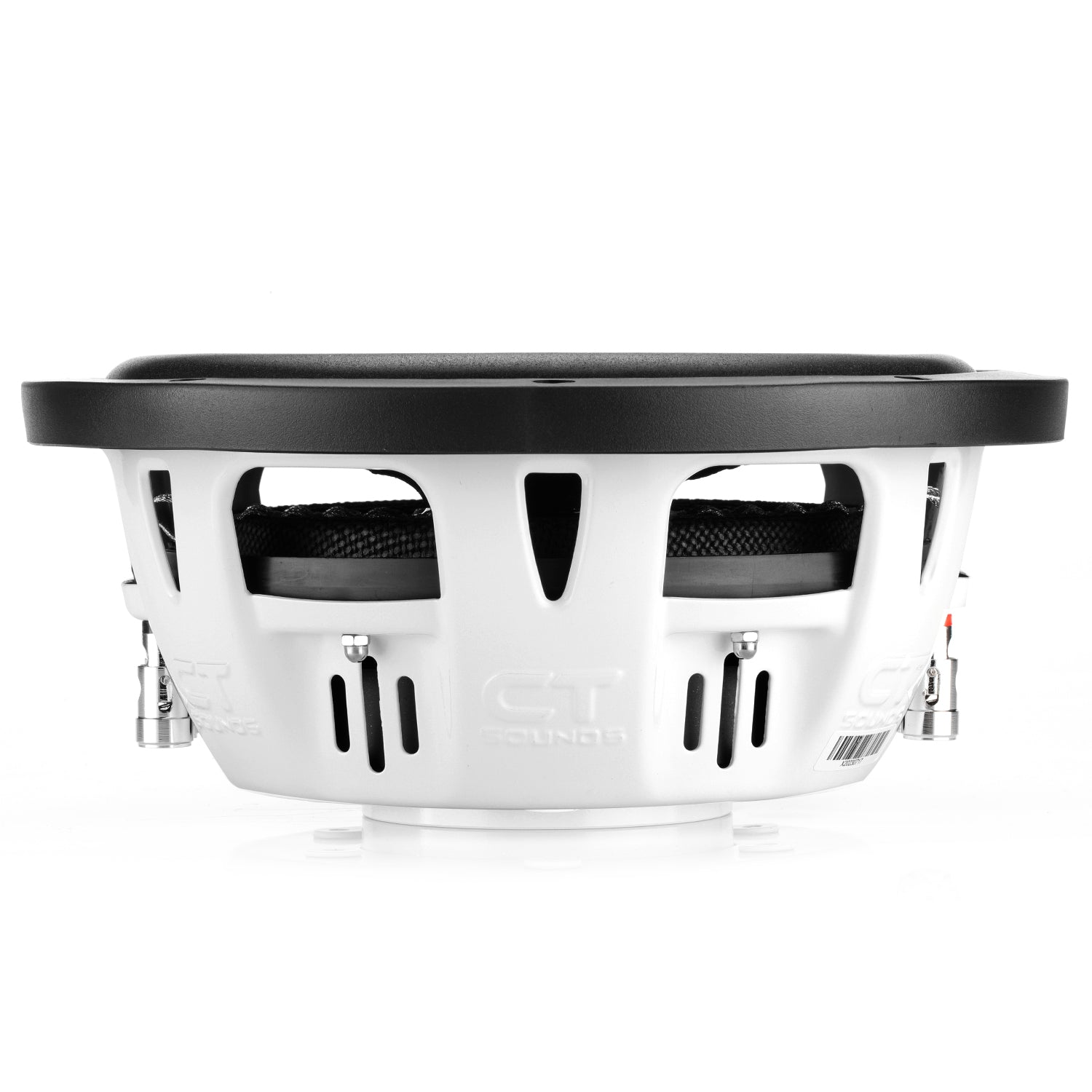

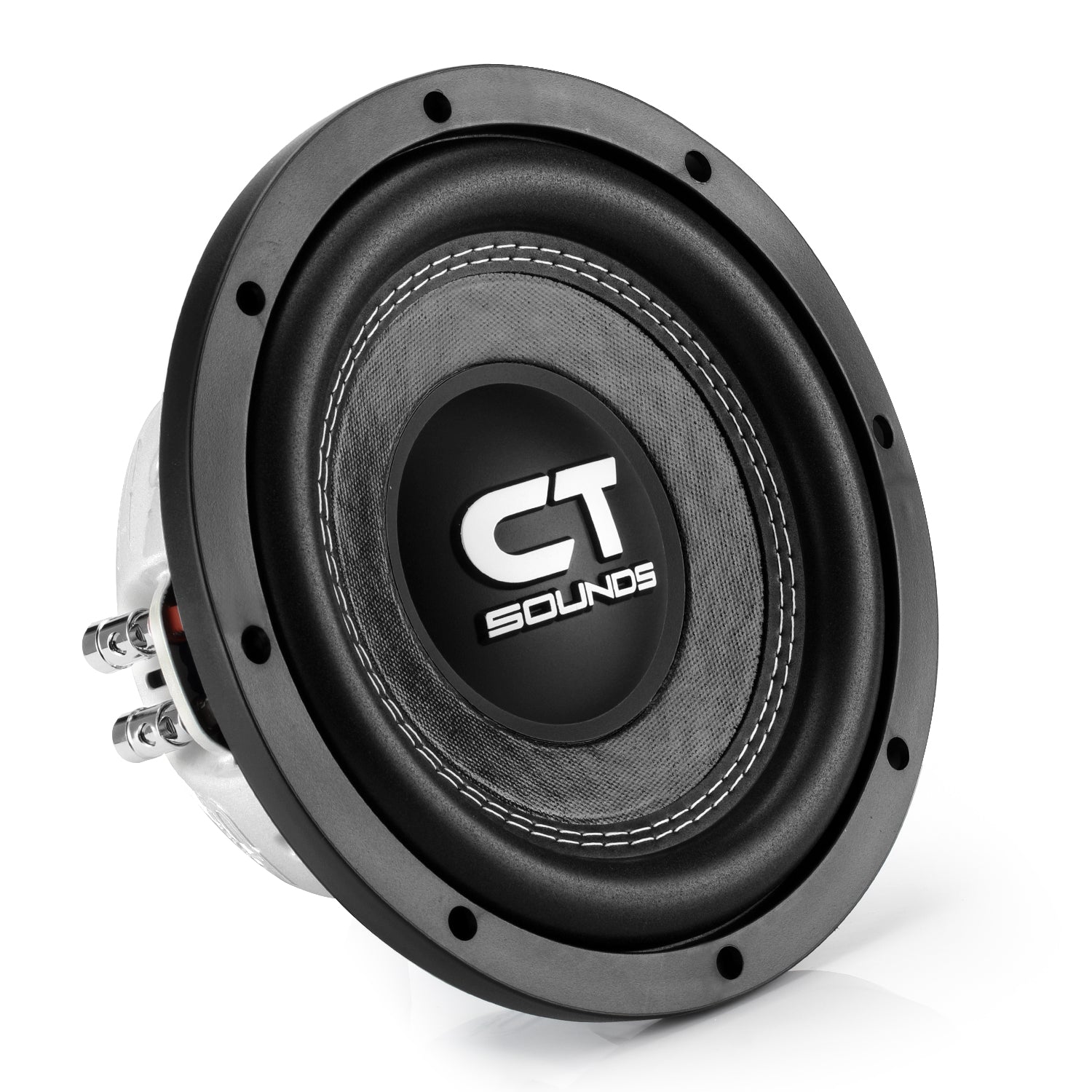

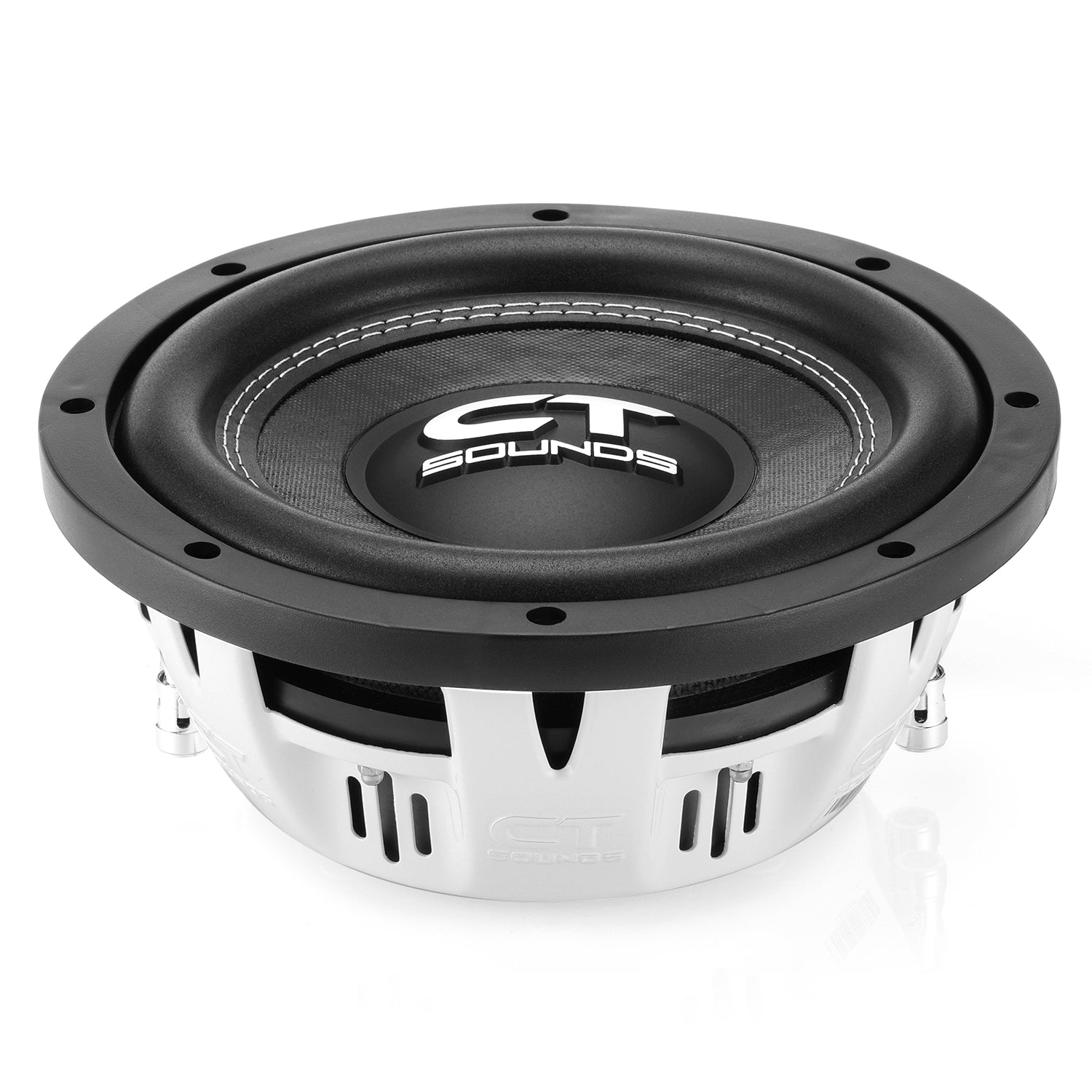

HYDRO-8 // 300 Watts RMS 8 Inch Shallow-Mount Subwoofer
HYDRO-8 // 300 Watts RMS 8 Inch Shallow-Mount Subwoofer - DUAL 2 OHM is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HYDRO-8 // 300 Watts RMS 8 Inch Shallow-Mount Subwoofer
HYDRO-8 // 300 Watts RMS 8 Inch Shallow-Mount Subwoofer - DUAL 2 OHM is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 300-watt 8” shallow-mount subwoofer with a mounting depth below 3.5” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.
| Quick Facts: | |
| RMS Power: | 300 Watts |
| MAX Power: | 600 Watts |
| Voice Coil Configuration: | Dual 2 Ohm |
| Use Cases: | Sealed & Ported Enclosures |
Our 1st prototype utilized a 50.8 mm voice coil & 30 oz magnet resulting in a high QES rating of 1.05 and low EBP of 44.1. The 2nd prototype utilized a 44.7 mm voice coil & 30 oz magnet resulting in a slightly lower QES rating of 0.843 and a slightly higher EBP of 54.8. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 3.5”.
The 3rd and final prototype uses a 44.7 mm voice coil & 40 oz magnet resulting in a reduced QES rating of 0.577 and a balanced EBP of 80.07. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is an 8” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 8" |
| Voice Coil Configuration: | Dual 2 Ohm |
| RMS Power: | 300 Watts |
| MAX Power: | 600 Watts |
| Voice Coil Type: | 1.75 Inch - 4 Layer High-Temperature Copper Voice Coil |
| Magnet Type: | Y35 |
| Bottom Plate Type: | Low Carbon Iron |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 3% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Single Braided Flat Copper Tinsel Leads |
| Terminal Type: | 12 Gauge Push Terminals |
| Basket Type: | Stamped Steel |
| Spider Material: | Poly-Cotton Blend |
| T/S Parameters: | |
| Qes: | 0.577 |
| Qms: | 6.549 |
| Qts: | 0.531 |
| Fs: | 46.20 Hz |
| Vas: | 10.298 L |
| Mms: | 82.895 g |
| Cms: | 0.143 m/N |
| Re: | 3.9 Ω |
| Bl: | 12.751 Tm |
| Le: | / |
| Sd: | 227 cm² |
| Xmax - Single Way (mm): | 8 mm |
| Xmax - Single Way (cm): | 0.8 cm |
| Vd (Sd*Xmax): | 181.6 cm² |
| SPL: | 84.48 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 7.51" |
| Overall diameter | 8.77" |
| Mounting depth | 3.26" |
| Box Specifications: | |
| Displacement | 0.02 ft3 |
| Box Recommendations: | |
| Sealed | 0.35 ft3 |
| Ported | 0.875 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 14 in2 |
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
CT Sounds is proud to introduce the hydro shallow mount subwoofer series after completing a rigorous R&D process spanning 2 years! Our goal was to engineer a 300-watt 8” shallow-mount subwoofer with a mounting depth below 3.5” that was suitable for both sealed & ported enclosures. To achieve this, we focused on the EBP (Efficiency Bandwidth Product). As a general rule, EBP < 50, is used only for sealed enclosures, EBP 50 - 100, is used for both, and EBP > 100, is used only for ported enclosures. EBP = FS/QES.
| Quick Facts: | |
| RMS Power: | 300 Watts |
| MAX Power: | 600 Watts |
| Coil Configuration: | Dual 4 Ohm |
| Use Cases: | Sealed & Ported Enclosures |
Our 1st prototype utilized a 50.8 mm voice coil & 30 oz magnet resulting in a high QES rating of 1.21 and low EBP of 39.23. The 2nd prototype utilized a 44.7 mm voice coil & 30 oz magnet resulting in a slightly lower QES rating of 0.976 and a slightly higher EBP of 48.64. After the 1st and 2nd prototypes, we determined a larger motor assembly was needed to provide a more controlled electrical system (lower QES). This led us to invest in a custom-tooled basket (used in the final prototype) to keep the mounting depth below 3.5”.
The 3rd and final prototype uses a 44.7 mm voice coil & 40 oz magnet resulting in a reduced QES rating of 0.668 and a balanced EBP of 71.06. In testing, we ran into mechanical noise due to the larger motor assembly and voice coil in a confined space. Therefore, we invested in a custom-tooled cone to maximize the excursion capability by creating an equal distance between the cone, spider, and bottom plate. The result is an 8” shallow-mount subwoofer that is extremely responsive in both sealed & ported enclosures.
| General Specifications: | |
| Product Type: | Car Subwoofer |
| Subwoofer Size: | 8" |
| Voice Coil Configuration: | Dual 4 Ohm |
| RMS Power: | 300 Watts |
| MAX Power: | 600 Watts |
| Voice Coil Type: | 1.75 Inch - 4 Layer High-Temperature Copper Voice Coil |
| Magnet Type: | Y35 |
| Bottom Plate Type: | Low Carbon Iron |
| Surround Type: | Dual White Stitched Competition Mega Foam Surround |
| Cone Type: | Composite Paper with 3% Carbon Fiber Reinforcement |
| Tinsel Lead Type: | Single Braided Flat Copper Tinsel Leads |
| Terminal Type: | 12 Gauge Push Terminals |
| Basket Type: | Stamped Steel |
| Spider Material: | Poly-Cotton Blend |
| T/S Parameters: | |
| Qes: | 0.668 |
| Qms: | 6.083 |
| Qts: | 0.602 |
| Fs: | 47.47 Hz |
| Vas: | 10.427 L |
| Mms: | 77.535 g |
| Cms: | 0.145 m/N |
| Re: | 6.4 Ω |
| Bl: | 14.880 Tm |
| Le: | / |
| Sd: | 227 cm² |
| Xmax - Single Way (mm): | 8 mm |
| Xmax - Single Way (cm): | 0.8 cm |
| Vd (Sd*Xmax): | 181.6 cm² |
| SPL: | 84.48 dB |
| Subwoofer Measurements: | |
| Cutout diameter | 7.51" |
| Overall diameter | 8.77" |
| Mounting depth | 3.26" |
| Box Specifications: | |
| Displacement | 0.02 ft3 |
| Box Recommendations: | |
| Sealed | 0.35 ft3 |
| Ported | 0.875 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 14 in2 |
*Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
