Iron Horn 5.9L Cummins Turbo Kit

[shortdesc]

If you are looking for an easy economical turbo upgrade, or, replace your tired turbo and aging exhaust manifold, then BD's Iron Horn series for your 3rd generation 5.9L Cummins offers a clean, drop-in installation. Featuring BorgWarner SX-E cartridges and 2-piece pulse exhaust manifold, BD's Iron Horn turbocharger kits are engineered to give optimal performance while reducing EGT's and high drive pressures. The Iron Horn is available in a number of configurations to match your performance level without compromising drivability.

• Increase airflow for more power, response, and reliability
• Replace your factory turbo with a S300 SX-E Borg Warner T4 flange turbo

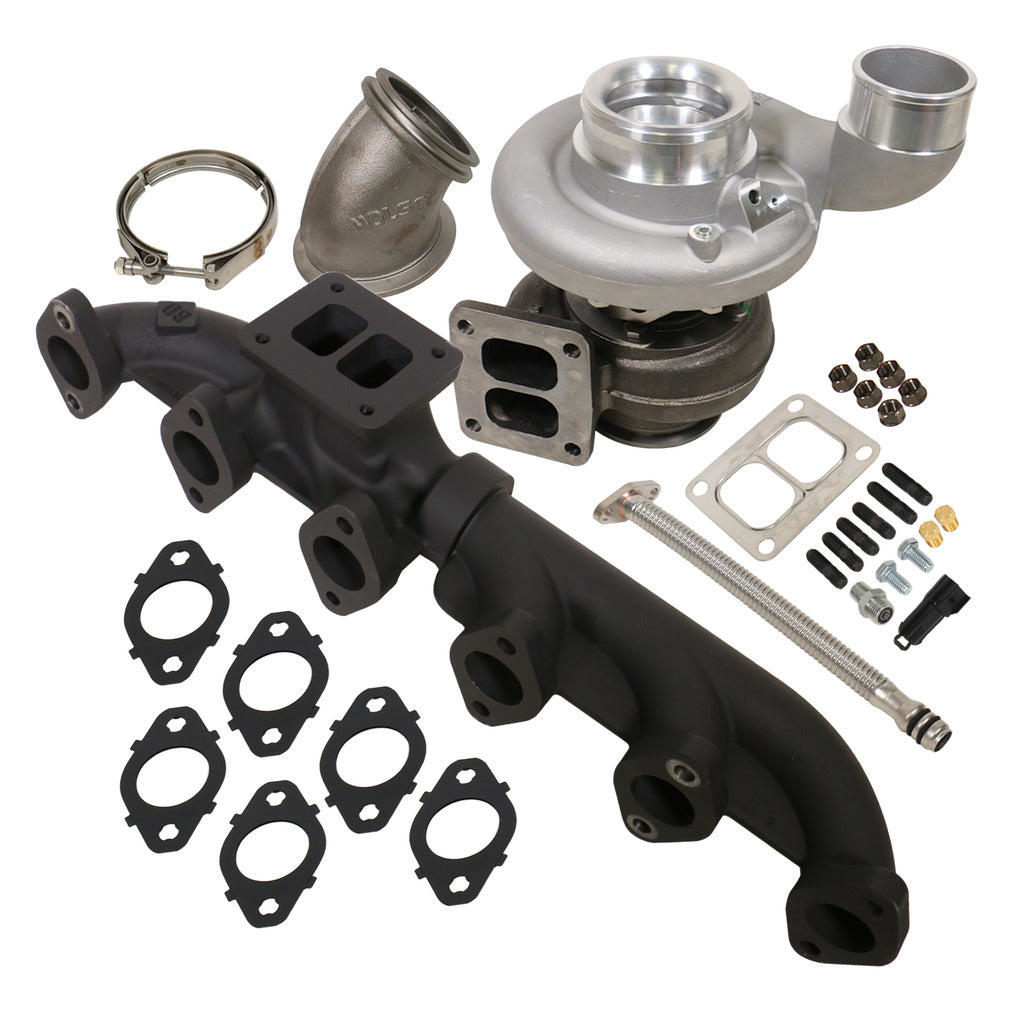

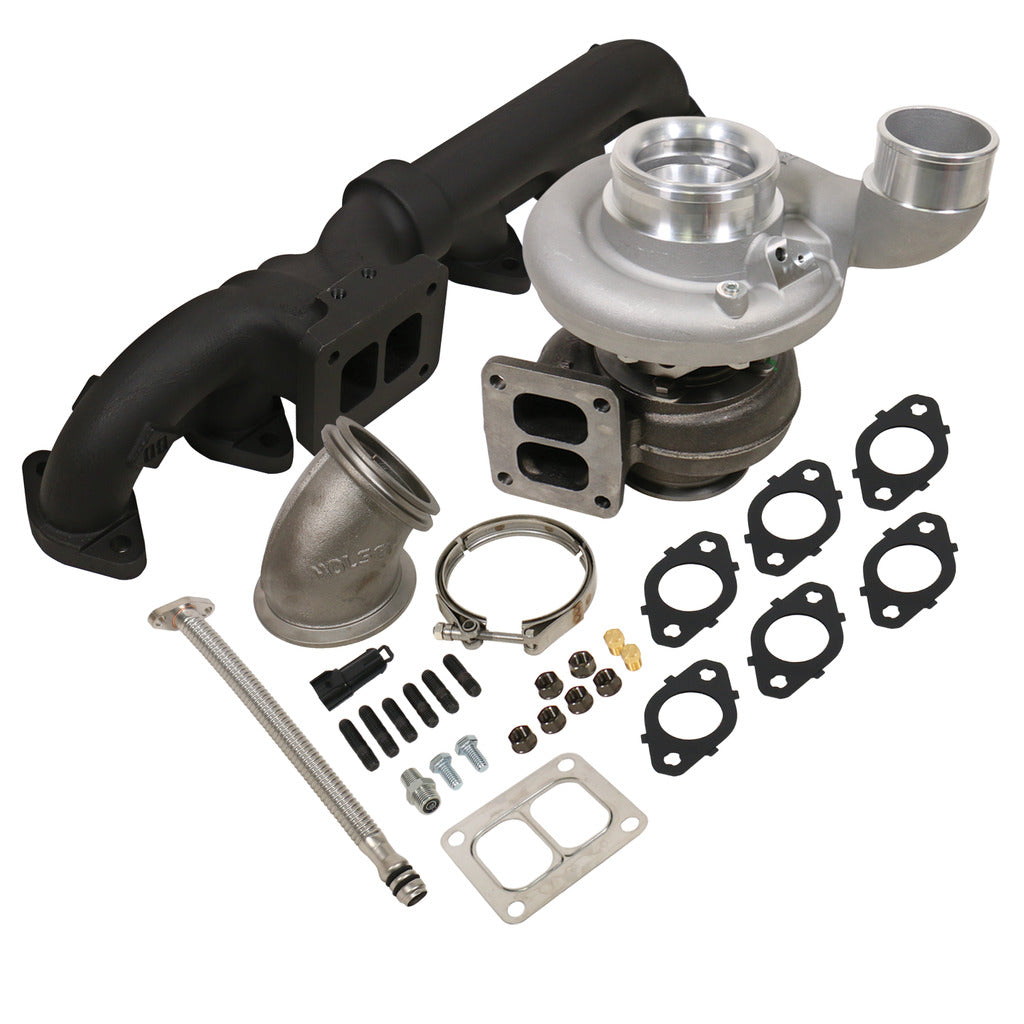

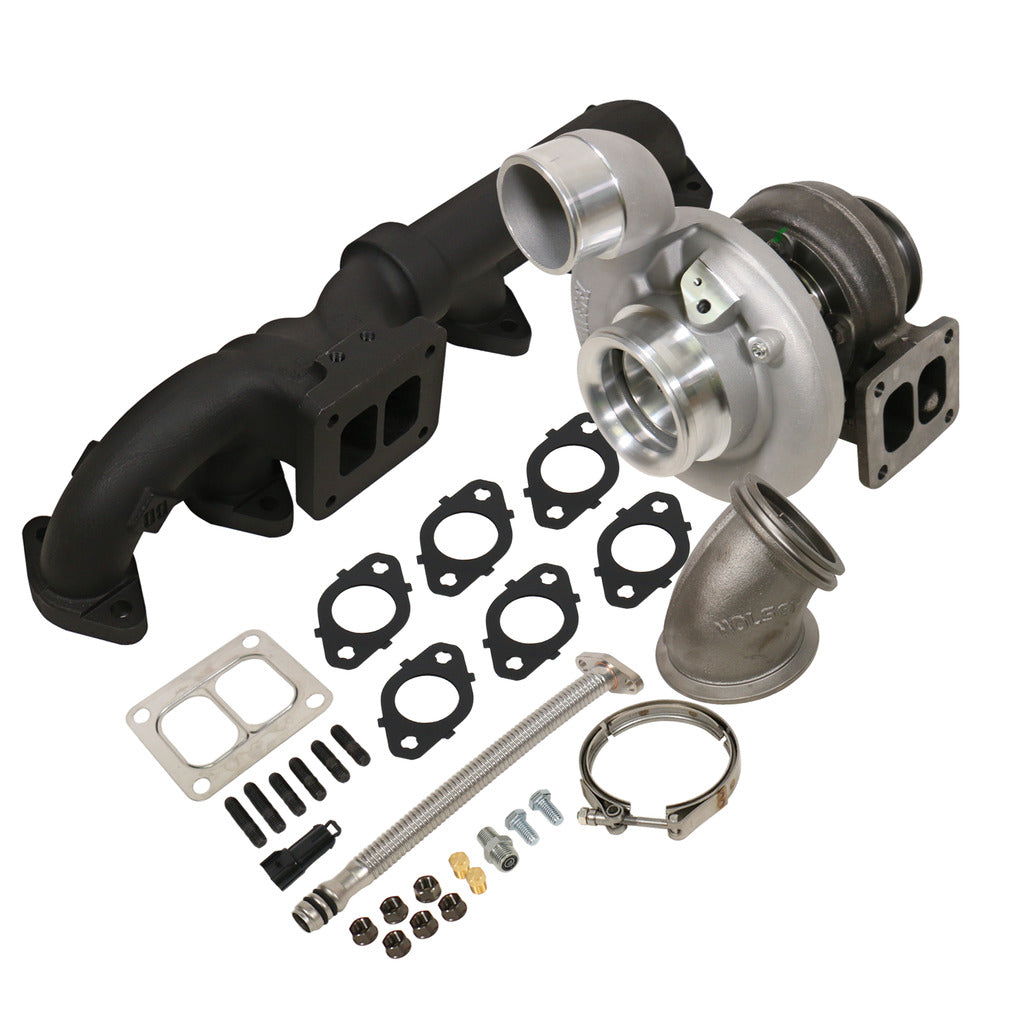

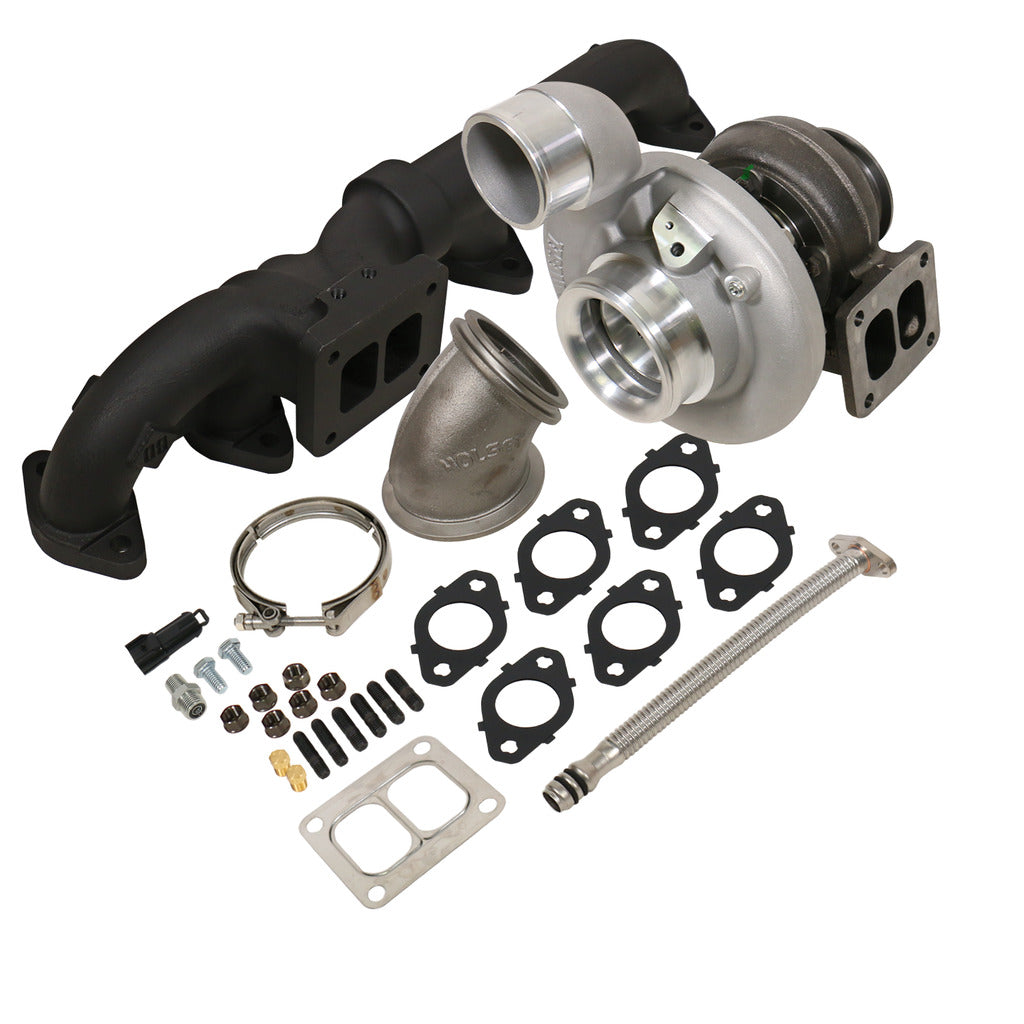

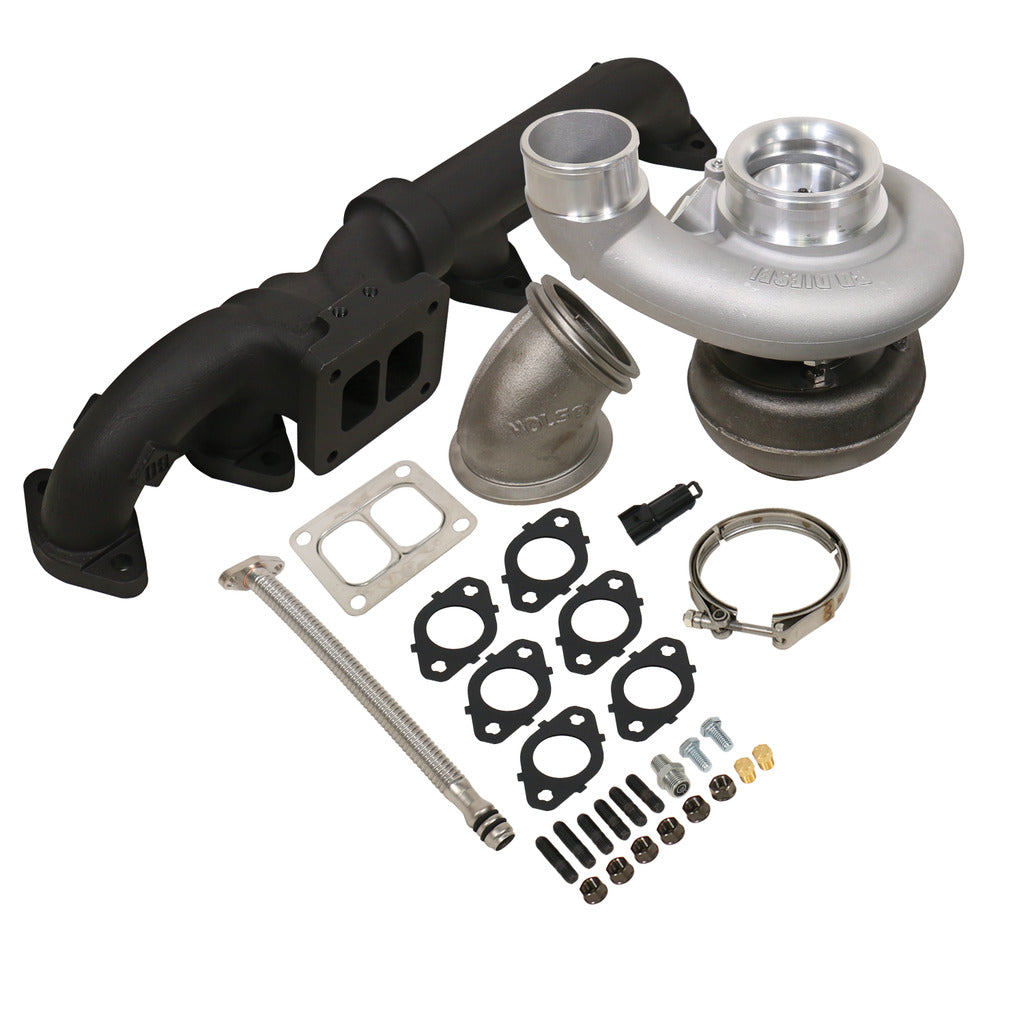

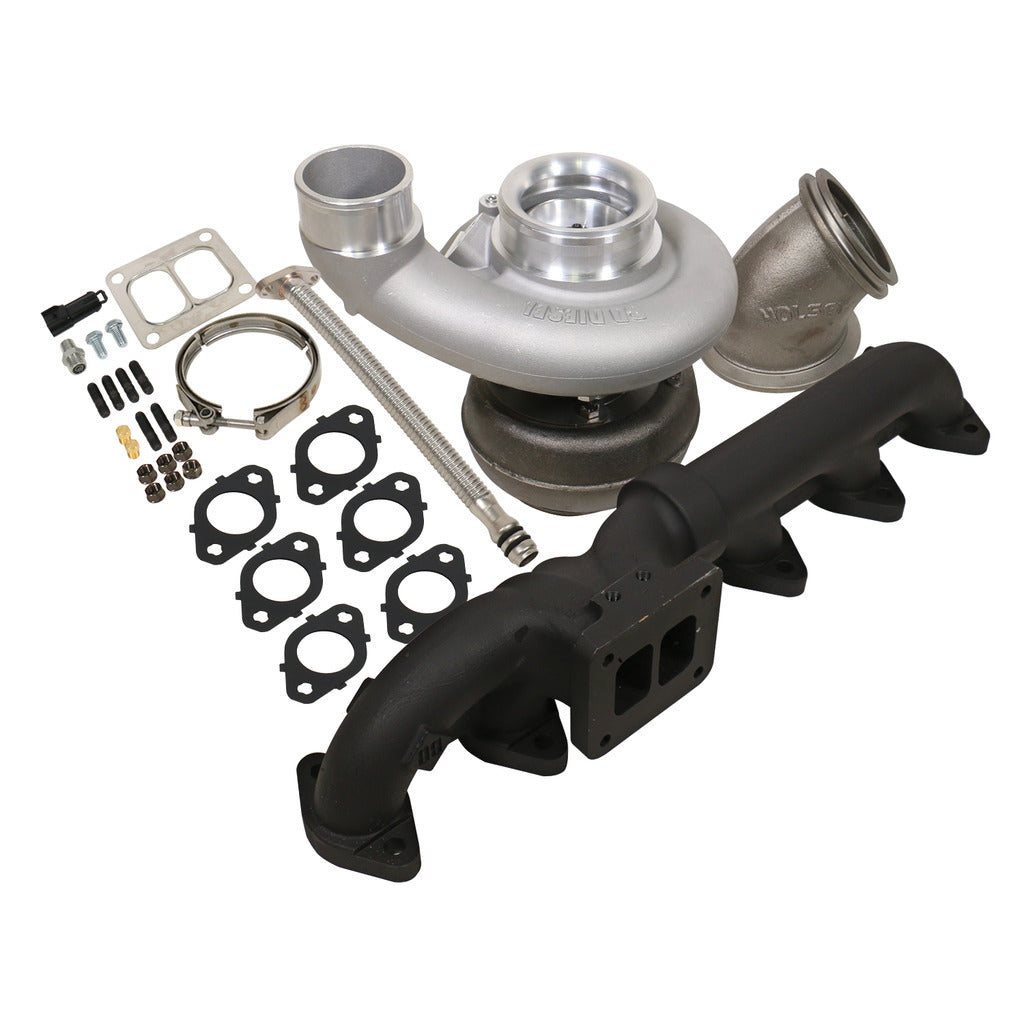

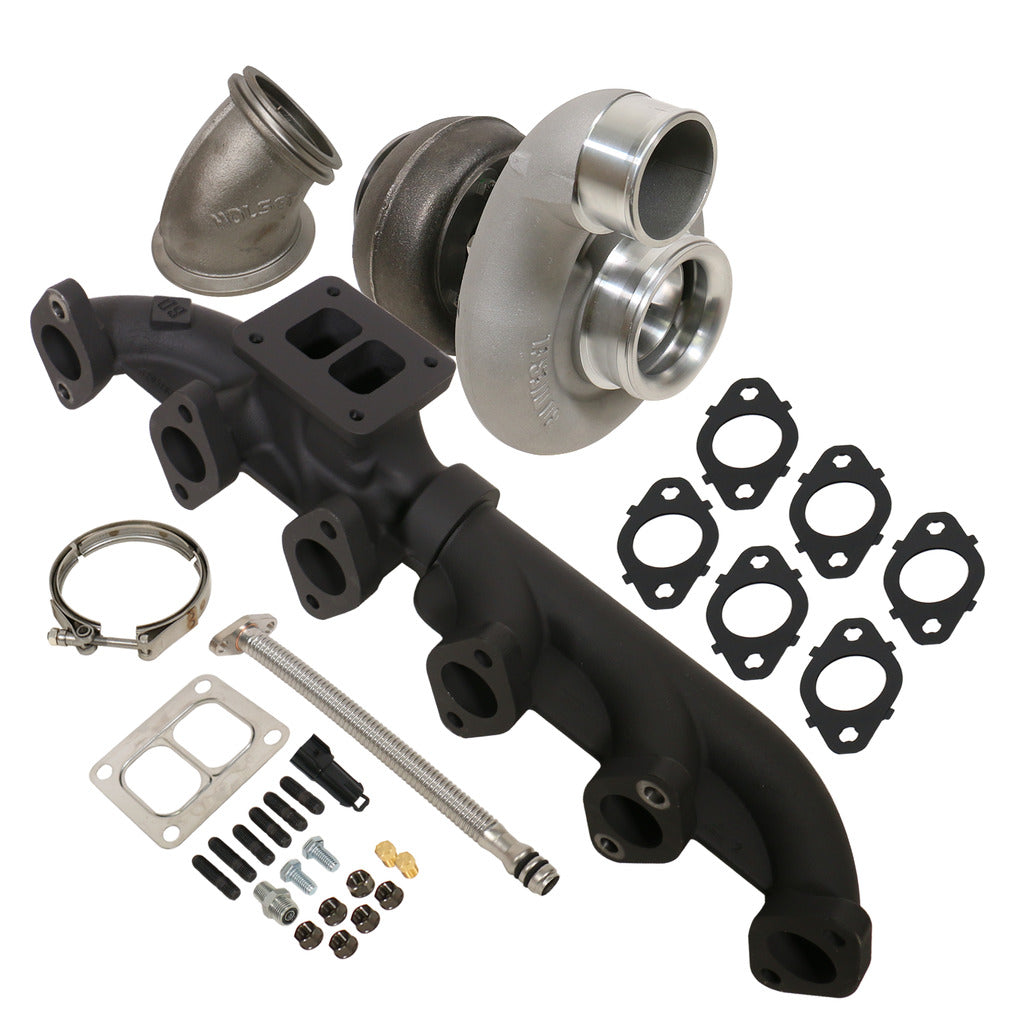

• Kit includes a 5.9L 2-piece BD high flow pulse T4 manifold and gaskets
• No extra piping required, it drops in place for an easy, clean installation
• Comp Wheel: 61.44mm (2.42in) to 69.00mm (2.72in)
• Turbine Wheel: 76mm (2.99in) or 80mm (3.15in)
• A/R Ratio: 0.91, 1.00 or 1.10 depending on application

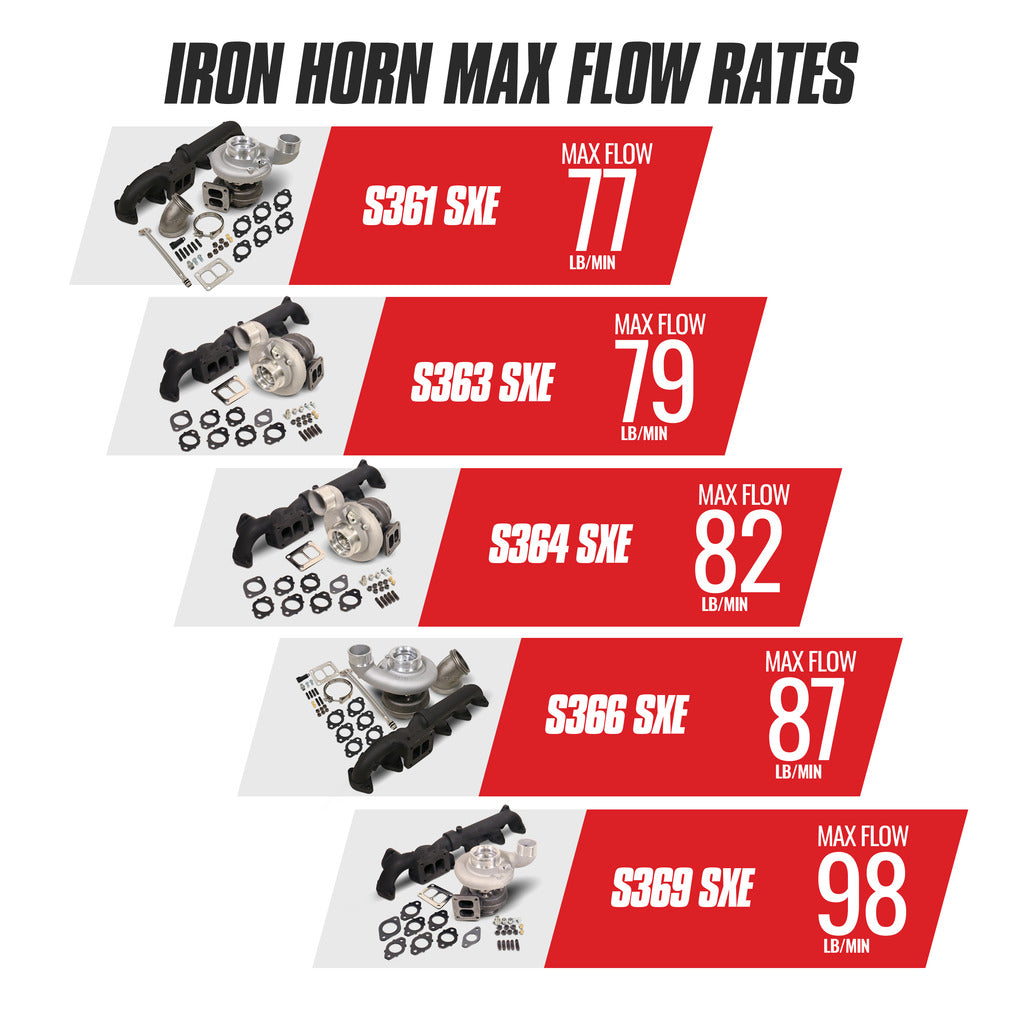

• Flow: 77 Lb/min to 98 Lb/min

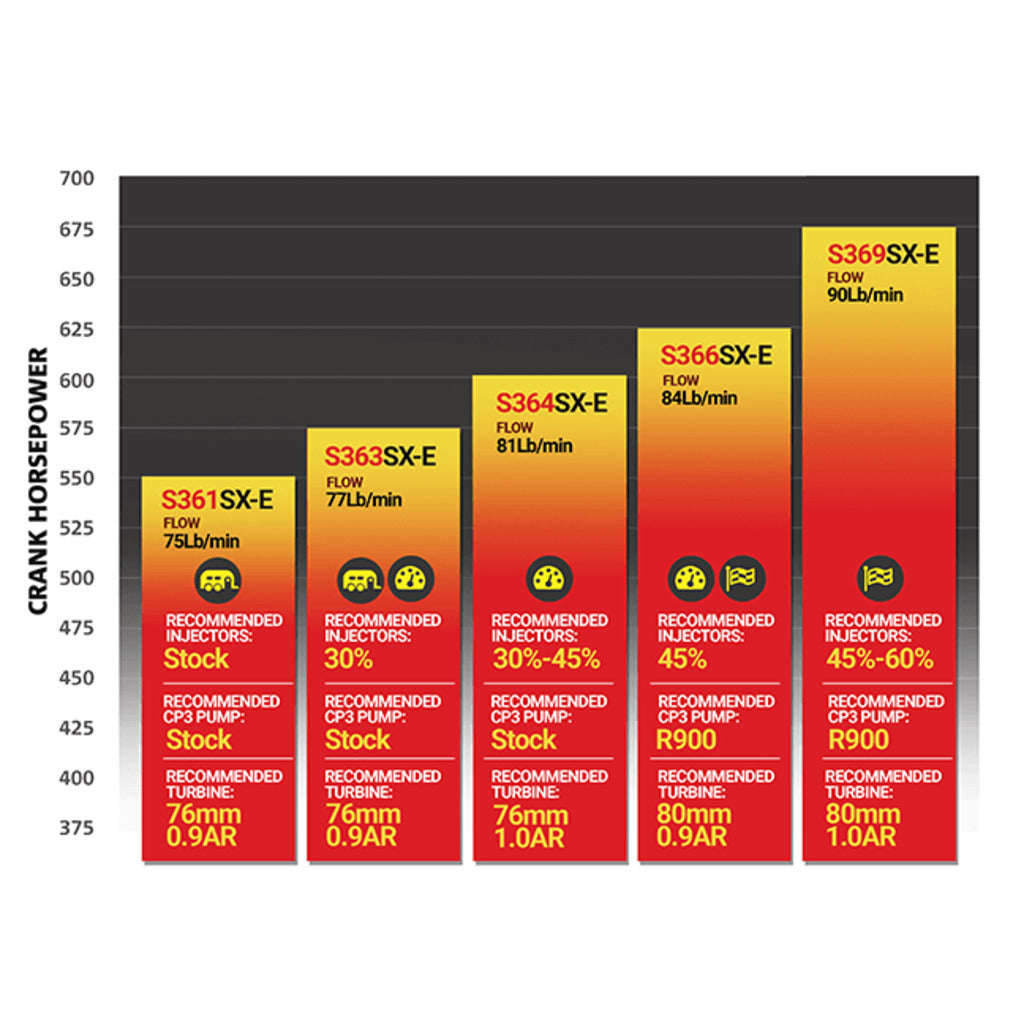

• Approximate rated 500hp - 700hp (depending on truck configuration)

• 6 Hours

Parts

• 12-Months
• 12,000 Miles

• 2003 to 2004 model year (305HP output) Dodge Ram 2500/3500 with HY35 turbocharger will require a 2004.5-2007 style aftermarket downpipe such as Flo Pro part number 20811 and OEM V-band Part# 52121285AA
• Aftermarket air intake kits may need alteration
• Not for sale on licensed California vehicles
• Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake

• This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
