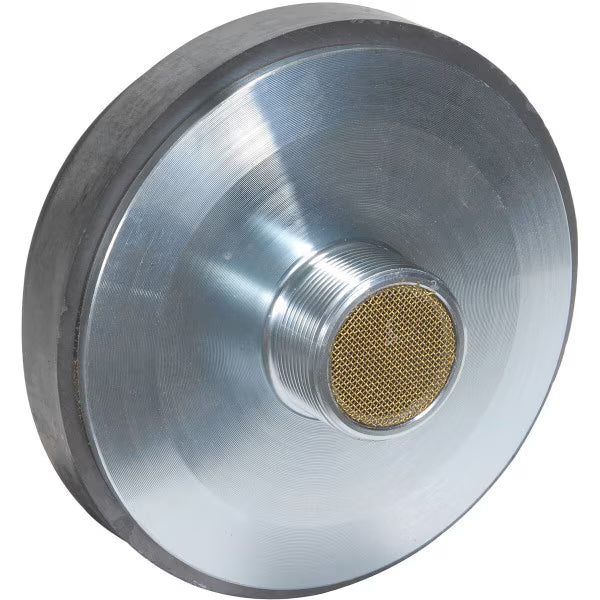

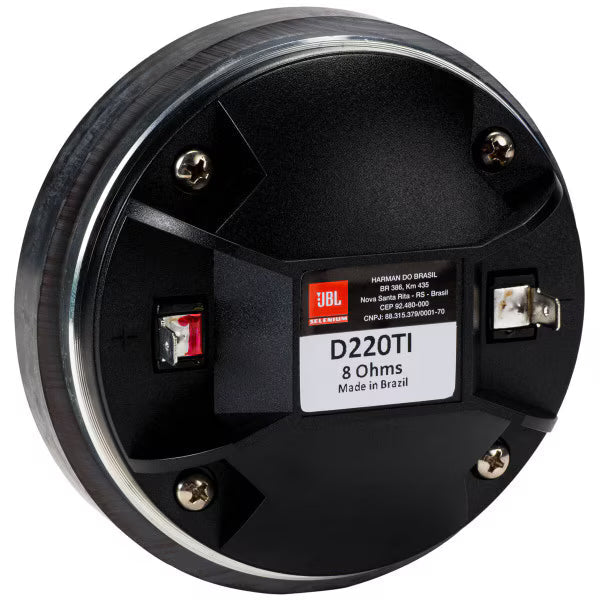

JBL Selenium D220Ti 1" Titanium Horn Driver 8 Ohm 1-3/8"-18

Key Features

• Titanium diaphragm for durability and extended HF response
• Optimized phase plug eliminate phase cancellation problems
• High-temperature voice coil materials ensure reliability
• Smooth, extended frequency response
• Easy diaphragm replacement
• D220Ti is compatible with any Selenium horn with model number ending in "25"
• Standard 1-3/8"-18 TPI screw-on mounting

JBL Selenium D220Ti 1" Titanium Horn Driver 8 Ohm 1-3/8"-18

The JBL Selenium D220Ti-8 horn driver's diaphragm is formed from pure, rigid, light, and extremely thin titanium (0.025 mm). To avoid stress and distortion, the suspension has specially designed reinforcement. An injected-molded phase plug is optimized to eliminate undesirable phase cancellations.

The D220Ti-8's ceramic magnetic assembly effectively concentrates flux in the gap, and highest motor strength efficiency is achieved through the use of FEA (Finite Element Analysis). A voice coil manufactured in CCAW (Copper Clad Aluminum Wire) and wound on a polyimide former assures great stability and thermal resistance, and the moving assembly has a perfect auto-centering characteristic that makes replacement easy if required. Standard 1-3/8"-18 TPI screw-on mounting.

Specifications: • Power handling: 80 watts RMS/160 watts program (with recommended 2,000 Hz, 12 dB/octave crossover) • VCdia: 1.7" • Throat diameter: 1" • Impedance: 8 ohms • Frequency response: 1,000-21,000 Hz (no crossover) • SPL: 109 dB 2.83V/1m • Magnet weight: 24 oz. • Dimensions: Overall diameter: 4.53", Depth: 2", 2.75" including threaded "nose".
