SKU: JL-10W6v3-D4

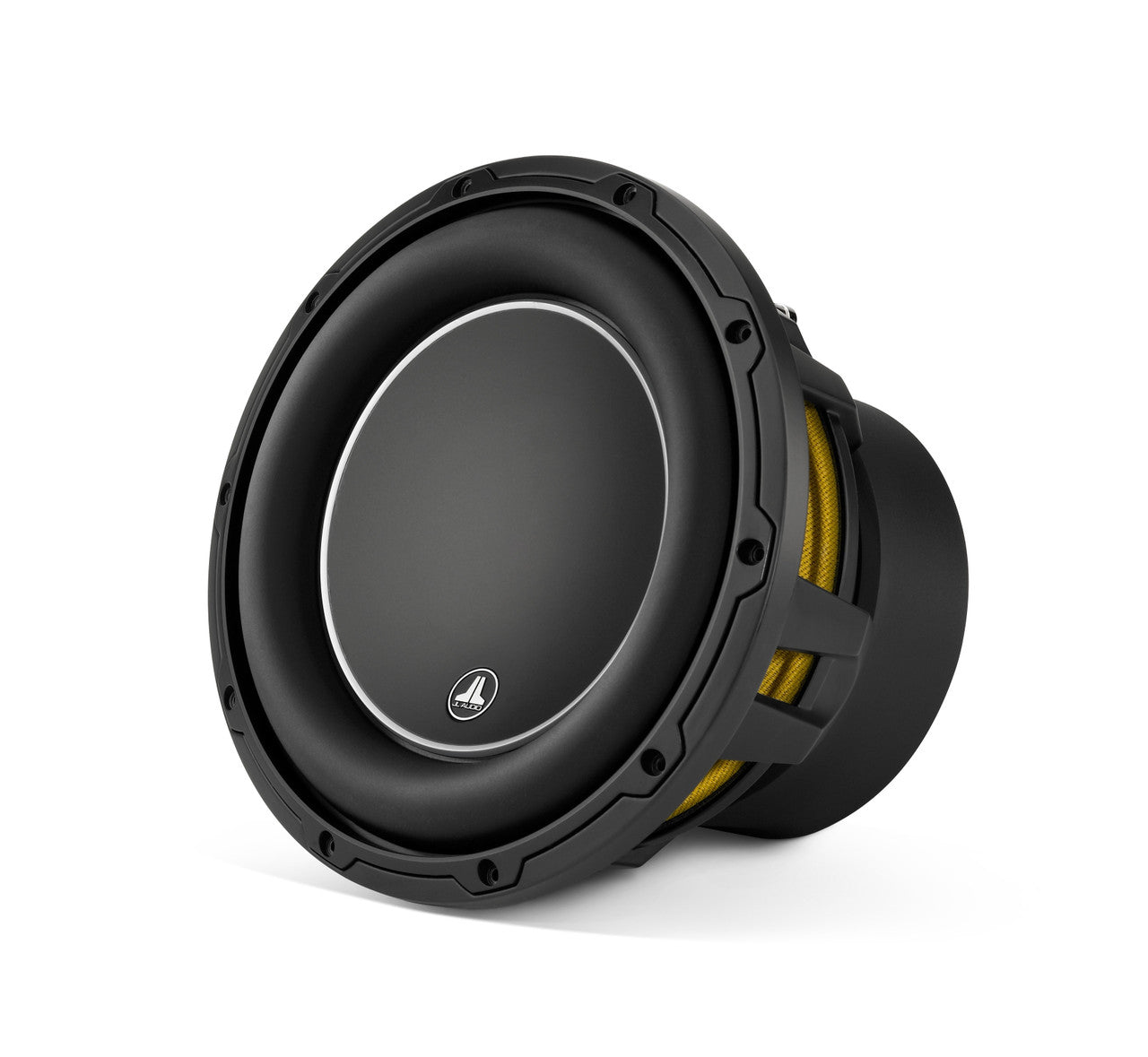

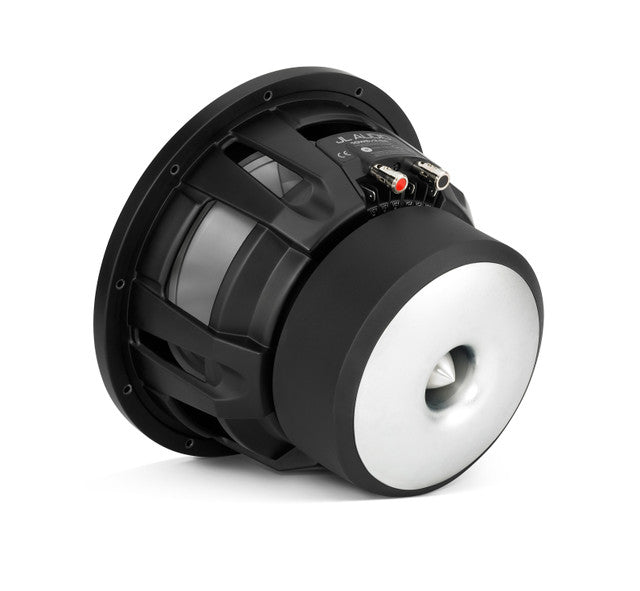

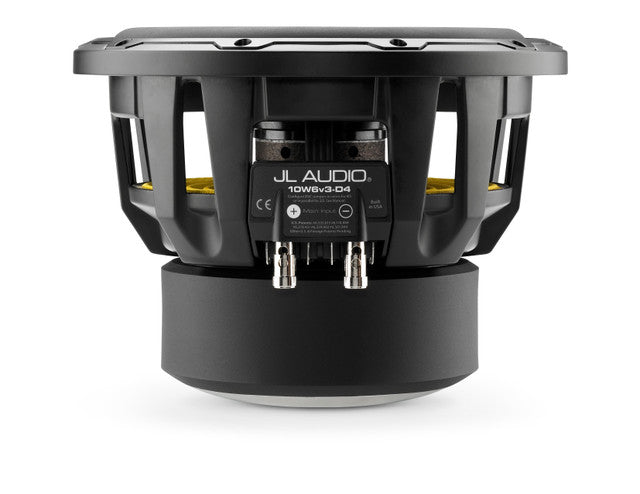

JL Audio 10W6v3-D4 | 10" 600W RMS Subwoofer DVC 4-Ohm

No reviews yet. Bought this? Write the first review
Regular price $849.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description


Continuous Power Handling (RMS) 600 W
Recommended Amplifier Power (RMS) 200 - 600 W
Nominal Impedance (Znom) Dual 4 Ω



Physical Specifications


Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.5 in / 267 mm
Mounting Hole Diameter (B) 9.02 in / 229 mm
Bolt Hole Circle Diameter (C) 9.86 in / 250 mm
Motor Outer Diameter (D) 6.3 in / 160 mm
Required Pole Vent Clearance 0.50 in / 13 mm
Mounting Depth (E) 6.89 in / 175 mm
Driver Displacement 0.078 cu ft / 2.1 L
Net Weight 20 lb / 9.1 kg



Parameters

Free Air Resonance (Fs) 30.12 Hz
Electrical “Q” (Qes) 0.543
Mechanical “Q” (Qms) 9.228
Total Speaker “Q” (Qts) 0.513
Equivalent Compliance (Vas) 0.821 cu ft / 23.25 L
One-Way Linear Excursion (Xmax)* 0.75 in / 19 mm
Reference Efficiency (no) 0.11%
Efficiency (1 W / 1 m)** 82.7 dB SPL
Effective Piston Area (Sd) 49.303 sq in / 0.0318 sq m
DC Resistance (Re)*** 6.452 Ω
