SKU: JL-10W7AE-3

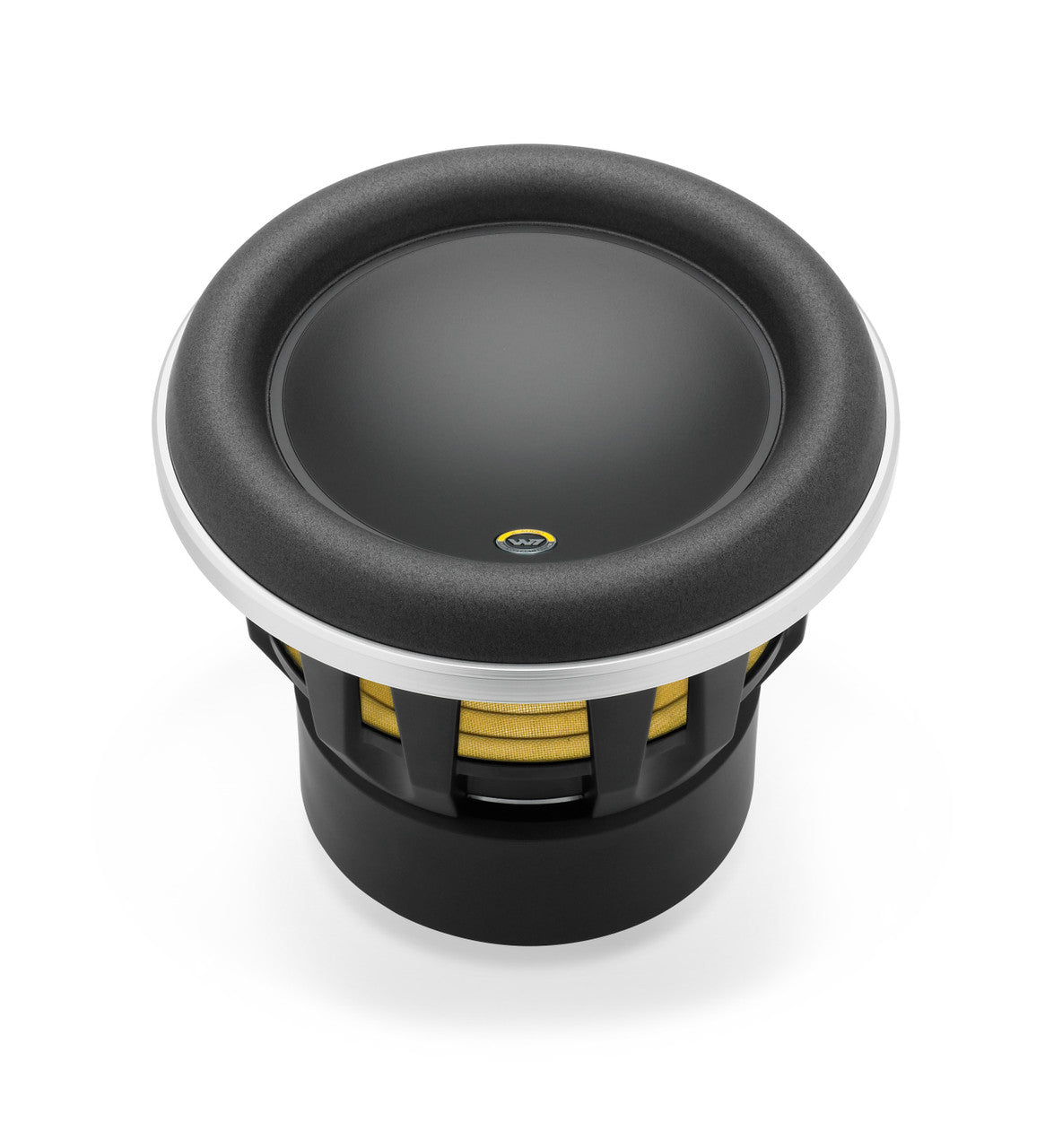

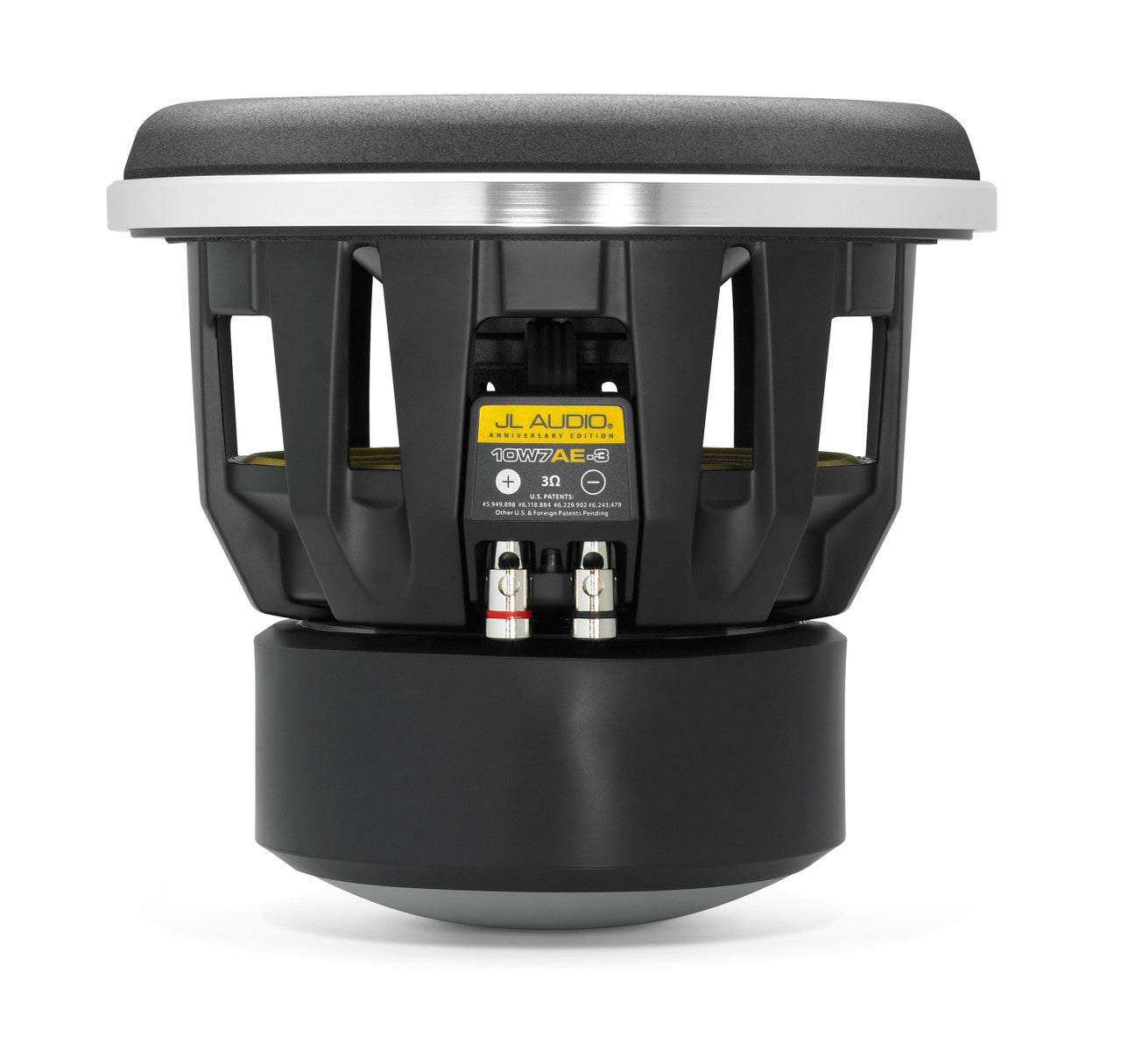

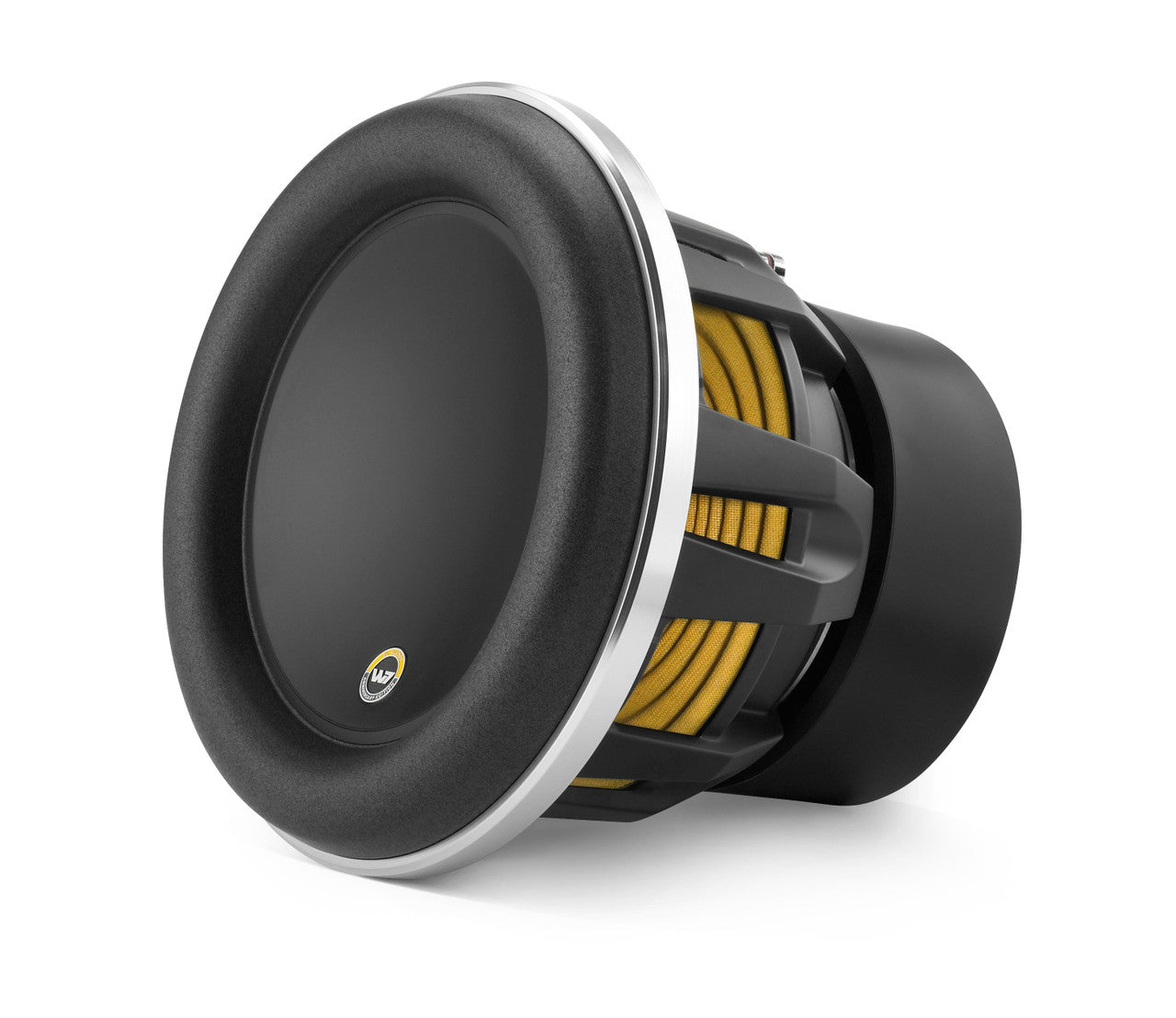

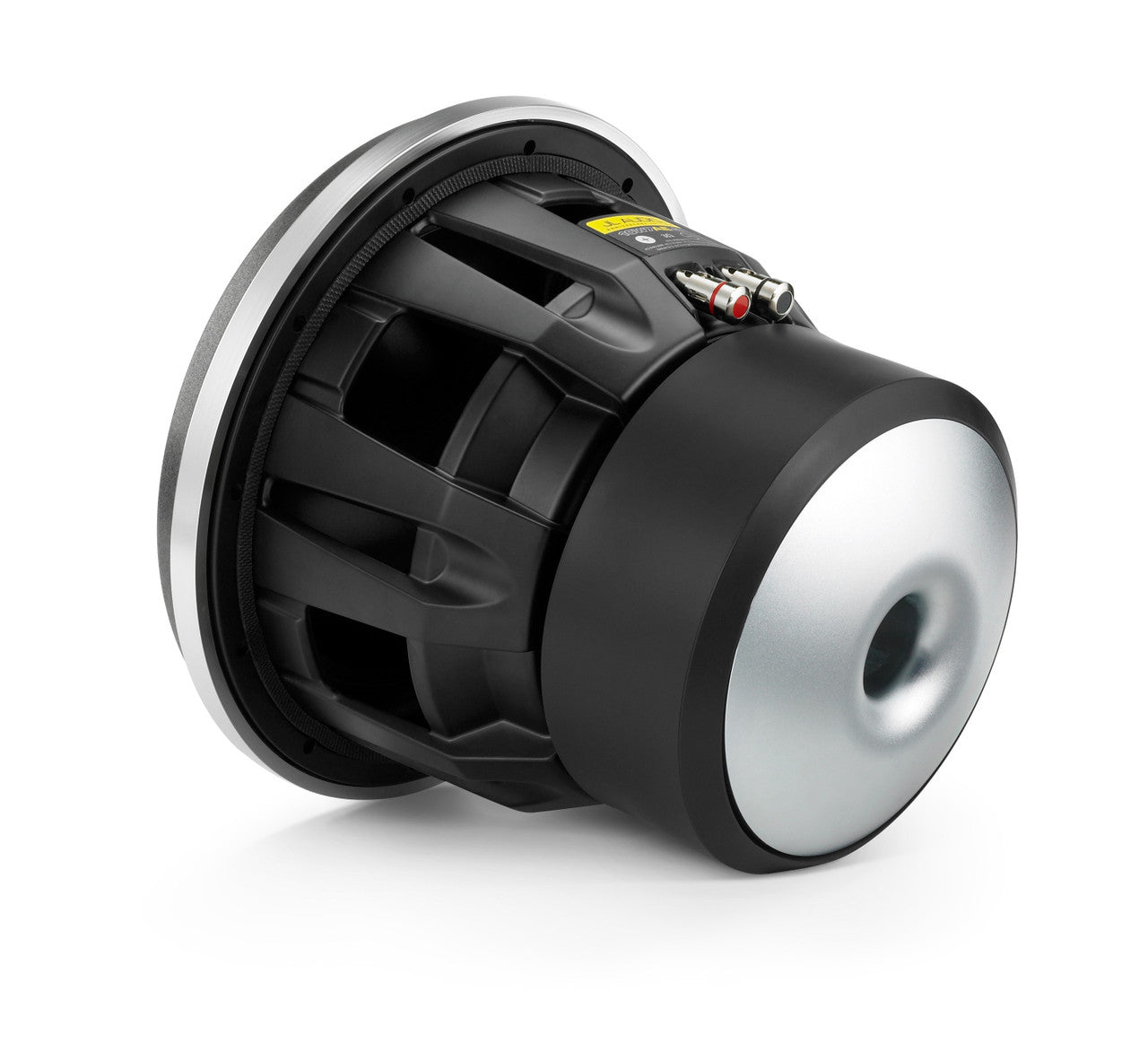

JL Audio 10W7AE 10" 750W RMS Subwoofer SVC 3-Ohm

No reviews yet. Bought this? Write the first review
Regular price $1,199.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Table_Image
Continuous Power Handling (RMS) 750 W
Recommended Amplifier Power (RMS) 300 - 750 W
Nominal Impedance (Znom) 3 Ω



Physical Specifications



Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.5 in / 267 mm
Mounting Hole Diameter (B) 8.74 in / 222 mm
Bolt Hole Circle Diameter (C) 9.34 in / 237 mm
Motor Outer Diameter (D) 6.55 in / 166 mm
Mounting Depth (E) 8.0 in / 203 mm
Driver Displacement 0.09 cu ft / 2.5 L
Net Weight 30 lb / 13.6 kg



Parameters

Free Air Resonance (Fs) 30.6 Hz
Electrical “Q” (Qes) 0.578
Mechanical “Q” (Qms) 7.647
Total Speaker “Q” (Qts) 0.537
Equivalent Compliance (Vas) 1.28 cu ft / 36.1 L
One-Way Linear Excursion (Xmax)* 0.9 in / 23 mm
Reference Efficiency (no) 0.17%
Efficiency (1 W / 1 m)** 84.3 dB SPL
Effective Piston Area (Sd) 59.8 sq in / 0.0386 sq m
DC Resistance (Re) 2.75 Ω
