SKU: JL-12W0v3-4

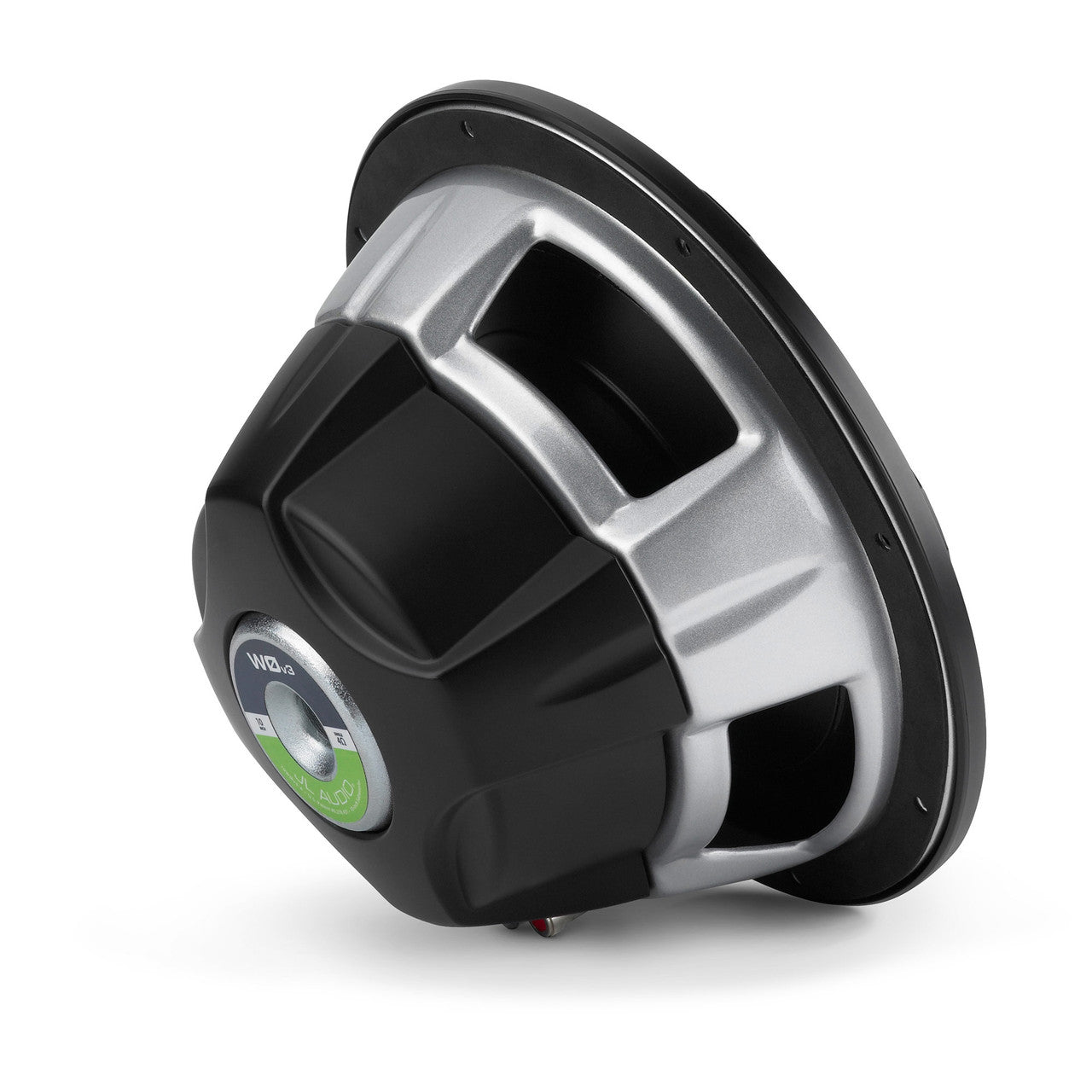

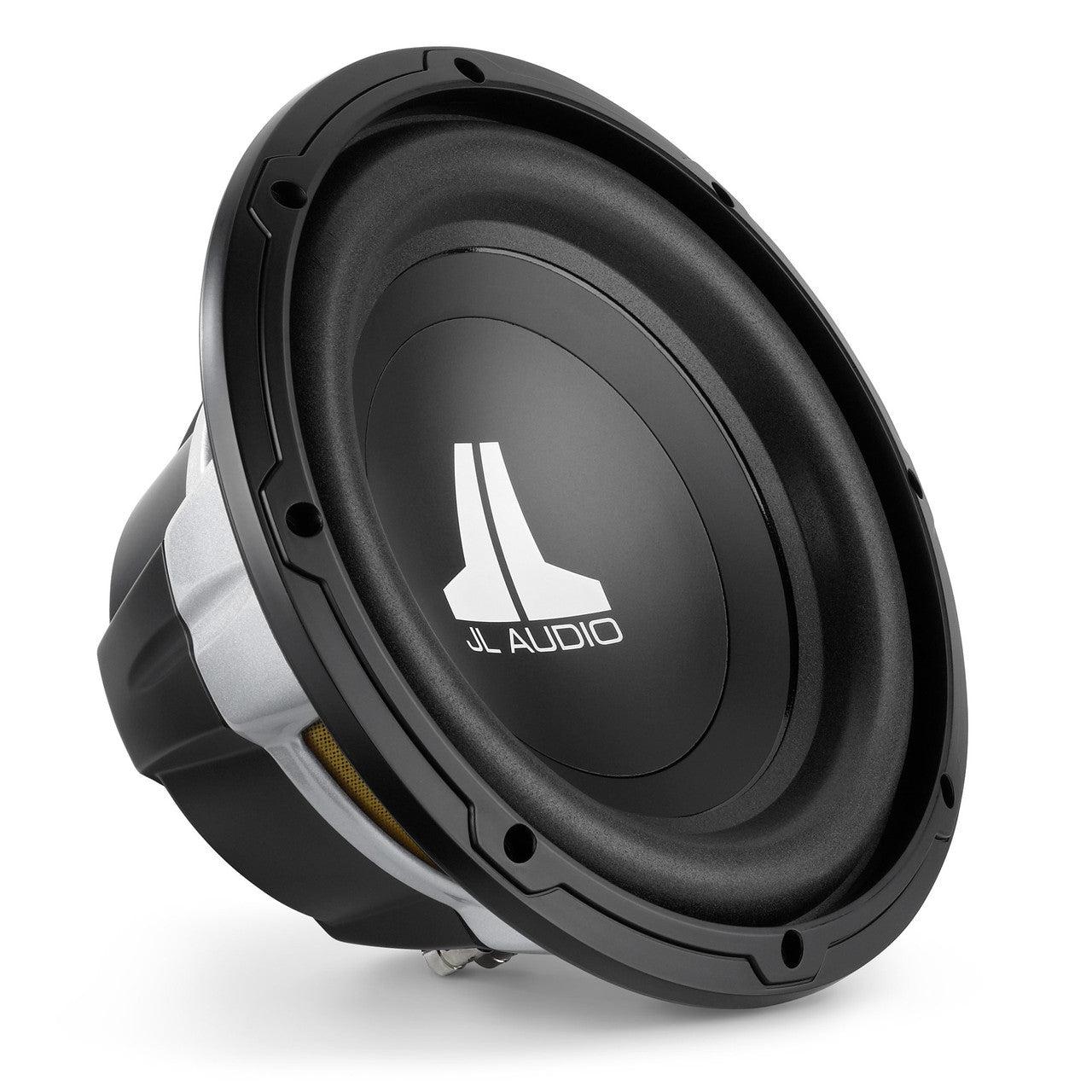

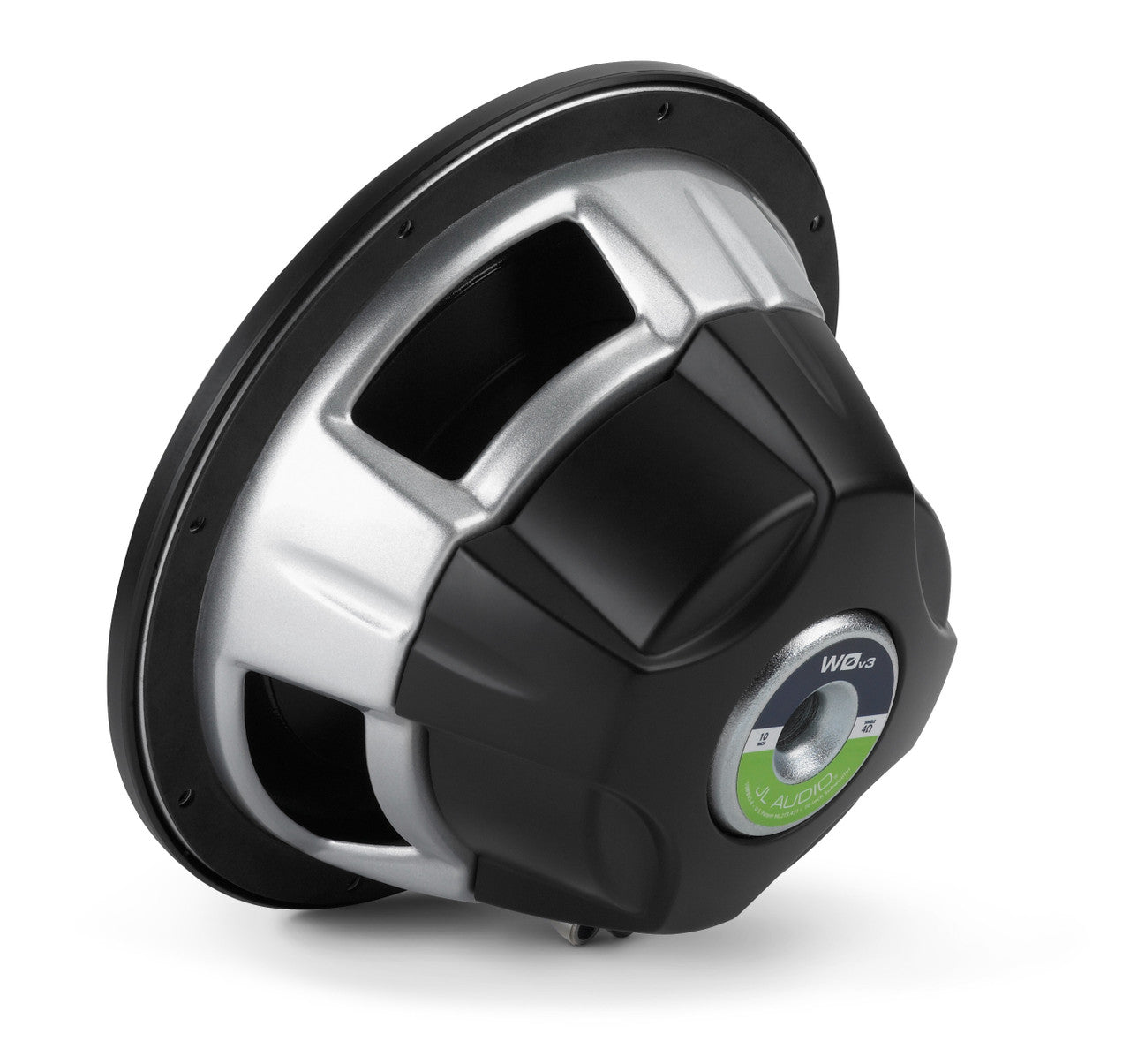

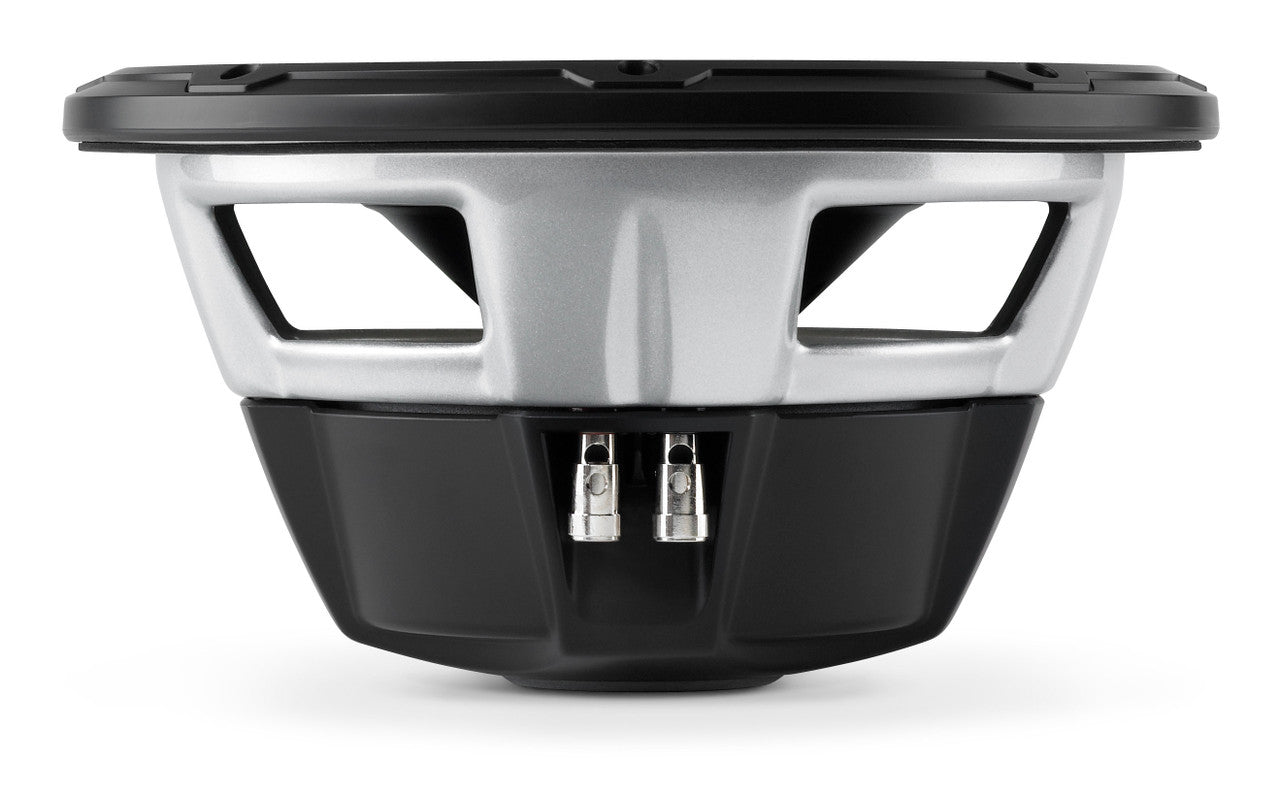

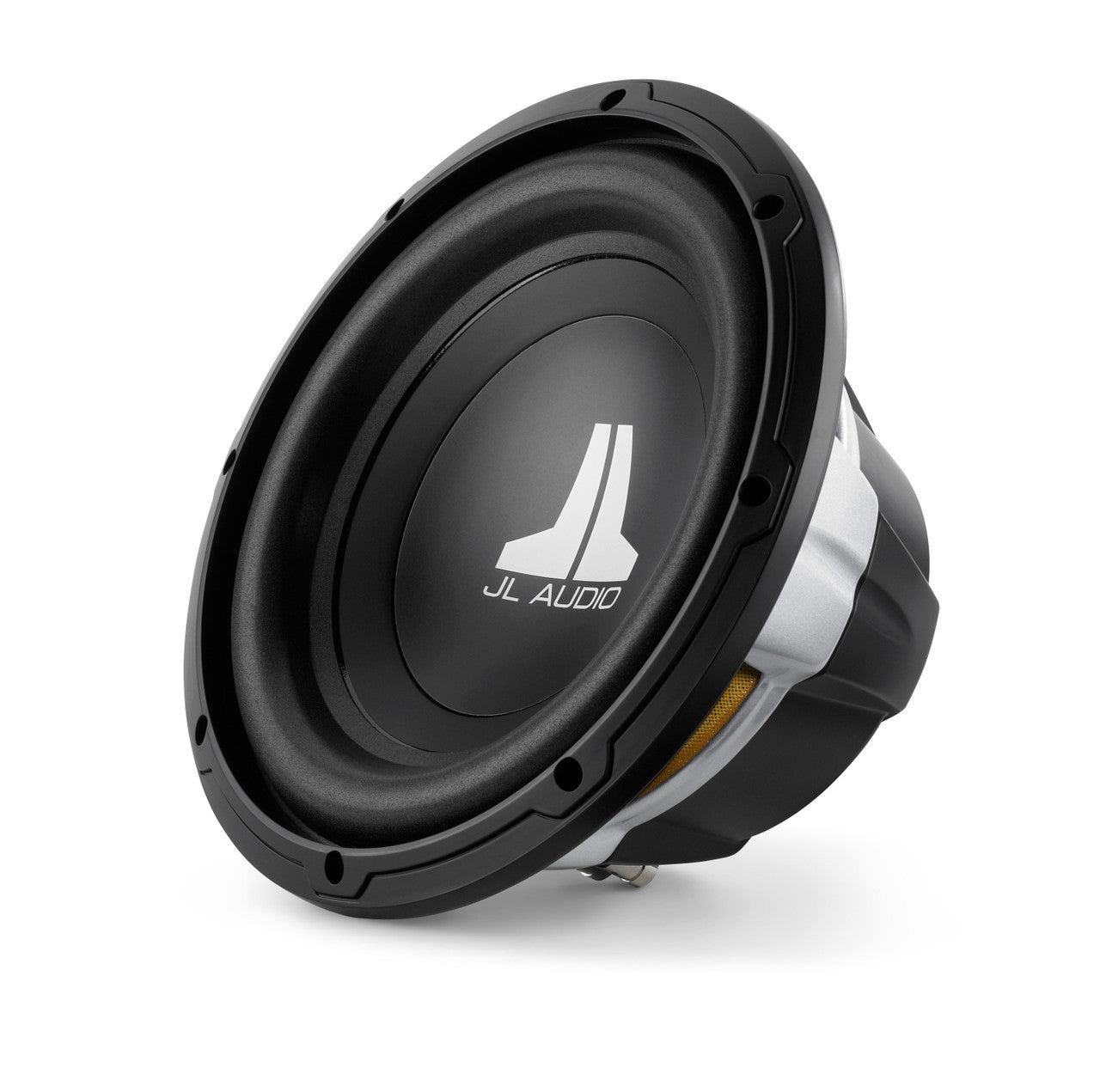

JL Audio 12W0v3-4 | 12" 300 Watt RMS Subwoofer SVC 4-Ohm

No reviews yet. Bought this? Write the first review
Regular price $159.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Sizes 12"
Weight
12": 8.11 lbs (3.68 kg)
Continuous power handling (RMS) 300 W
Sensitivity (SPL @ 1 W/1 m)
12": 85.64 dB
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 75-300 W
Cone material Mineral-filled polypropylene

Networking & Connections

Speaker connections Push-button terminal

Mounting Dimensions

Frame outer diameter 10.52" (267 mm)
Mounting depth clearance
12": 5.40" (137 mm)
Mounting hole
12": 11.0625" (281 mm)
Bolt hole circle
12": 11.7" (297 mm)
Motor outer diameter 5.05" (128 mm)
Driver displacement
12": 0.048 cu ft (1.36 L)

Parameters

Free Air Resonance (FS)
12": 28.43 Hz
Electrical “Q” (Qes)
12": 0.715
Mechanical “Q” (Qms)
12": 10.709
Total “Q” (Qts)
12": 0.67
Equivalent Compliance (Vas)
12": 2.530 cu ft (71.64 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.45" (11.4 mm)
Effective piston area (SD)
12": 74.509 in² (0.0481 m²)
DC resistance (RE) 4.280 Ω

Sealed Enclosure Specifications

Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.)
12": 1.375 cu ft (38.94 L)
External height (H)
12": 19" (483 mm)
External depth (D)
12": 11.75" (298 mm)
-3 dB cutoff frequency (F3)
12": 36.0 Hz
System Q at resonance (QTC)
12": 1.179

Ported Enclosure Specifications

Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.)
12": 1.75 cu ft (49.6 L)
External width (W)
12": 17.5" (445 mm)
External height (H)
12": 14.75" (375 mm)
External depth (D) 10": 13.625" (346 mm)
12": 16.25" (413 mm)
Tuning frequency (FB)
12": 26 Hz
Internal round port length 12": 14" (356 mm)
Internal round port diameter 12": 14" (356 mm)
