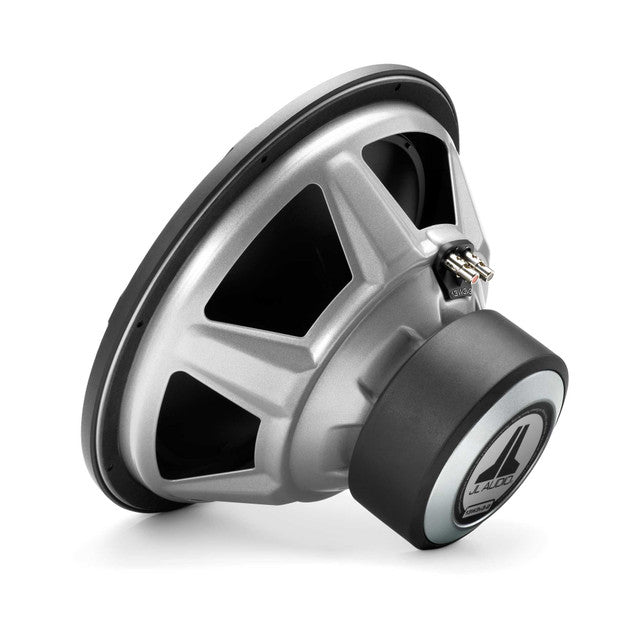

JL Audio 13W3v3 | 13" 600W RMS Subwoofer SVC
JL Audio 13W3v3 | 13" 600W RMS Subwoofer SVC - 4 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio 13W3v3 | 13" 600W RMS Subwoofer SVC
JL Audio 13W3v3 | 13" 600W RMS Subwoofer SVC - 4 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 150 - 600 W |
| Nominal Impedance (Znom) | 4 Ω or 2 Ω |
Physical Specifications
| Nominal Diameter | 13.5 in / 345 mm |
| Overall Diameter (A) | 14.0 in / 356 mm |
| Mounting Hole Diameter (B) | 12.5625 in / 319 mm |
| Bolt Hole Circle Diameter (C) | 13.2 in / 335 mm |
| Motor Outer Diameter (D) | 5.79 in / 147 mm |
| Mounting Depth (E) | 7.63 in / 194 mm |
| Driver Displacement | 0.096 cu ft / 2.72 liters |
| Net Weight | 17.75 lb / 8.05 kg |
Parameters
| Free Air Resonance (Fs) | 23.66 Hz |
| Electrical “Q” (Qes) | 0.465 |
| Mechanical “Q” (Qms) | 6.774 |
| Total Speaker “Q” (Qts) | 0.435 |
| Equivalent Compliance (Vas) | 4.793 cu ft / 135.74 L |
| One-Way Linear Excursion (Xmax)* | 0.610 in / 15.5 mm |
| Reference Efficiency (no) | 0.37% |
| Efficiency (1 W / 1 m)** | 87.90 dB SPL |
| Effective Piston Area (Sd) | 103.850 sq in / 0.0670 sq m |
| DC Resistance (Re) | 3.569 Ω |
