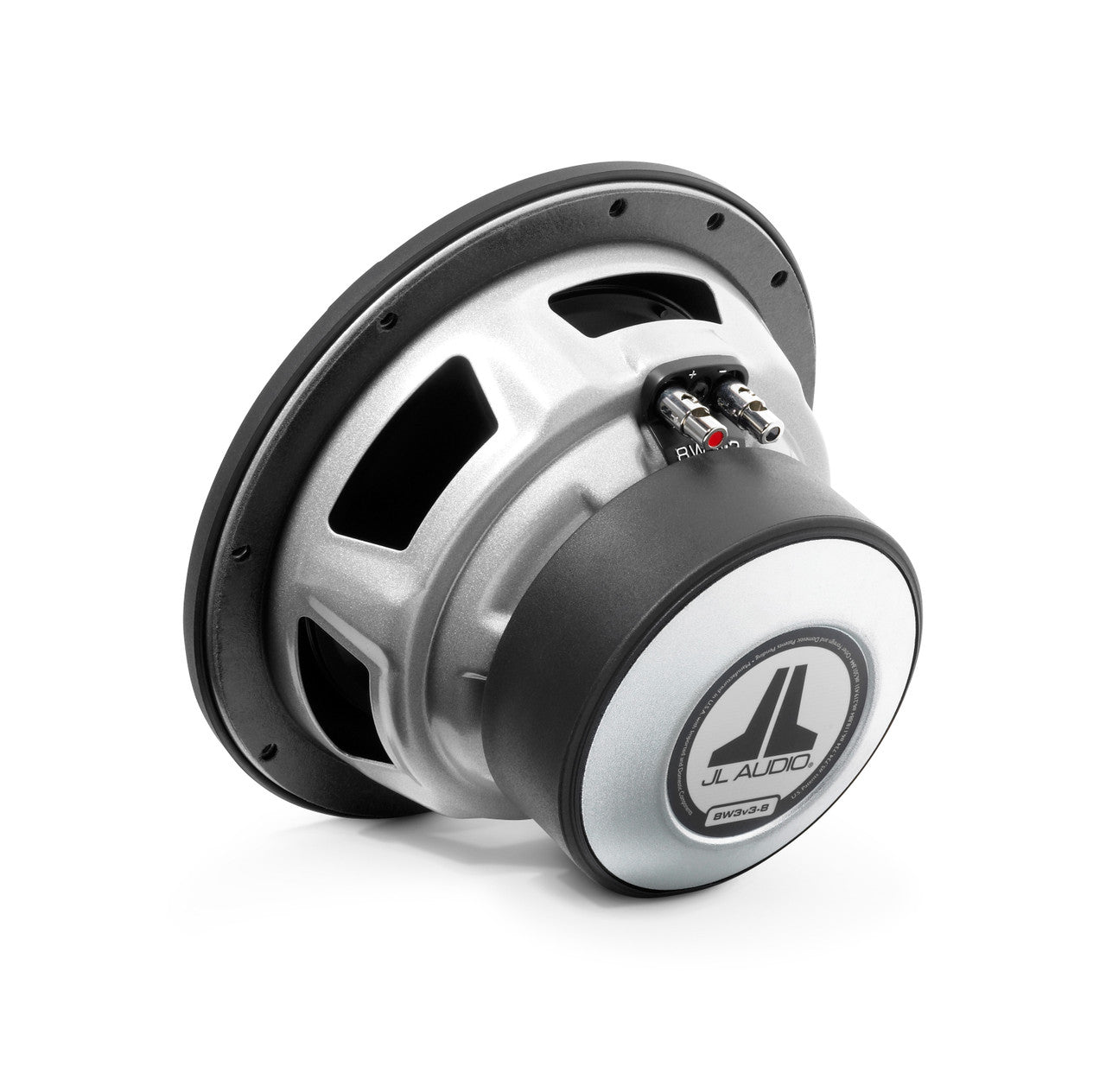

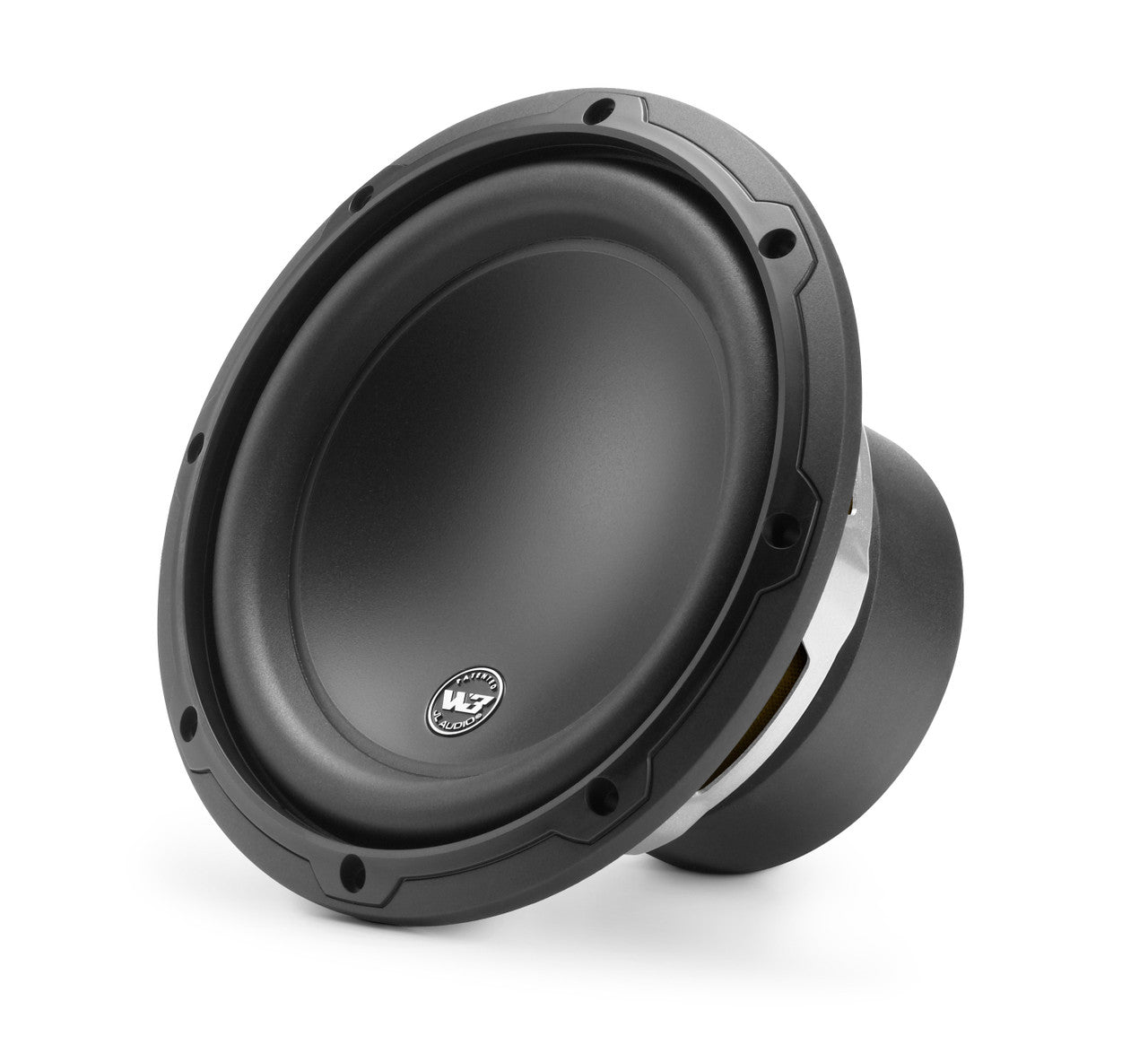

JL Audio 8W3V3 | 8" 250W RMS Subwoofer SVC
JL Audio 8W3V3 | 8" 250W RMS Subwoofer SVC - 4 Ohm is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
| Continuous Power Handling (RMS) | 250 W |
| Recommended Amplifier Power (RMS) | 75 - 250 W |
| Nominal Impedance (Znom) | 4 Ω or 2 Ω |
Physical Specifications
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter (A) | 8.54 in / 217 mm |
| Mounting Hole Diameter (B) | 7.09 in / 180 mm |
| Bolt Hole Circle Diameter (C) | 7.85 in / 199 mm |
| Motor Outer Diameter (D) | 4.75 in / 121 mm |
| Mounting Depth (E) | 4.63 in / 118 mm |
| Driver Displacement | 0.03 cu ft / 0.85 L |
| Net Weight | 8.2 lb / 3.7 kg |
Parameters
| Free Air Resonance (Fs) | 35.14 Hz |
| Electrical “Q” (Qes) | 0.501 |
| Mechanical “Q” (Qms) | 7.071 |
| Total Speaker “Q” (Qts) | 0.467 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.375 in / 10.0 mm |
| Reference Efficiency (no) | 0.13% |
| Efficiency (1 W / 1 m)** | 83.24 dB SPL |
| Effective Piston Area (Sd) | 32.02 sq in / 0.021 sq m |
| DC Resistance (Re) | 3.77 Ω |
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.30 cu ft / 8.5 L |
| External Width (W) | 10 in / 254 mm |
| External Height (H) | 10 in / 254 mm |
| External Depth (D) | 9.5 in / 241 mm |
| F3 | 54 Hz |
| Fc | 58.8 Hz |
| Qtc | 0.783 |
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.35 cu ft / 8.5 L |
| External Width (W) | 13 in / 330 mm |
| External Height (H) | 10 in / 254 mm |
| External Depth (D) | 9.25 in / 203 mm |
| Internal Port Diameter (ID) | 2 in / 51 mm |
| Port Length (L) | 18 in / 457 mm (round port requires a 90º elbow to fit in the specified enclosure) |
| Tuning Frequency (Fb) | 35 Hz |
| F3 | 41.0 Hz |
