Staggered 6-Channel Power for Multi-Zone Systems
The AP600/6 is the most versatile amplifier in the AP lineup, with four full-range channels for speakers and a higher-powered fifth/sixth channel pair optimized for subwoofers or additional full-range zones. Its Class-D design provides strong output while keeping current draw manageable on marine electrical systems.
At 14.4 V and less than 1% THD, channels 1–4 are rated for 50 watts x 4 into 4 ohms or 75 watts x 4 into 2 ohms. Channels 5–6 provide 100 watts x 2 into 4 ohms, and can be bridged for up to 300 watts x 1 into 4 ohms. Bridging channels 1–4 yields up to 150 watts x 2 at 4 ohms. This staggered layout gives you the flexibility to power several speaker pairs and a subwoofer from one amplifier.
- 6-channel Class-D amplifier with staggered power for multi-zone marine and powersports systems.
- Channels 1–4: 50 W x 4 @ 4 Ω / 75 W x 4 @ 2 Ω; 150 W x 2 @ 4 Ω bridged (14.4 V, <1% THD).
- Channels 5–6: 100 W x 2 @ 4 Ω; 150 W x 2 @ 2 Ω; 300 W x 1 @ 4 Ω bridged (14.4 V, <1% THD).
- Full-range frequency response from 20 Hz–20 kHz (+0, -1 dB) on all channels for wide-band audio coverage.
- Signal-to-noise ratio >70 dB (A-weighted, 20 Hz–20 kHz, referred to 1 W) to maintain low system noise.

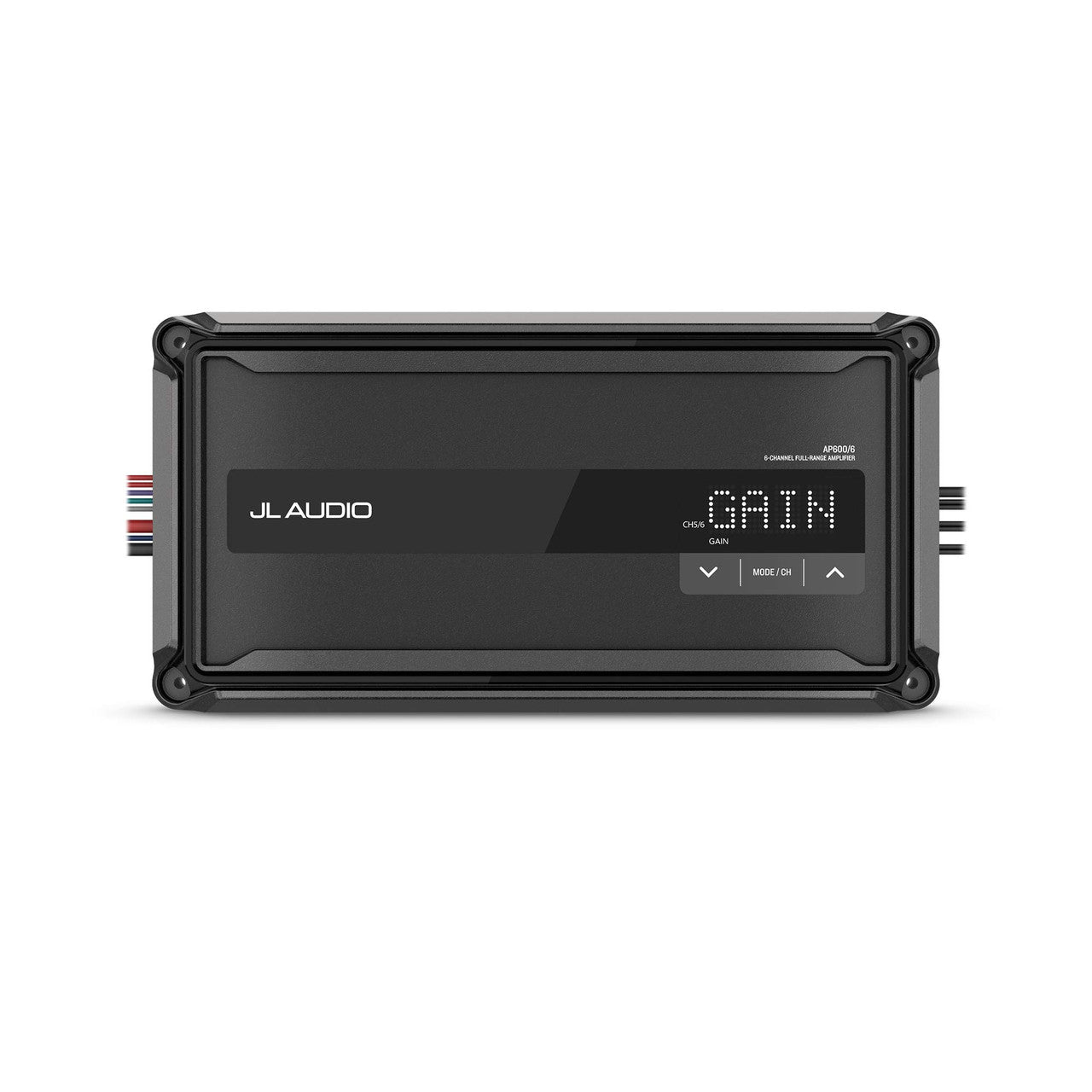

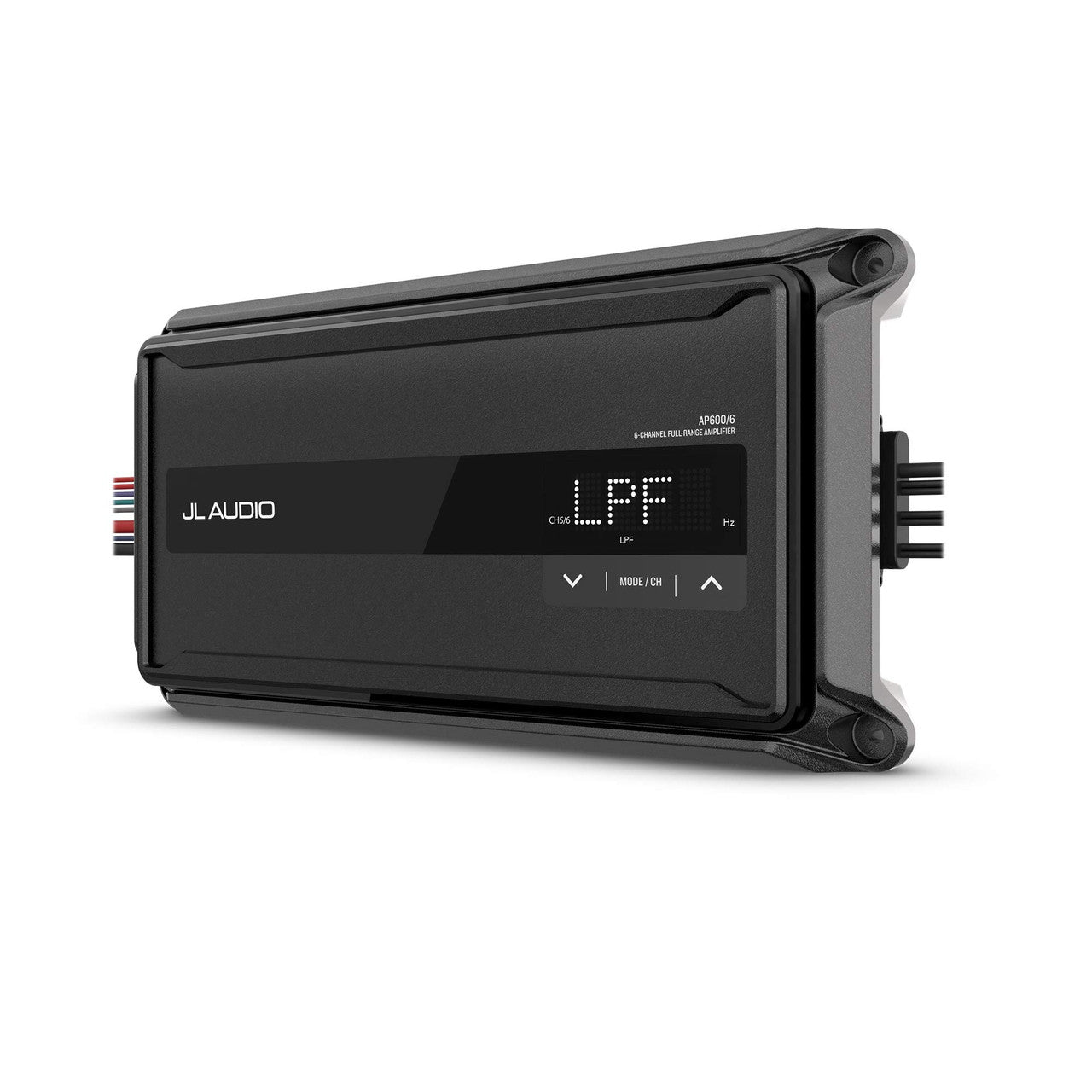

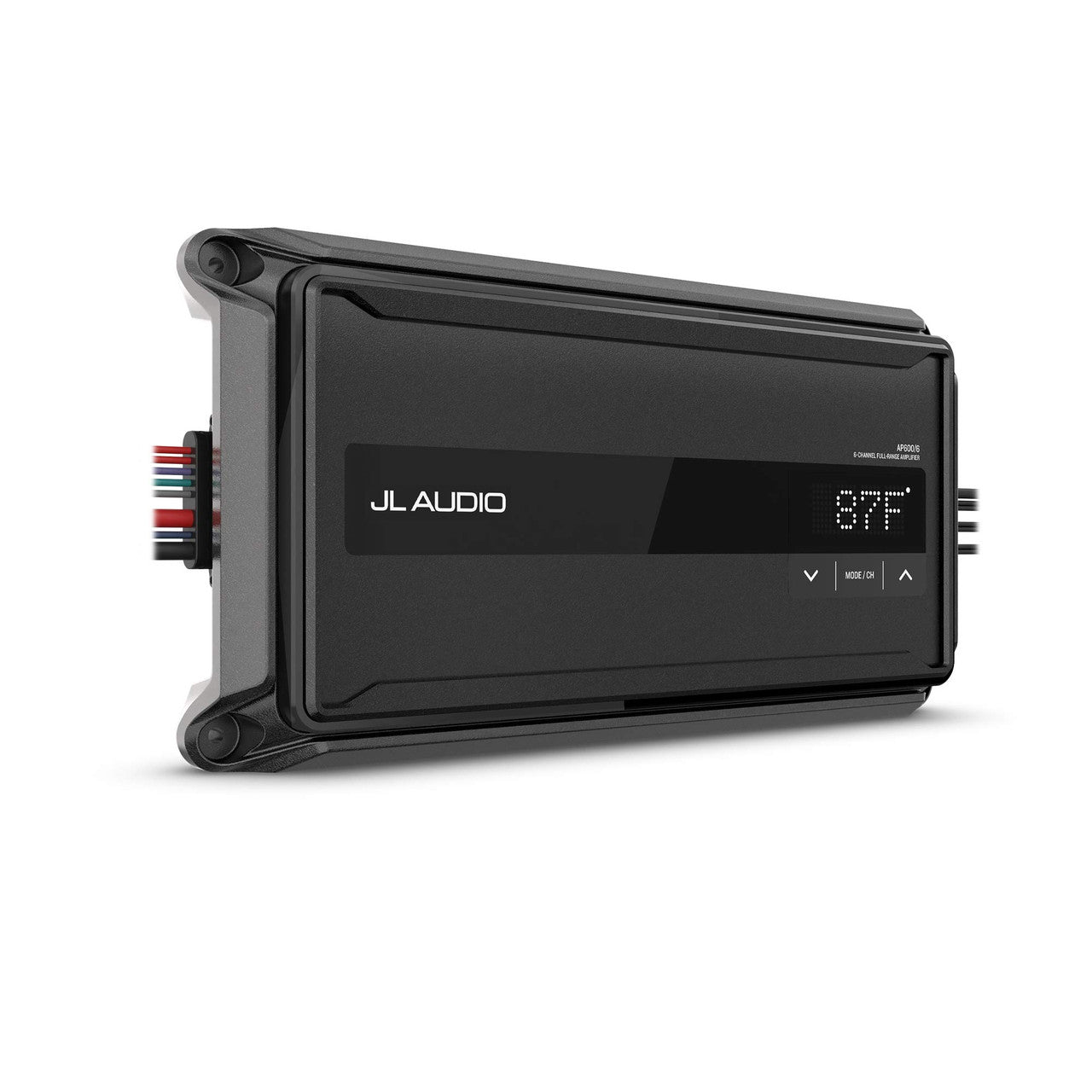

LCD On-Amp Control, Easy Tune & Marine Durability
A built-in LCD display gives you direct access to key amplifier settings right on the amp, simplifying setup and adjustment in tight installation spaces. For faster configuration, the AP600/6 supports the Easy Tune feature when used with a Fusion® stereo with built-in DSP and the Fusion® Audio app, allowing profile-based amplifier setup focused on sound quality and speaker protection.
The amplifier chassis carries an IP67 water and dust rating (excluding cables) and is ignition protected, making it suitable for demanding marine environments and appropriate engine compartment installations. Its compact size and efficient thermal design allow it to be tucked away while still reliably powering multiple zones.
- Built-in LCD display for manual control and configuration of amplifier settings.
- Easy Tune feature supported when paired with compatible Fusion® stereos and Fusion® Audio app.
- IP67-rated amplifier chassis (excluding cables) for water and dust resistance in marine use.
- Ignition protected design for compliant installation in suitable engine compartments.
- Physical dimensions (6-channel): 1.86" (H) x 11.81" (W) x 5.90" (D) / 47 x 300 x 150 mm.
| Part Number | 010-03430-00 (AP600/6, 6-channel model) |
| Channels | 6-channel, staggered power |
| Amplifier Class | Class D |
| Operating Voltage | 9–16 VDC |
| Water/Dust Rating | IP67 (amplifier chassis, excluding cables) |
| Operating Temperature | 4° to 149°F (-20° to 65°C) |
| Rated Power @ 4 Ω (14.4 V) | Ch 1–4: 50 W x 4 / 150 W x 2 bridged; Ch 5–6: 100 W x 2 / 300 W x 1 bridged (<1% THD) |
| Rated Power @ 2 Ω (14.4 V) | Ch 1–4: 75 W x 4; Ch 5–6: 150 W x 2 (<1% THD) |
| Frequency Response | 20 Hz – 20 kHz (+0, -1 dB) for 6-channel models |
| Signal-to-Noise Ratio | >70 dB (A-weighted, 20 Hz–20 kHz, referred to 1 W) |
| Standby Current | <1 mA |
| Idle Current | Approximately 1000–1500 mA (6-channel) |
| Fuse Rating | 70 A (AFS, AGU, or MaxiFuse™ recommended) |
| Minimum Power/Ground Wire | 4 AWG copper wire |
| Protection Circuits | Input under/over voltage, over-temperature, output short circuit |
| Amplifier Dimensions (H x W x D) | 1.86" x 11.81" x 5.90" (47 x 300 x 150 mm) |
| Warranty | 3 years |
| High-Pass / Low-Pass Filters | Yes – full-range filters, user selectable |
| Filter Modes – Channels 1 & 2 | Off, High-pass (HP) or Low-pass (LP) |
| Filter Modes – Channels 3 & 4 | Off, High-pass (HP) or Low-pass (LP) |
| Filter Modes – Channels 5 & 6 | Off, High-pass (HP) or Low-pass (LP) |
| Filter Slope | 12 dB/octave (all channel pairs) |
| Filter Frequency Range | 20 Hz – 500 Hz (HP or LP, channels 1–6) |
| HP Variable Crossover | Yes – 6-channel, 12 dB/octave |
| LP Variable Crossover | Yes – 6-channel, 20–500 Hz |
| Bass Boost EQ | 0 to +18 dB @ 37 Hz |
| Infrasonic Filter (Subwoofer) | 20–50 Hz, defeatable on channels 5–6 |
| Input Sensitivity | RCA inputs switchable: 200 mV–2 V RMS (Low), 800 mV–8 V RMS (High) |
| Input Impedance | 11 kΩ (High), 20 kΩ (Low) |
