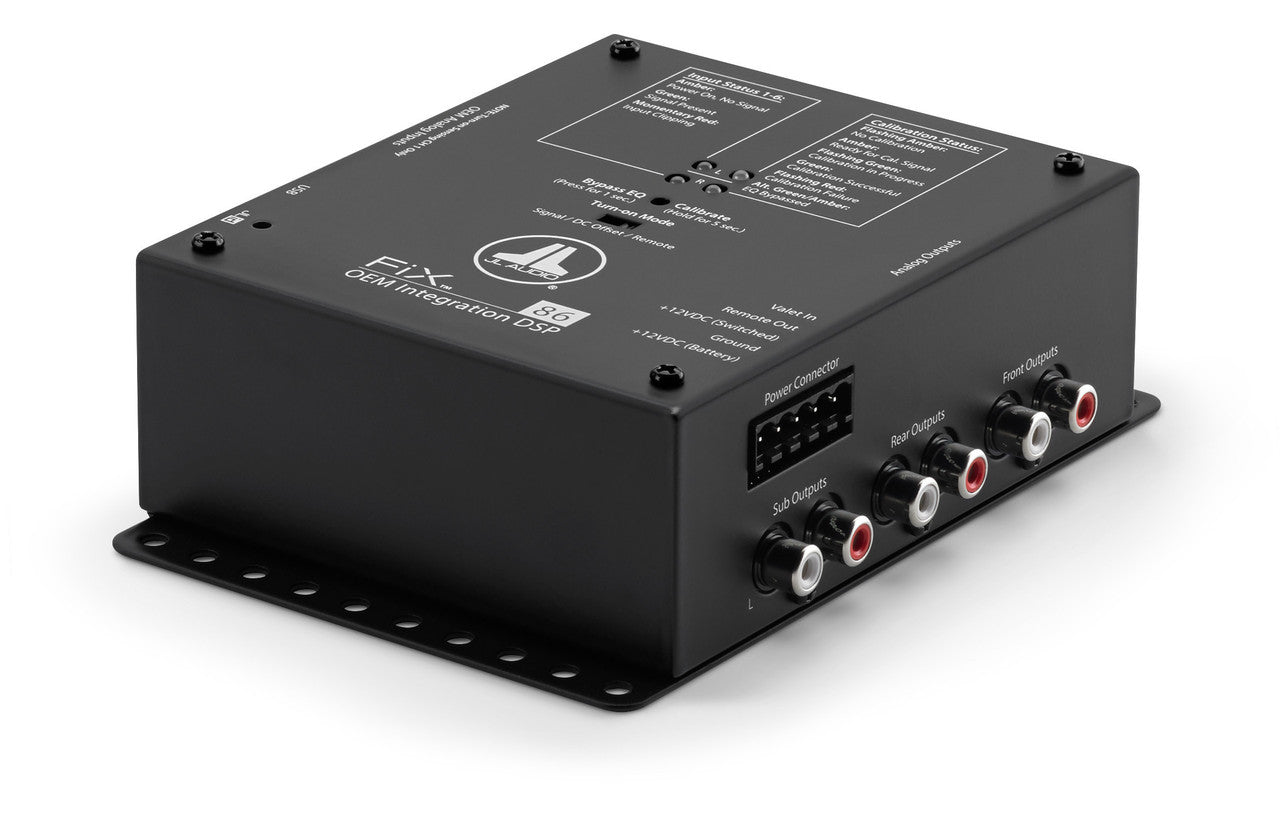

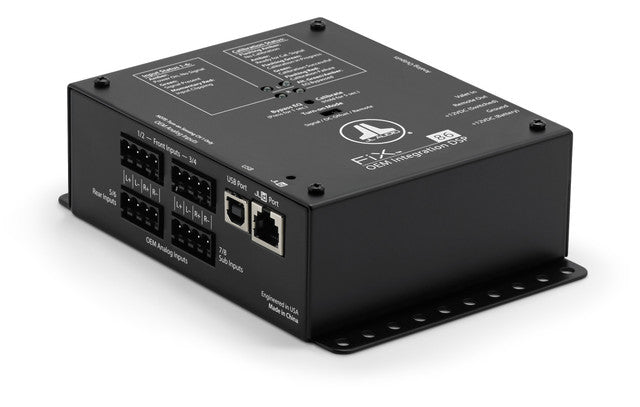

JL Audio FiX-86 OEM Integration DSP
JL Audio FiX-86 OEM Integration DSP is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
JL Audio FiX-86
OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 4-ch. Stereo + 2 Subwoofer RCA Outputs
The FiX™ 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FiX™ 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.
With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs.
By connecting a PC running TüN™ 2.0 Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN™ 2.0 interface, you can also access four, user-adjustable, 10-band, graphic equalizers to fine tune the output signals.
General Specifications
| Power Supply Type | Regulated DC-DC SMPS |
| Input Operating Voltage | 10 - 16 VDC |
| Standby Current Draw | <1.5 mA |
| Operating Current Draw | 0.7 A |
| Recommended Fuse Value | 1 A |

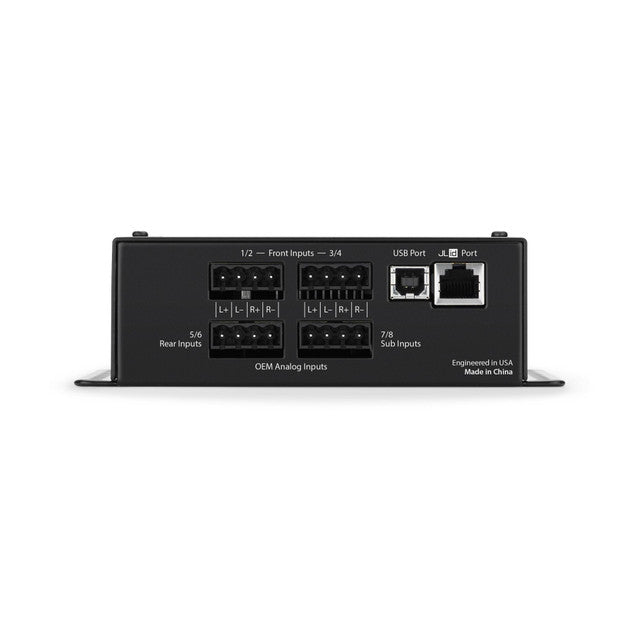

| Input Channels | Eight |
| Input Type | Differential-Balanced |
| Input Voltage Range | 250 mV - 30 V RMS |
| Minimum Input Voltage | 10 mV RMS |
| Input Level Setting | Fully automatic |

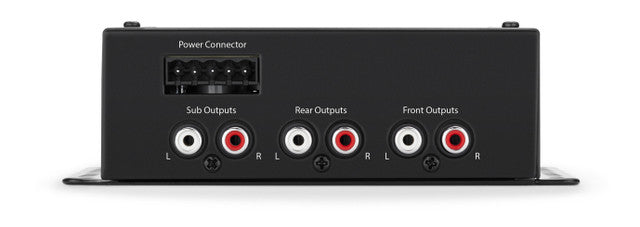

| Output Channels | Six (Front/Rear/Sub Output Pairs) |
| Analog Output | Unbalanced, stereo RCA jacks |
| Digital Output | N/A |
| Output Impedance | 450 Ω |
| S/N Ratio | 96 dB (A-Weighted, referred to 4V RMS Output) |
| THD+N @ Rated Output | 0.02% (20 Hz - 20 kHz) |
Signal Processing
| Audio Resolution | 24 bit / 48 kHz |
| Number of EQ Bands | 30 x 2 channels |
| EQ Resolution | 1/3 octave (25 Hz - 20 kHz) |
| Remote Level Control | Optional (DRC-100 or DRC-200) |
| Remote Level Functions | Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control) |
Physical Specifications
| Height (H) | 1.85 in / 47 mm |
| Width (W) | 4.29 in / 109 mm |
| Depth (D) | 6.14 in / 156 mm |
| Net Weight | 2.58 lb / 1.17 kg |
