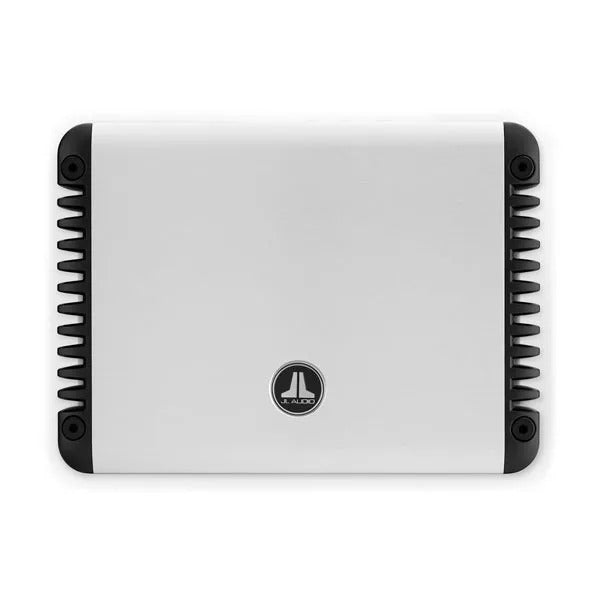

JL Audio HD750/1 | 750W RMS Monoblock Amplifier 2-Ohm
JL Audio HD750/1 | 750W RMS Monoblock Amplifier 2-Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio HD750/1 | 750W RMS Monoblock Amplifier 2-Ohm
JL Audio HD750/1 | 750W RMS Monoblock Amplifier 2-Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 750 W RMS x 1 |
| @ 3 Ω | 750 W RMS x 1 |
| @ 2 Ω | 750 W RMS x 1 |
| @ 1.5 Ω | 750 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 750 W RMS x 1 |
| @ 3 Ω | 750 W RMS x 1 |
| @ 2 Ω | 750 W RMS x 1 |
| @ 1.5 Ω | 750 W RMS x 1 |
General Specifications
| Frequency Response | 6 Hz - 8 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) | >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >500 / 50 Hz |
| Damping Factor @ 2 Ω | >250 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <0.03% @ 4 Ω |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
Physical Specifications
| Height (H) | 1.93 in / 49 mm |
| Width (W) | 10.74 in / 273 mm |
| Depth (D) | 8.29 in / 211 mm |
| Net Weight | 6.6 lb / 2.99 kg |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ | No |
| Output Polarity Switch | Yes |
| Remote Subwoofer Level Control | Optional (HD-RLC) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
