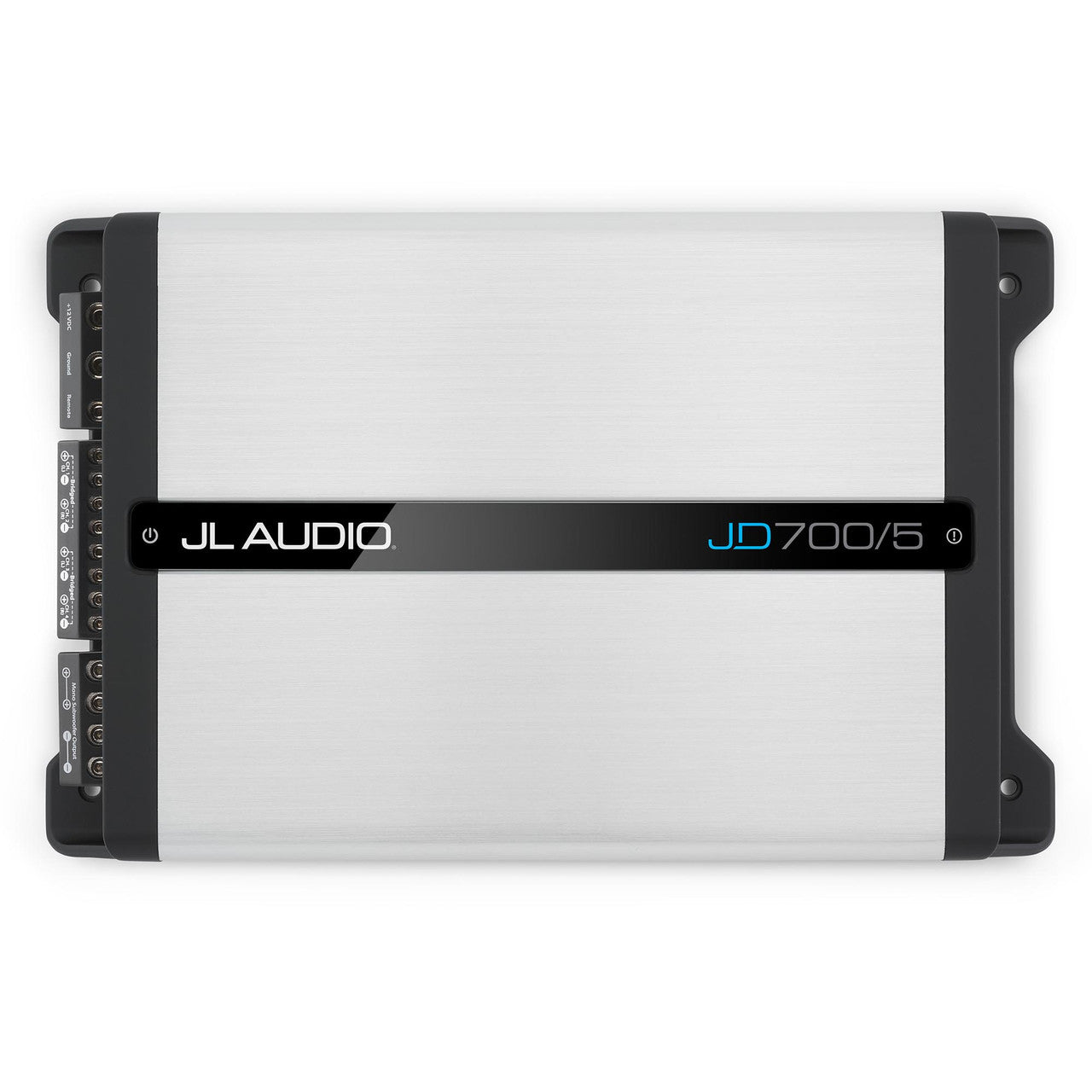

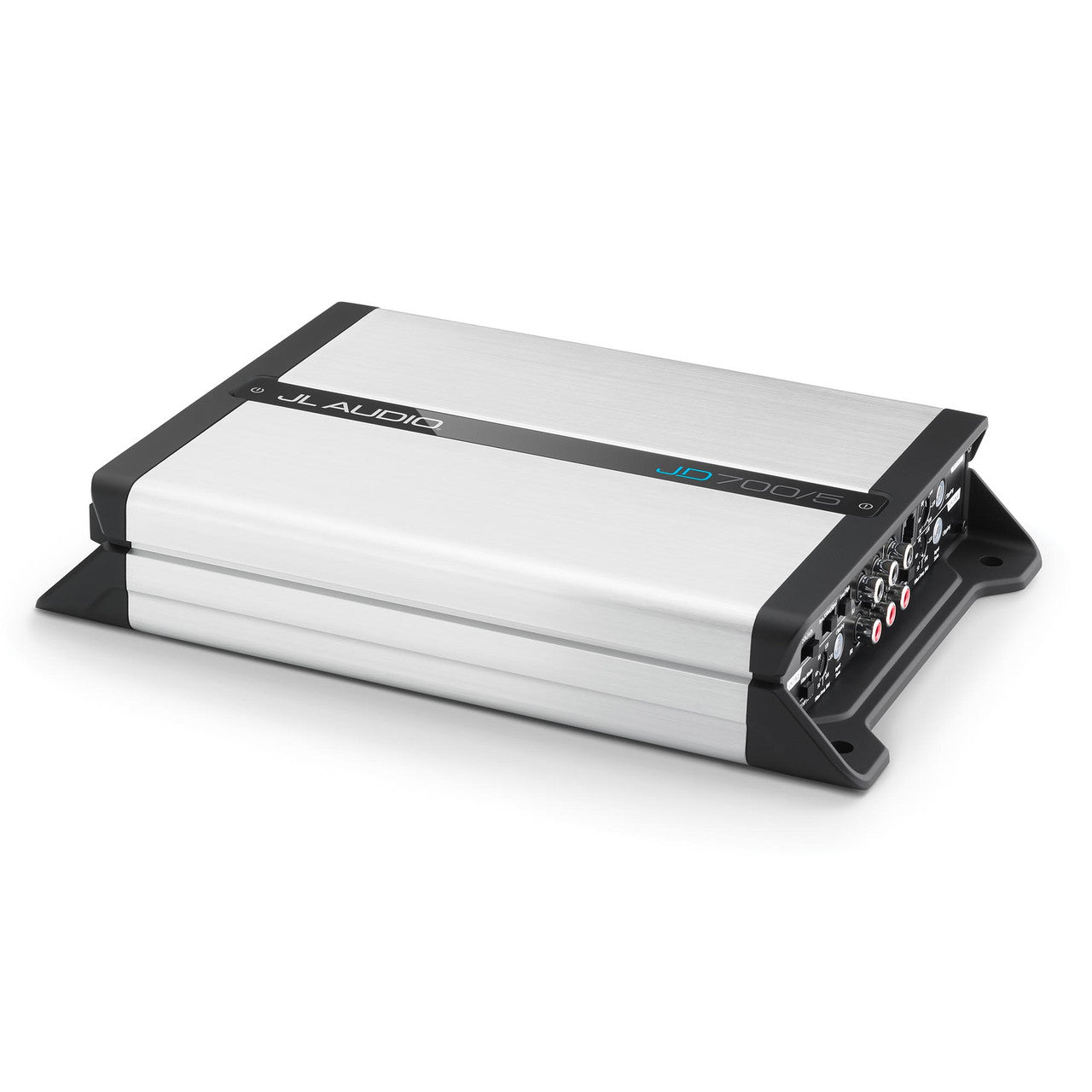

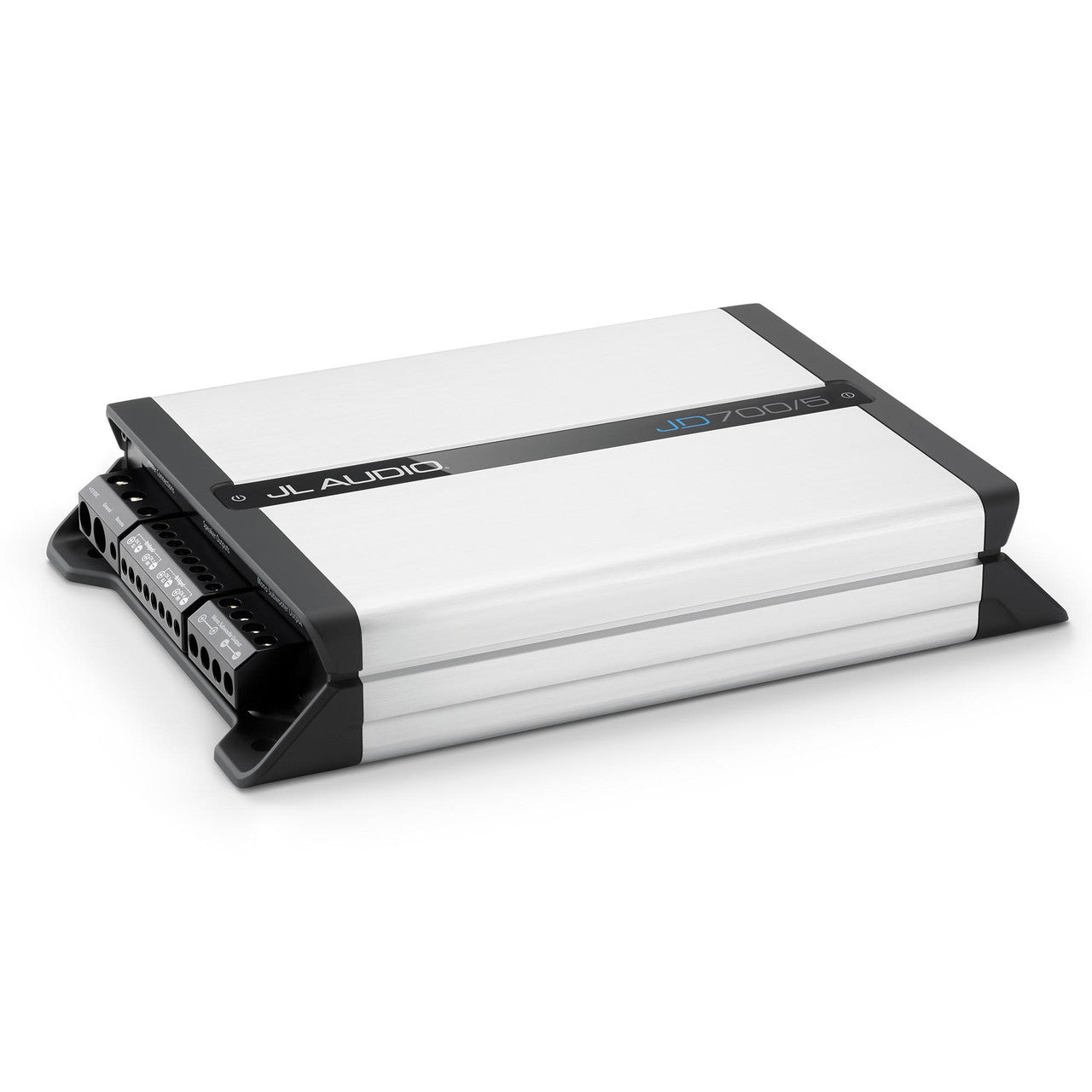

JL Audio JD700/5 | 5-Channel Amplifier
JL Audio JD700/5 | 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
| Channels | 5 |
|---|---|
| Physical dimensions (Height) | 2.10" (53 mm) |
| Physical dimensions (Width) | 11.86" (242 mm) |
| Physical dimensions (Depth) | 7.50" (190 mm) |
| Weight |
6.55 lbs (2.97 kg) |
| Operating voltage | 10.5-16 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
Main: 75 W x 4 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
Main: 100 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
Main: 60 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
Main: 90 W x 4 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >104 dB |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >84 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >60 dB |
| Damping factor @ 4 Ω | >150/50 Hz |
| Damping factor @ 2 Ω | >75/50 Hz |
| THD+N @ Rated Power: Main Channels | <1% @ 2 Ω per Channel |
| THD+N @ Rated Power: Subwoofer Channel | <1% @ 2 Ω per Channel |
| Frequency response (+0, -1dB) | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Main Channels | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 7 Hz-500 Hz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | 60 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |

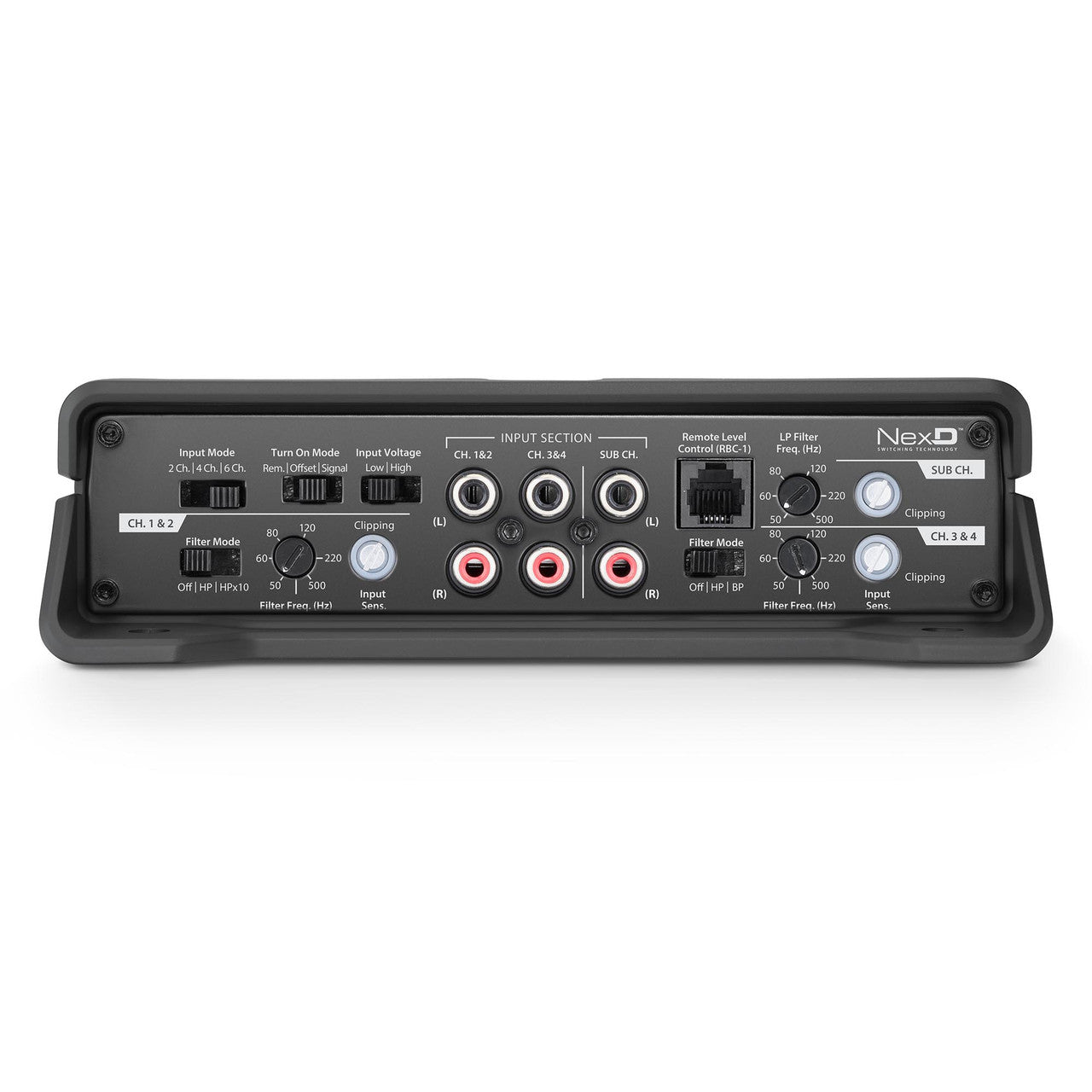

Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off, Low-pass or High-pass x10 |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz (x10: 500 Hz-5 kHz) |
| Filter mode(s): Channels 3 & 4 | Off, High-pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 | 12 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Off or Low-pass only |
| Filter slope(s): Subwoofer Channel | 12 dB/octave |
| Filter frequency range: Subwoofer Channel | 50 Hz-500 Hz |
| Bass boost | |
| Bass boost EQ (0 to +12 dB @ 45 Hz) | |
| Remote level control | Optional (RBC-1) |
| Remote level modes | Sub Channel only |
| Channel input mode switch | yes (2/4/6 Channels) |
