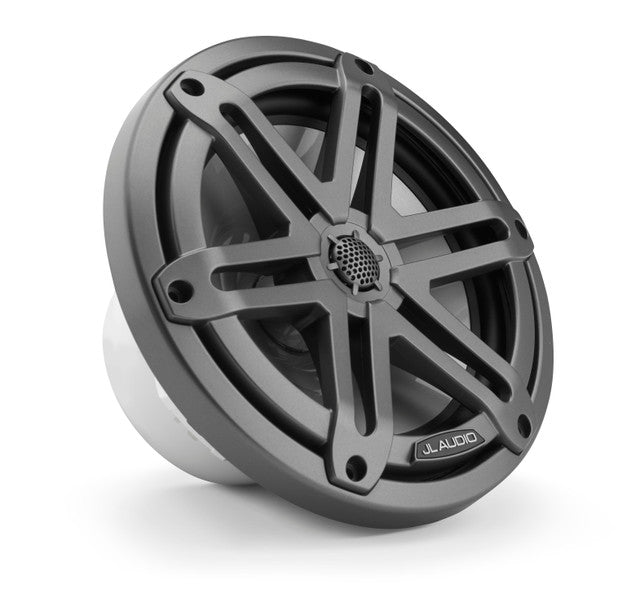

JL Audio M3-770X-S-Gm 7.7" 225W Marine Coaxial Speakers (Pair) - Gunmetal Sport Grilles
JL Audio M3-770X-S-Gm 7.7" 225W Marine Coaxial Speakers (Pair) - Gunmetal Sport Grilles - No is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio M3-770X-S-Gm 7.7" 225W Marine Coaxial Speakers (Pair)...
JL Audio M3-770X-S-Gm 7.7" 225W Marine Coaxial Speakers (Pair) - Gunmetal Sport Grilles - No is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
JL Audio M3-770X-S-Gm - M3 7.7" Marine Coaxial Speakers (pair) - Gunmetal Sport Grilles
7.7-inch coaxial system with 0.75-inch (19 mm) marine silk dome tweeters, 70W, 4 ohms
M3 Marine Coaxial Speakers - High-performance sound, engineered for real marine duty
Truly Engineered for Marine Duty
To ensure long-term performance, all models are designed and built to exceed industry standards for salt-fog and UV exposure. These are saltwater-rated products that you can use with confidence.
Outstanding Sound Quality
• Acoustically engineered to produce powerful, smooth sound in real-world, open-air, marine environments.
• Long-excursion, high-efficiency woofers and treated silk dome tweeters deliver superior output capability with clear, high frequency detail.
• Integrated 2nd order, high-pass filter on tweeters, with solid-state protection circuit to minimize the possibility of tweeter failure.
Versatile Power Requirements
• Suitable for use with standard marine head-unit power.
• Designed to benefit with quality amplification, such as the JL Audio marine amplifiers.
Choose Your Look
• Available in two grille styles: “Classic” or “Sport”, both in Gloss White. Sport models are also available in a sleek, all Gunmetal finish.
• Allows you to match the look of the speakers to the theme of the boat interior.
General Specifications
| Continuous Power Handling (RMS) | 70 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 20 - 150 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter (A) | 7.70 in / 196 mm |
| Bolt Hole Circle Diameter (B) | 6.92 in / 176 mm |
| Motor Outer Diameter (C) | 4.27 in / 108 mm |
| Frontal Grille Protrusion* (D) | 1.00 in / 25 mm |
| Mounting Hole Diameter (E) | 6.25 in / 159 mm |
| Mounting Depth (F) | 3.15 in / 80 mm |
