SKU: JL-RD400/4

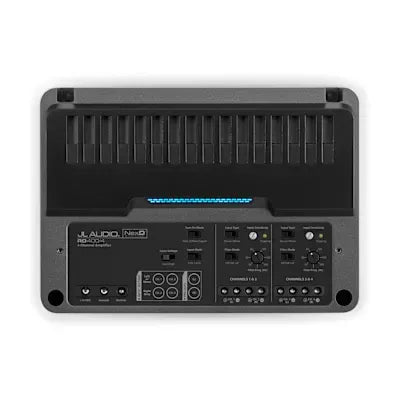

JL Audio RD400/4 | 4-Channel Amplifier

No reviews yet. Bought this? Write the first review
Regular price $379.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 75 W RMS x 4
@ 3 Ω 100 W RMS x 4
Bridged @ 4Ω 200 W RMS x 2



Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 60 W RMS x 4
@ 3 Ω 90 W RMS x 4
Bridged @ 4Ω 180 W RMS x 2



General Specifications

Frequency Response 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 40 A (AFS, AGU or MaxiFuse™)



Signal Processing

Filter Mode(s) Low-Pass or High-Pass
Filter Slope(s) 12 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers No
Filter Defeat Function Yes
Remote Level Control No
Remote Level Modes N/A
Channel Input Mode Switch Yes (2/4 ch.)
Pass-Through Preamp Output Buffered
Source Channel Selection for PreOuts No



Physical Specifications

/>
    <br>
    <table class=
 Height (H) 2.13 in / 54 mm Width (W) 9.78 in / 372 mm Depth (D) 6.96 in / 177 mm
