KRYPTONITE STAGE 3 LEVELING KIT WITH FOX 2.0 SHOCKS FOR 2005-2016 FORD F-250/F-350 SUPER DUTY
Fits:
2005-2016 Ford F-250/F-350 Super Duty 4X4
Important Fitment Details:
Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
Features:
- Dual Rate Coils - Provides 2.5" of front lift
- Opens Wheel and Tire Options - Compatible with Larger wheels/tire with minor trimming
- Built to Last - Durable Black Finish
- Premium Hardware - Grade 10.9 Hardware
- Meticulously Engineered - Precision CAD Engineering
- Anti Corrosion Components - Billet Aluminum Spacers
- Easy Install - Direct bolt on Install
- Made in the USA
Description:
Our new Stage 3 Leveling Kit is just what you need if your looking for a comprehensive suspension upgrade on your 2005-2016 F250/F350 Truck! This complete kit includes everything you need to give the front of your truck an extra 2.5" ride height increase while maintaining adequate droop travel for a premium ride quality.
This kit will allow your to upgrade to a 35"x12.5 Tire with little to no trimming.
*Or a 37" with additional fender and front bumper clearance required.
Built into the box welded structure of this arm is a Tire clearance pocket which will allow clearance of a 37" x 13.5" Tire on a stock 20" rim with 5.5" of backspacing.
We kept alignment adjustability in mind with the design of this arm. Utilizing our exclusive Hexagon Caster Eccentric allows you to make fixed 2° incremental changes in 5 different positions. This means that at any ride height from 0" up to 6" you'll be able to dial in Caster exactly where you need it. The best part is, no worrying about loosing your adjustments over time or with rough driving. The Hex shape of this Caster Eccentric will lock your alignment adjustment into place.

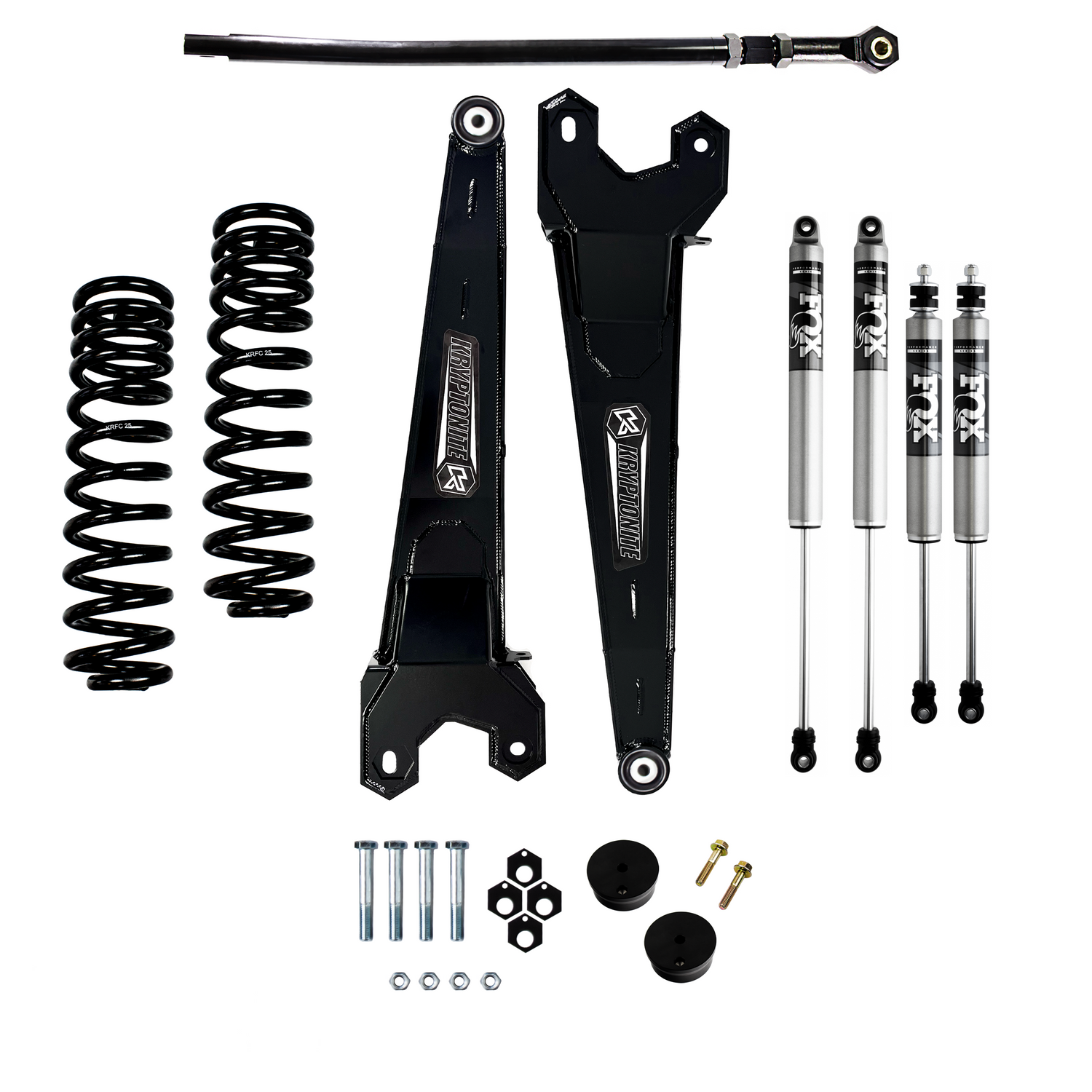

Includes:
- Fox 2.0 Performance Series Extended Length shocks (4)

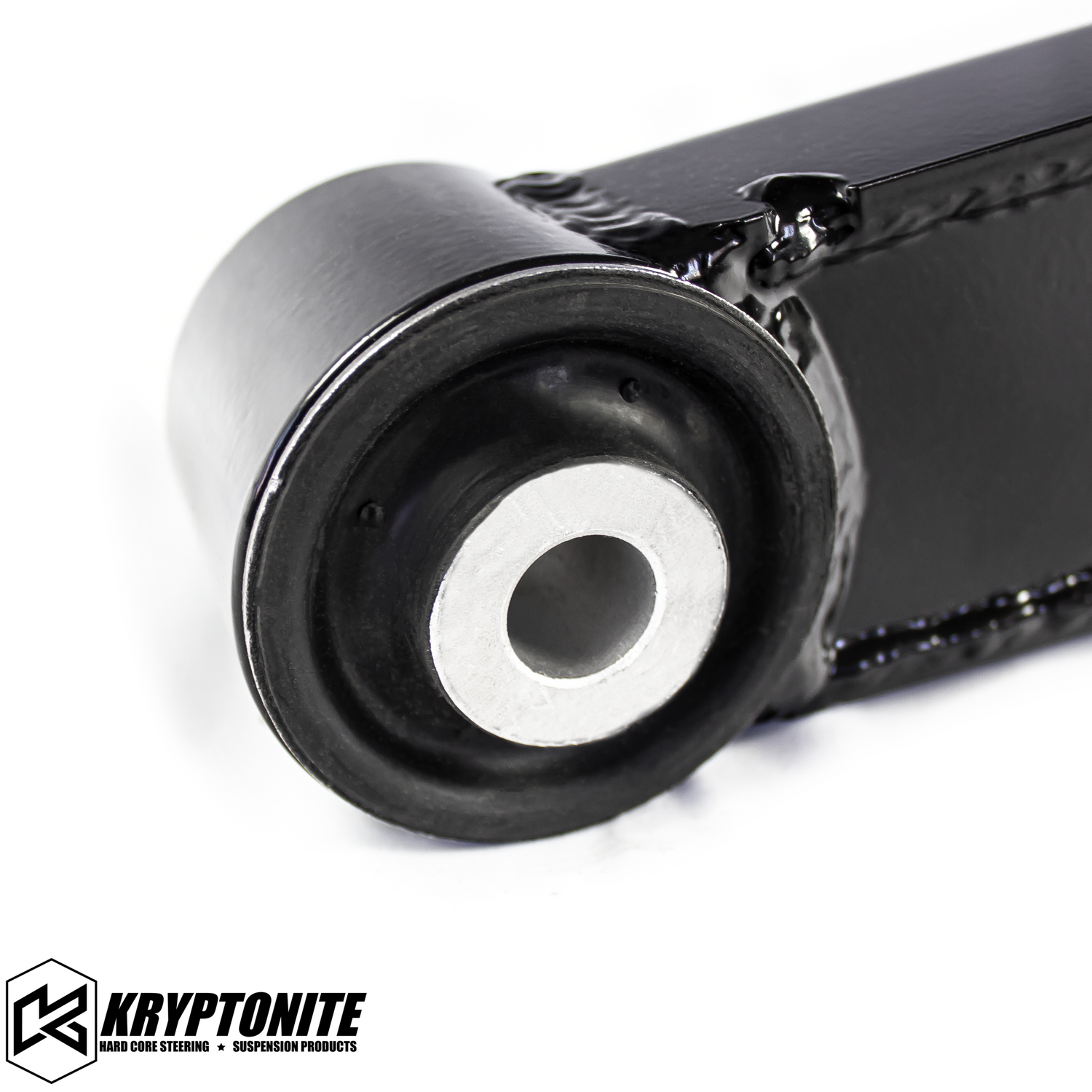

- Kryptonite Radius arm kit

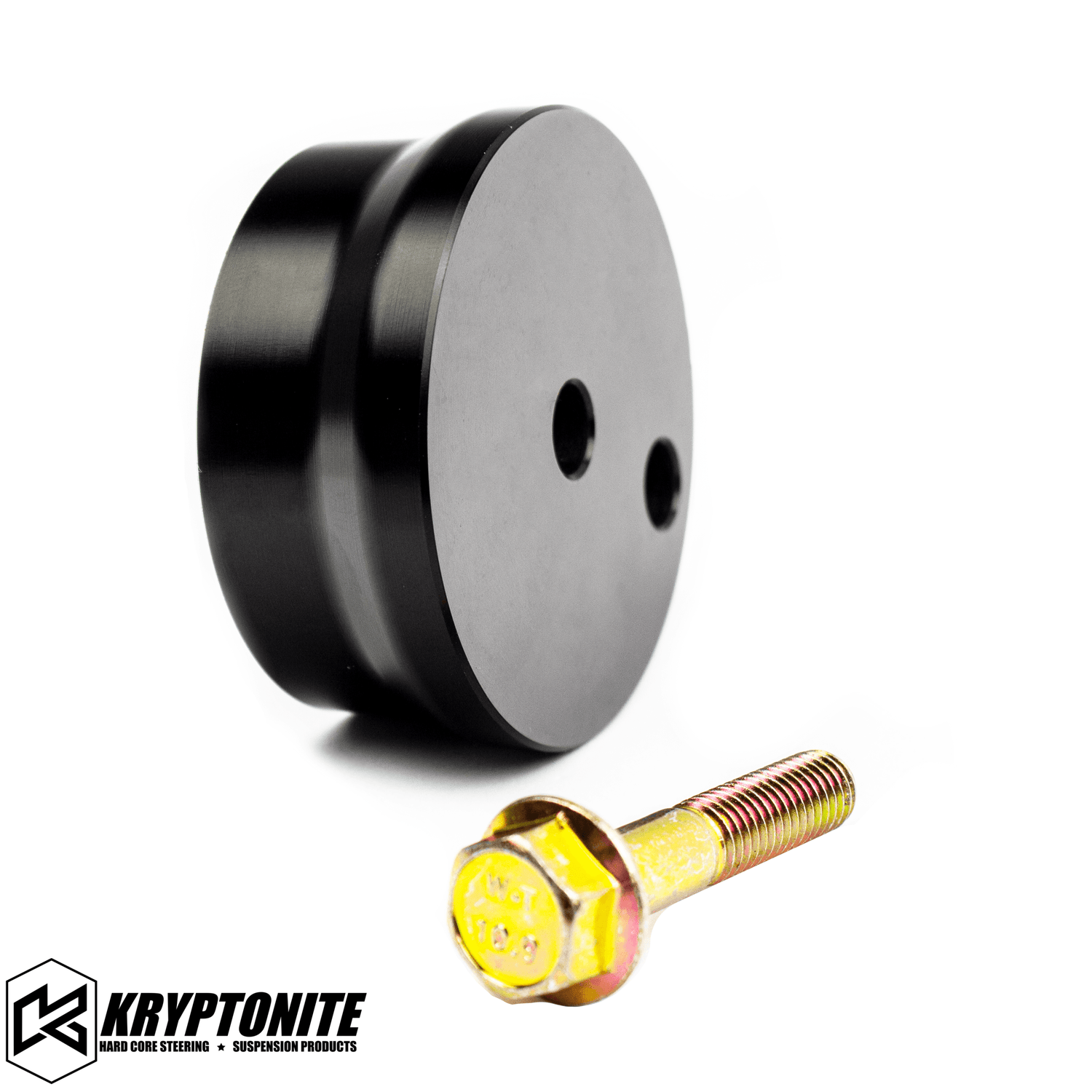

- Bump Stop Spacer Kit

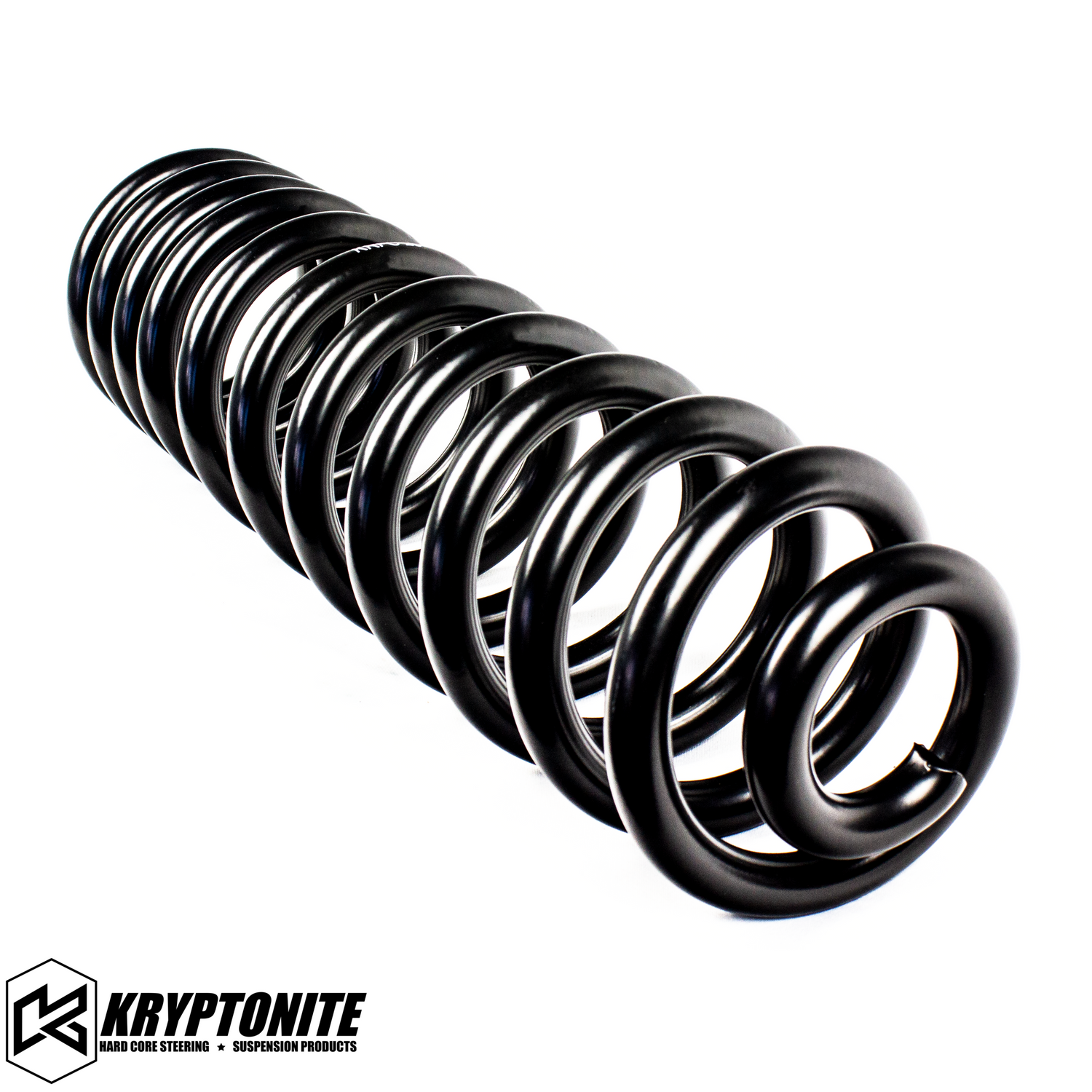

- 2.5" Leveling Coils

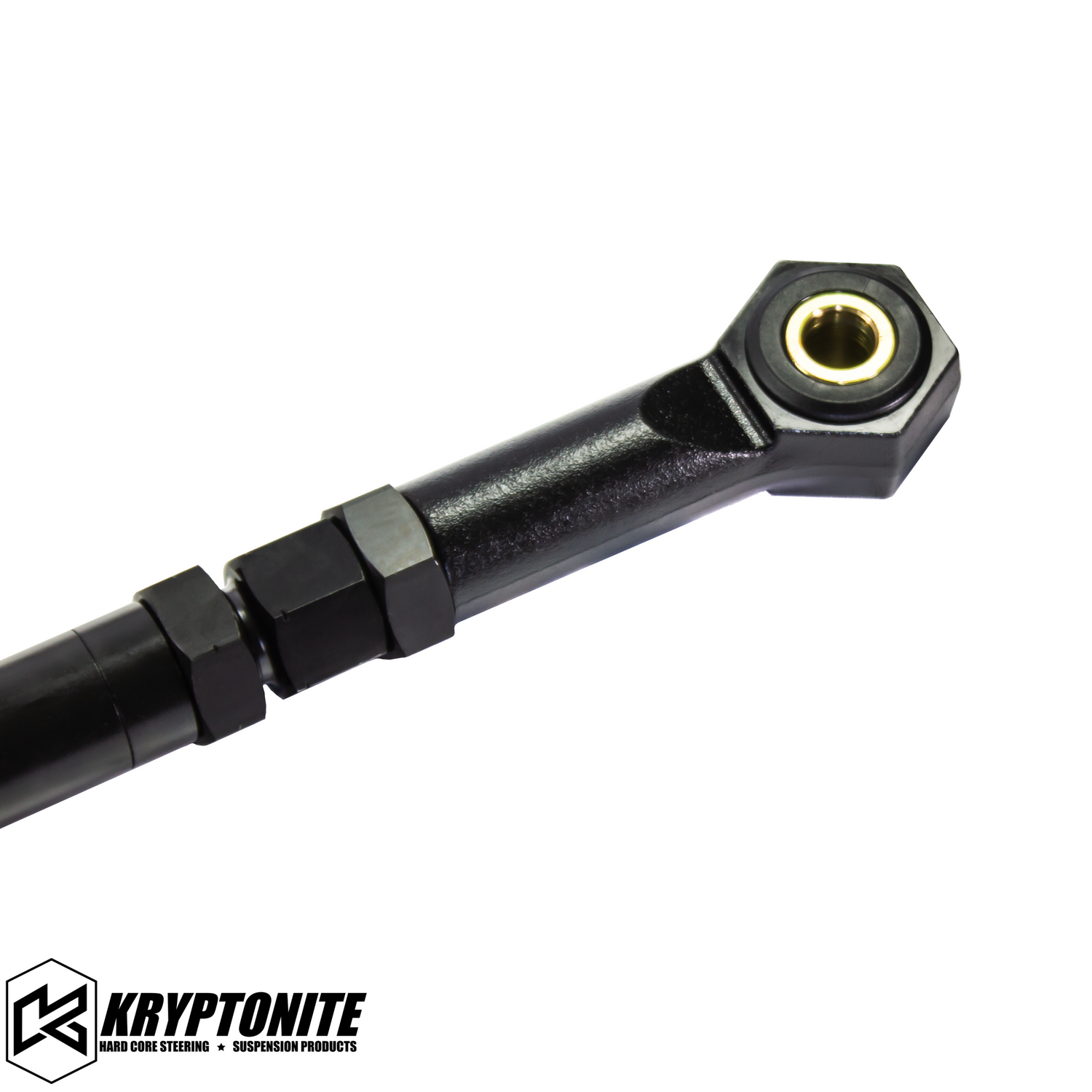

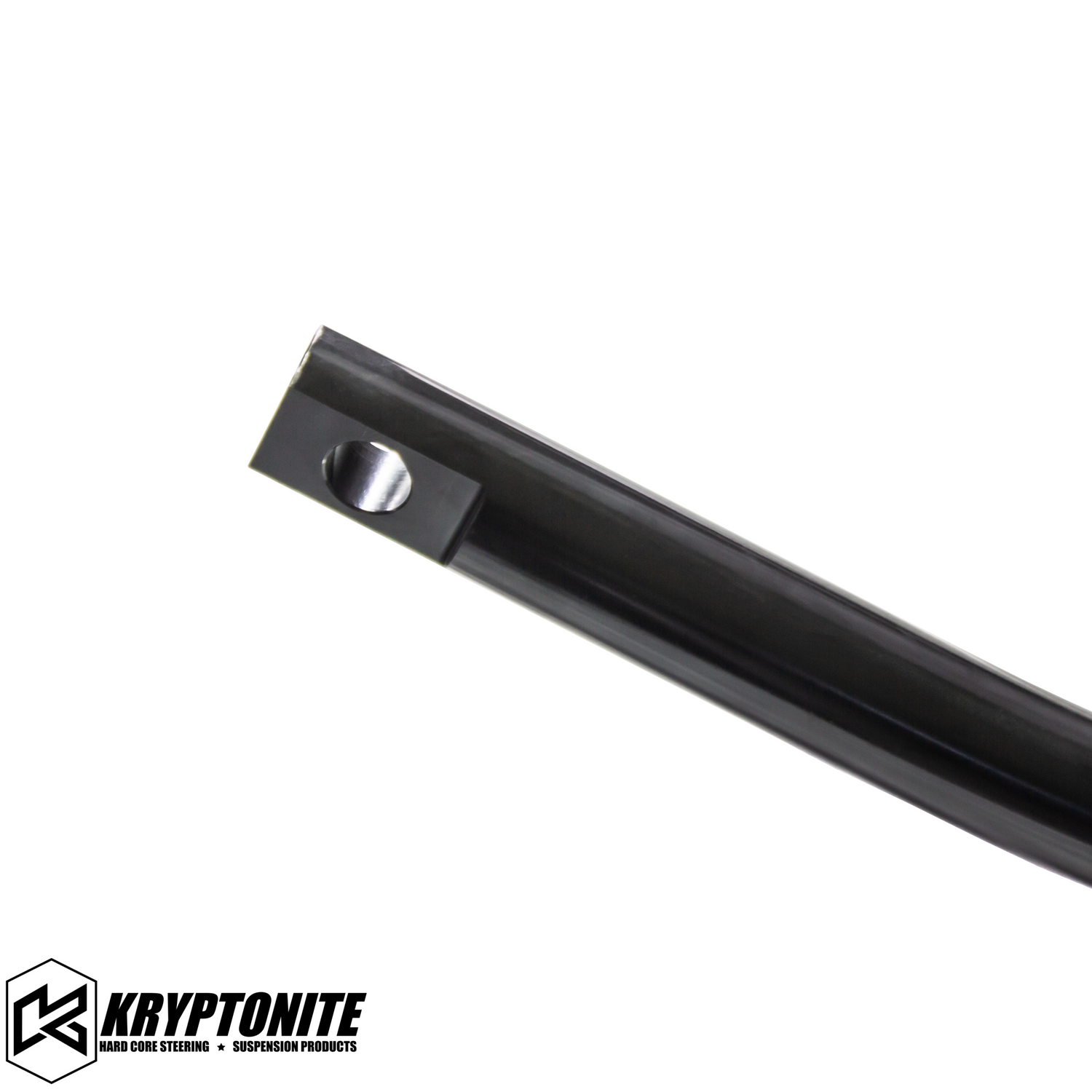

- Kryptonite Adjustable Track Bar - KRFTB11
Warranty:
(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.
Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [here].
