SKU: LF-HVPM

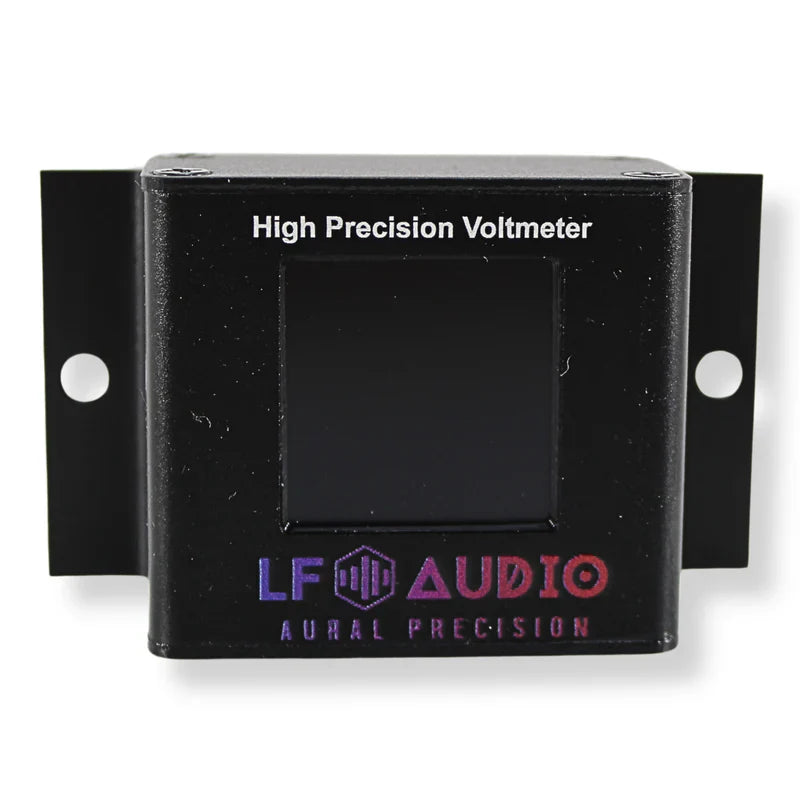

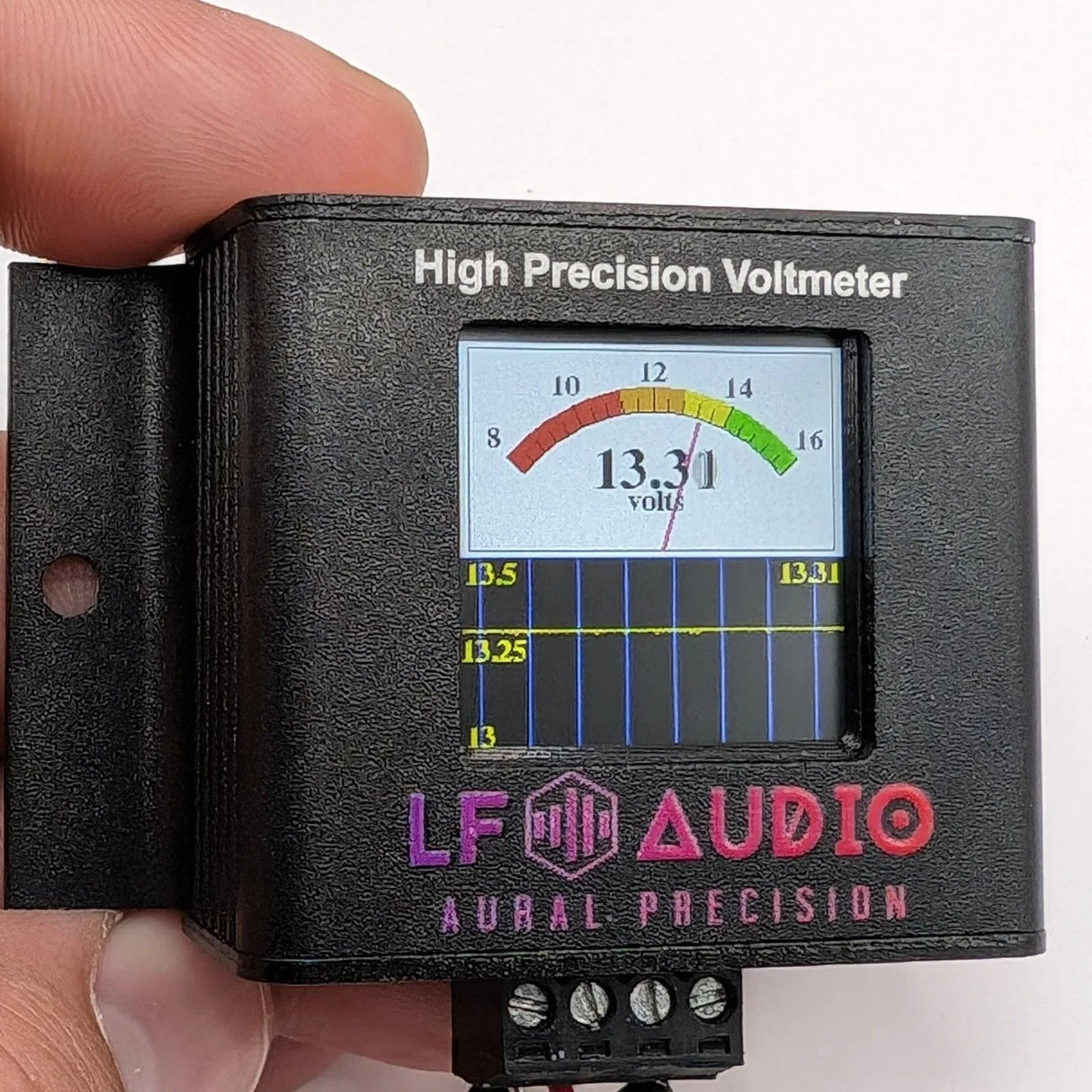

LF Audio HVPM High Precision Voltmeter

No reviews yet. Bought this? Write the first review
Regular price $100.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

HPVM Voltage Meter

  • Precision volt meter for automotive and car audio
  • 1.3-inch LCD with 65,000 colors
  • Monitors two sources at once
  • Measures up to 18 volts
  • Customizable display with ten gauge faces
  • Bluetooth-enabled connection with free AuralSync app

Your Style. Our Precision.

The HPVM is the most versatile graphing volt meter available today. Accurate to 1/500 of a volt and capable of measuring two sources simultaneously, the HPVM comes equipped with Bluetooth connectivity, allowing it to connect to the free Aural Sync™ app, optional AuralSync Companion Smartwatch, and other AuralSync-enabled devices.

Use the app to choose any one of ten gauge designs, then create user-definable voltage ranges and custom colors to make each look match your needs, and your style.

Overbuilt To Last

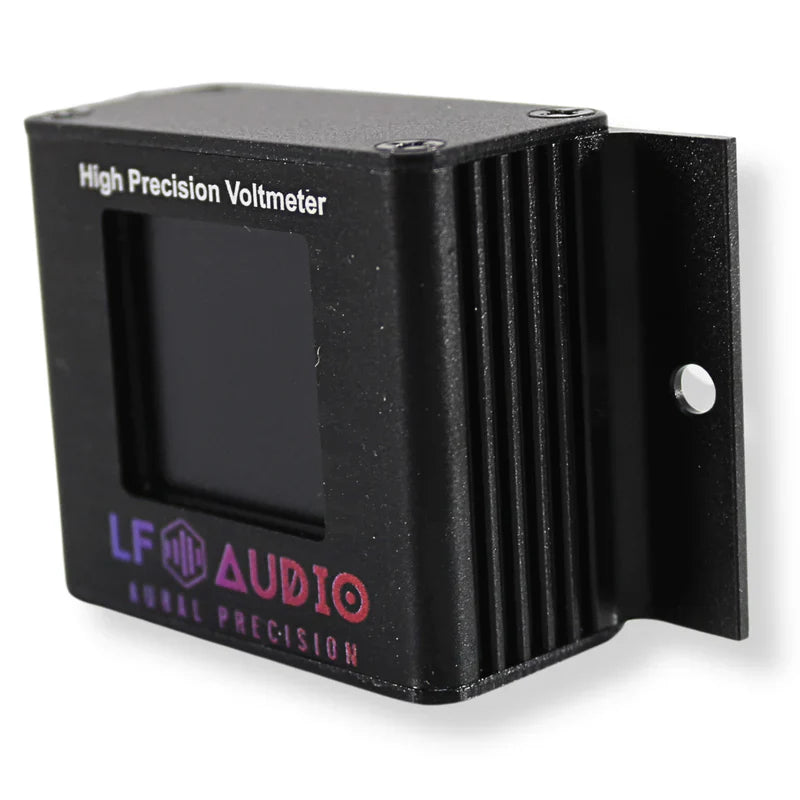

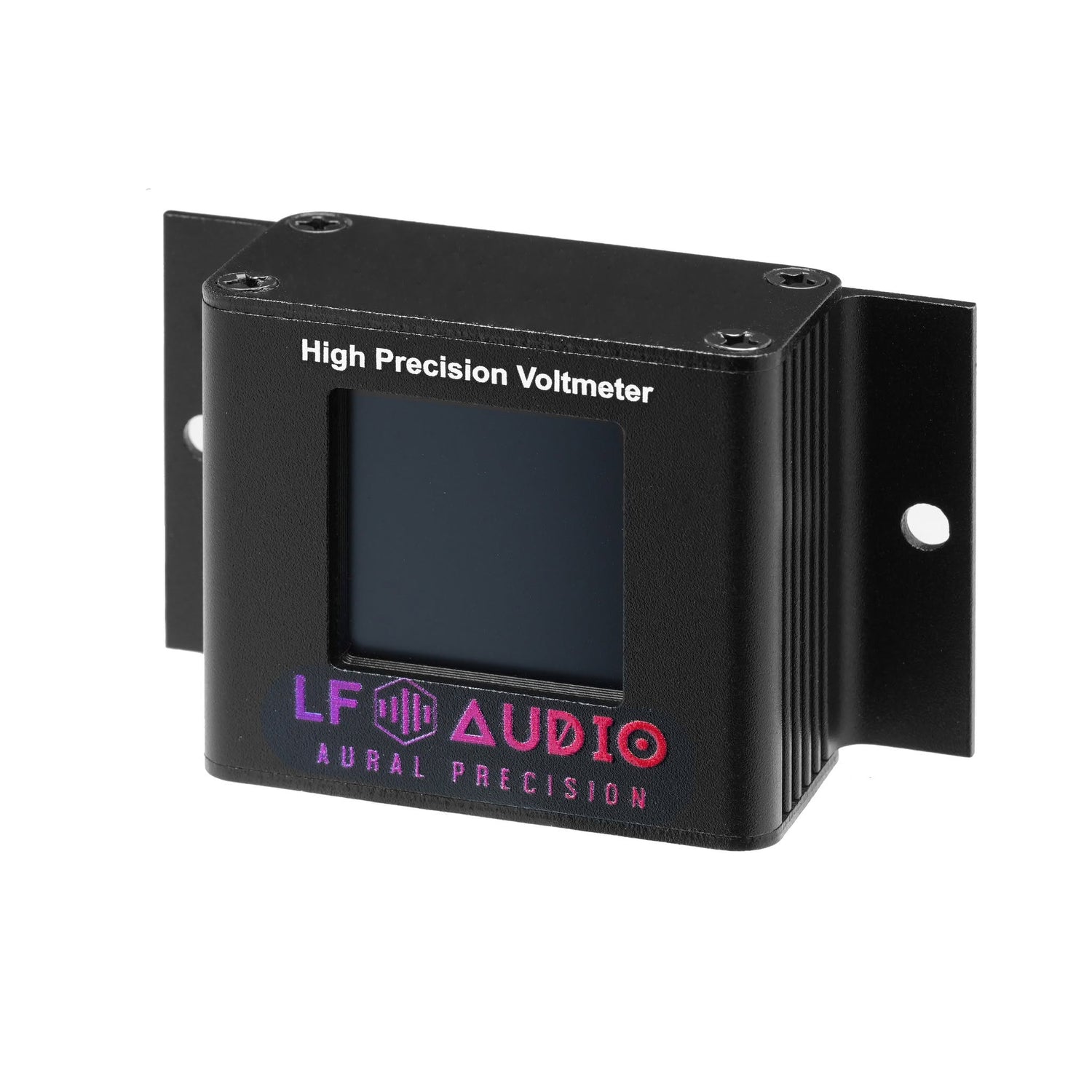

Extremes in vibration, humidity, and temperatures are always attacking everything in your vehicle. A solid aluminum case houses high-density/temperature internal supports, and gold-plated ENIG PCB to survive – and thrive – in any build.

Maximum Battery Efficiency

To save your battery power, the HPVM is equipped with Deep Sleep mode. When a gradual voltage drop with no transients is detected, the meter automatically reduces power consumption to just 167 milliwatts. At that rate, it would take 7,059 hours (294 days) to fully drain a 100 amp hour 12V AGM battery.

Once the meter detects a voltage spike, it instantly returns to full operation. It will also display total battery drain during low-power mode and issue a bright red warning if the voltage drop was significant, signaling a weak battery or excessive parasitic draw.

Features

Supply Voltage 4v-18v

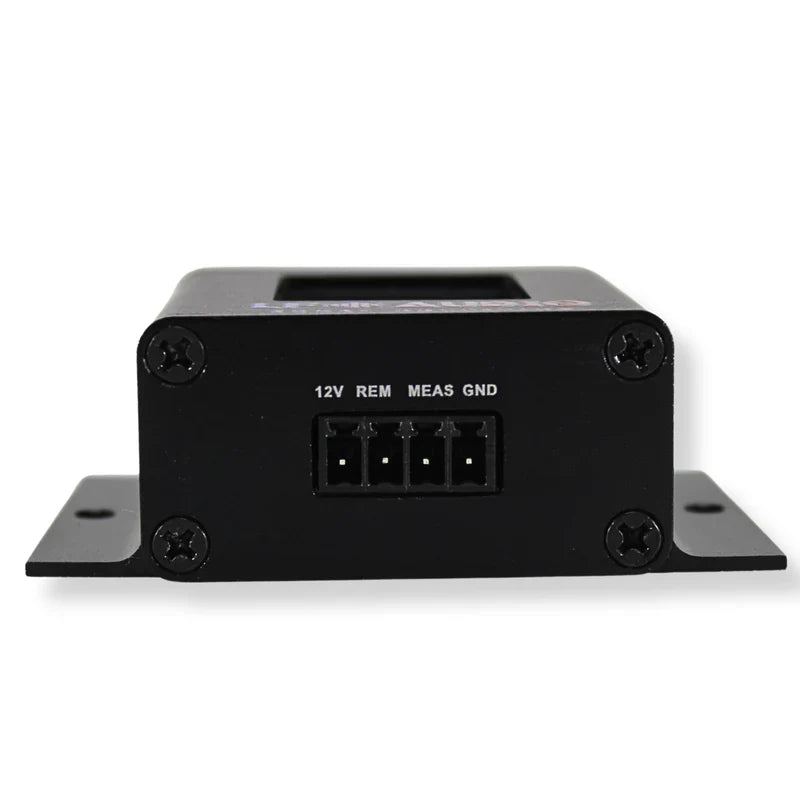

Individual Voltage Monitoring Points 2

Voltage Measurement Range

1v-18v
Accuracy 99.99% accurate (+/- 0.002v)
Precision 1mV - 3 decimal places (e.g. 15.234v)
Sample Rate 330 samples per second per channel, 660 maximum SPS in dual channel

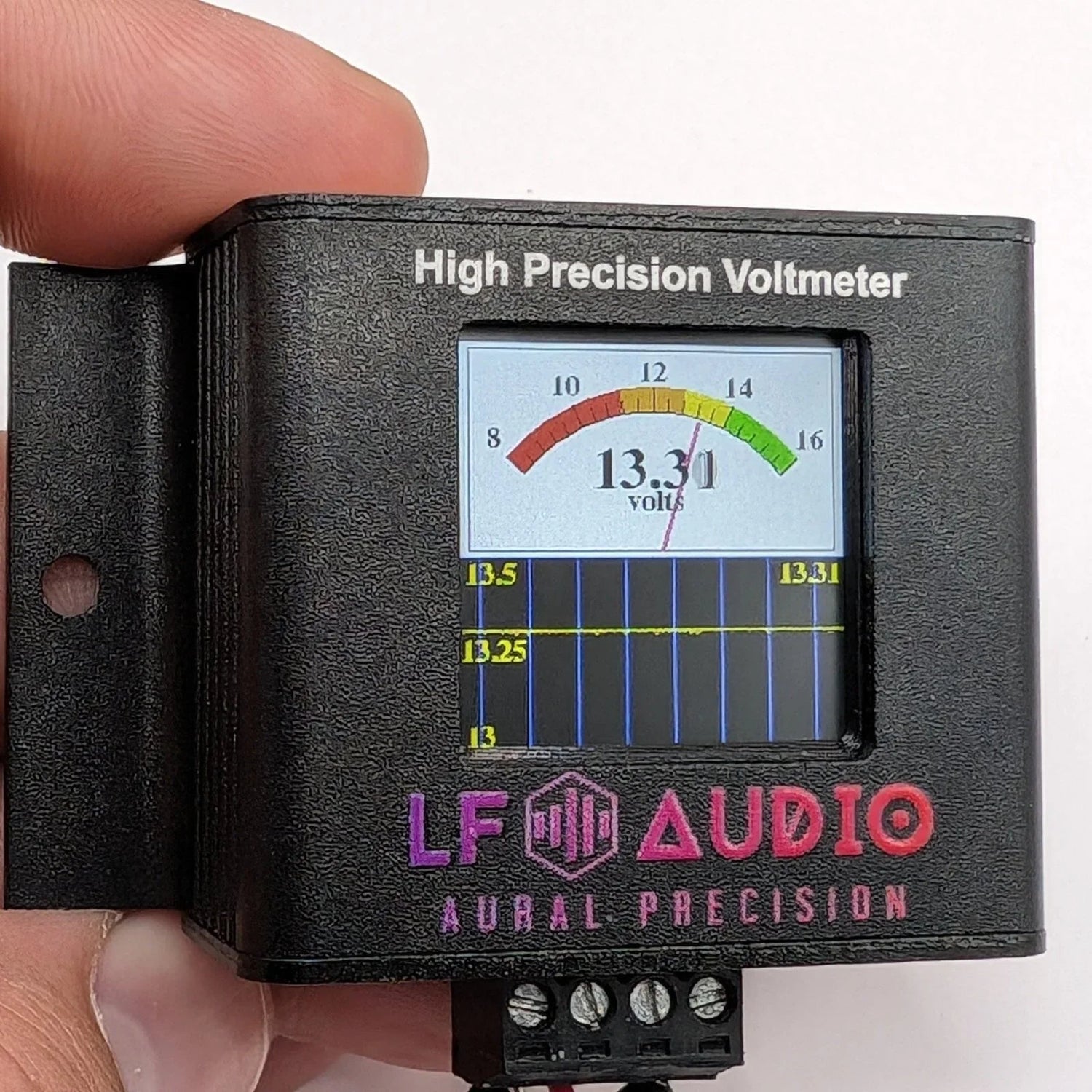

Display 1.3" diagonal TFT HD IPS LCD - 240x240 pixels /  65k color
Visual Refresh rate 33 FPS
Power Consumption ~460mW full power mode
~167mW in deep sleep move
Settings Use our LF Audio AuralSync™ smartphone app or AuralSync Companion smartwatch to change settings on the unit.
Over The Air (OTA) firmware updates

Use our LF Audio AuralSync™ smartphone app to check for and apply firmware updates



Physical Info

Size 71mm wide x 44mm deep x 25mm tall
Weight 2.3oz

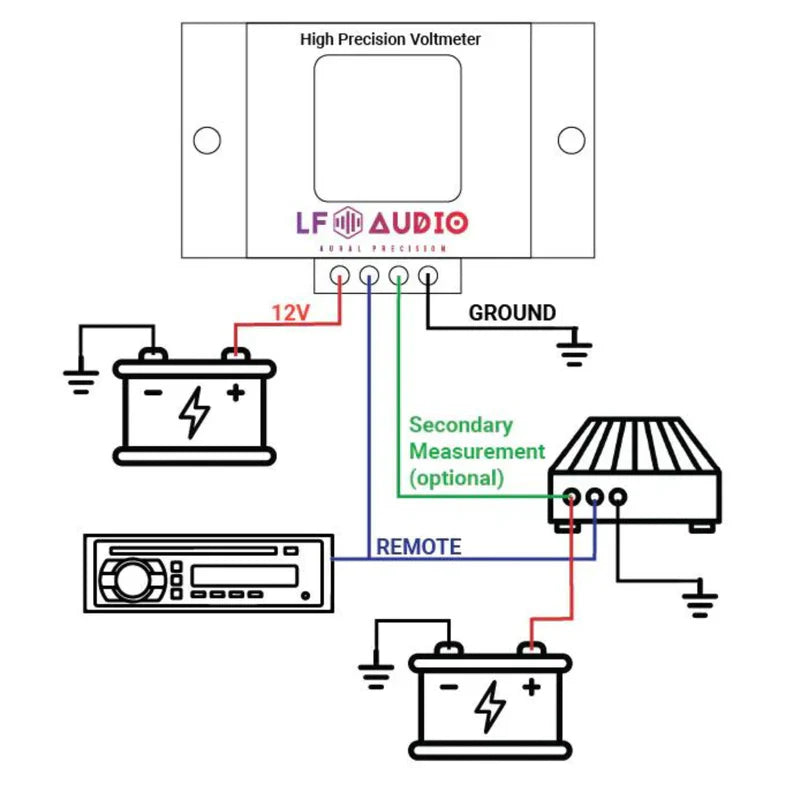

Getting started / wiring instructions


📖 Documentation

Full user guides, installation videos, and troubleshooting at help.lf-audio.com/hpvm:
