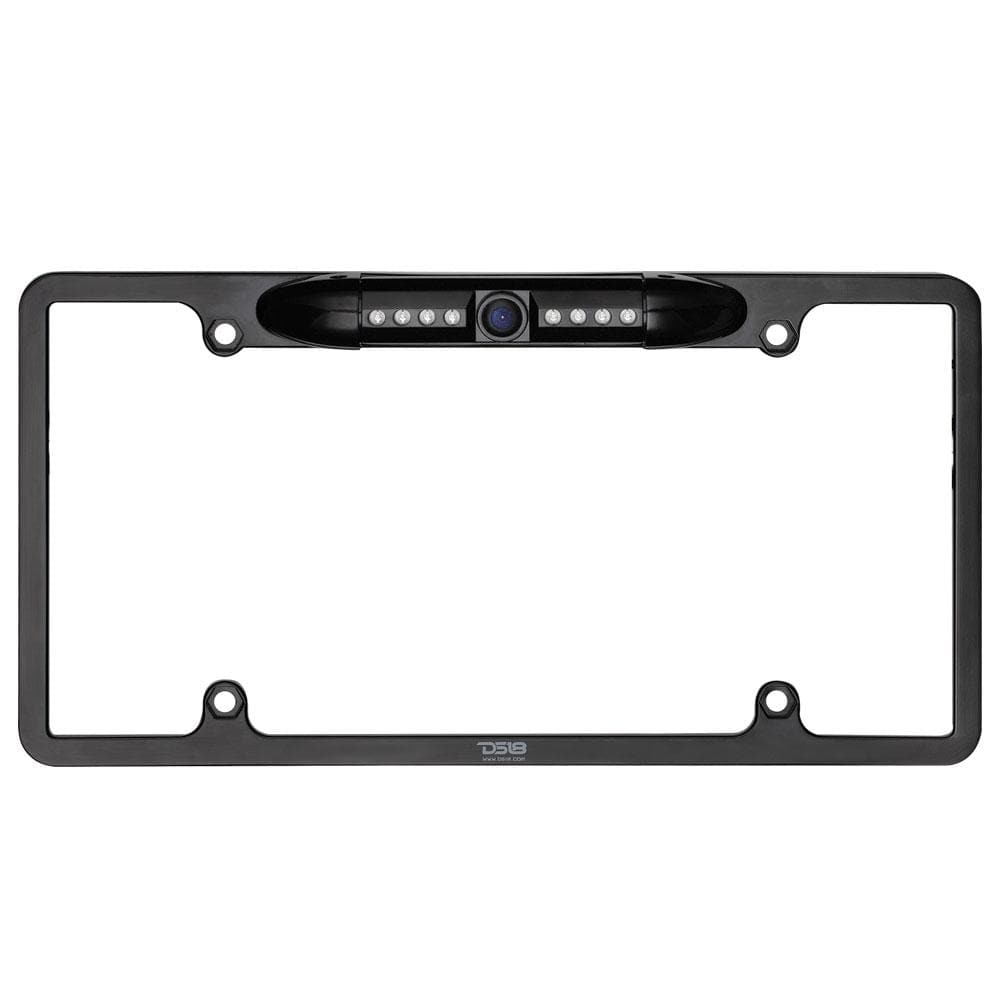

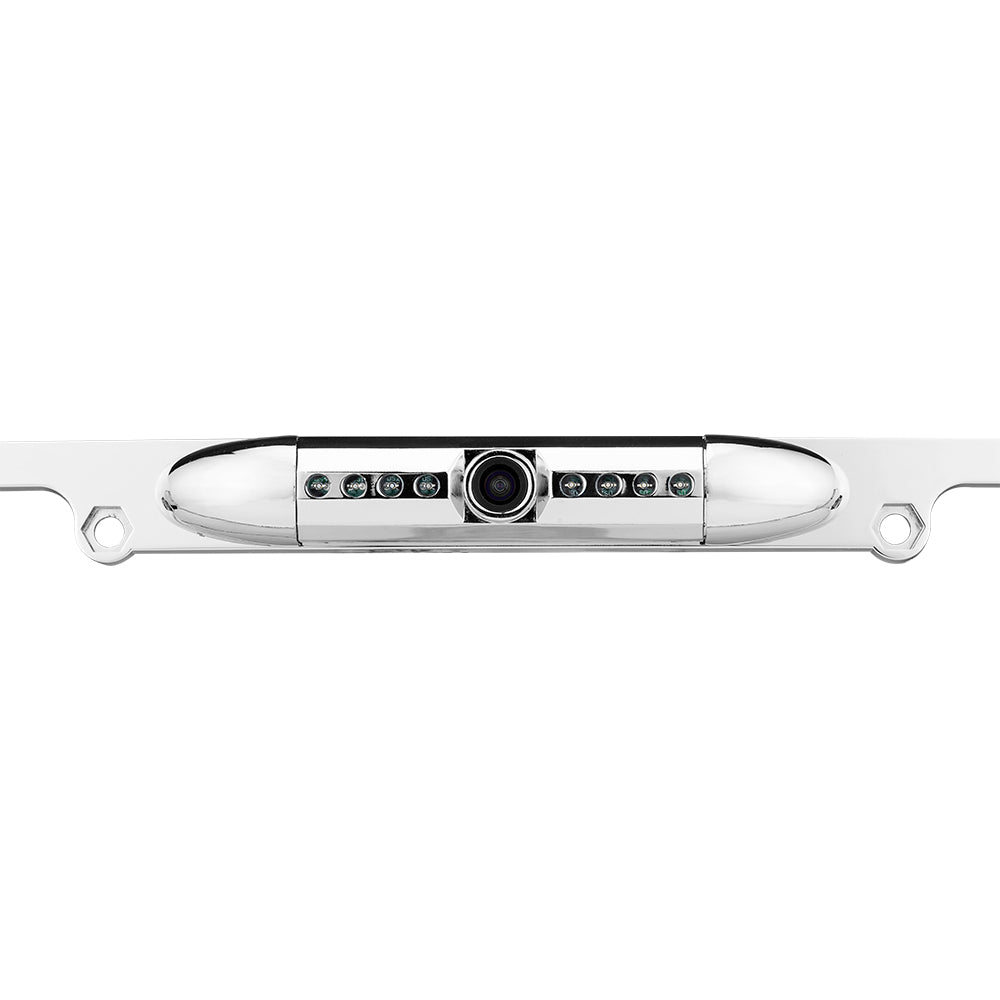

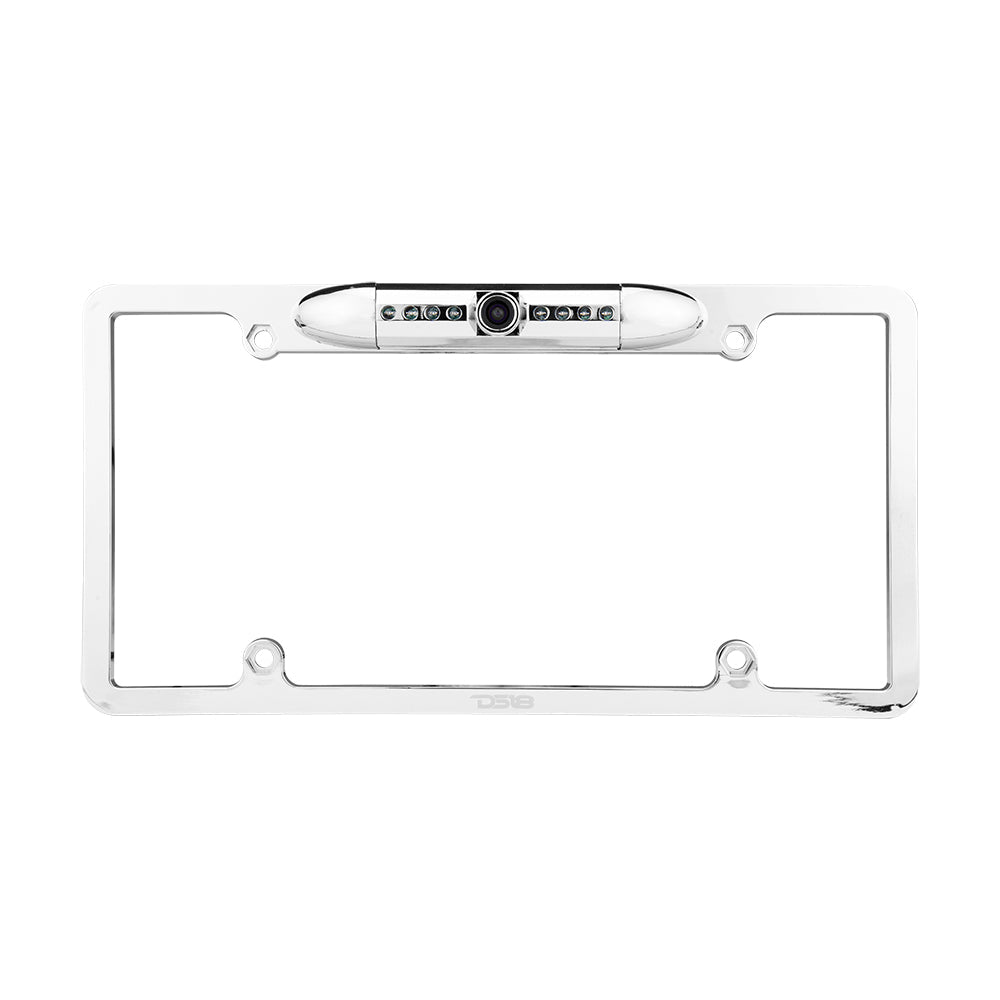

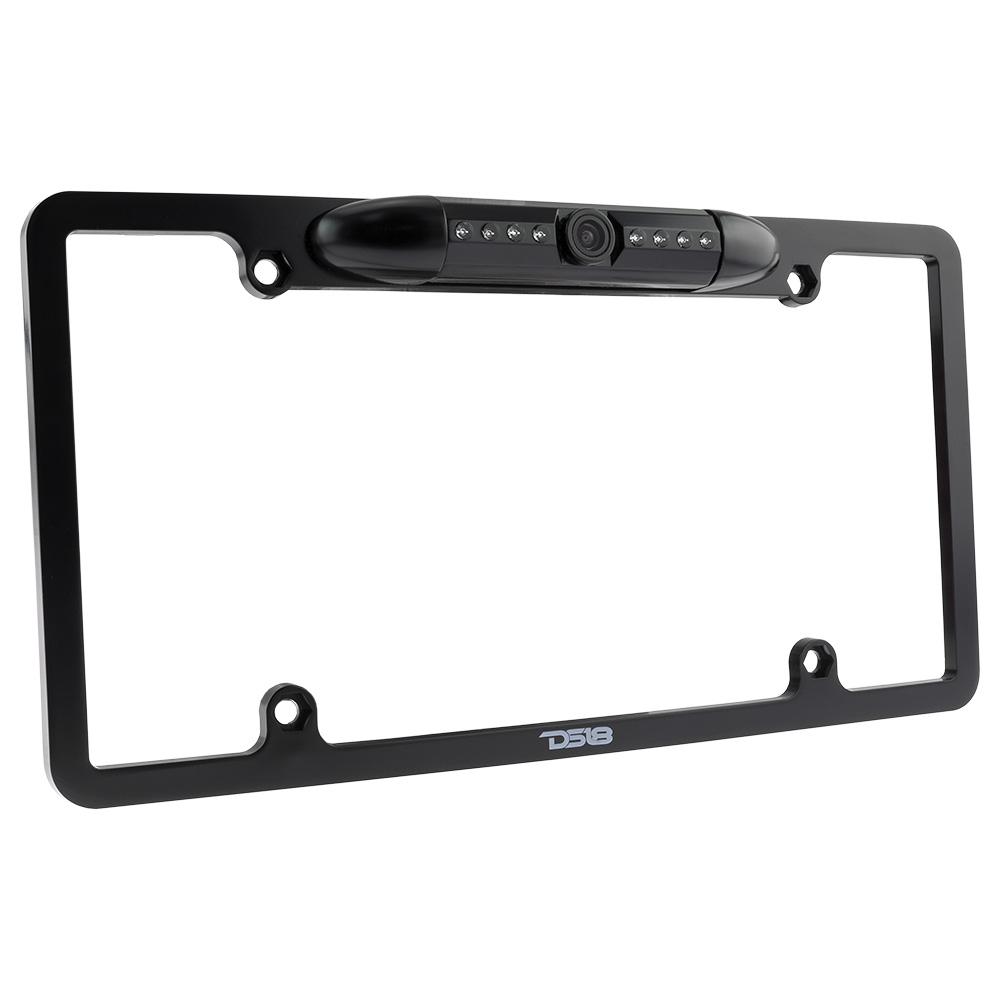

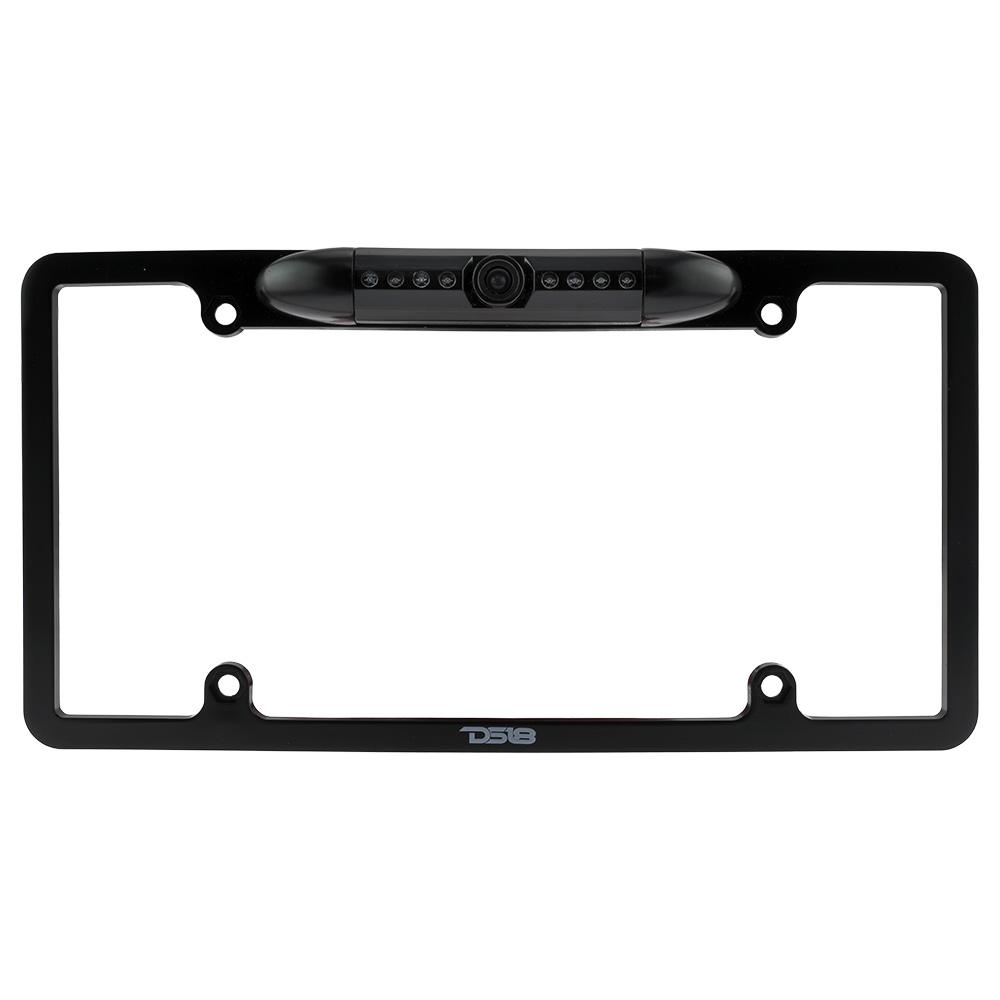

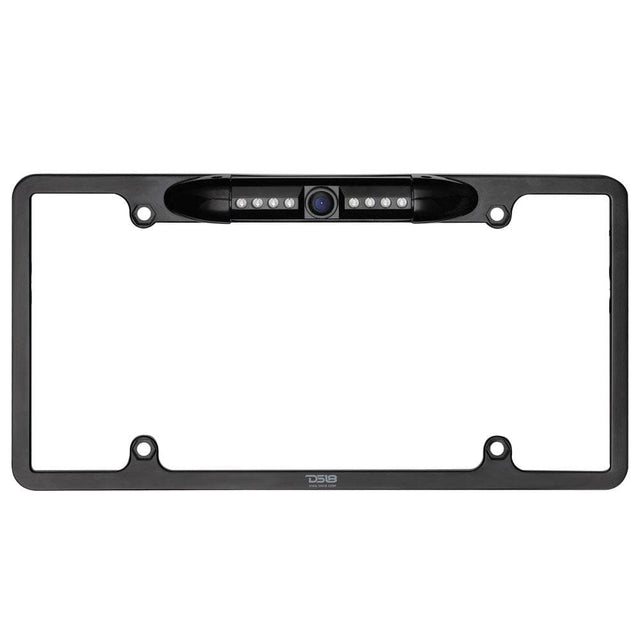

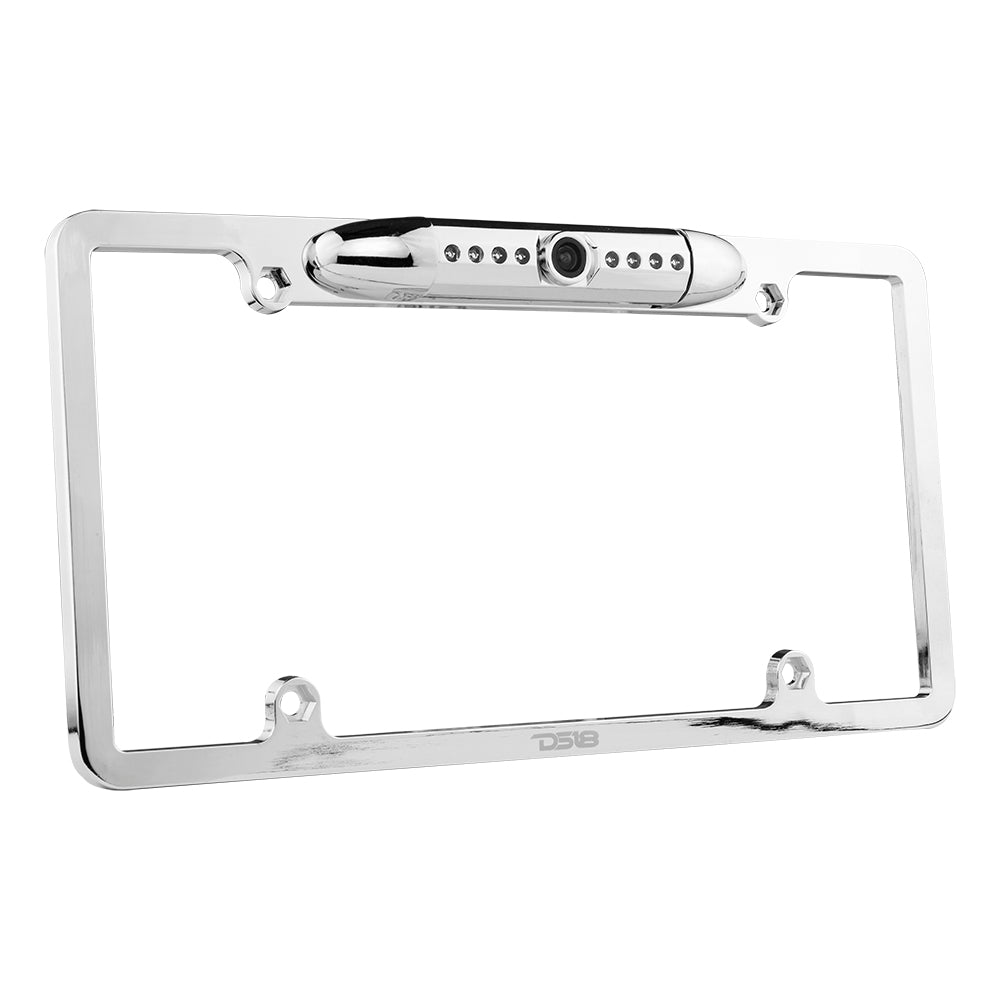

DS18 RCCP License Plate Backup Camera with Night Vision
DS18 RCCP License Plate Backup Camera with Night Vision - Black is backordered and will ship as soon as it is back in stock.
Description
Description
| The DS18 selection of rearview cameras are waterproof, sturdy, and underscore LEDs for night vision.
They provide the best resolution out of any similarly-priced rearview cameras on the market with CMOS color camera and color screen images. Allrearview camerascome with 120 degree lens angle with distance scale lane. Super low illumination and easy to install. Highlights
|
Specifications
| Image Sensor: | PC7070 |
| TV System: | PAL/NTSC |
| Effective Pixels: | 648 x 488 Pixels |
| Sensing Area: | 5.55µm x 5.55µm |
| Scanning System: | 2:1 Interlance |
| Sync System: | Internal |
| Resolution: | 420 TV Lines |
| Horizontal Sync, Frequency: | 15.625KHz - 15.734KHz |
| Vertical Sync, Frequency: | 50Hz - 60Hz |
| Minimum Illumination: | 1.5 lux/F1.2 |
| Video Output: | 1.0VP -P.750hm |
| Gamma Consumption: | 0.45 |
| AGC: | Auto |
| S/N Ratio: | Better than 48dB |
| White Balance: | Auto |
| Electronic Shutter: | 1/60th - 1/15000 seconds |
| BLC: | Auto |
| Current Consumption: | 80Ma |
| Power Supply: | DC 12V-24V |
| Operating Temperature: | -10°C - 46°C RH 95% MAX |
| Storage Temperature: | -30°C - 60°C RH 95% MAX |
| Lens: | 1.8mm F=2.0 |
| Lens Angle: | 170° |
| Waterproof Grade: | IP 67 |
