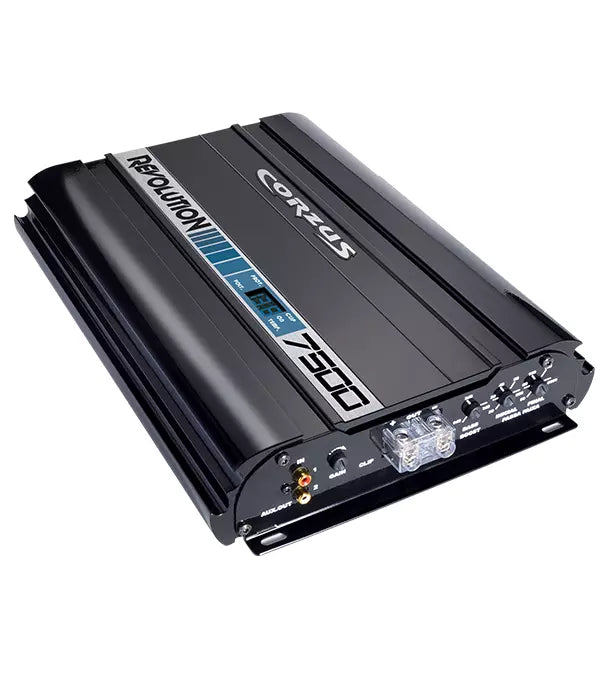

MD7500 7.5K W RMS 1 Ch 2 OHM OPERATES w/Less 10V 1 Amp w DSP

"CORZUS REVOLUTION MD5000 5000W RMS 1 Channel 2-Ohm Car Audio Amplifier

Technical information: 2-OHMS Version

RMS power at 2 OHMS 5000 Watts

RMS power at 4 OHMS 2500 Watts

Sinusoidal Frequency Response (THD 0.01%) from 20 Hz to 8 KHz (-3db)

Crossover FullRange Cutoff Frequency Variable Between 50 HzA 8 KHz

Crossover Low Pass cut-off frequency ranging from 20Hz to 500Hz

Bass Boost 0 to 6 6dB 60 Hz

Minimum output impedance 1 OHM

Maximum Output Distortion (THD) 0.1%

85c temperature protection

Max consumption 400A

AC output voltage 86 V

Operating Voltage (Operating Input Voltage) 10Vdc To 15Vdc

Protection Voltage (Limit Input Voltage) 9.0Vdc To 16Vdc

RCA Input Sensitivity 0.5Vrms to 5Vrms

Weight 6.4kg

Height: 59.1mm

Width: 270mm

Length: 298mm"
