Description
Description

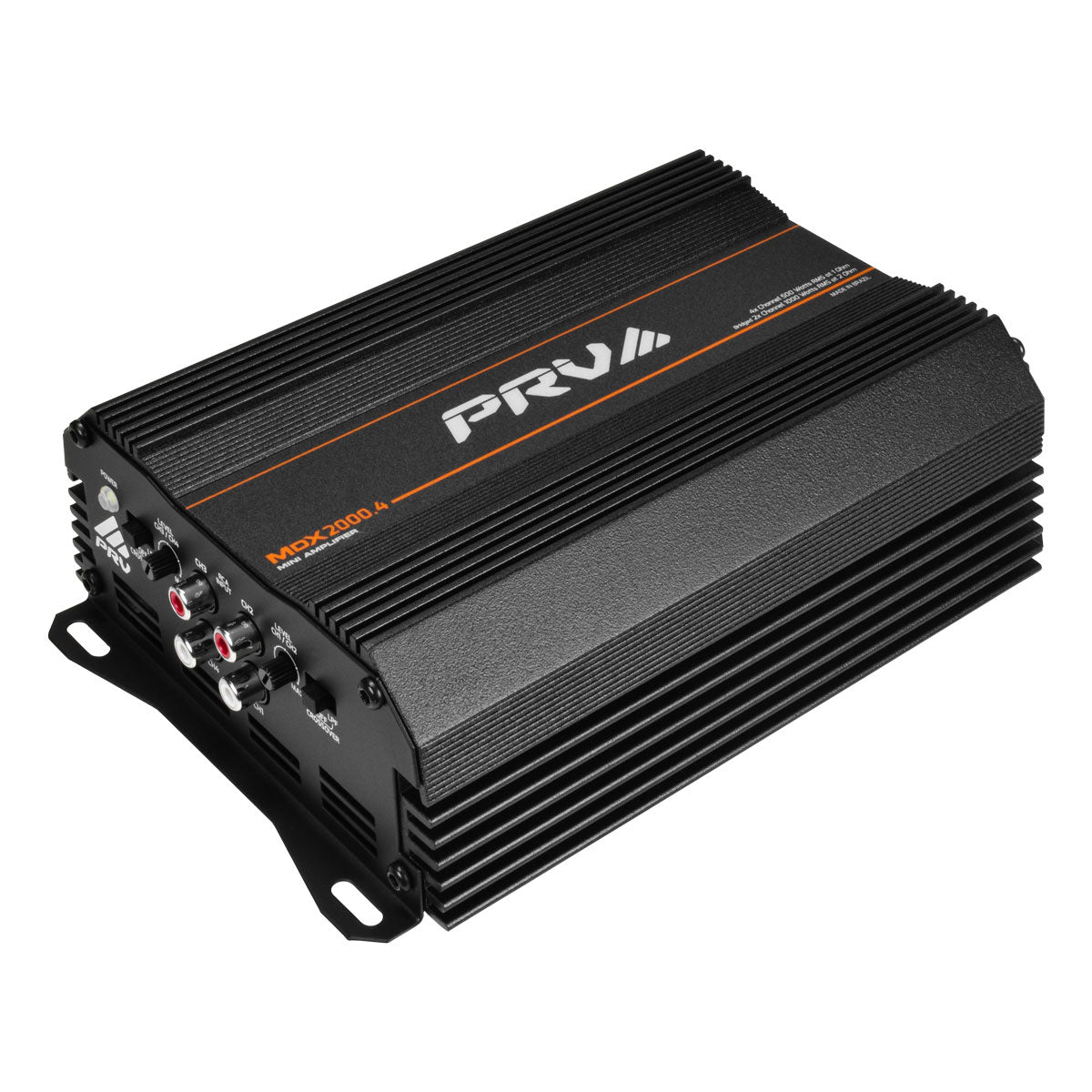

PRV Audio MDX2000.4 1 Ohm MINI 4 Channel Car Audio Amplifier 4 x 500 Watts RMS at 1 Ohm – Ultra Compact Stereo Amp
The mini MDX2000.4 1 Ohm delivers 2000 Watts RMS power over 4 channels in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

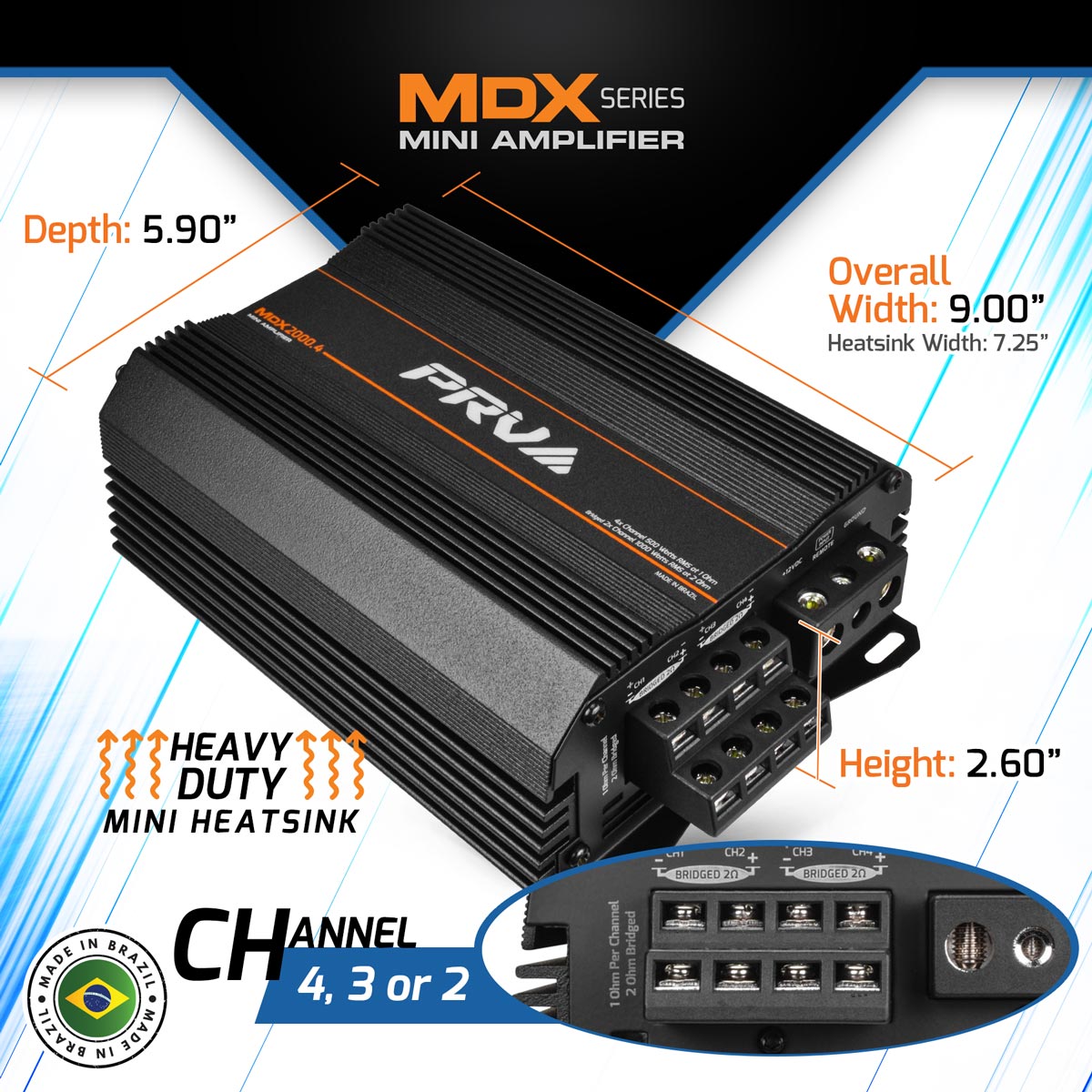

- A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 9″ Width by 5.90″ Length and only 2.60″ Height.
- 4 x 500 watts at 1 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
- 2 Channel Bridged – Double the power output to your speakers by bridging two channels. 2x 1000 Watts RMS at a minimum impedance of 2 Ohms per bridged channel.
- The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams
GENERAL SPECIFICATIONS
| Impedance | 1 Ohm per Channel |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm | 4x 500 Watts RMS |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 320 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 2 Ohm | 2x 1000 Watts RMS |
| Average Efficiency | 87% |
| Operating Voltage | 8 to 16 Volts |
| Musical Current Draw | 95 A |
| Minimal Power Wire Input | (OFC) 4 Gauge wires |

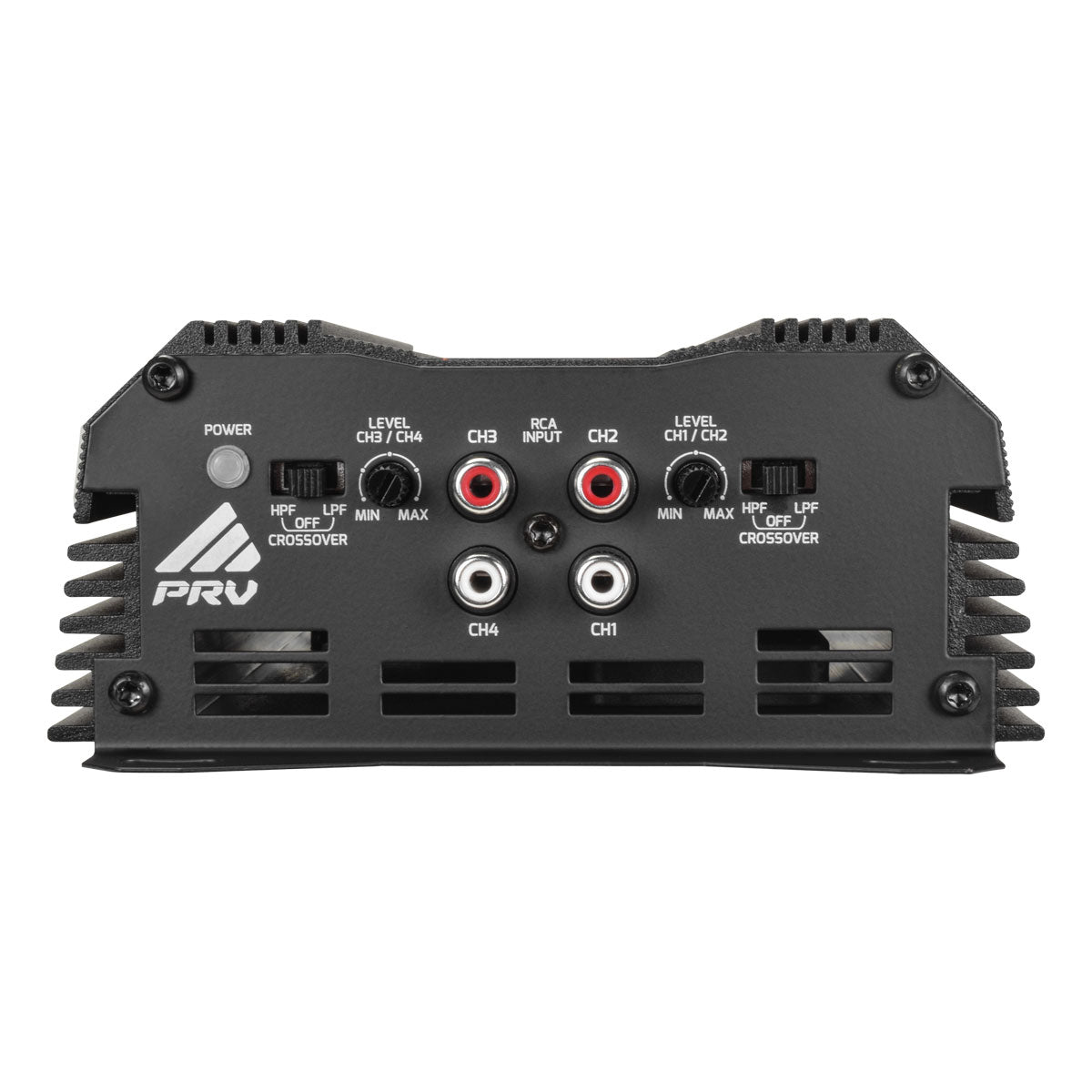

| Built-in Crossover | Fixed HPF & LPF at 80 Hz |
| Minimal Speaker Wire Output | 12 Gauge |
| Frequency Response(-3dB) | 10 – 22,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 4v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |

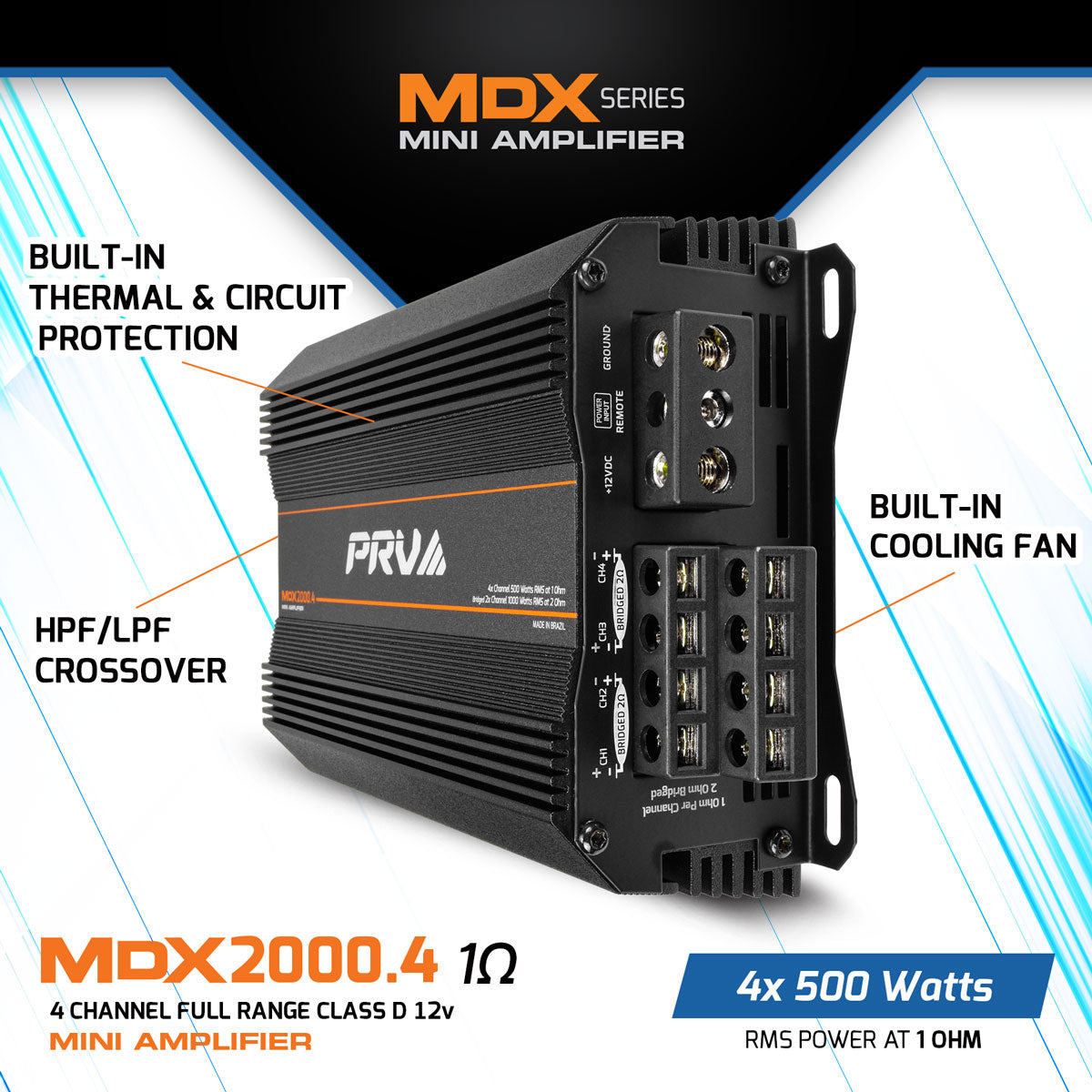

| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 9.00″ x 5.90″ x 2.60″ |
| Weight | 3.85 Lbs |
