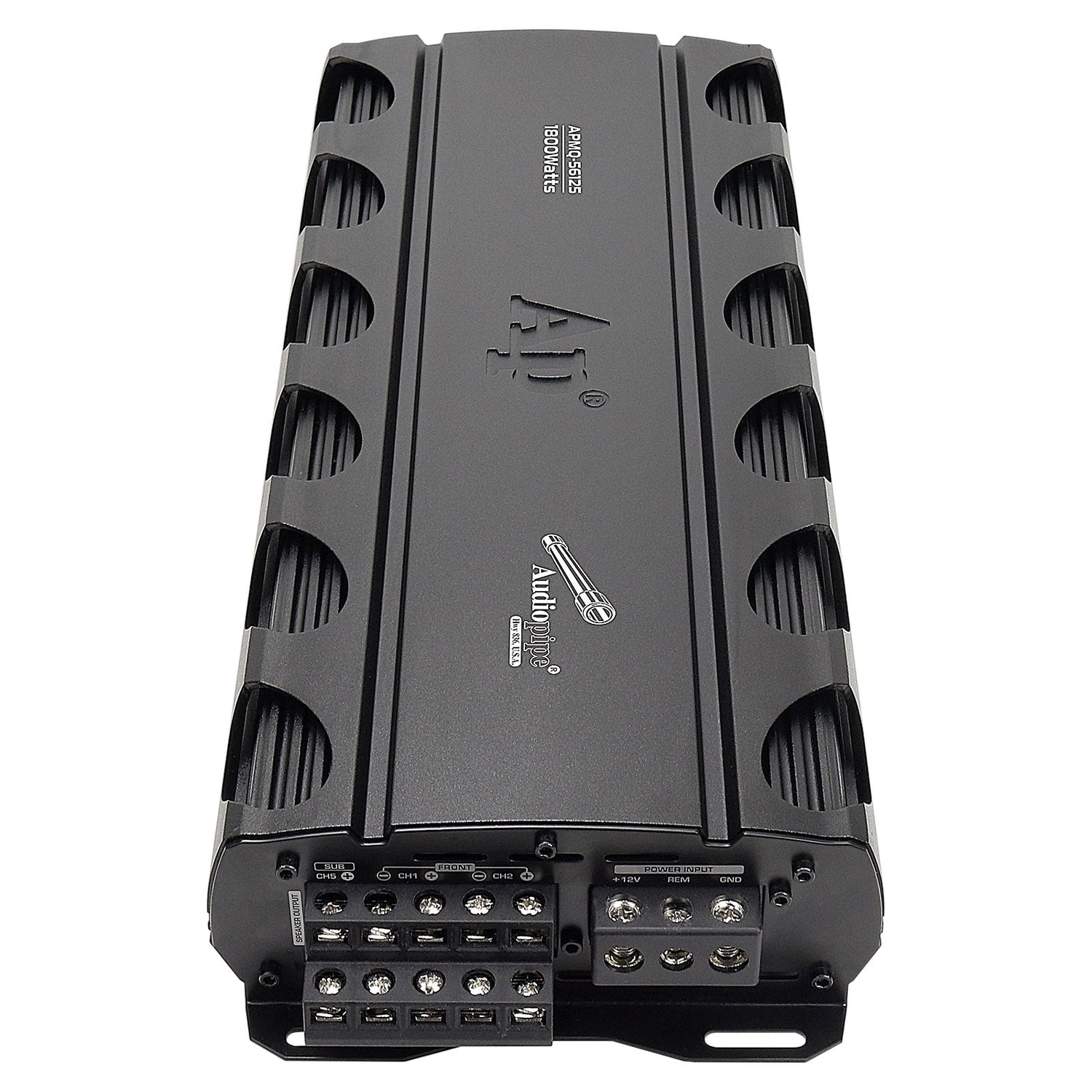

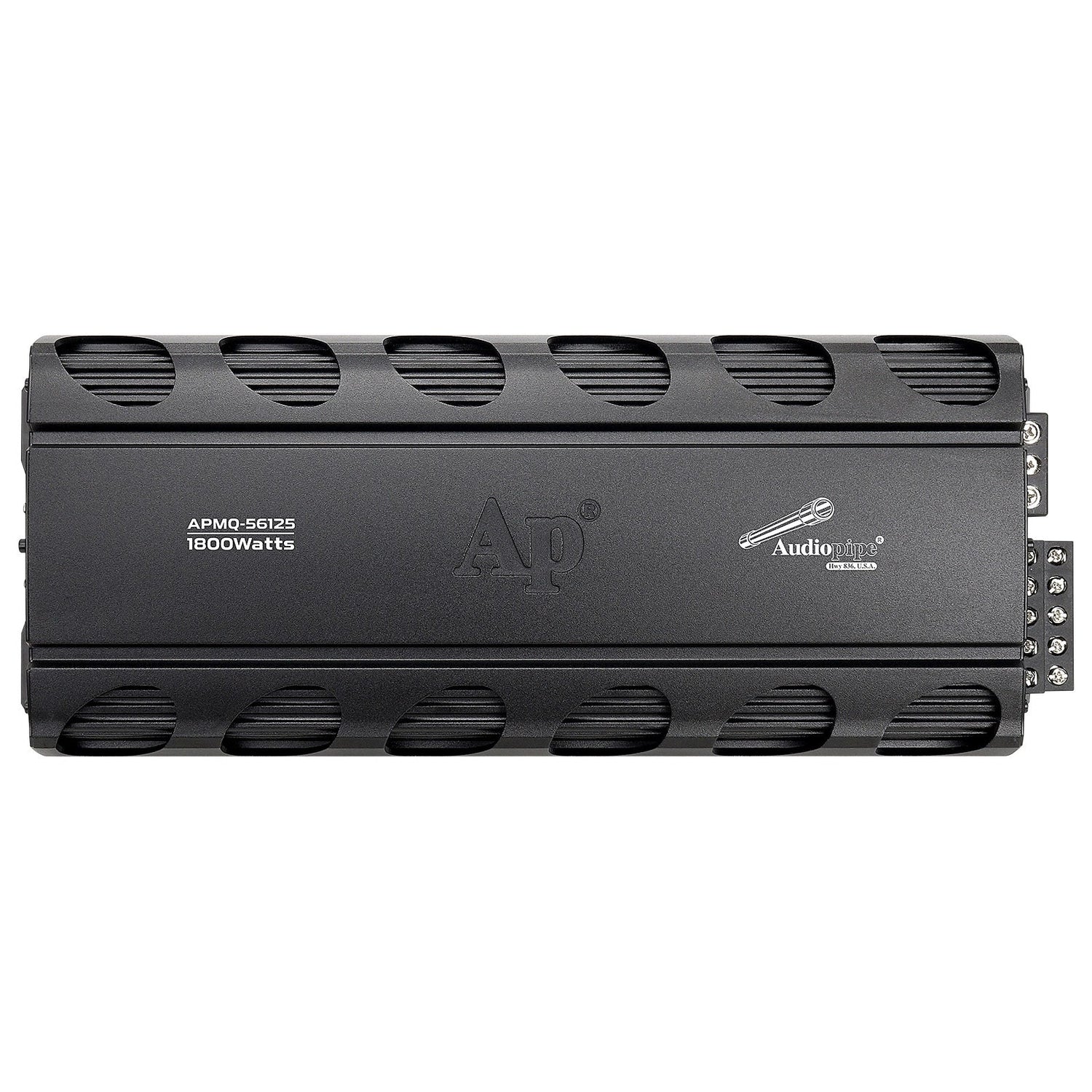

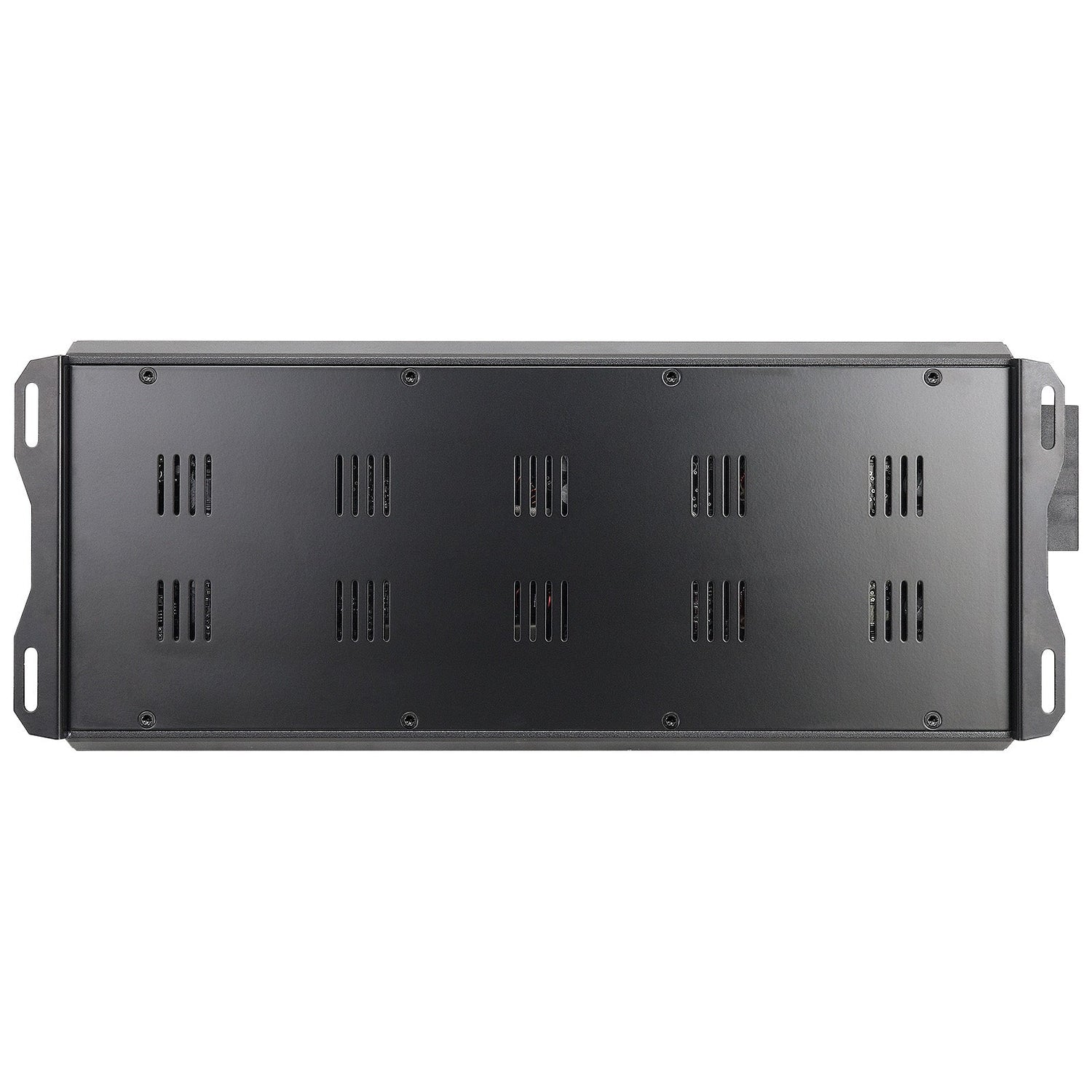

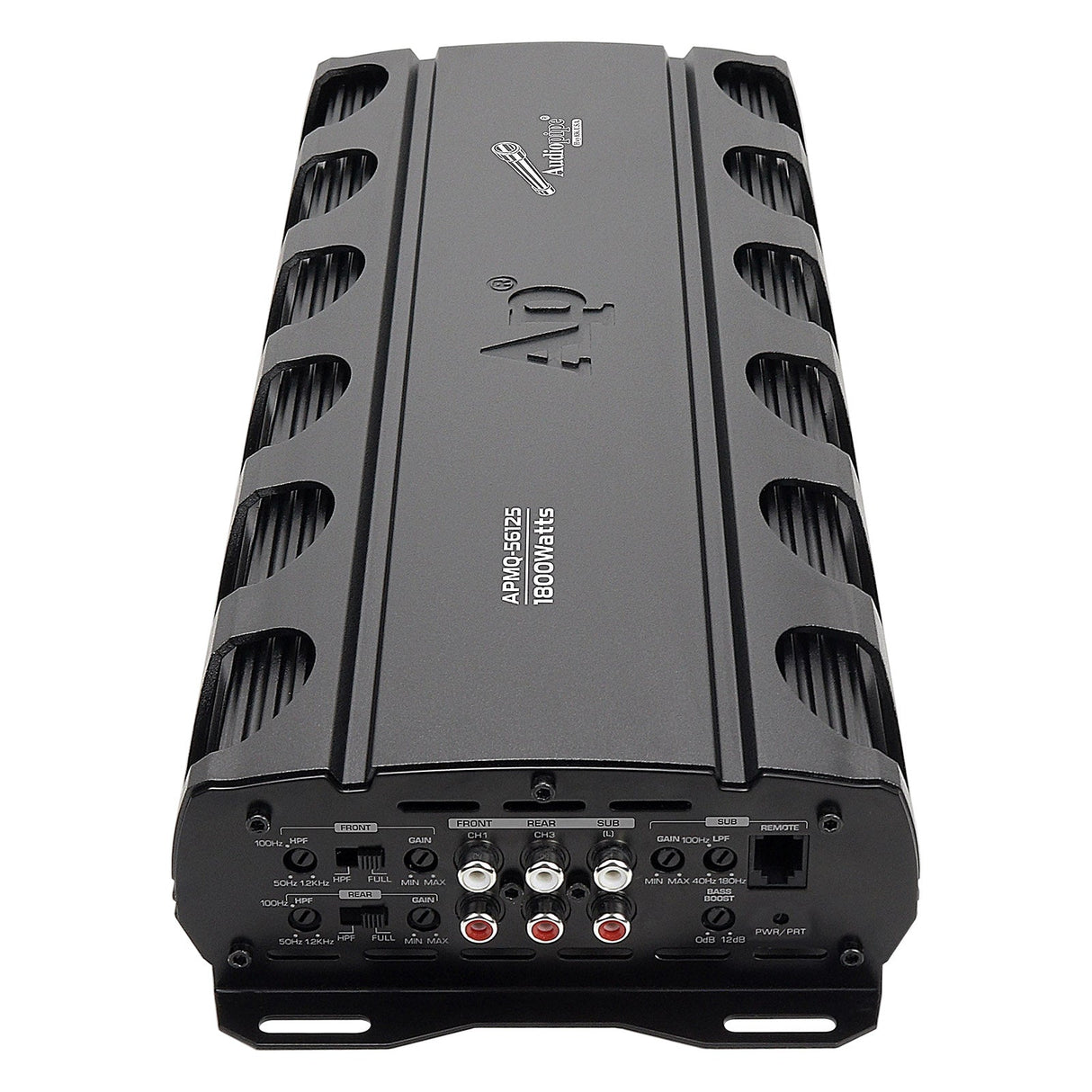

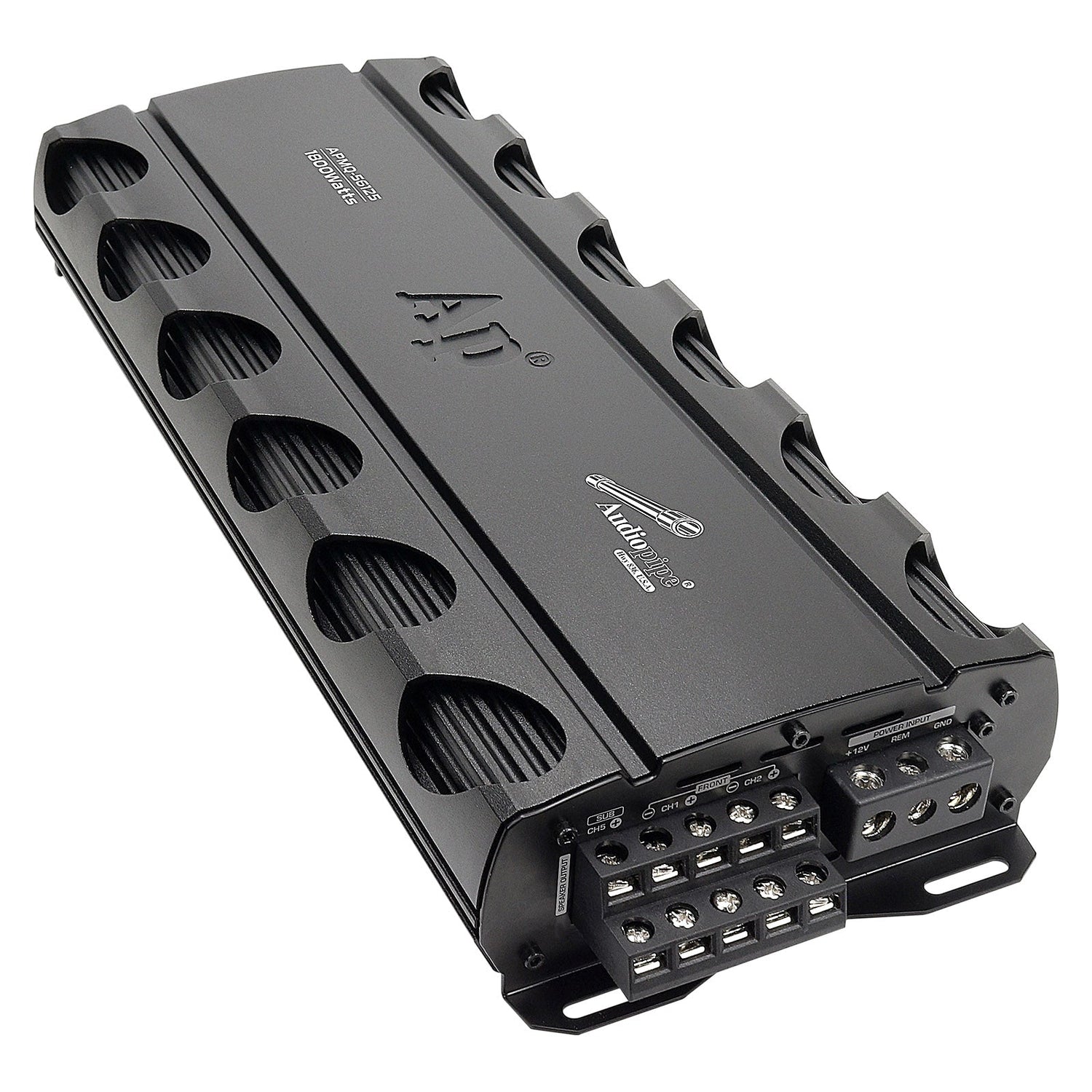

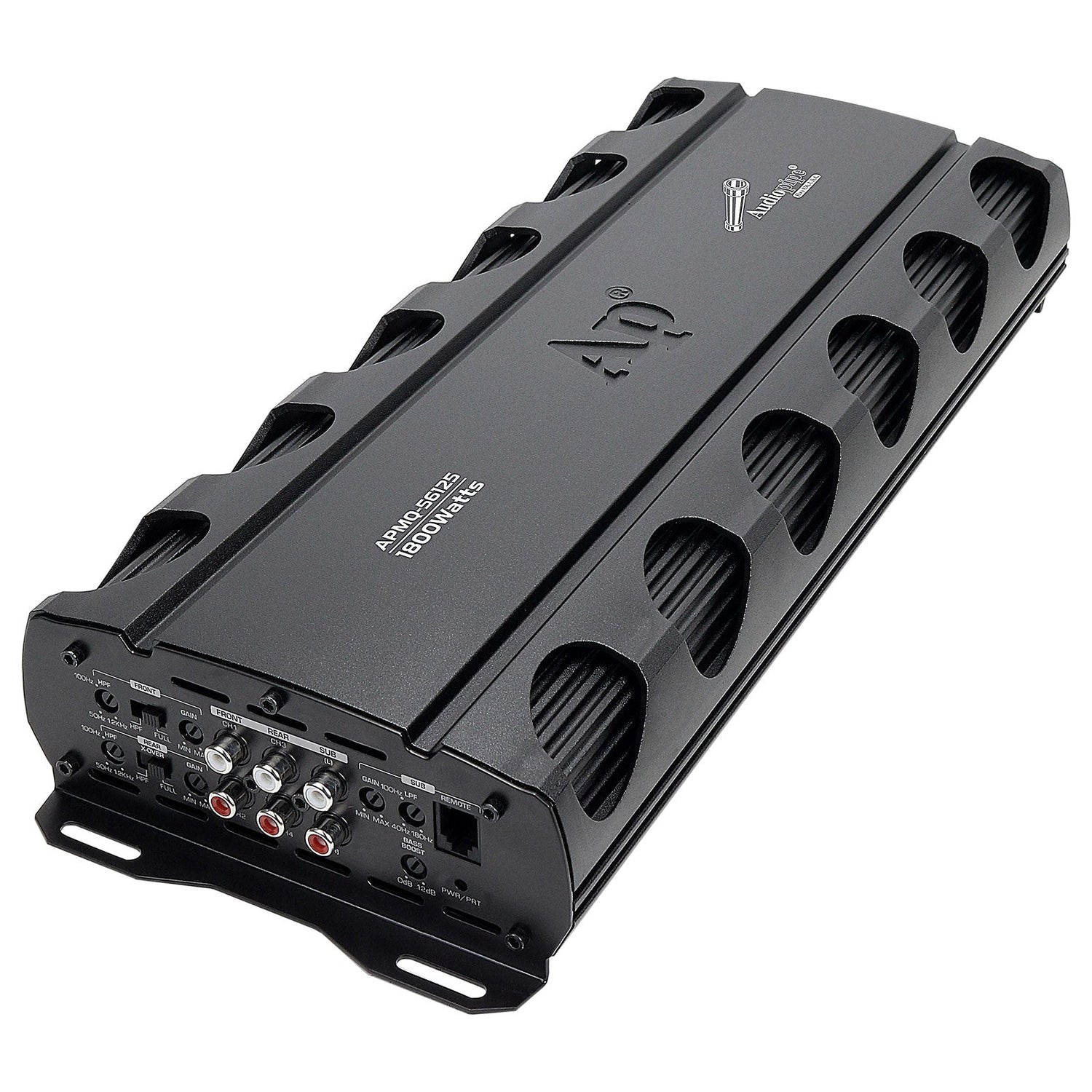

APMQ-56125 5 Channel Mini Design Class AB Mosfet Amplifier

• CLASS A/B / MOSFET AMPLIFIER: The APMQ-56125 features a Class A/B circuit design combined with MOSFET power management, delivering powerful, clean, and dynamic audio performance without sacrificing clarity or stability.
• MINI COMPACT DESIGN: Built with a space-efficient chassis for easy installation in cars, SUVs, motorcycles, UTVs, golf carts, and other limited-space interiors—ideal for modern multi-speaker audio setups.
• ADVANCED MOSFET POWER CIRCUITRY: Designed for maximum output with minimal distortion, providing stable and controlled amplification across all five channels for full-range systems plus a dedicated subwoofer channel.
• CONTINUOUS POWER OUTPUT (RMS) @ <1% DISTORTION:
• RMS @ 2 Ohm: 4CH x 250W + 1CH x 420W
• RMS @ 4 Ohm: 4CH x 145W + 1CH x 260W
• OUTPUT POWER @ 4 Ohm BRIDGED: 2 x 500W
• INCLUDED PROTECTION FUSE: Comes equipped with a 100A ANL fuse for circuit protection and stable current handling.
• FREQUENCY RESPONSE:
• CH 1-4: 10Hz – 18kHz
• CH 5 (SUB): 10Hz – 180Hz
• INPUT SENSITIVITY LEVEL:
• CH 1–4: 0.2V – 4V
• CH 5: 0.08V – 2.2V
• S/N RATIO: >90dB
• THD (ALL CHANNELS DRIVEN): <0.8%
• WORKING VOLTAGE: 9V – 16V

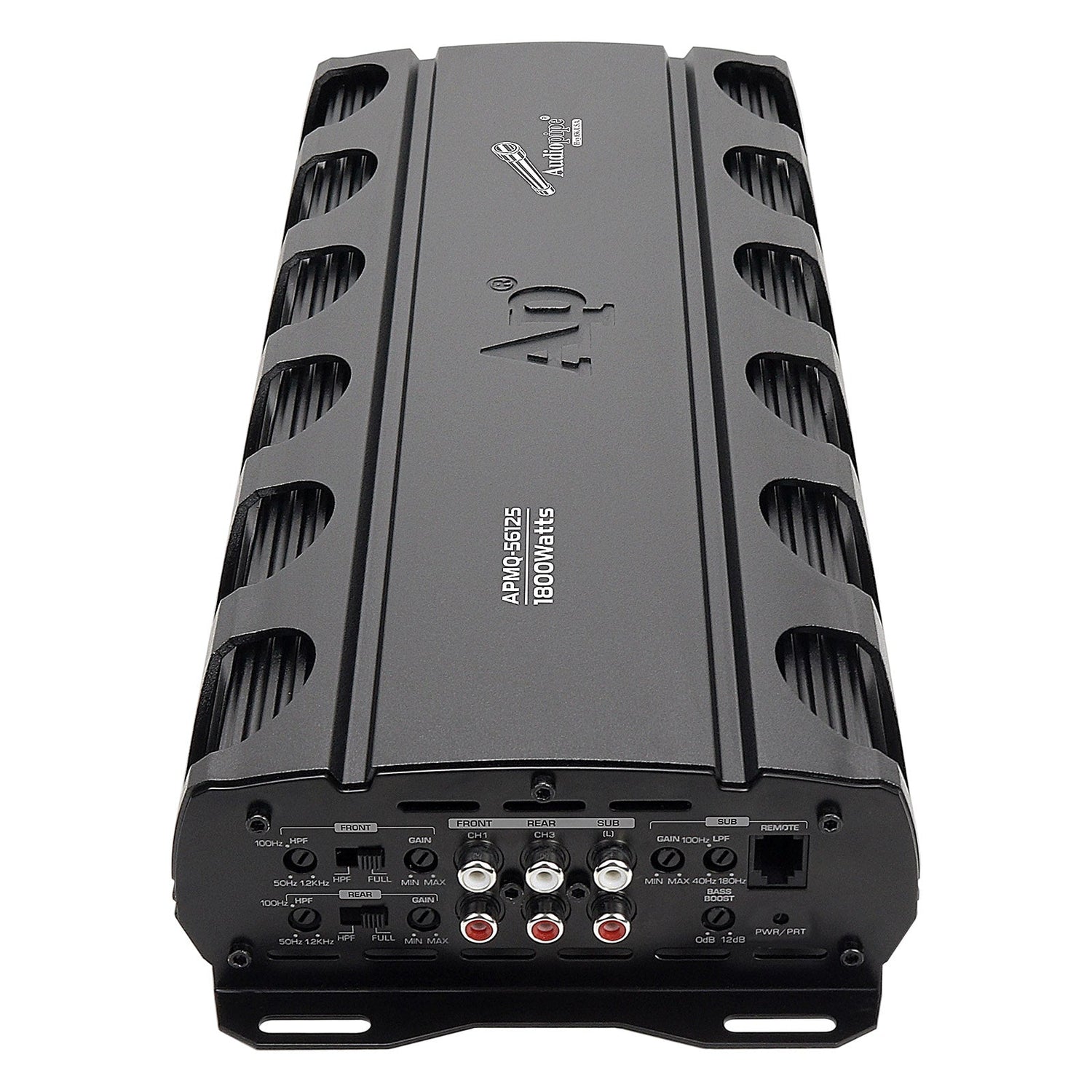

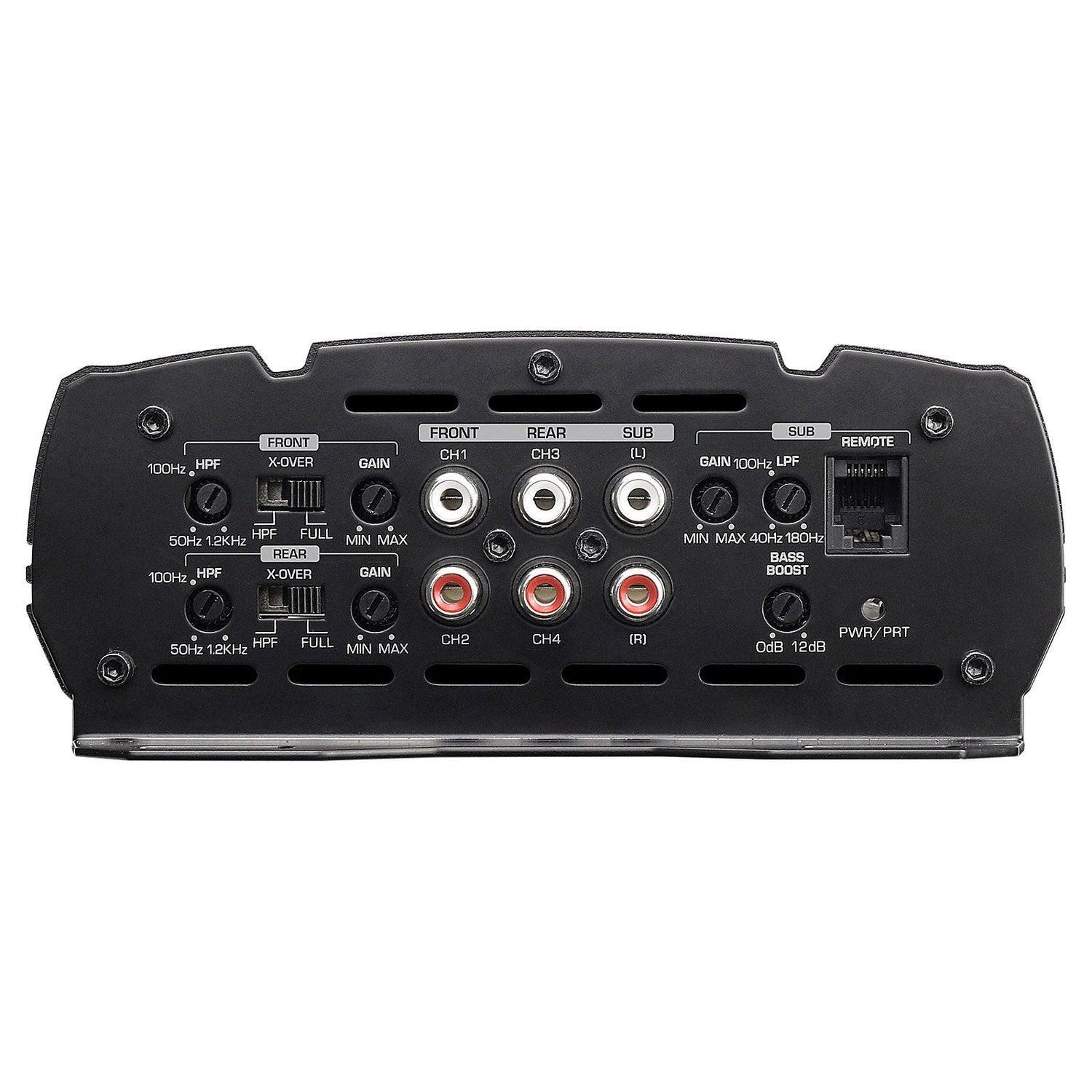

• VARIABLE FILTER CONTROL: Adjustable filtering to fine-tune system response for front, rear, and subwoofer channels.
• LED INDICATOR SYSTEM: Equipped with power and protection indicator LEDs for real-time operational monitoring.
• MULTI-LEVEL PROTECTION SYSTEM: Built-in overload, overheating, short circuit, and low-voltage protection for dependable long-term use.

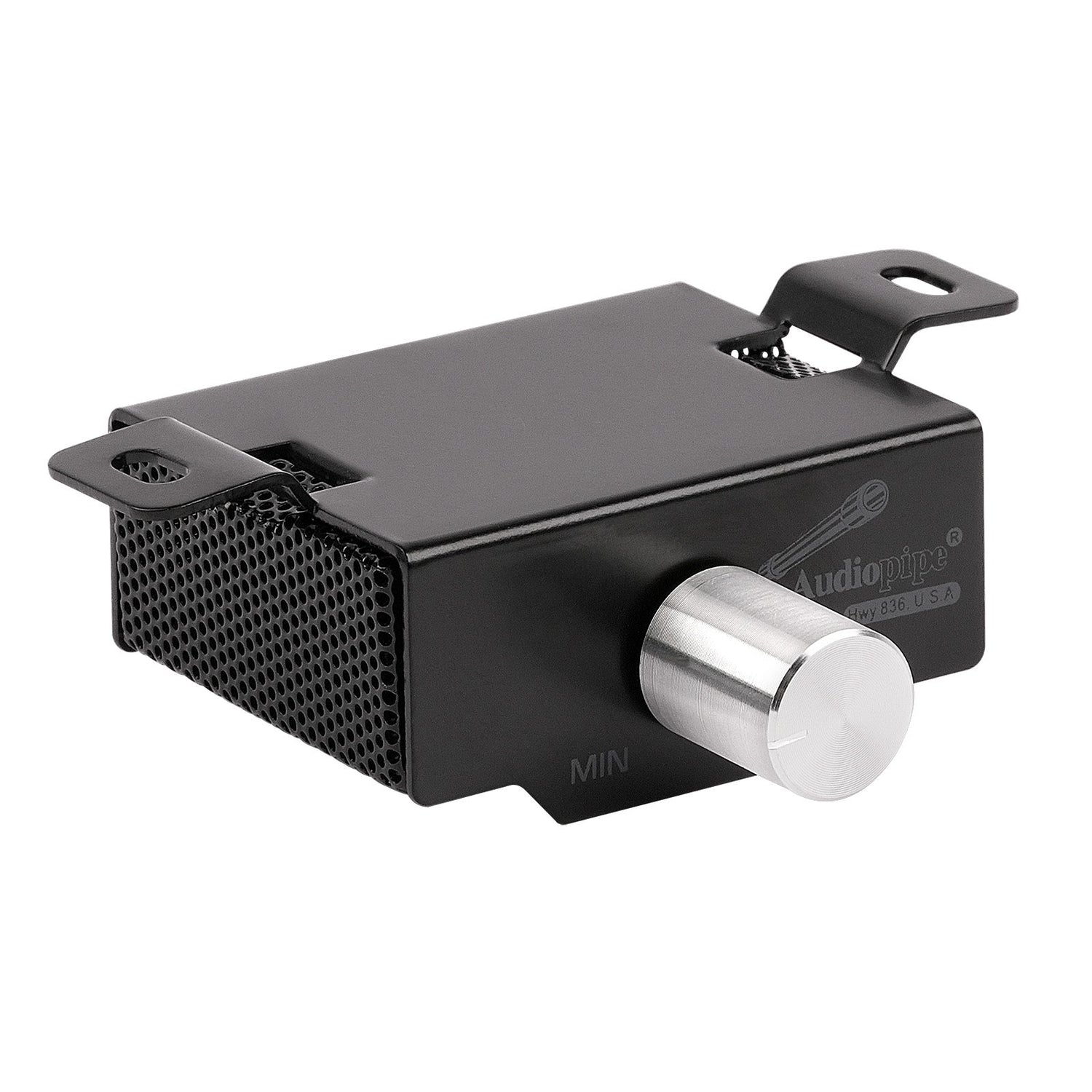

• REMOTE BASS LEVEL CONTROL: Includes a dashboard-mount remote bass knob for easy subwoofer level adjustment while driving.
• DIMENSIONS: 14.1” x 2.1” x 6.2” (L x W x H) / 359 x 54 x 158 mm

Description:

Experience clean, dynamic, and balanced sound across your entire system with the APMQ-56125 Mini Design 5-Channel MOSFET Amplifier. Engineered for compact integration and high-power output, this amplifier delivers strong RMS performance at both 2-ohm and 4-ohm impedance, with bridgeable channels and a dedicated subwoofer output. Featuring MOSFET technology, onboard protection circuits, adjustable filters, and a remote bass control knob, it provides full system flexibility and customization. Perfect for users seeking a compact 5-channel upgrade without compromising power, clarity, or stability—upgrade your ride with the APMQ-56125.
