Mini-Tug 228H Air Horn Kit
Mini-Tug 228H Air Horn Kit is backordered and will ship as soon as it is back in stock.
Description
Description
LOOK. YOU'RE THE CAPTAIN NOW.
Ready to sound like a ship captain on the high seas? Look no further than the Mini Tug 228H air horn kit. Say goodbye to that boring car horn and hello to the classic tugboat sound you've always wanted.
Don't let its single bell fool you - the Mini Tug air horn packs a punch with its deep, low tone. And at 24 inches long, it's longer than your average air horn, giving you that classic tugboat sound. We even made installation a breeze by pre-installing the required 1/4" air valve.
With our 228H air source included, you're good to go with an easy install since the tank and compressor are already prewired and plumbed together. We've taken all the hassle out of the installation.

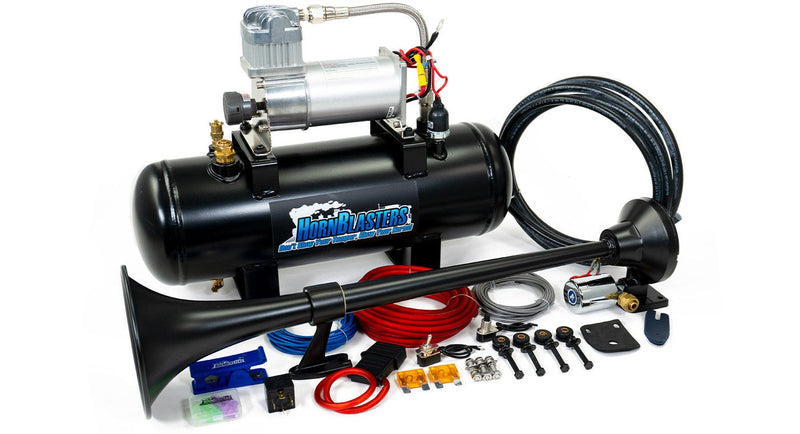

- Hassle-Free Installation: This kit includes everything needed from start to finish. With a pre-assembled air source unit, pre-installed fittings, and a horn with a pre-installed air valve, you'll be up and honking in no time.
- Superior Sound in a Compact Design: Despite its singular bell, the Mini Tug air horn, measuring at 24 inches, outperforms most air horns by delivering a deeper, resonant tone. Its extended length is instrumental in producing that authentic tugboat sound.
- Efficient & Quick Recovery: The 2-gallon air system ensures you have ample power, providing a honk time of 6-7 seconds, and it efficiently recovers in roughly 75 seconds.
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

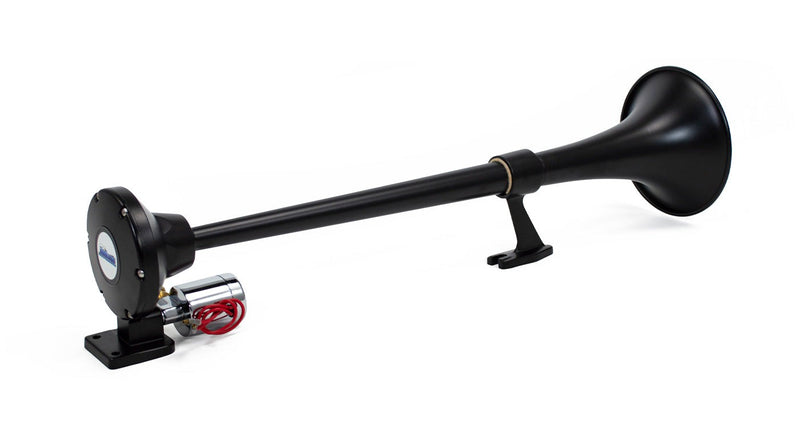

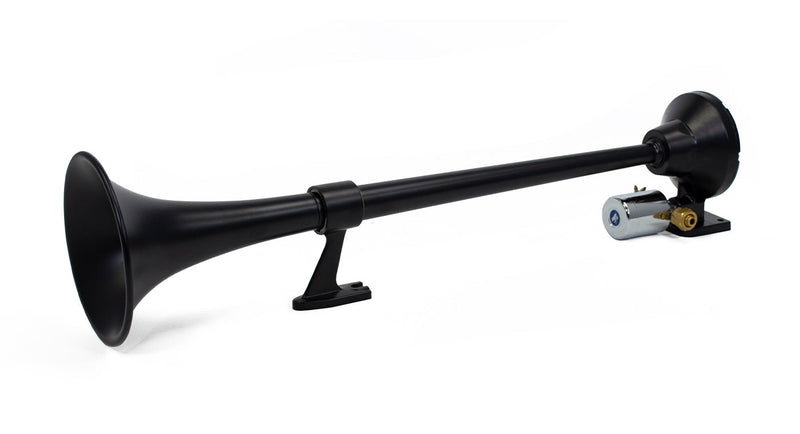

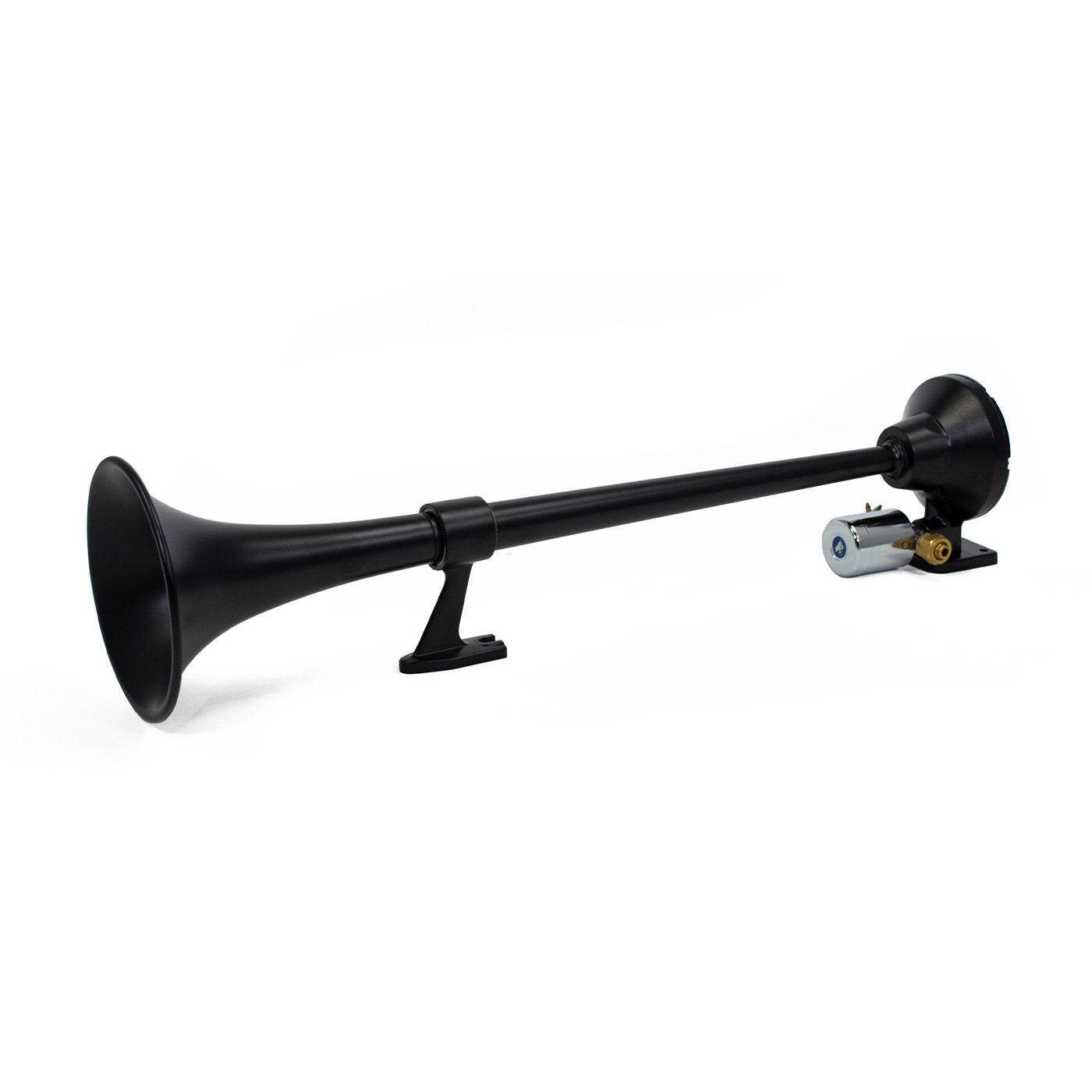

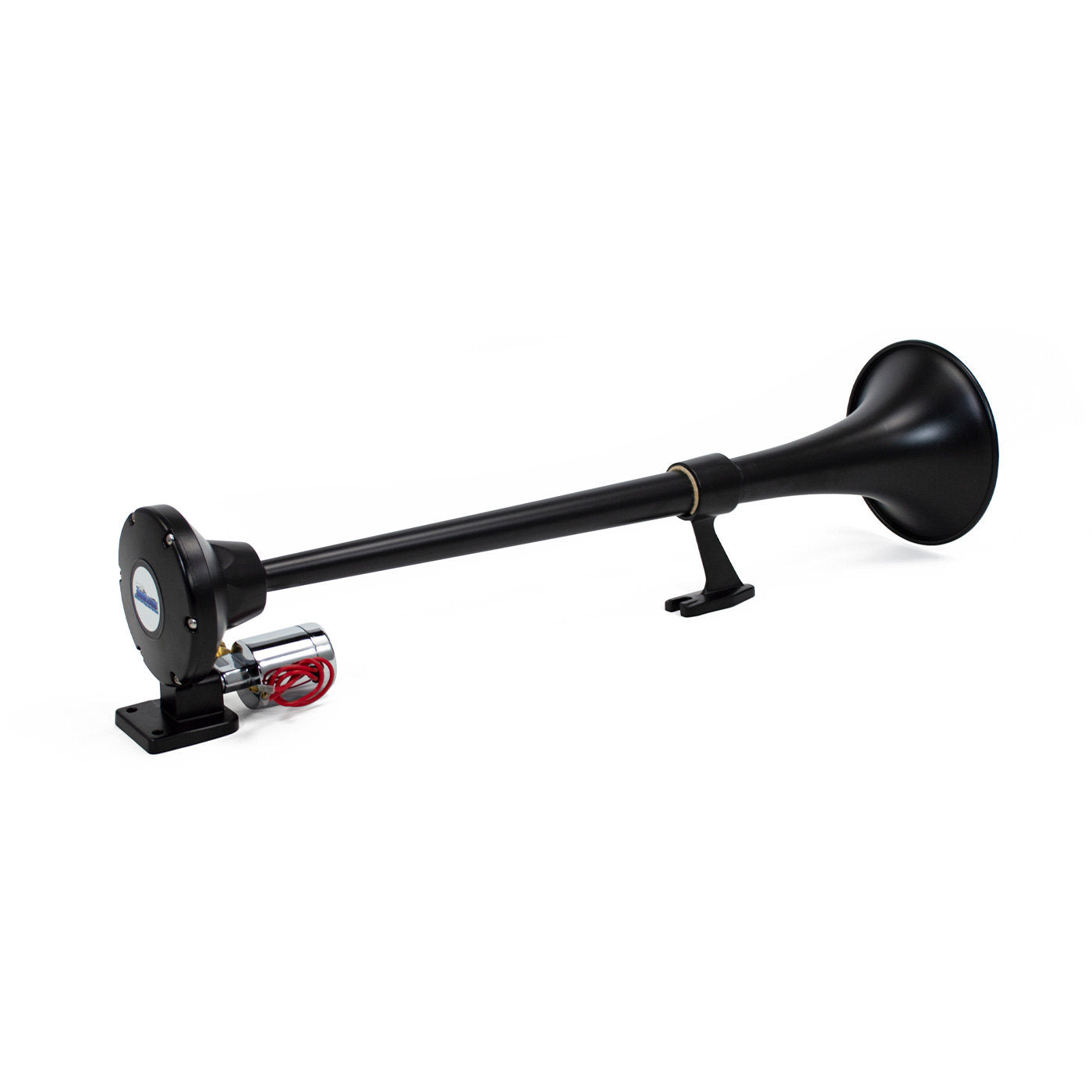

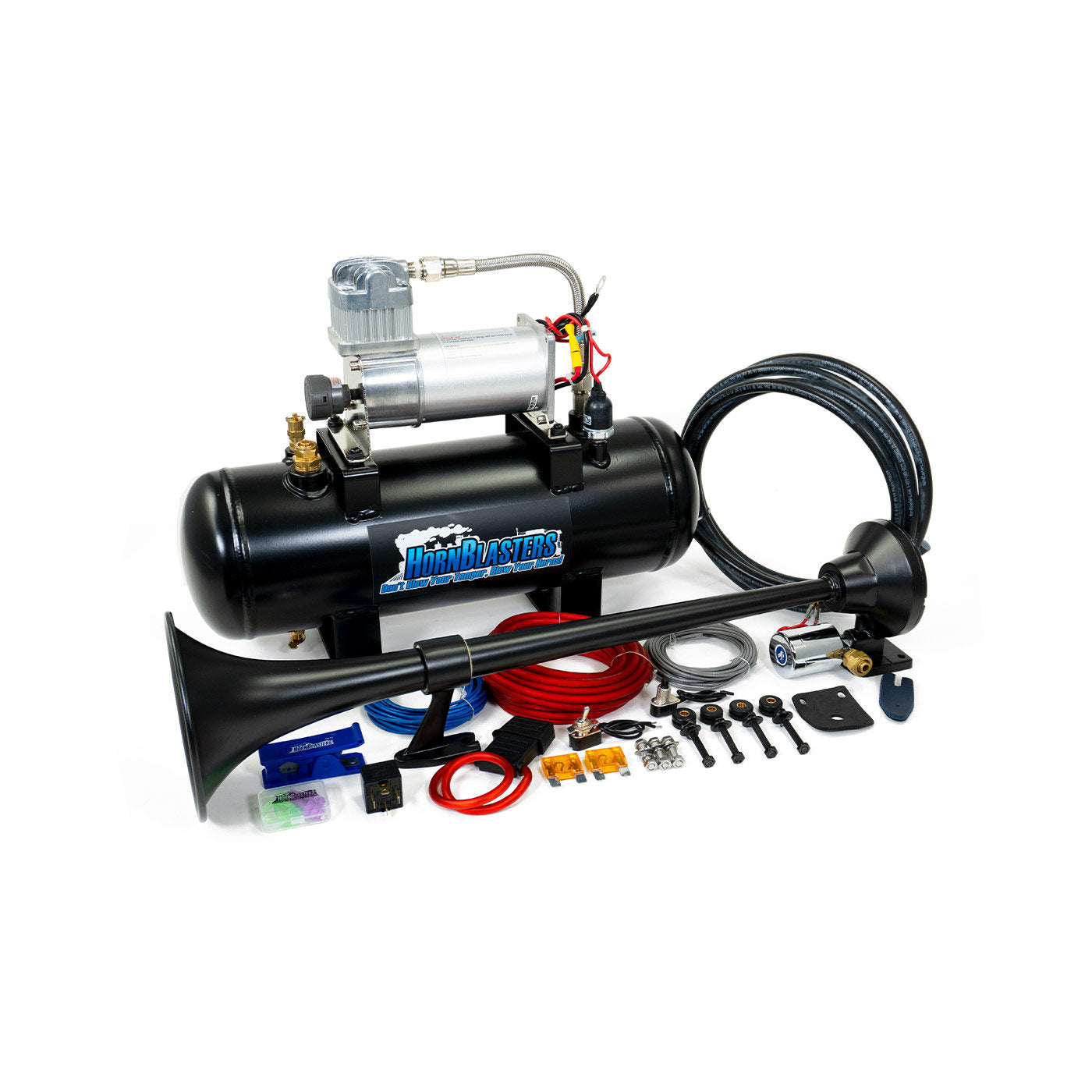

- HornBlasters MINI-TUG air horn

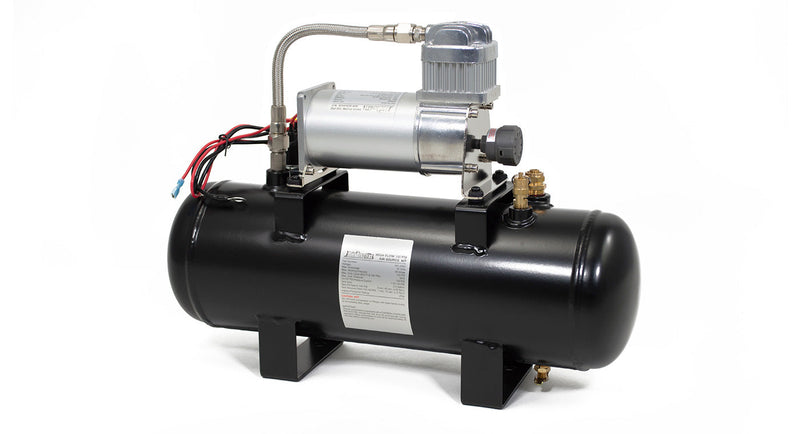

- HornBlasters 228H air source unit
- Pre-installed 1/4" electric air valve
- 17ft 1/2" DOT spec air line
- 22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

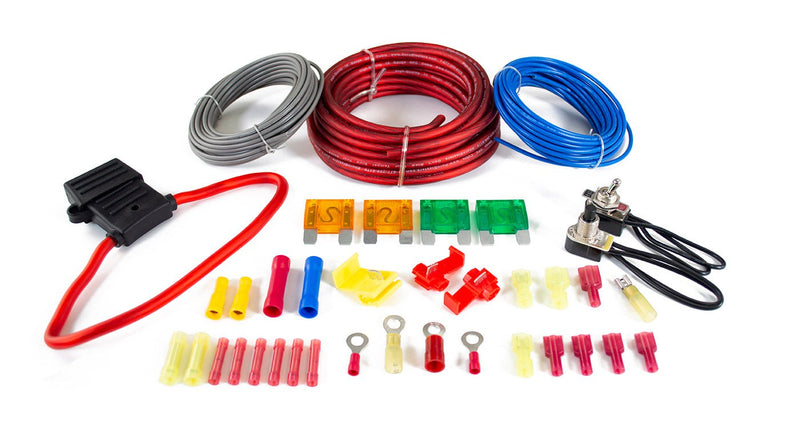

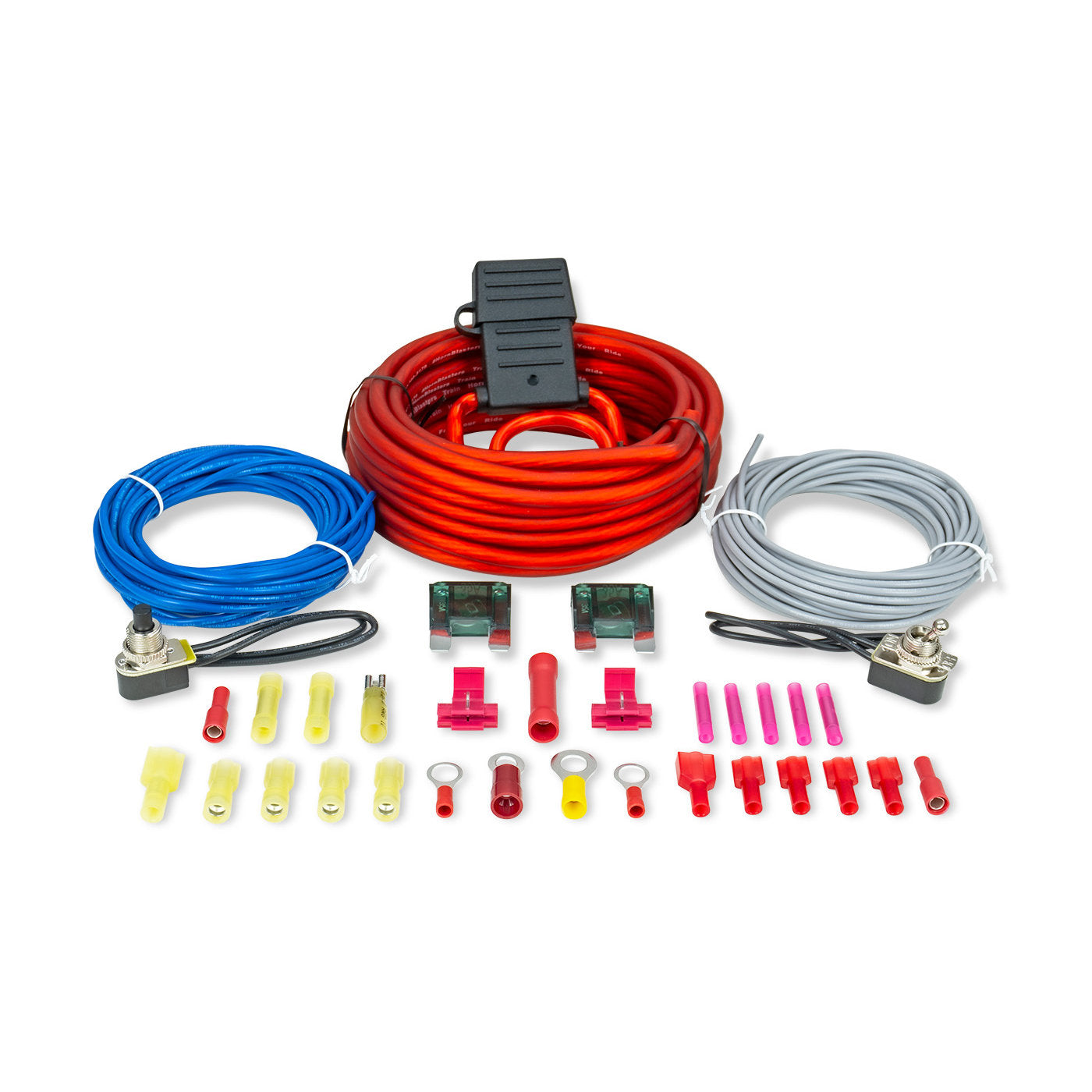

- Complete wiring kit with fuse holder & fuses
- All fittings & mounting hardware
- Detailed installation manual
- Air line cutter
- Earplugs
| Part Number | HK-T37-228H |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | HornBlasters Mini-Tug Air Horn |
| Inlet Port | Accepts 1/2" Air Line |
| Horn Length | 24" (609.6 mm) |
| Horn Width | 6" (152.4 mm) |
| Horn Height | 6" (152.4 mm) |
| Horn Weight | 4.50 lb (2.041 Kg) |
| Air Source Kit | HornBlasters 228H air source unit |
| Operating Pressure | 145 PSI |
| Restart Pressure | 110 PSI |
| Air Source Length | 18.9" (480.6 mm) |
| Air Source Width | 5.9" (149.86 mm) |
| Air Source Height | 13.7" (347.98 mm) |
| Air Source Weight | 17.15 lb (7.78 Kg) |
| Air Tank | 2-gallon 5 port air tank |
| Volume | 2.0 gal (8.8 L) |
| Air Compressor | HB-2 air compressor |
| Max Amperage | 19 amps |
| Maximum Duty Cycle | 30% @ 100 PSI |
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
-
