Motorcycle Air Ride Suspension Modification Kit
Motorcycle Air Ride Suspension Modification Kit is backordered and will ship as soon as it is back in stock.
Description
Description
BAG YOUR BIKE.
Elevate your motorcycle experience with our powerful Motorcycle Air Ride Suspension Kit. This compact, tankless system boasts a robust Viair 98c Air Compressor with Omega Bracket, delivering 1.53 CFM and up to 130 PSI. The Brass 1/4" Electric Air Valve ensures optimal airflow, while the 2-Way Toggle switch offers effortless height control. Compatible with most air struts and shocks like Monroe MA785 and Gabriel 49304. All necessary fittings included, except for strut/shock fitting.
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Gearless Direct Drive Motor
- Insulated Wiring with Connectors
- Omega Style Mounting Bracket
- High Flow 2.5mm Orifice
- Heavy Duty All Metal Valve Case
- Designed For Performance Applications
FITTINGS FOR THE STRUTS/SHOCKS NOT INCLUDED!

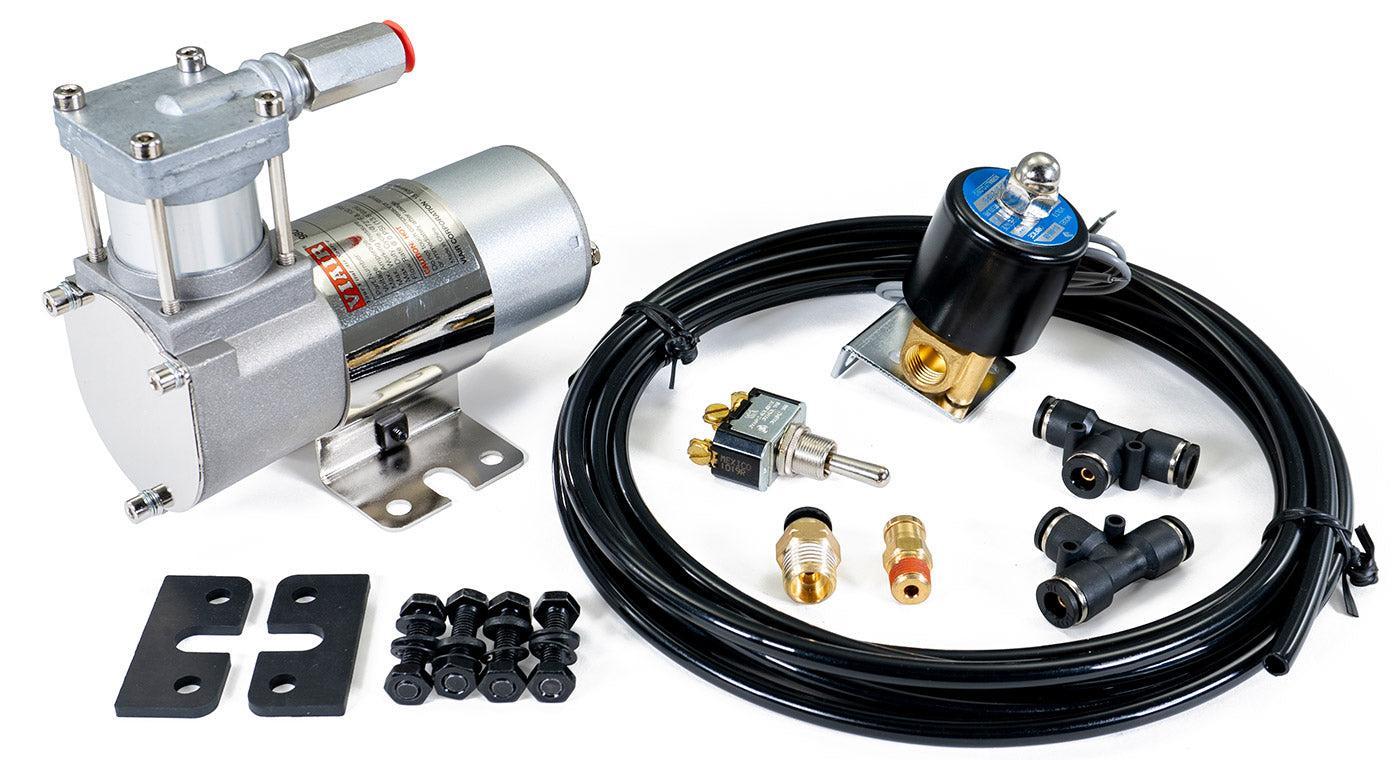

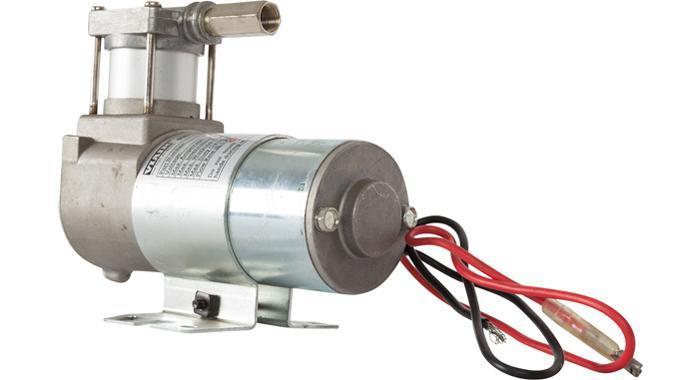

- Viair 98c Air Compressor
- Omega Bracket
- 130 PSI Rated
- 20 Ft of 1/4" Air Line

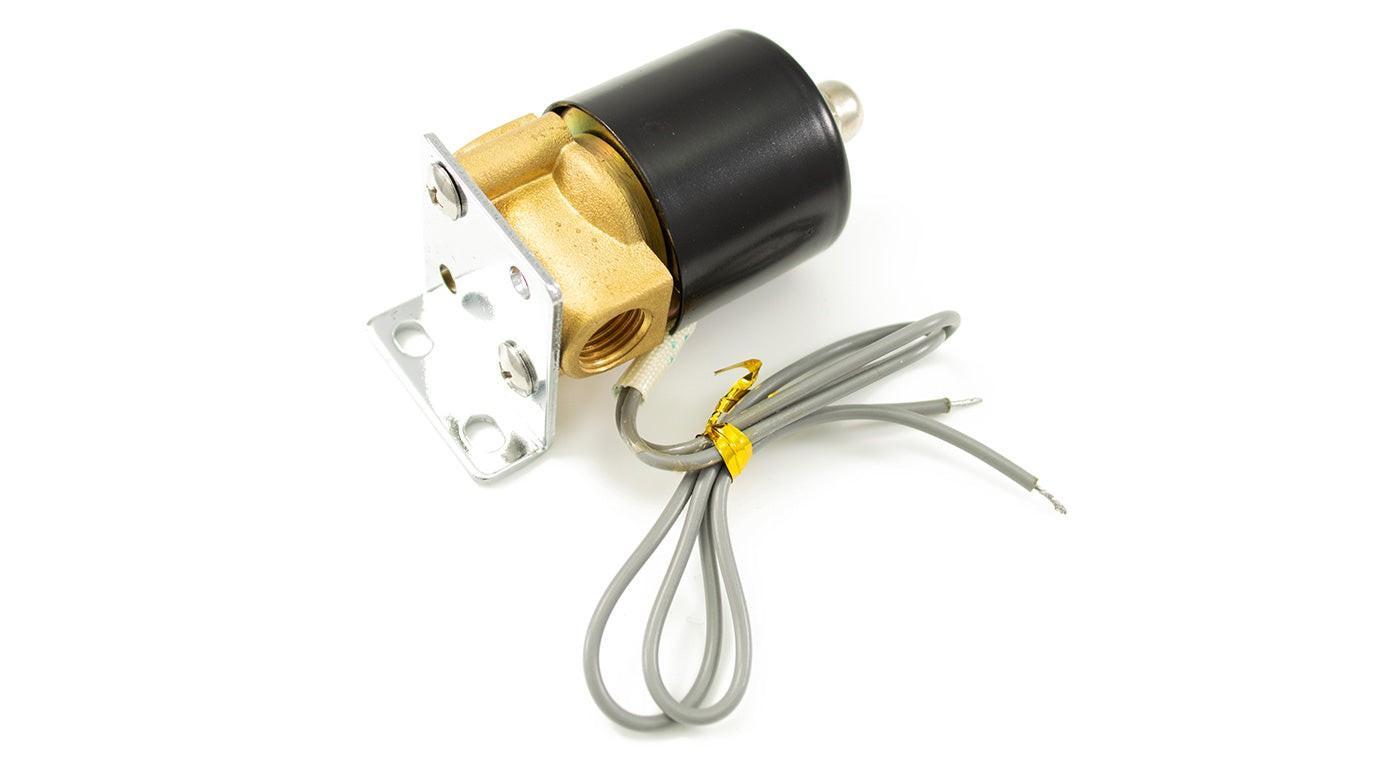

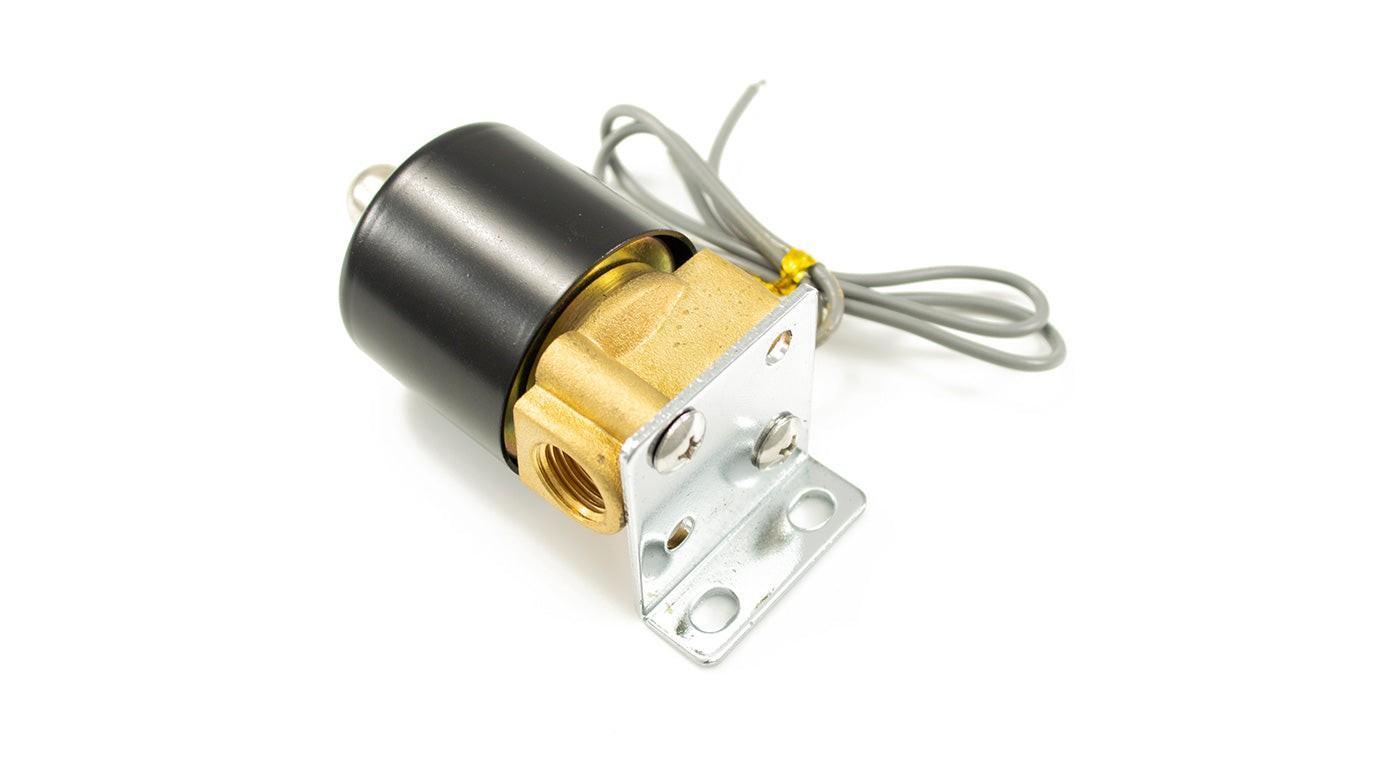

- HornBlasters 1/4" Air Valve

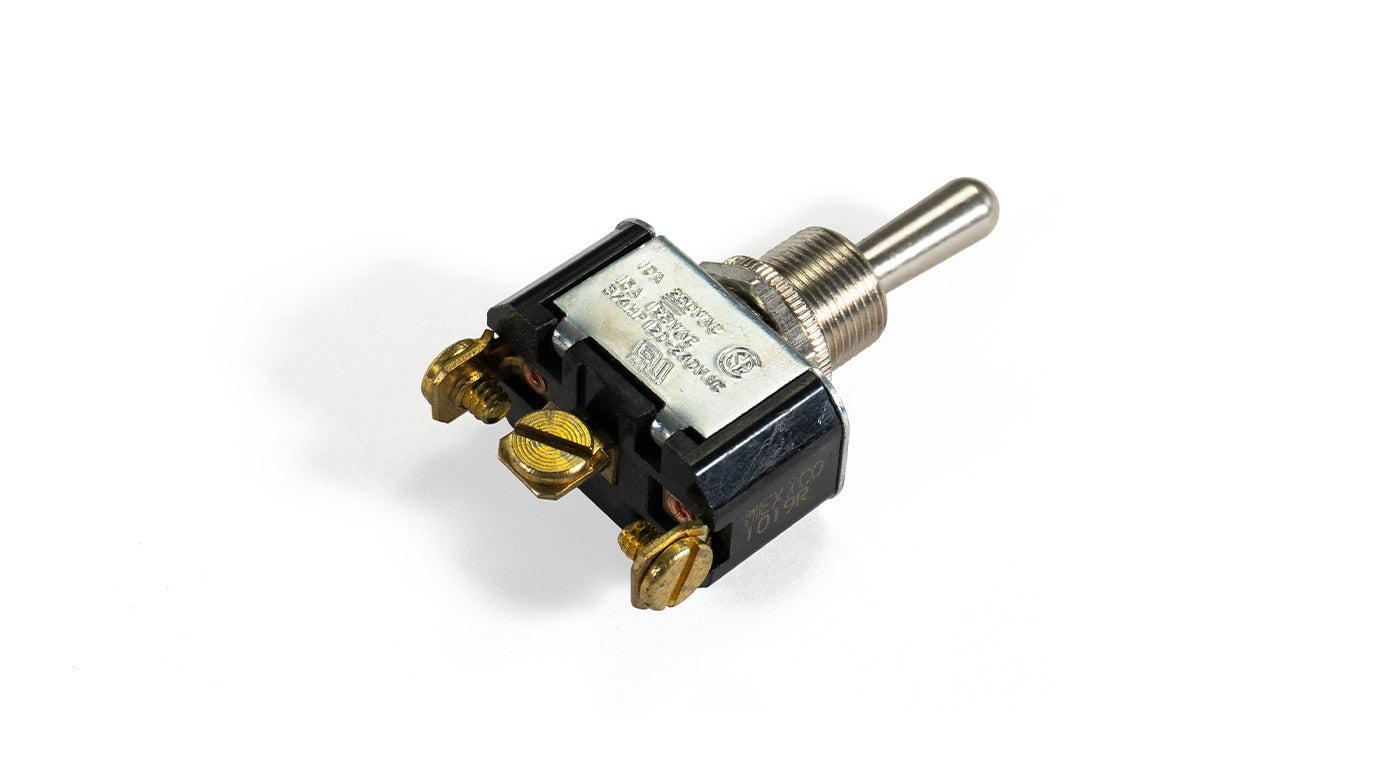

- 2 Way Toggle Switch for Air Up & Air Down (Exhaust)
- All Fittings Besides Fittings for Air Struts/Shocks
- Instructions
| Valve Part Number | VA-4 |
| Port Size | ¼″ NPT Female |
| Orifice | 2.5mm |
| Max Working Pressure | 210 PSI |
| Min. Working Pressure | 3 PSI |
| Valve Length | 4.5″ (114.3 mm) |
| Valve Width | 1.5″ (38.1 mm) |
| Valve Height | 1.5″ (38.1 mm) |
| Compressor Part Number | AC-98 |
| Compressor Voltage | 12 Volts DC |
| Compressor Max Amperage | 12 Amps |
| Compressor Maximum Duty Cycle | 10% @ 100 PSI |
| Compressor Maximum Pressure | 130 PSI |
| Compressor Max Tank Size | 1 Gallon |
| Compressor CFM | 1.53 CFM |
| Compressor Length | 5.6″ (139.5 mm) |
| Compressor Width | 3.1″ (80 mm) |
| Compressor Height | 4.7″ (120 mm) |
| Compressor Weight | 2.50 lb (1.13 Kg) |
-
