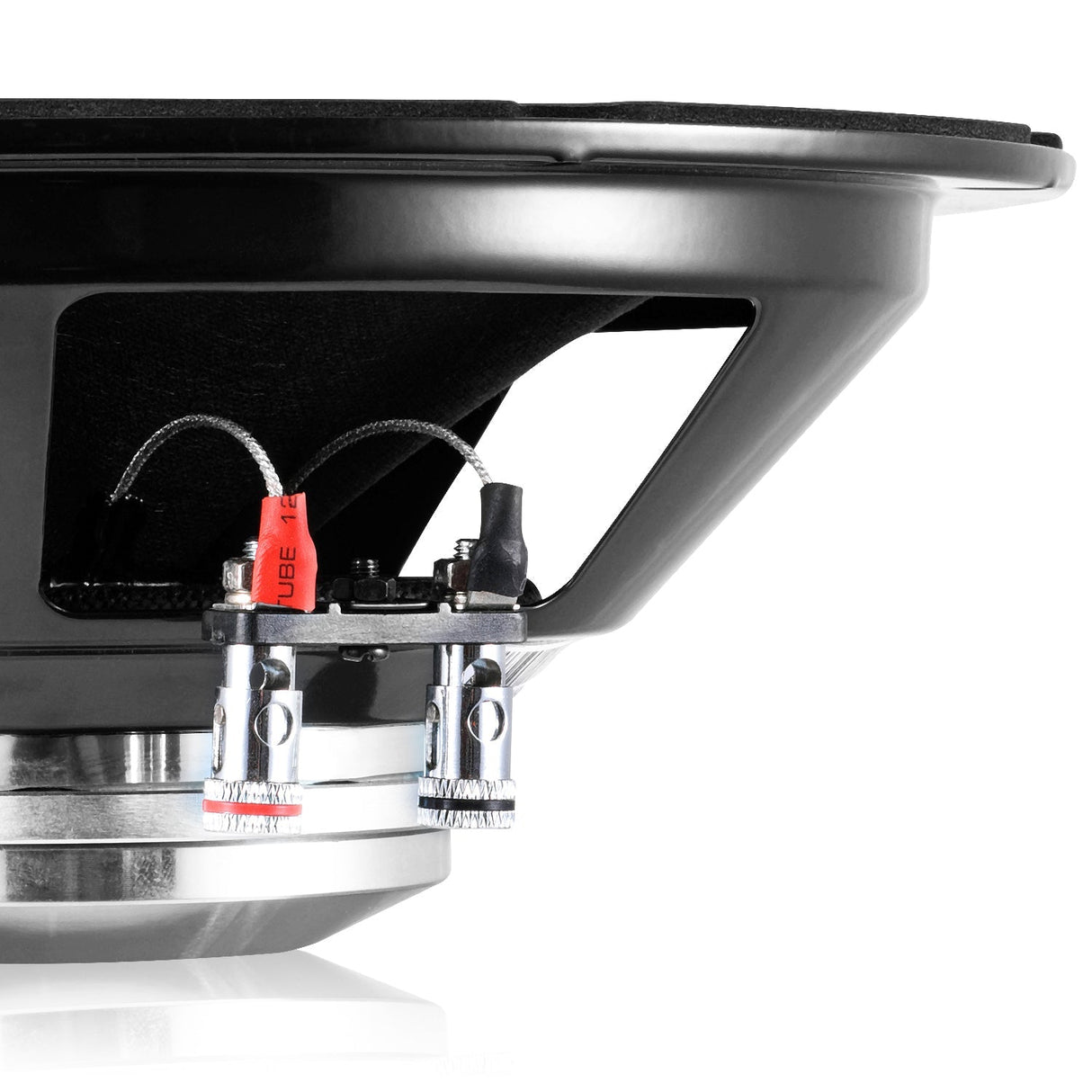

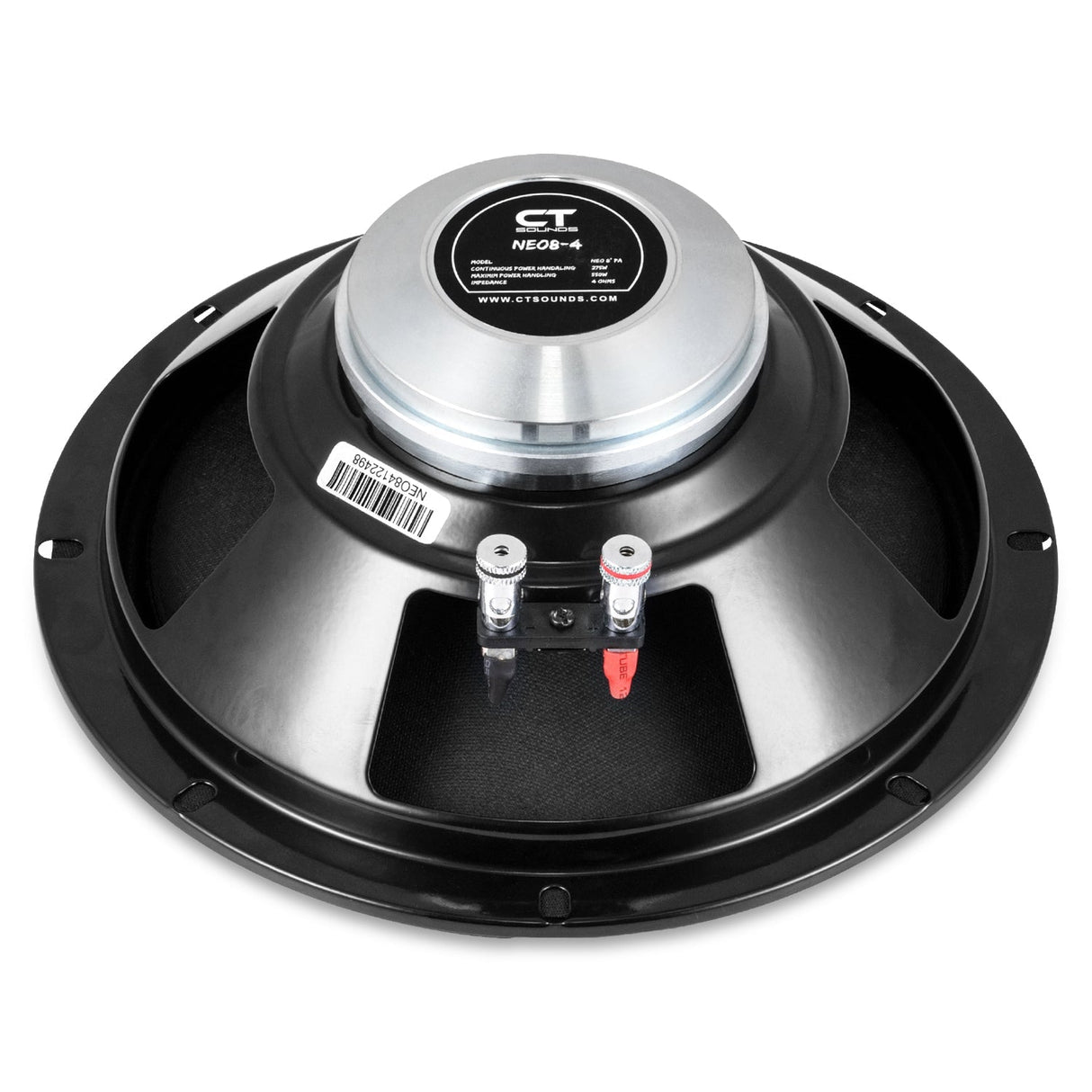

NEO8-4 // 275 Watts RMS 8” Midrange Speaker
NEO8-4 // 275 Watts RMS 8” Midrange Speaker is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

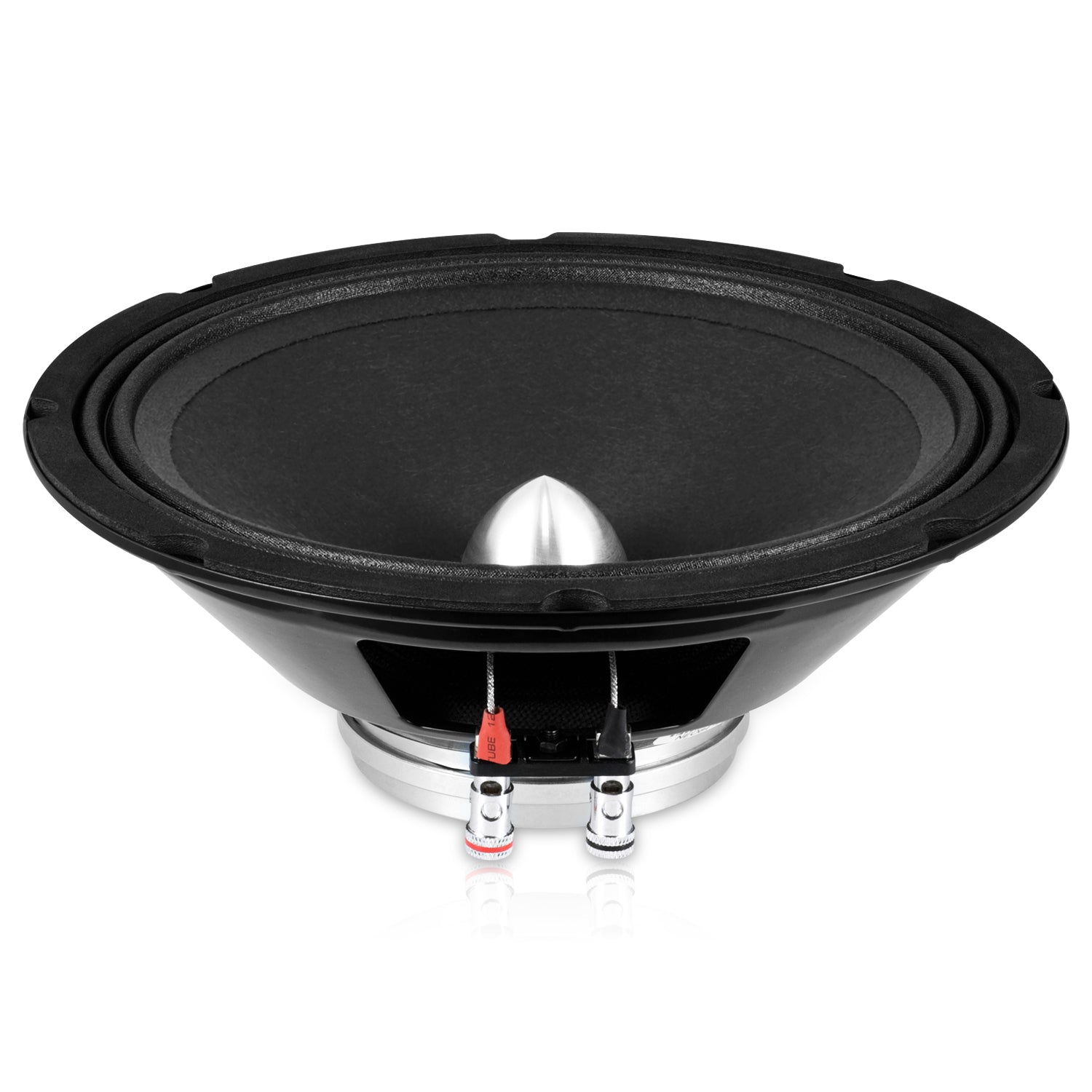

NEO8-4 // 275 Watts RMS 8” Midrange Speaker
NEO8-4 // 275 Watts RMS 8” Midrange Speaker is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
CT Sounds engineered the NEO8-4 pro audio speaker to be the loudest 8” midrange speaker we have ever released in company history! This speaker was almost not released due to liability concerns… We are not responsible for hearing loss.
The neo pro audio speaker features a N42 Neo Magnet which plays a huge role in the sensitivity (loudness) of the speaker. While most manufacturers cheap out and go with a N35 (most common) we spared no cost utilizing the highest grade neo magnet available, the N42.
Furthermore, the loudspeaker utilizes a CCAW voice coil (more expensive than copper voice coil) which allows this speaker to perform exceptionally well at middle to high frequencies compared to the competition. If you like your music LOUD, look no further than the CT Sounds NEO8-4 midrange speaker. We warned you…
| Quick Facts: | |
| RMS Power: | 275 Watts |
| MAX Power: | 550 Watts |
| Speaker Type: | 8" Midrange Speaker |
| Voice Coil Configuration: | Single 4-Ohm |
| General Specifications: | |
| Speaker Size: | 8" |
| Speaker Type: | Midrange Speaker |
| Voice Coil Configuration: | Single 4-Ohm |
| RMS Power (per speaker): | 275W RMS |
| MAX Power (per speaker): | 550W MAX |
| Voice Coil Size: | 1.50" |
| Voice Coil Winding Material: | CCAW |
| Voice Coil Former Material: | Kapton |
| Magnet Weight: | 5.6 Oz |
| Magnet Type: | Neodymium |
| Sensitivity: | 100 dB |
| Frequency Response: | 120 Hz - 7,000 Hz |
| T/S Parameters: | |
| Qms: | 4.85 |
| Qes: | 0.44 |
| Qts: | 0.41 |
| Fs: | 131.74 Hz |
| Cms: | 145.77 m/N |
| Md: | 5.50 g |
| Mms: | 10.01 g |
| Sd: | 240.53 cm² |
| Re: | 3.00 Ω |
| Le: | / |
| Bl: | 7.50 Tm |
| Vas: | 11.98 L |
| Mounting Specifications: | |
| Overall Height: | 3.33" |
| Overall Diameter: | 8.23" |
| Cutout Diameter: | 7.30" |
| Magnet Height: | 0.94" |
| Magnet Width: | 3.35" |
| Mounting Depth: | 3.07" |
| Screwhole Diameter: | 7.95" |
