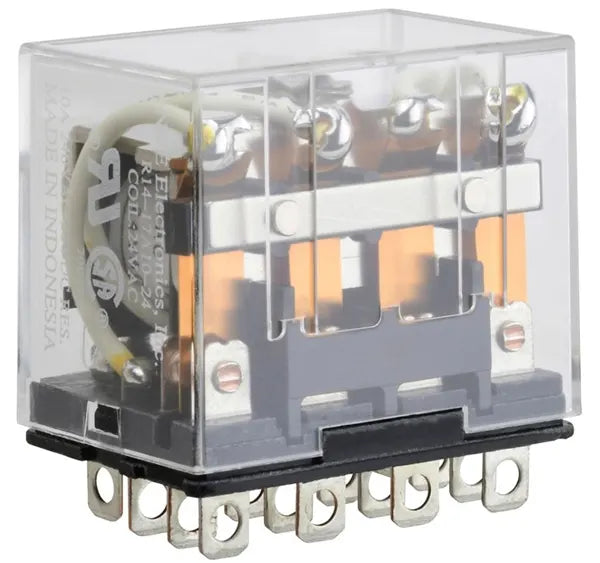

NTE R14-17A10-24 RELAY-4PDT-10AMP,24VAC

Features

• Slightly larger than one cubic inch
• SPDT, DPDT, 3PDT, & 4PDT
• See-thru plastic cover

• Plug-in or solder terminal, will also accept .187" faston terminals
• PC board mount (P-suffix)
• Flange mount version (F-suffix)
• Indicator lamp types (N-suffix)

• High reliability, 50 million operations

Electrical Specifications
Contact
Contact Rating: 15 Amp @ 150VAC/30VDC,
10 Amp @ 240VAC, 1/3 HP @ 120VAC,
1/2 HP @ 240VAC, 10 Amp @ 240/30VDC Resistive,
1/3 HP @ 120VAC, 1/2 HP @ 240VAC
Contact Material: Silver cadmium oxide
Contact Resistance: 100 milliohms max. (@ 6VDC, 1A)

NTE R14-17A10-24 RELAY-4PDT-10AMP,24VAC

Coil
Pick-up Voltages:
             80% of nominal or less for AC
             75% of nominal or less for DC
Min Sensitivity: 500mW DC .75 volt Amps (60Hz)
Duty Cycle: Continuous

Operational Characteristics
Timing Values (At nominal coil voltage):
             Operate Time: 25mS or less
             Release Time: 25mS or less

Insulation Characteristics
Dielectric Strength:
             Contact to Coil: 1500 VRMS (50/60Hz)
             Across Open Contacts: 1000 VRMS (50/60Hz)
             Coil to Frame: 1500 VRMS (50/60Hz)
             Insulation Resistance: 100 megohms Min @ 500VDC

Environmental Characteristics
Operating: -30°C to +55°C

Weight
Std: 1.5 ozs. (45 grams) - approx
