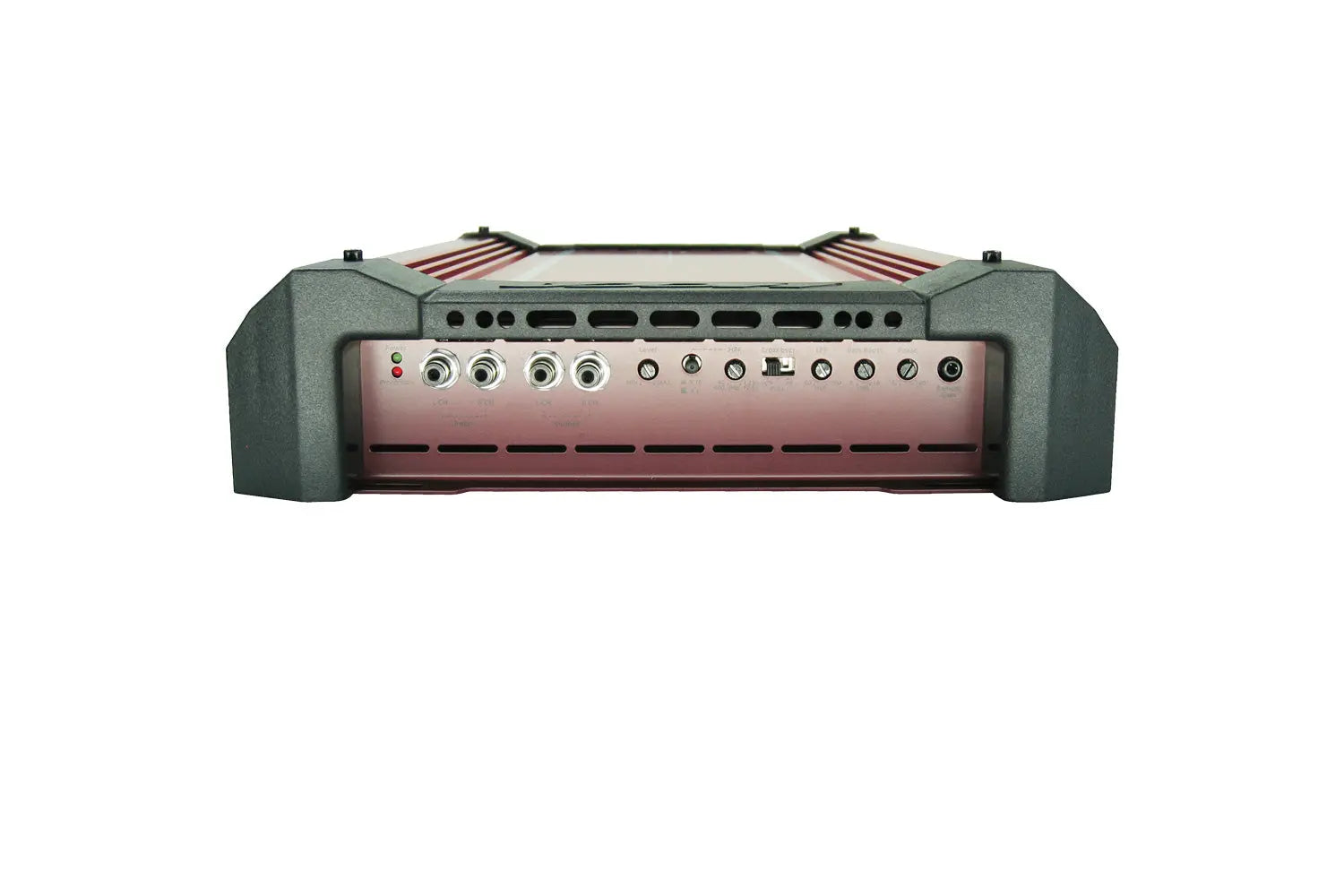

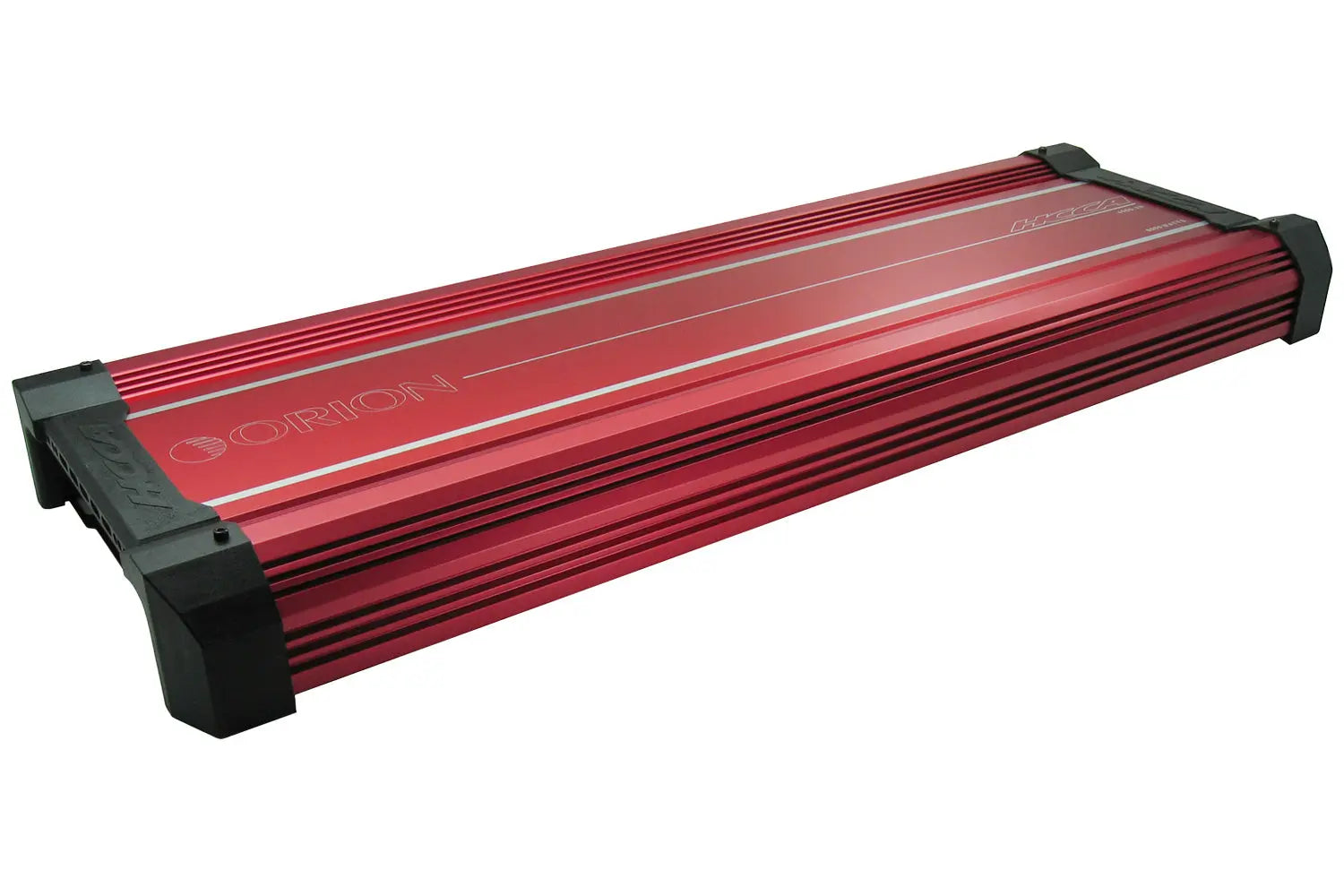

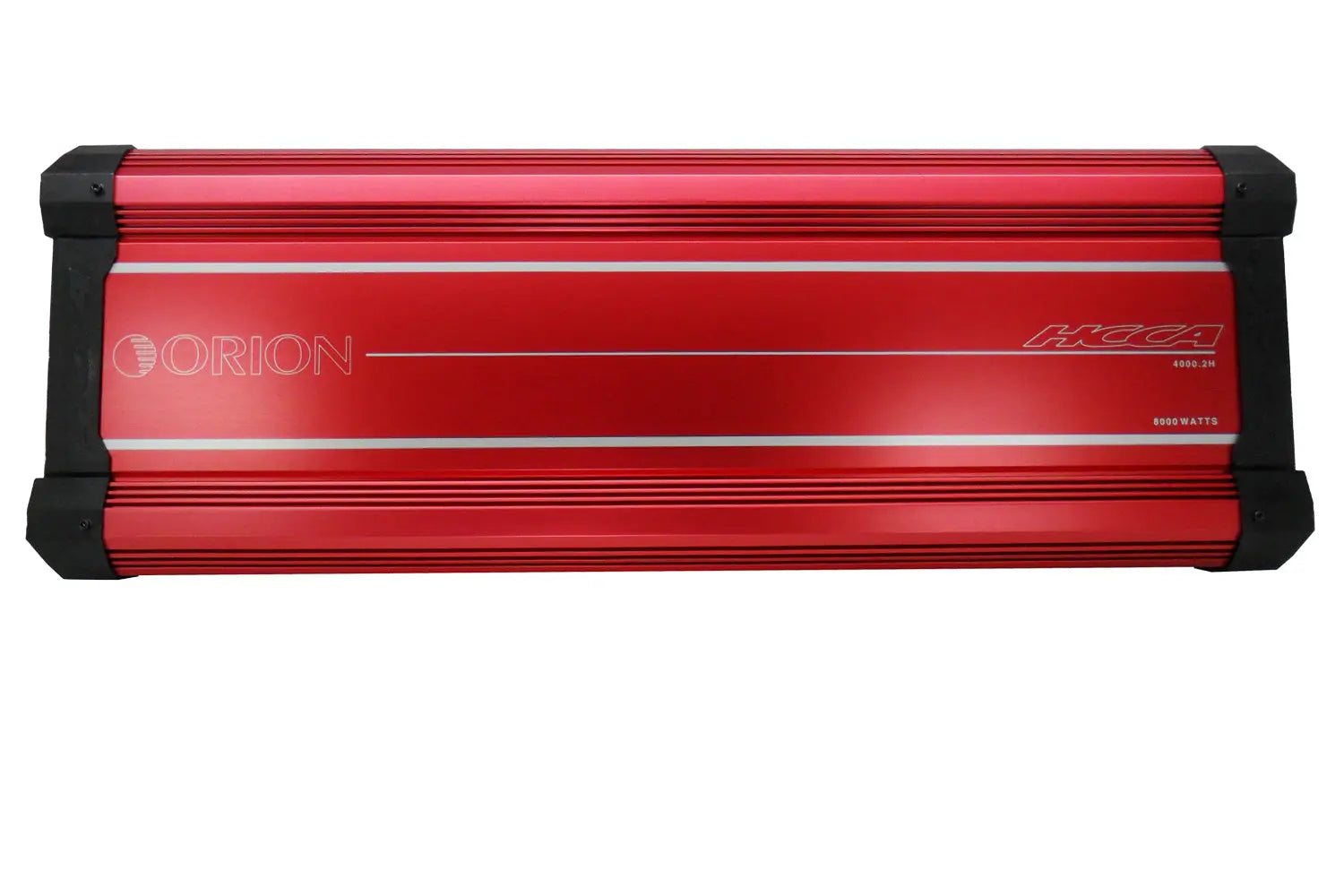

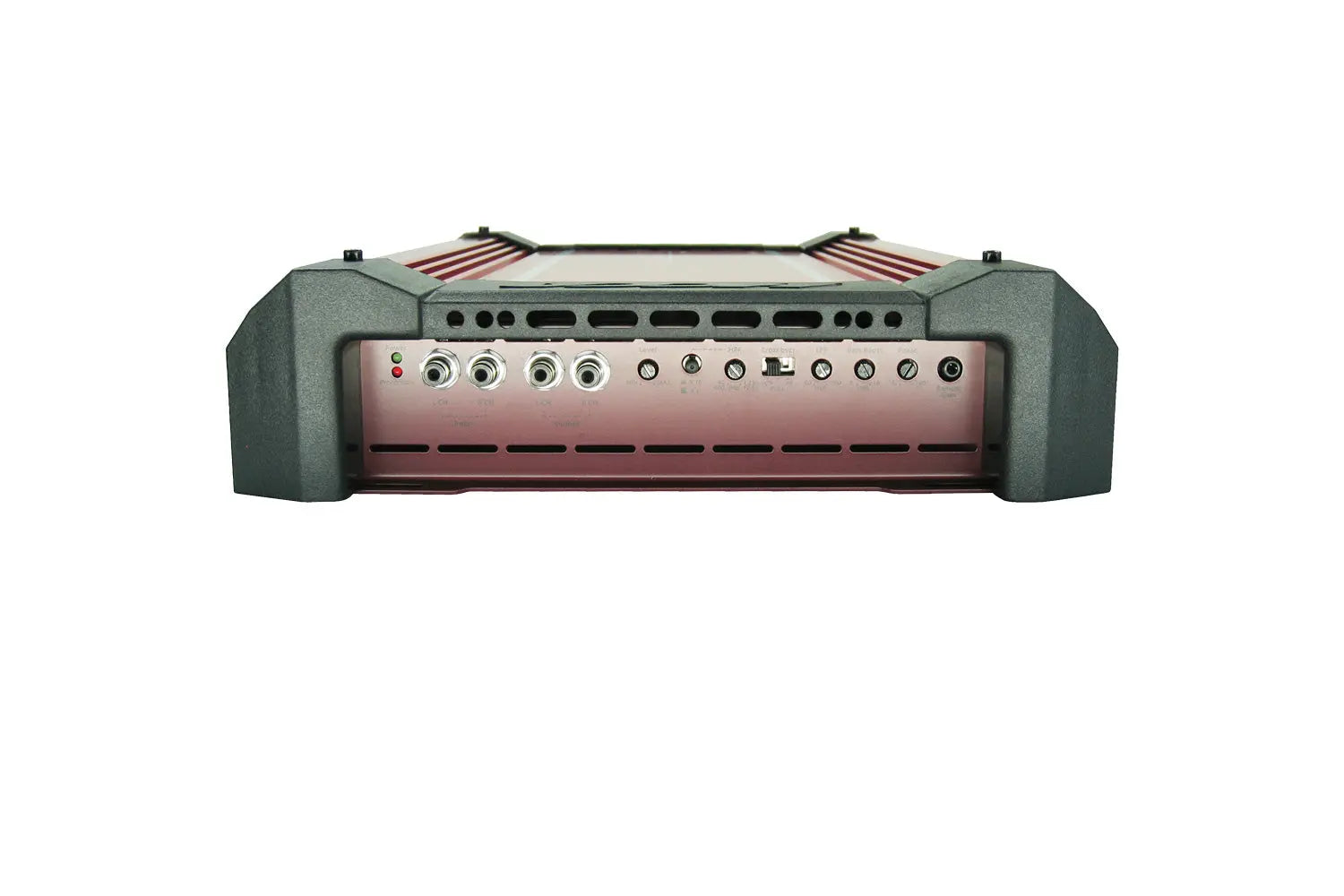

Orion HCCA4000.2H - 4000W RMS 2-Channel Class-H Amplifier

ORION HCCA4000.2H HCCA Series 4000W RMS 2-Channel Class-H Amplifier

Unleash Unprecedented Power and Precision: The ORION HCCA4000.2H HCCA Series 4000W RMS 2-Channel Class-H Amplifier exemplifies the pinnacle of audio engineering, delivering an exceptional blend of power, precision, and efficiency. Designed for discerning audiophiles, this amplifier redefines your audio experience, offering an unmatched level of sonic clarity and depth.

Elevate Your Audio Journey: Embark on an audio journey like never before with the ORION HCCA4000.2H HCCA Series 4000W RMS 2-Channel Class-H Amplifier. Expertly crafted and equipped with advanced features, this amplifier redefines your listening experience, transporting you to an audio realm of astonishing depth and clarity.

Unparalleled Sound Fidelity: Rediscover your music with unparalleled accuracy and detail. From the softest notes to the most powerful crescendos, every aspect of your audio is brought to life.

Unrivaled Power and Precision: Experience a blend of power and precision that transcends expectations. The ORION HCCA4000.2H HCCA Series Amplifier flawlessly merges potent power with sonic accuracy, creating a sonic masterpiece that captivates the senses.

Elevate Your Drive: Elevate your driving experience with the ORION HCCA4000.2H HCCA Series 4000W RMS 2-Channel Class-H Amplifier. Transform your audio journey and indulge in a level of sonic excellence that sets new benchmarks.

Class-H Amplification: Experience the cutting-edge efficiency of Class-H amplification, delivering unparalleled power and precision.

4000 Watts RMS: Immerse yourself in an auditory adventure with 4000 Watts RMS, producing commanding and detailed sound performance.

Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring long-lasting reliability.

Compact and Stylish Design: The amplifier's sleek design seamlessly integrates into your audio setup, adding a touch of sophistication to your system.

Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.

All MOSFET Power Supply

Remote Gain Control

Heavy Gauge Direct-Wire High Current Power and Speaker Terminals

Electronic Crossover Network

Bass Boost Circuitry

Tri-Mode Capable

High-Pass/Low-Pass Filter Control

Power and Protection LED Indicators

Soft Turn-on/Turn-off

Balanced Input (CMRR)

Fault and Protection Monitoring

4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1200W

- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 2000W

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 4000W

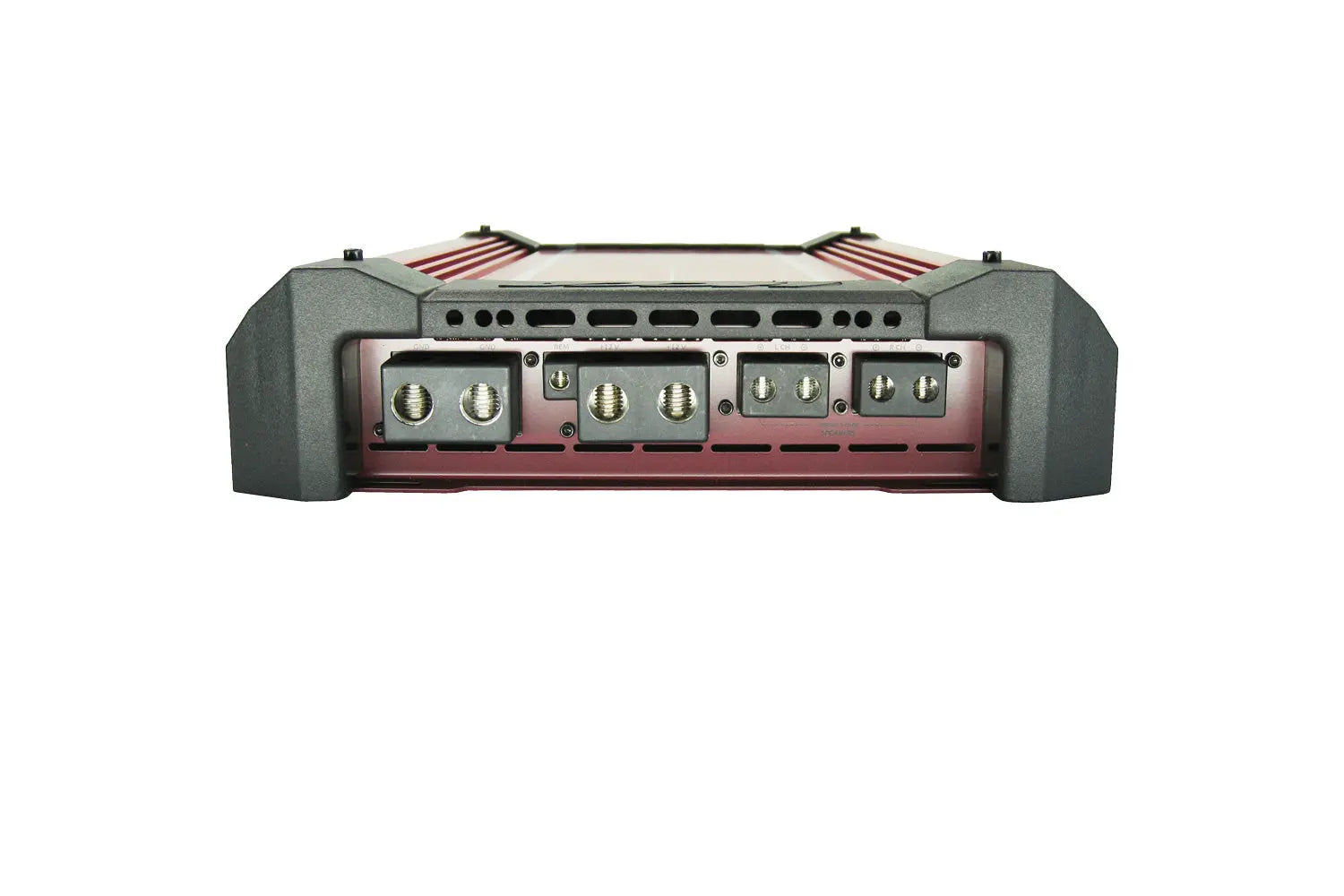

 POWER TERMINAL MANAGEMENT

  Positive Terminals: 1 x 0 AWG.

Frequency Response 10Hz to 35kHz +/- 1 dB

Negative Terminals: 1 x 4 AWG.

 Remote Turn-ON Signal: 10 AWG.

 Speaker Output Terminals: 10 AWG.

- Linear Bandwidth 20Hz to 65kHz +/- 3 dB

- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)

- Low Pass Crossover Continuously variable (40-300Hz)

- Phase shift control 0 to 180

- Bass Boost 0-18dB variable

- Distortion at Rated Power 0.005% THD+N

- Damping Factor > 100

- Input Sensitivity(RMS) 200mV to 6V

- Supply Voltage Range 9 to 16V

- Input Impedance 20K Ohms

- Amplifier Efficiency > 67% into 2 Ohms load at max. power

- SNR at rated output power and lowest impedance > 95dB

- Fuses: 250A recommended (not included)

- Dimensions (L x W x H): 27.95" x 11.89" x 3.15" (710x302x80mm)
