Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration
Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration is backordered and will ship as soon as it is back in stock.
Description
Description
- XTR Performance Bass Processor: Designed to enhance subwoofer performance by restoring and boosting low-frequency signals.
- Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.

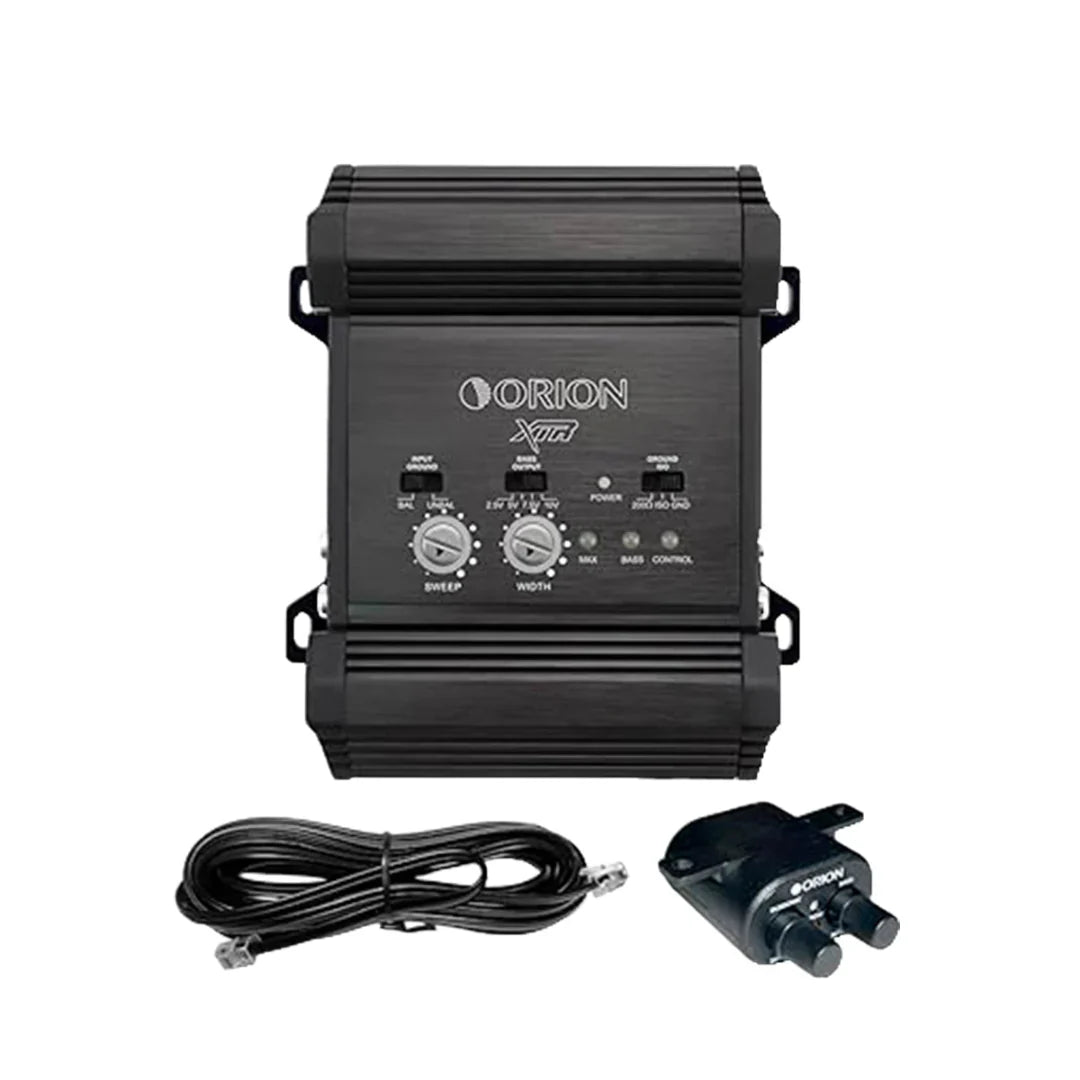

- Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
- Width Bandwidth Control: Allows adjustment of the bass restoration range for deeper bass or tighter punch.
- Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity.
- High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
- Ultra-Low Distortion Processing: Maintains high audio fidelity with less than 0.02% total harmonic distortion.

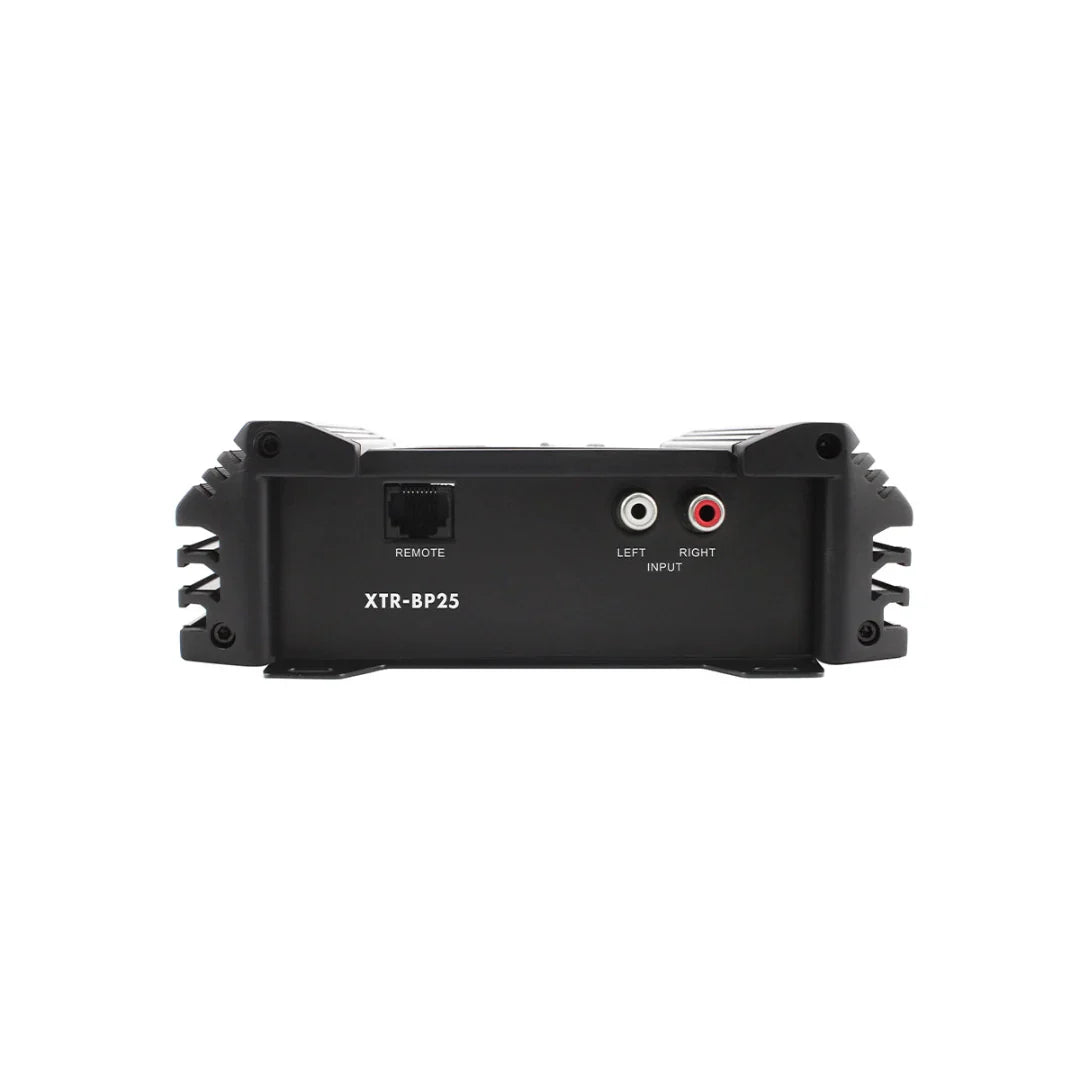

- Balanced / Unbalanced Input Selection: Ensures compatibility with factory radios and aftermarket head units.
- Ground Isolation Control: Helps eliminate alternator noise and system interference.
- Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat.
- Power Supply: 6.5V – 18V
- Maximum Input Level: 10V
- Maximum Output Level: 10.5V
- Input Sensitivity: 10.5V
- Input Impedance: >50K Ohms
- Output Impedance: 100 Ohms
- EQ Boost / Cut: 15 dB
- Signal-to-Noise Ratio: >110 dB
- THD @ 2V Output: <0.02%
- Channel Separation: >80 dB
- CMRR: -63 dB Balanced / -29 dB Unbalanced
- Frequency Response: 10 Hz – 30 kHz
- Subsonic Filter: 27 Hz – 72 Hz
- Current Draw: 230 mA
- Interchannel Gain Tracking: 0.1 dB
- Fuse Rating: 1A
- Dimensions: 3.98” x 6.42” x 2.09”
