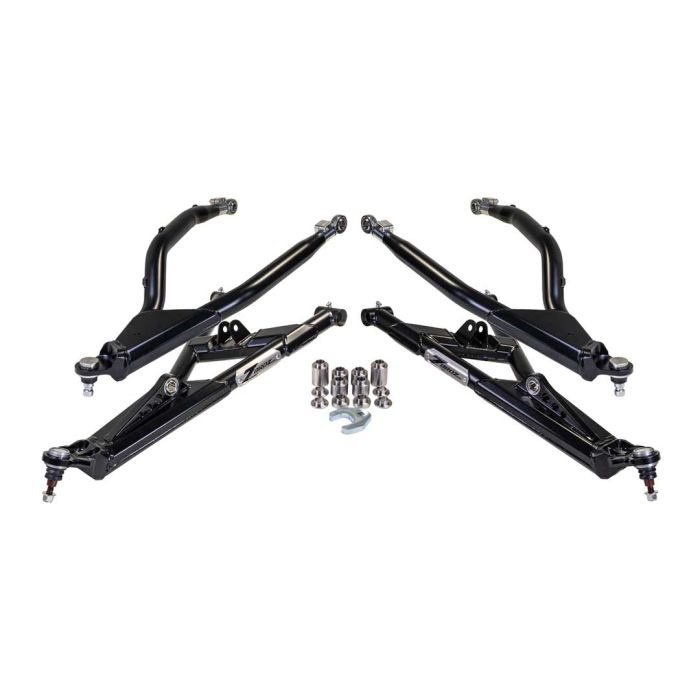

Polaris RZR Pro R/Turbo R Pro MAX High Clearance A-arm Kit - by Z-Broz Racing

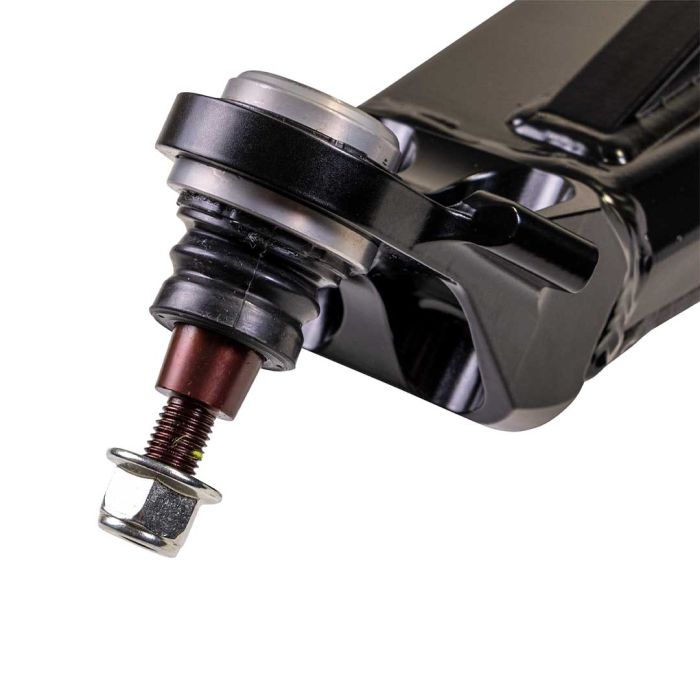

We include pre-installed heavy-duty ball joints in every kit. We designed our lower ball joint housing with pre-installed 300 m lower joints pressed into our arms from the opposite direction placing load squarely on the joint shoulder rather than the snap ring groove. Much like our reverse press in uppers, we have proven over the last decade or more, that improved design means improved strength for you.

The new upper control arm includes our tried-and-true adjuster sleeve and pinch bolt design for easy on-the-car alignment by simply loosening the two pinch bolts and then using the included wrench tool to adjust the sleeve. Our design offers more clearance directly below the shock mount point where it’s critical while being much stronger and more durable in all load conditions.

FEATURES/BENEFITS INCLUDE:

·       New beefy 1.75” DOM larger tube design.

·       New alignment and camber adjustability on upper A-arm.

·       Included new alignment wrench end tool.

·       Pre-installed greaseable Delrin bushings on lower arms

·       Made from high-quality heavy wall DOM Steel.

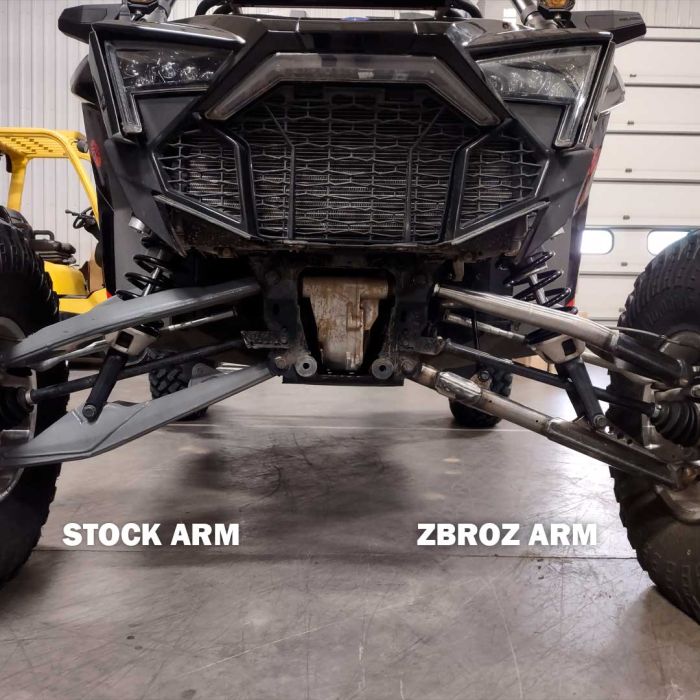

·       1.5” of more ground-clearance.

·       Pre-installed heavy duty ball joints

·       Teflon lined heavy duty Heim joints.

·       Stainless steel ZBROZ branded badge.

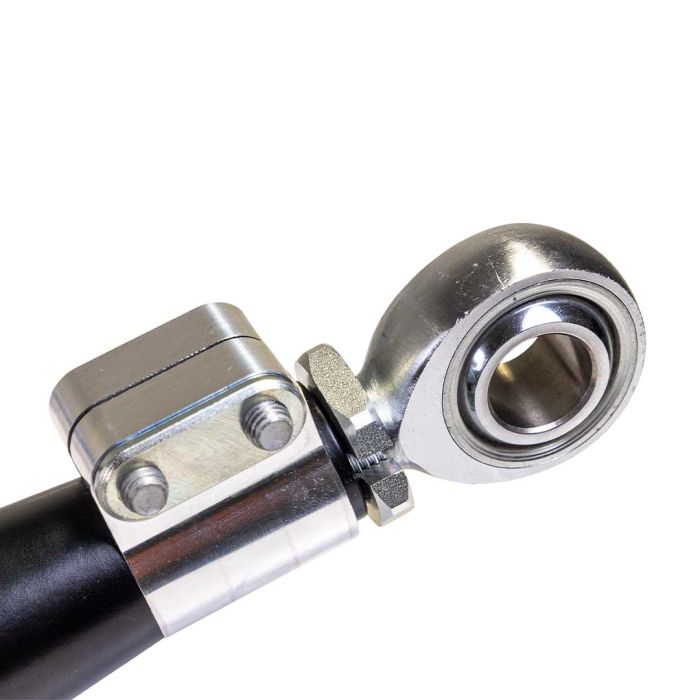

·       Teflon-lined Chromoly ¾” Upper Heim joins.

·       Direct bolt-on installation, no modifications required.
