POLARIS RZR XP 1000 6" PORTAL GEAR LIFT
POLARIS RZR XP 1000 6" PORTAL GEAR LIFT
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ride Your Way with GDP Portals

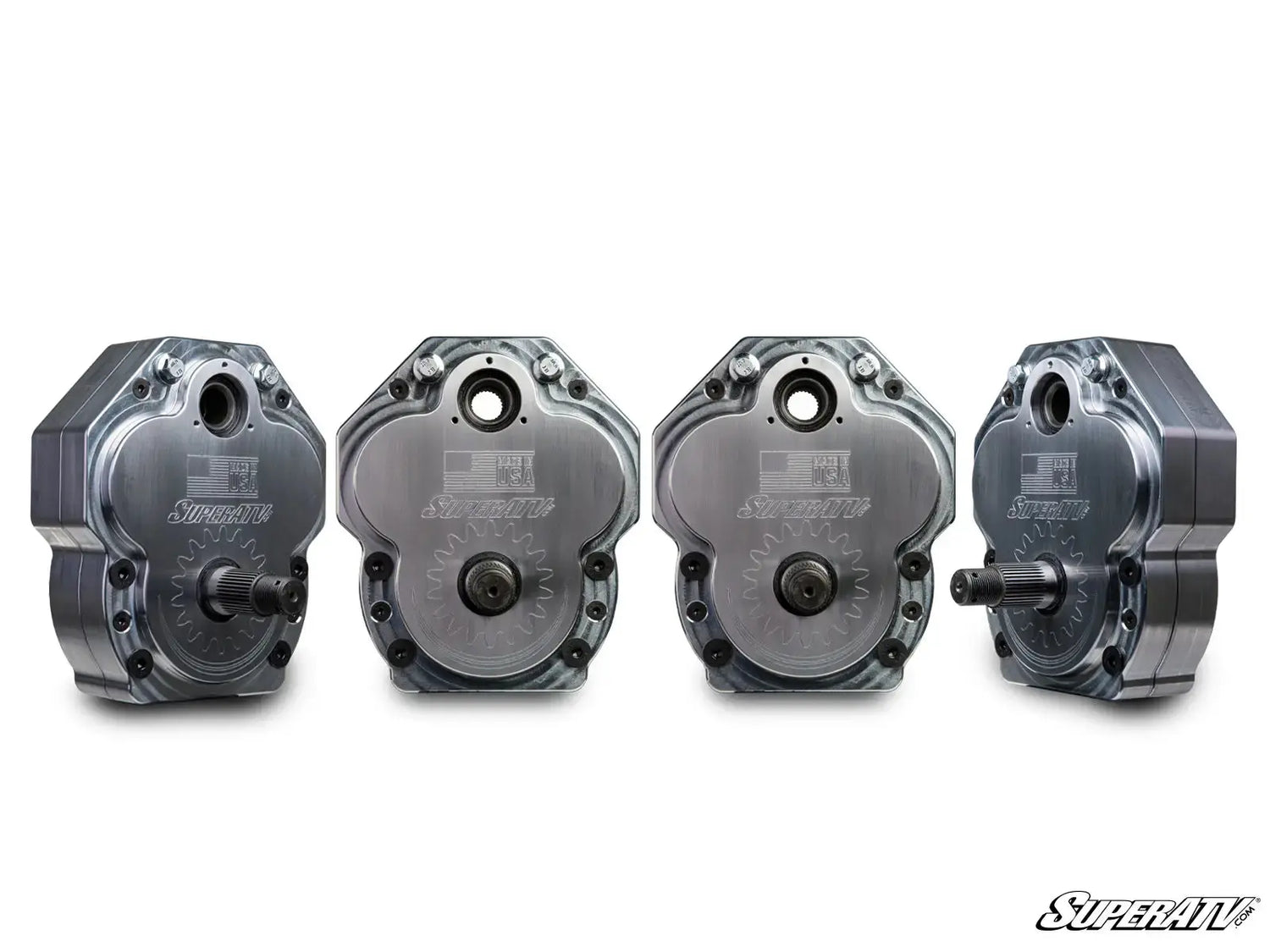

Get the clearance you need to run bigger tires and the torque you need to turn them with SuperATV’s GDP 6” Portal Gear Lift for the Polaris RZR XP 1000. GDP didn’t make the first side-by-side portal kit on the market—just the first kit that anybody gave a damn about. With these portals, you get to choose your housing style (cast or billet) and gear reduction. Go with a 30%, 45%, or 60% gear reduction or take your performance to the max with one of our dual idler gear options. SuperATV portals give you the perfect amount of torque to maintain your optimal riding style.

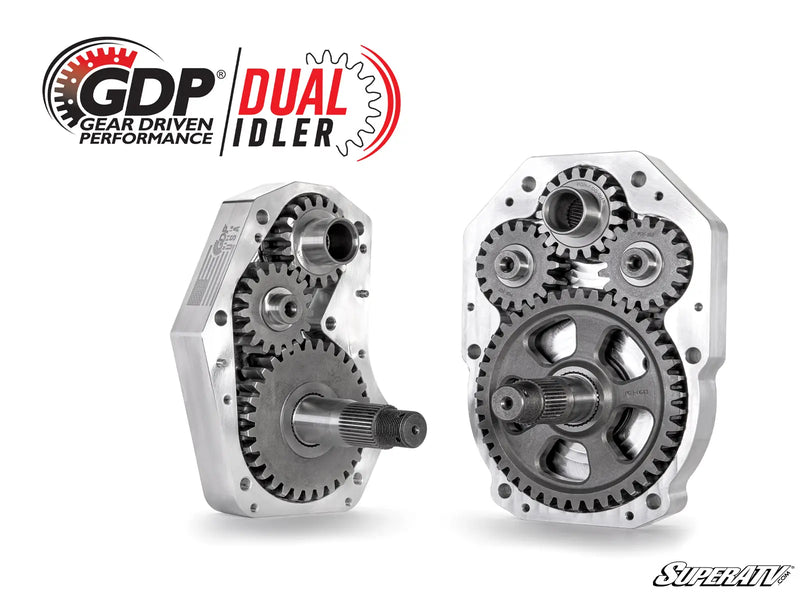

What is a Dual Idler®?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Designed for All Riders
No matter how you ride, you’ll never look at your machine the same after installing a set of GDP portals. Whether you stick to mud, trails, dunes, or all of the above, we have the RZR portals you need. A smaller 30% reduction is perfect for fast rides with plenty of torque. A 45% reduction will let you run bigger tires and take on bigger rocks. And our 60% gear reduction is a must if you want to build the most menacing mud machine imaginable. You could also add to the badass factor by opting for the dual idler gear configuration.
Keep Your Drivetrain Safe
The gear reduction of our these 6” portals happens right in the hub—not in your transmission. This cuts back on the strain put on vital components, like your axles and differential, making them last longer. You’ll be able to ride harder than ever while putting less stress on your vehicle. Talk about having your cake and eating it too!
GDP Delivers Industry-Leading Performance

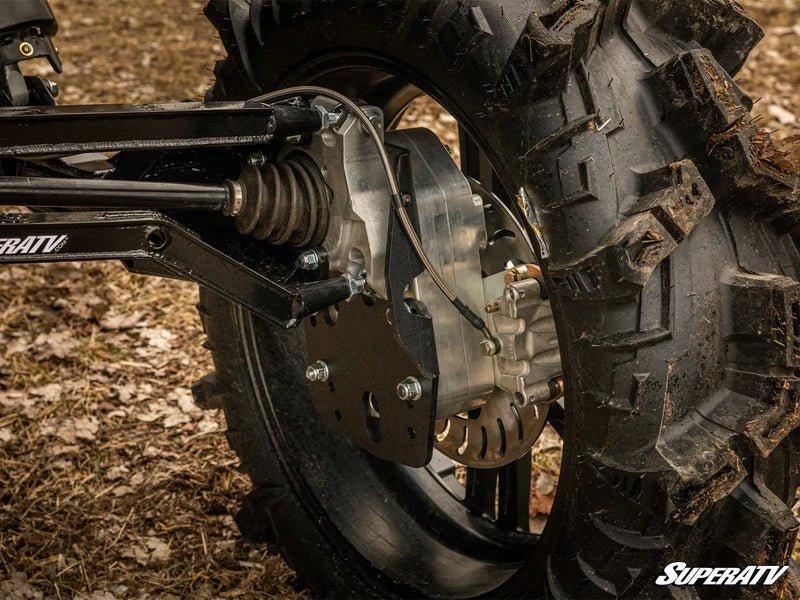

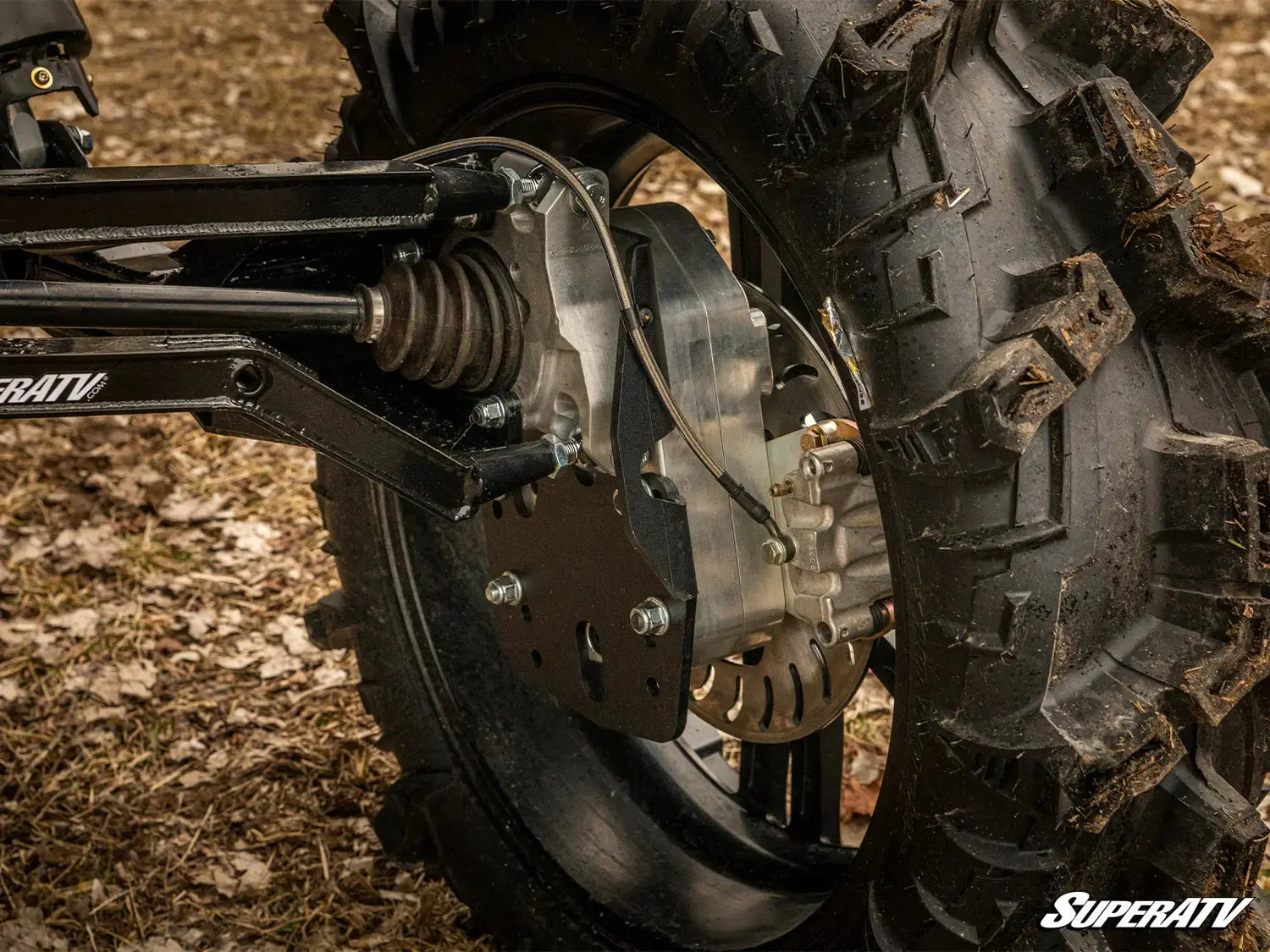

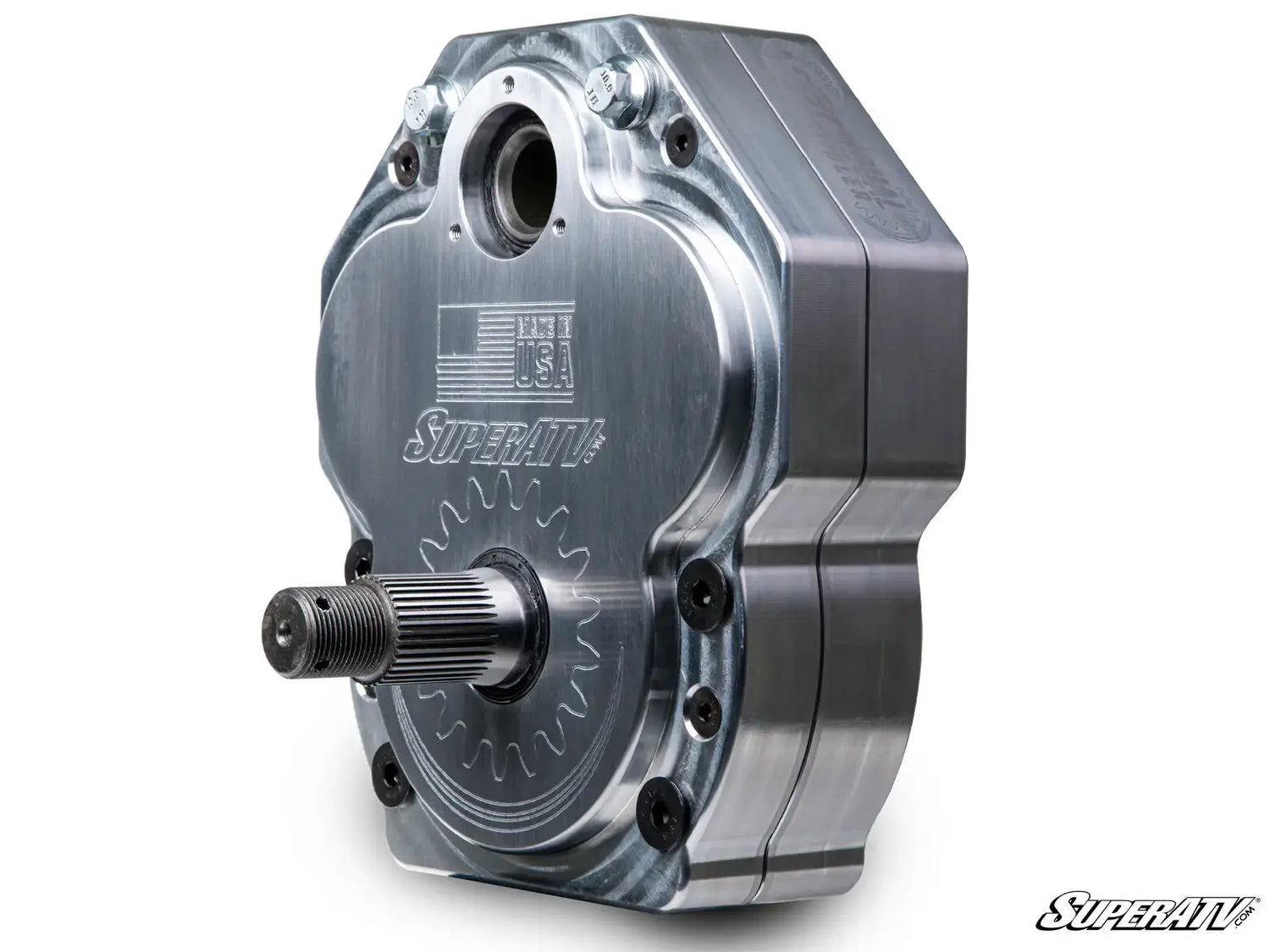

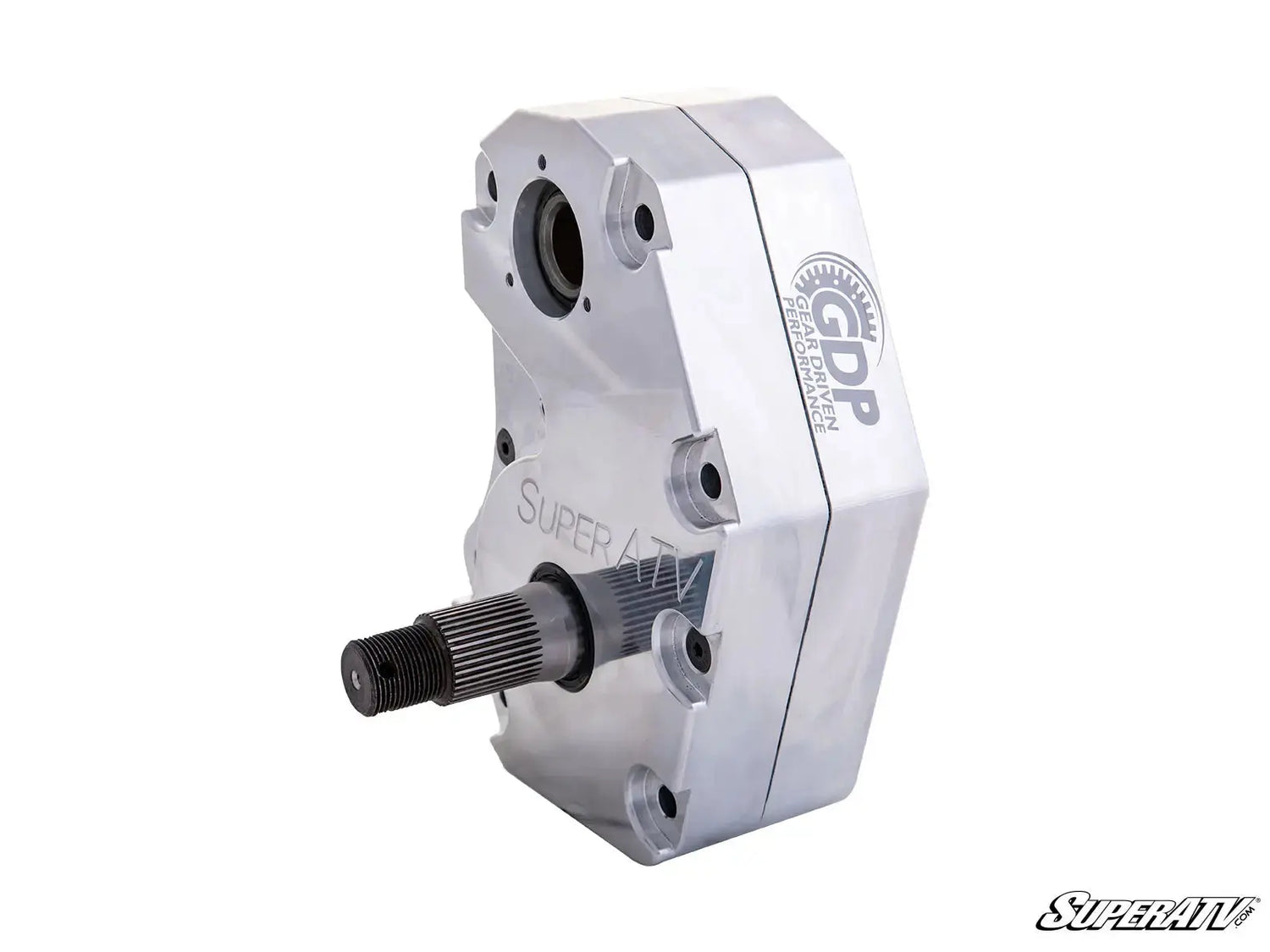

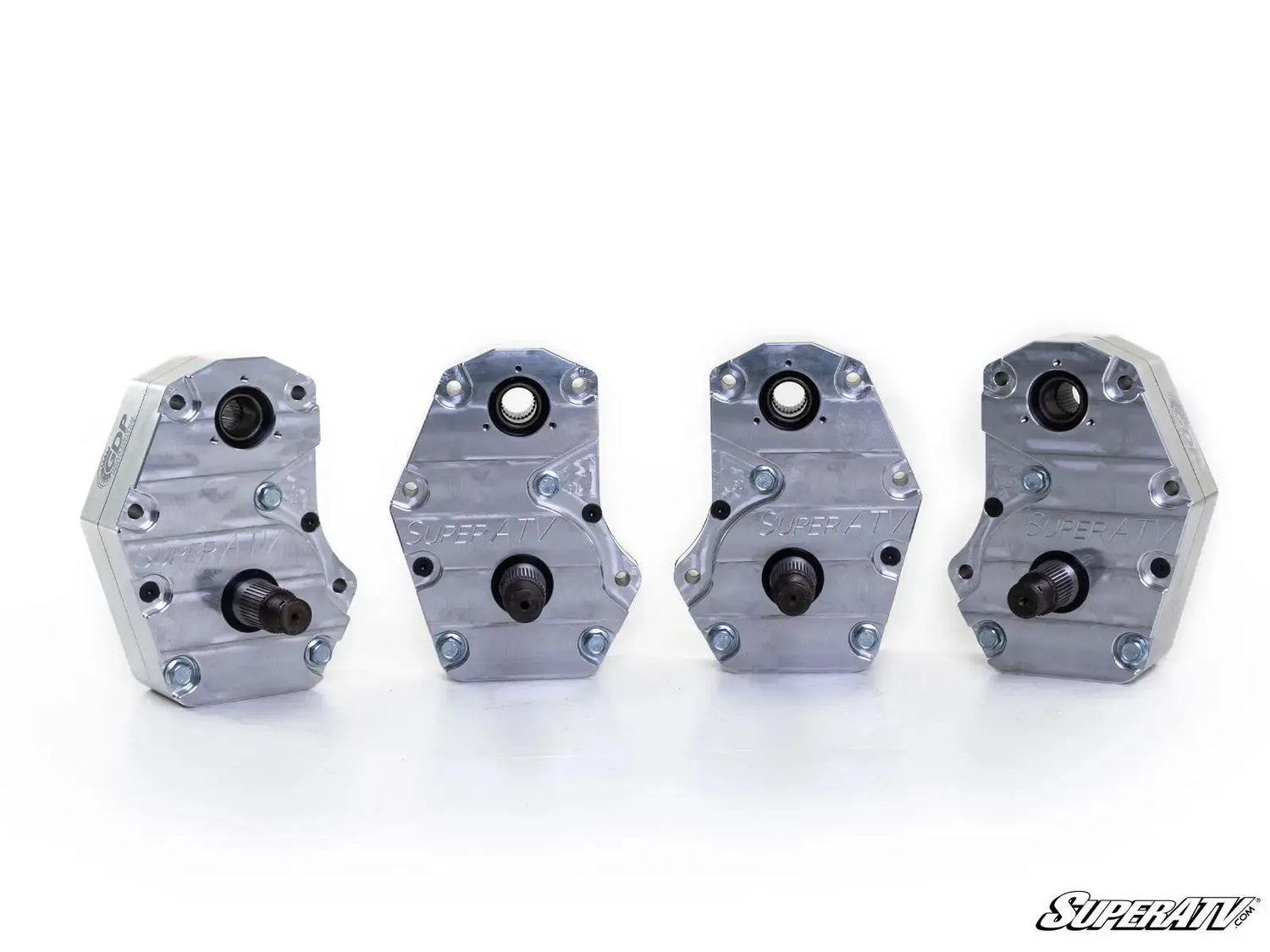

If you’re not riding on GDP, you’re not riding. A GDP Portal Gear Lift is the best and strongest portal lift on the planet. And you’ve got options, too. Pick from cast or USA-made, CNC-machined 6061 billet aluminum housings. Top-of-the-line housings on top of our 5/16” backing plates make for an unbeatable combination.
Advanced Gaskets, Seals, and Bearings
Our portals use:
Complete the Package with a Frame Stiffener

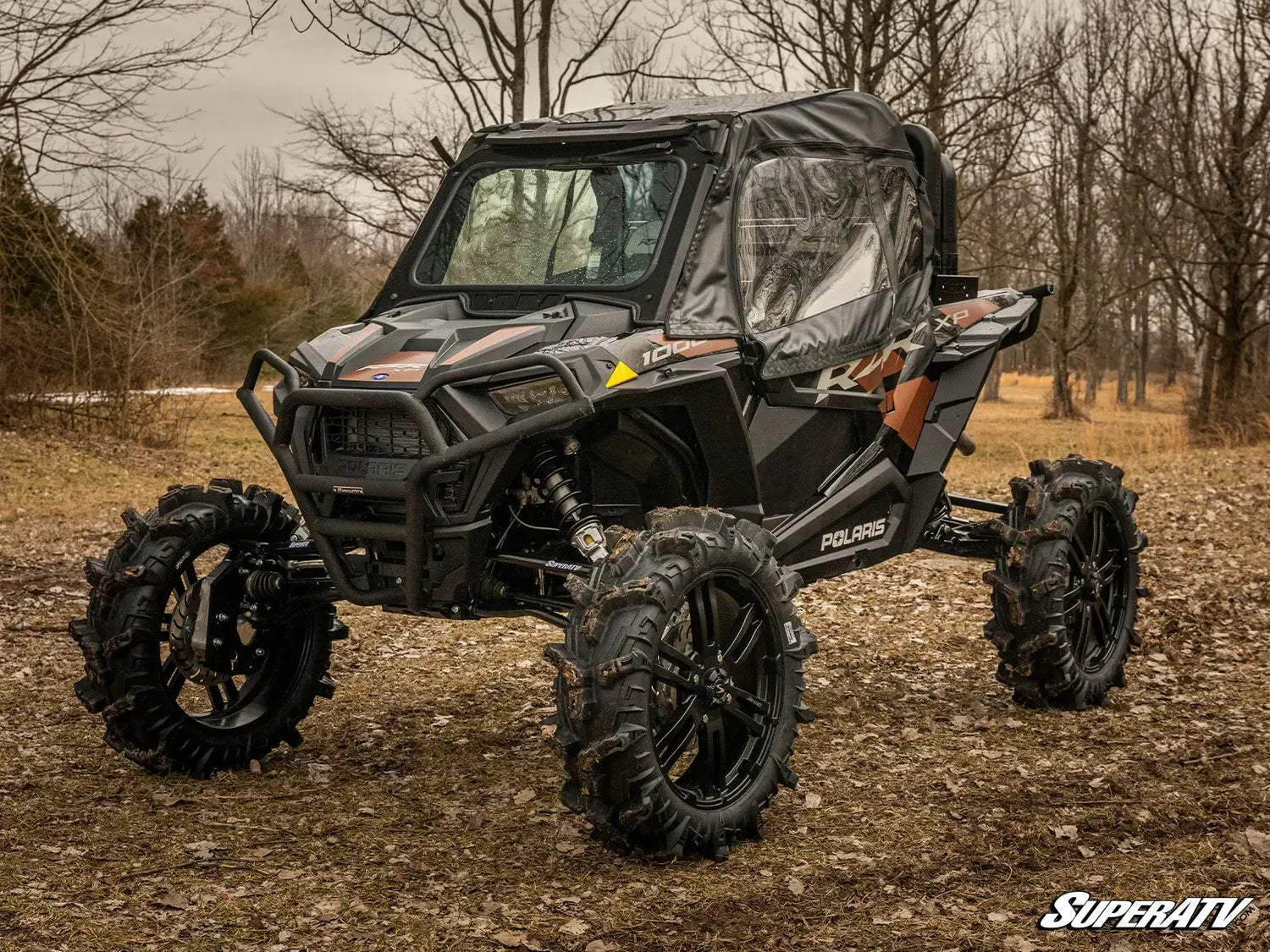

A 6” lift and bigger tires make every ride more fun. But those mods also put extra strain on your RZR’s frame. To make sure your frame can keep up, we recommend adding a SuperATV Frame Stiffener when installing your new portals.
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team because nobody likes to get an automated response. Give us a call so we can get the perfect set of portals in your hands today.
Patent # 11,299,042
Patent # 11,318,787
Get the clearance you need to run bigger tires and the torque you need to turn them with SuperATV’s GDP 6” Portal Gear Lift for the Polaris RZR XP 1000. GDP didn’t make the first side-by-side portal kit on the market—just the first kit that anybody gave a damn about. With these portals, you get to choose your housing style (cast or billet) and gear reduction. Go with a 30%, 45%, or 60% gear reduction or take your performance to the max with one of our dual idler gear options. SuperATV portals give you the perfect amount of torque to maintain your optimal riding style.
What is a Dual Idler®?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Designed for All Riders
No matter how you ride, you’ll never look at your machine the same after installing a set of GDP portals. Whether you stick to mud, trails, dunes, or all of the above, we have the RZR portals you need. A smaller 30% reduction is perfect for fast rides with plenty of torque. A 45% reduction will let you run bigger tires and take on bigger rocks. And our 60% gear reduction is a must if you want to build the most menacing mud machine imaginable. You could also add to the badass factor by opting for the dual idler gear configuration.
Keep Your Drivetrain Safe
The gear reduction of our these 6” portals happens right in the hub—not in your transmission. This cuts back on the strain put on vital components, like your axles and differential, making them last longer. You’ll be able to ride harder than ever while putting less stress on your vehicle. Talk about having your cake and eating it too!
GDP Delivers Industry-Leading Performance
If you’re not riding on GDP, you’re not riding. A GDP Portal Gear Lift is the best and strongest portal lift on the planet. And you’ve got options, too. Pick from cast or USA-made, CNC-machined 6061 billet aluminum housings. Top-of-the-line housings on top of our 5/16” backing plates make for an unbeatable combination.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Complete the Package with a Frame Stiffener
A 6” lift and bigger tires make every ride more fun. But those mods also put extra strain on your RZR’s frame. To make sure your frame can keep up, we recommend adding a SuperATV Frame Stiffener when installing your new portals.
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team because nobody likes to get an automated response. Give us a call so we can get the perfect set of portals in your hands today.
| 6” Portal Gear Lift Includes: | ||
|---|---|---|

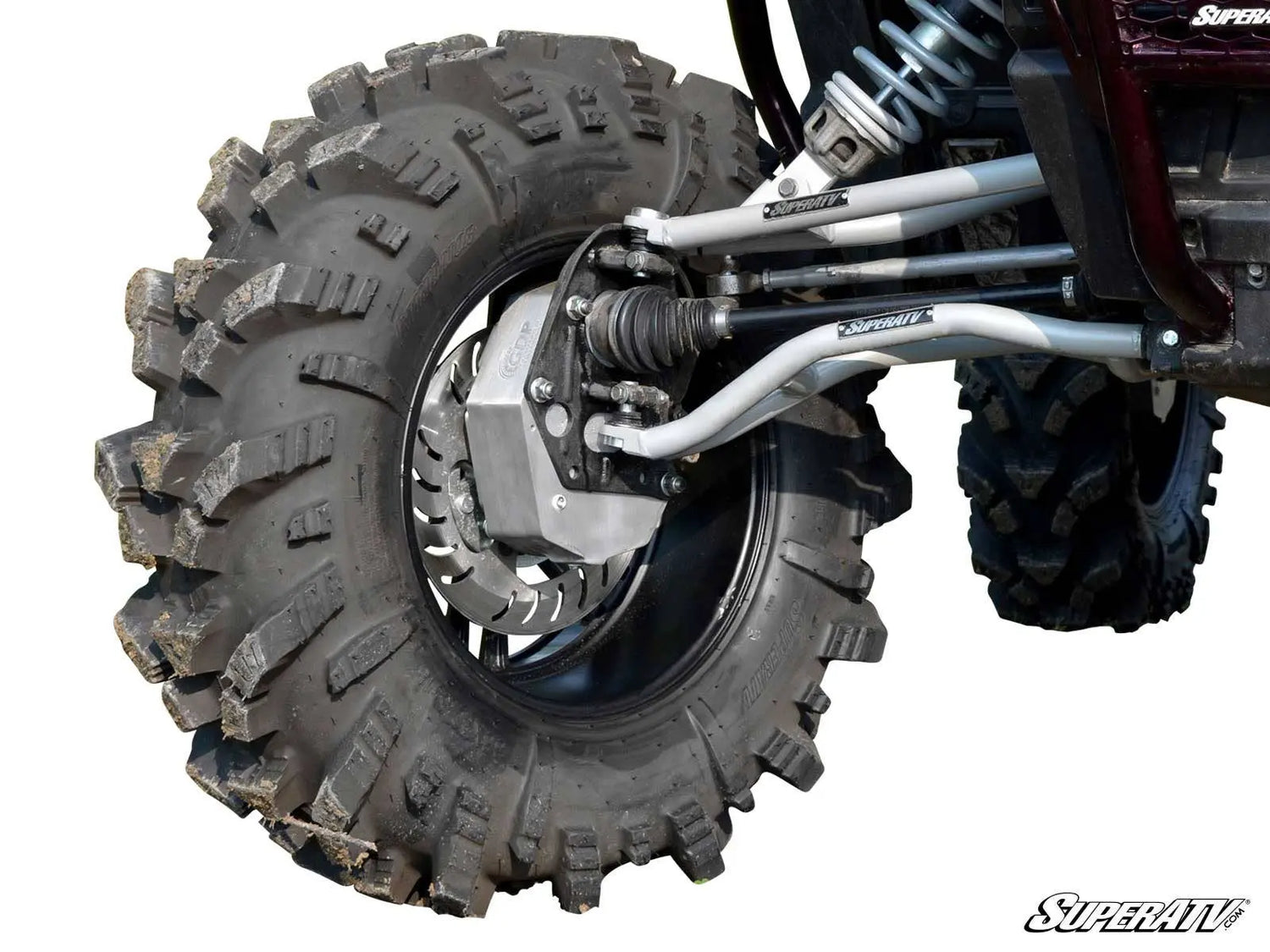

| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates with shims | ||
| (2) Caliper adapter plates | ||
| (2) Steel steering arms | ||
| (2) Hub adapters | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Frame stiffener (must select at checkout) | ||

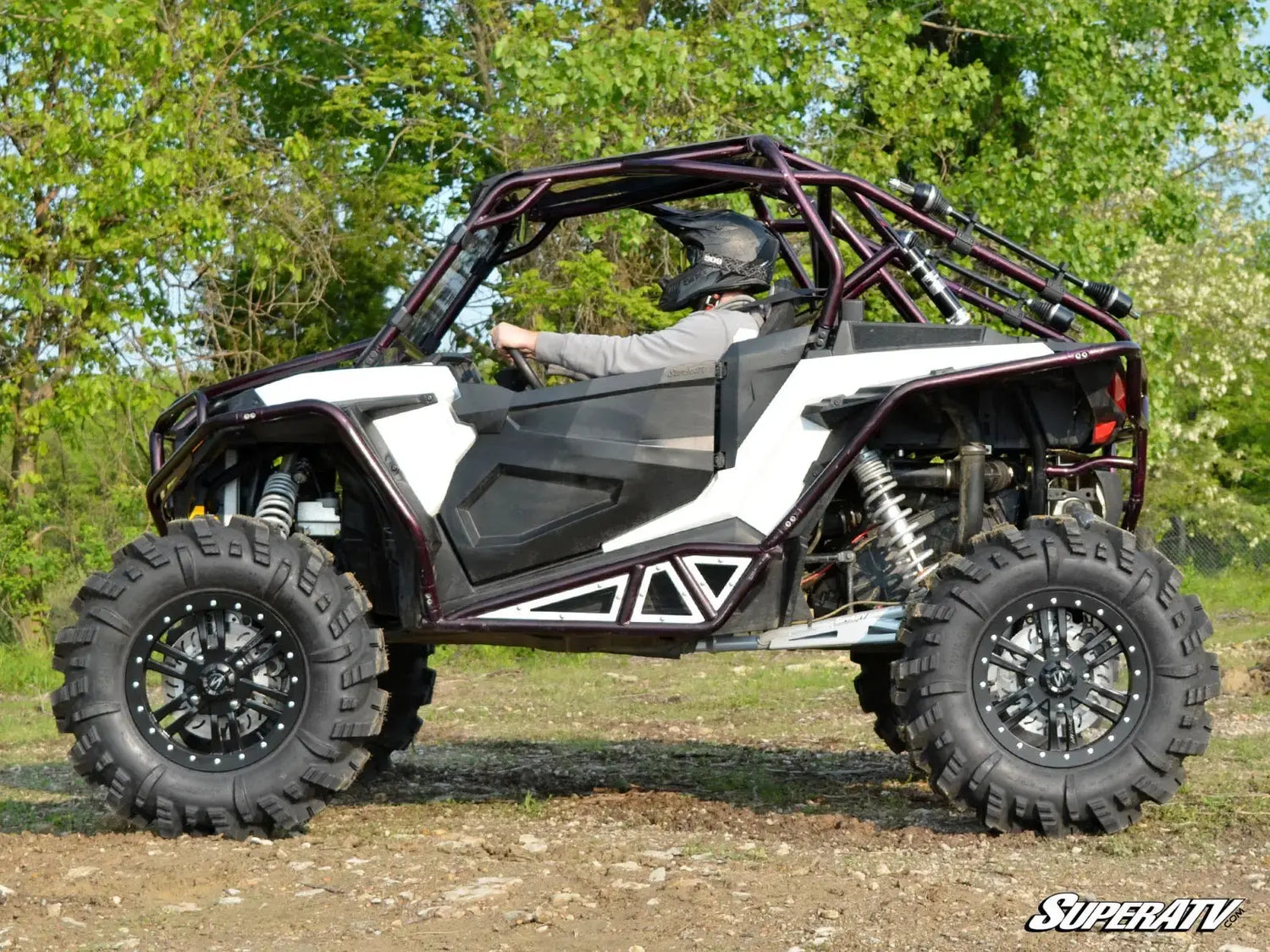

| Max Tire Size Recommendations for 6” Portal Gear Lift | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 6" Portals | |
| 34" | Stock | |
| 36" | 1.5" Forward Offset A-Arms | |
| 36" | 3-5" Lift Kit | |
| 39" | 1.5" Forward Offset A-Arms and 3-5" Lift Kit | |
| 46" | 7-10" Lift Kit | |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . | ||
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | ||
Patent # 11,299,042
Patent # 11,318,787
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
WARRANTY & RETURNS
|
Limited Lifetime Warranty When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty. SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, rotors, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE. Procedures for obtaining warranty service: Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives. If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA. Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge. If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee. Replacement bearings, seals and gaskets can be found at https://platinumhpsolutions.com Thank you for your business! |
