Description
Description
Subwoofer Pride M35.12

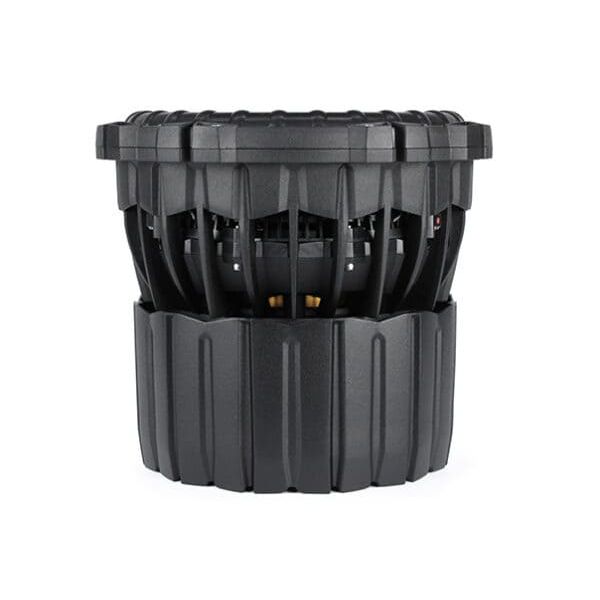

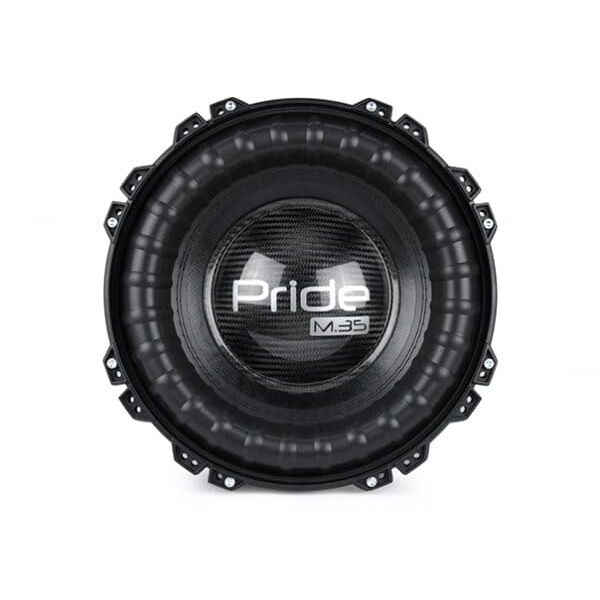

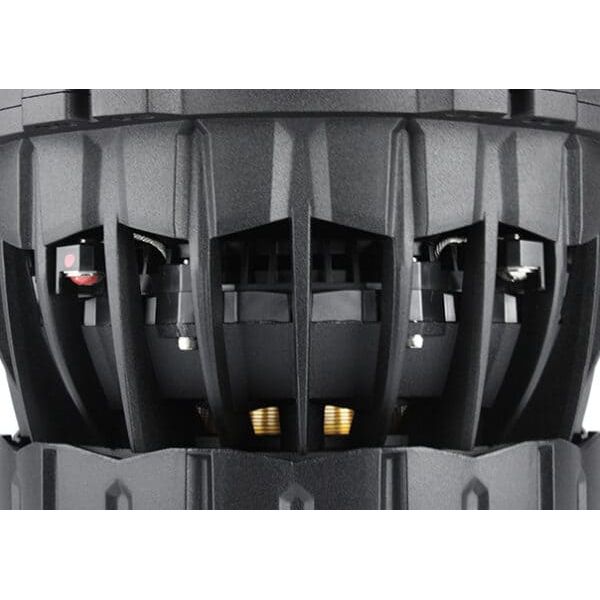

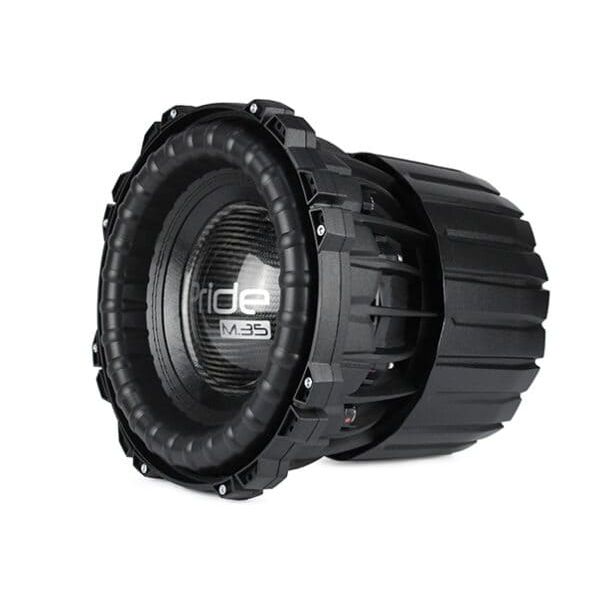

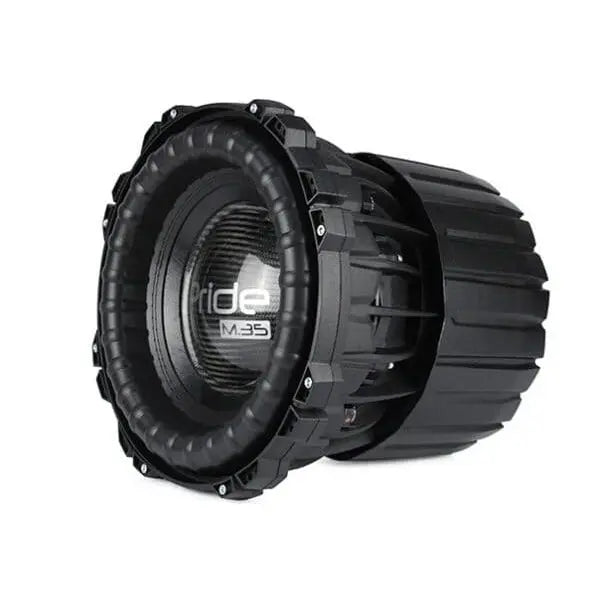

Subwoofer speaker with a unique modular design from Pride Car Audio – Pride M35.12. The design of the basket in tandem with the aluminum radiator of the magnetic system provides effective distribution of air flows for maximum cooling effect. The most powerful magnetic system made of ferrite of the highest standard, calculated by the finite element method with high induction in the gap.
Long-throw suspension with radially arranged corrugations for maximum linearity with large diffuser displacements.
Six 10″ mirror aligned centering washers.

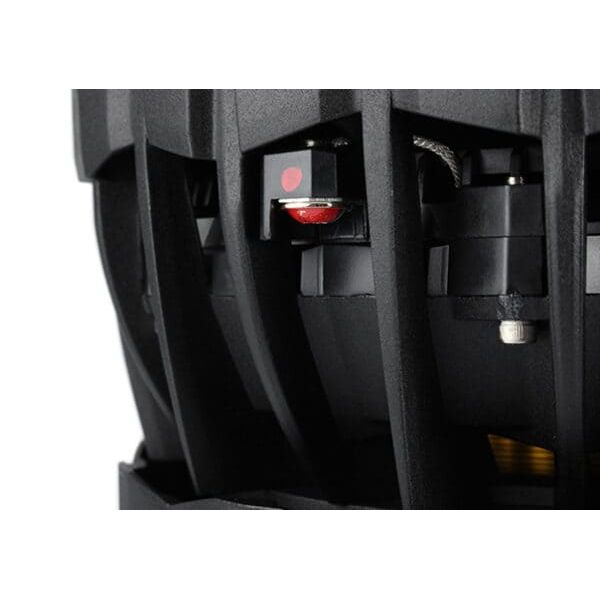

The high temperature 3.6″ voice coil is wound with flat aluminum wire and polyimide insulation for the highest possible heat resistance. M8 screw terminals – powerful and reliable.
A subwoofer is a low-frequency speaker designed to reproduce the lowest frequencies, approximately 20 to 63 Hz, and serves as an addition to a car’s audio system. Speakers come in different calibers and powers, which are used in everyday systems and for sound pressure competitions – SPL.
Size – 12″, RMS – 3500 W.
Please yourself with powerful bass, clear sound and reliable equipment with Pride Car Audio
Part number: M35.12D07
| General feature | |
|---|---|
| Power Handling (RMS) | 3500 W |
| VC diameter / material | 3,6" Flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 240*26mm x 3 pcs / 9,45*1,02" x 3 pcs |
| Spider diameter and q-ty | 250mm x 6pcs / 9,84" x 6pcs |
| Cone material | Paper reinforced glass fiber |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 0,75+0,75 Ω |
| Free Air Resonance (Fs) Hz | 29,3 |
| Moving Mass (Mms) g | 332 |
| BL Tm | 18 |
| Total Speaker “Q” (Qts) | 0,242 |
| Electrical Q (Qes) | 0,256 |
| Mechanical Q (Qms) | 3,23 |
| Equivalent Compliance (Vas) L | 36,7 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 35 |
| Sensitivity (1 W / 1 m) dB | 87,4 |
| Sensitivity (2,83 V / 1 m) dB | 92,2 |
| Effective Piston Area (Sd) cm² | 530 |
| Physical Specifications | |
| Overall Diameter | 325mm / 12,8" |
| Mounting Hole Diameter | 307,5mm / 12,11" |
| Mounting Depth | 260mm / 10,24" |
| Driver Displacement | 6 l / 1,59 Gal |
| Net Weight | 37,5 kg / 82,67 lbs |
Dual 1.5 Ohm ~
| General feature | |
|---|---|
| Power Handling (RMS) | 3500 W |
| VC diameter / material | 3,6" Flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 240*26mm x 3 pcs / 9,45*1,02" x 3 pcs |
| Spider diameter and q-ty | 250mm x 6pcs / 9,84" x 6pcs |
| Cone material | Paper reinforced glass fiber |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 1,5+1,5 Ω |
| Free Air Resonance (Fs) Hz | 28,4 |
| Moving Mass (Mms) g | 321 |
| BL Tm | 25,5 |
| Total Speaker “Q” (Qts) | 0,236 |
| Electrical Q (Qes) | 0,253 |
| Mechanical Q (Qms) | 3,16 |
| Equivalent Compliance (Vas) L | 38,9 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 35 |
| Sensitivity (1 W / 1 m) dB | 87,5 |
| Sensitivity (2,83 V / 1 m) dB | 92,3 |
| Effective Piston Area (Sd) cm² | 530 |
| Physical Specifications | |
| Overall Diameter | 325mm / 12,8" |
| Mounting Hole Diameter | 307,5mm / 12,11" |
| Mounting Depth | 260mm / 10,24" |
| Driver Displacement | 6 l / 1,59 Gal |
| Net Weight | 37,5 kg / 82,67 lbs |
