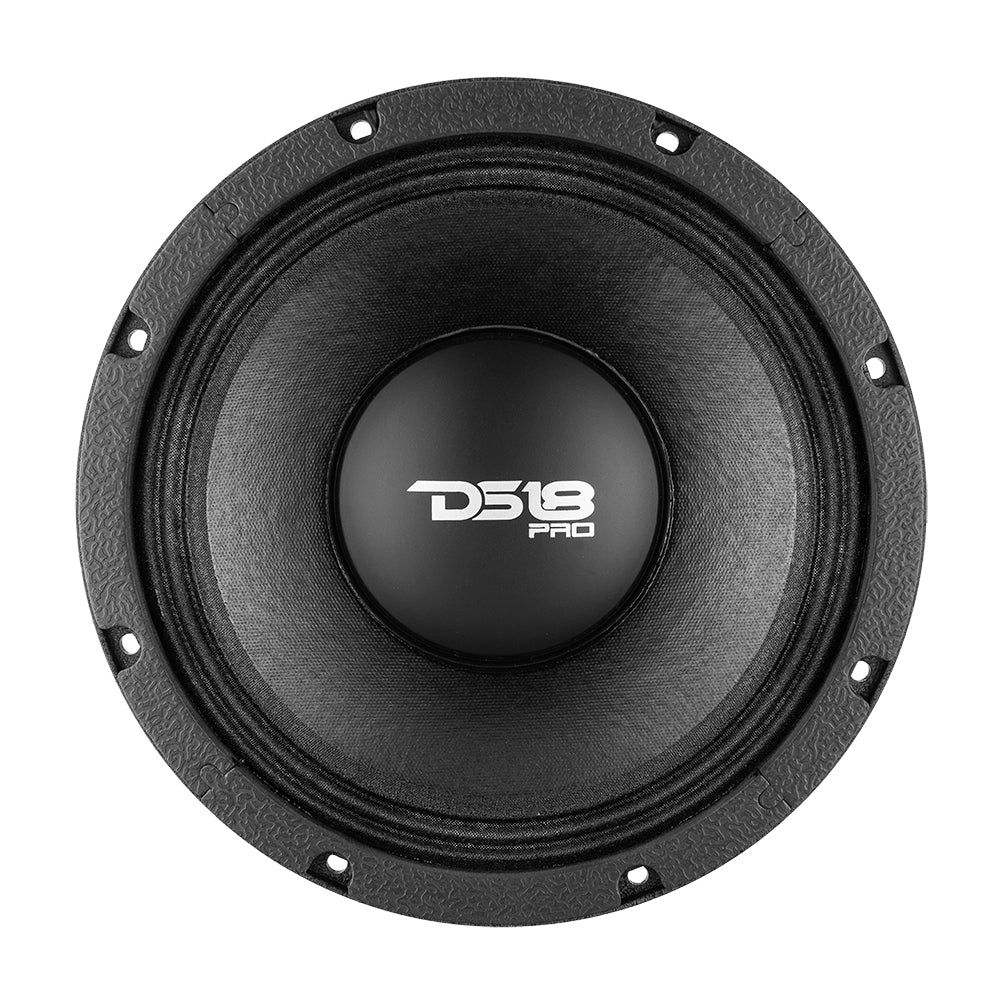

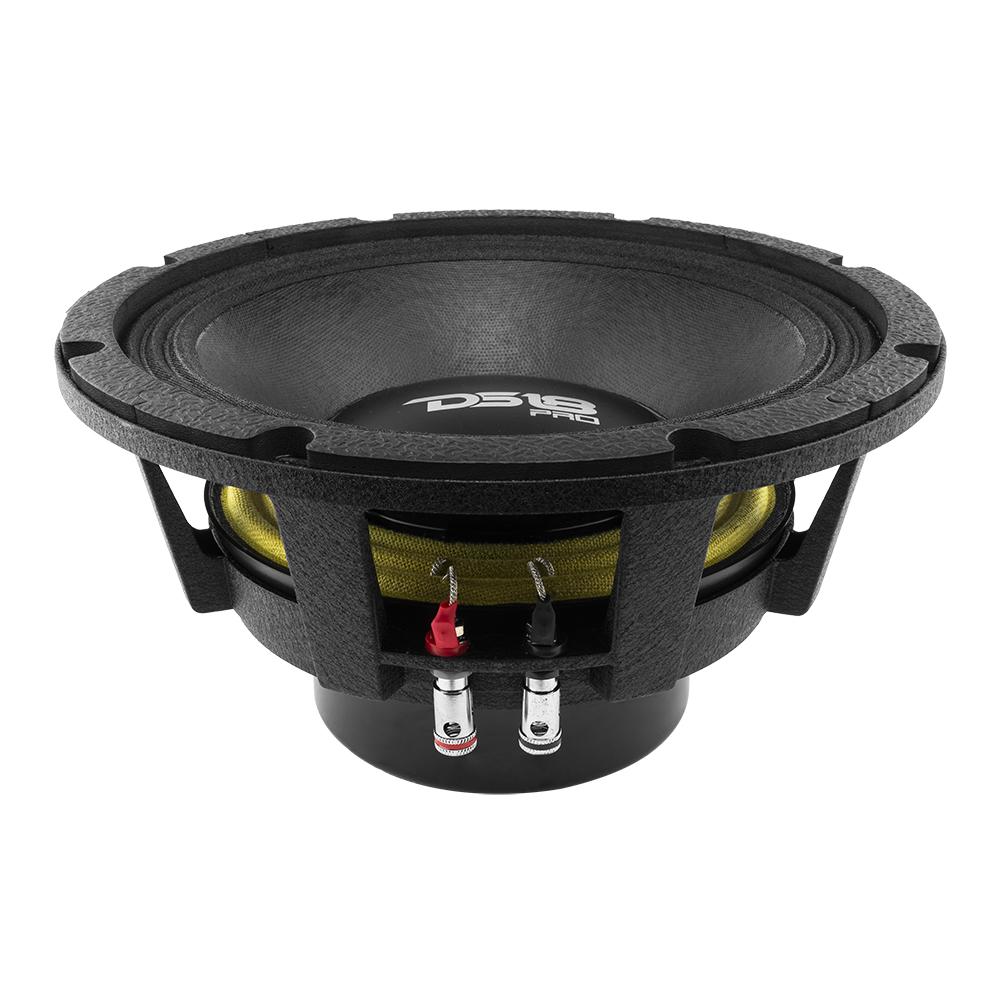

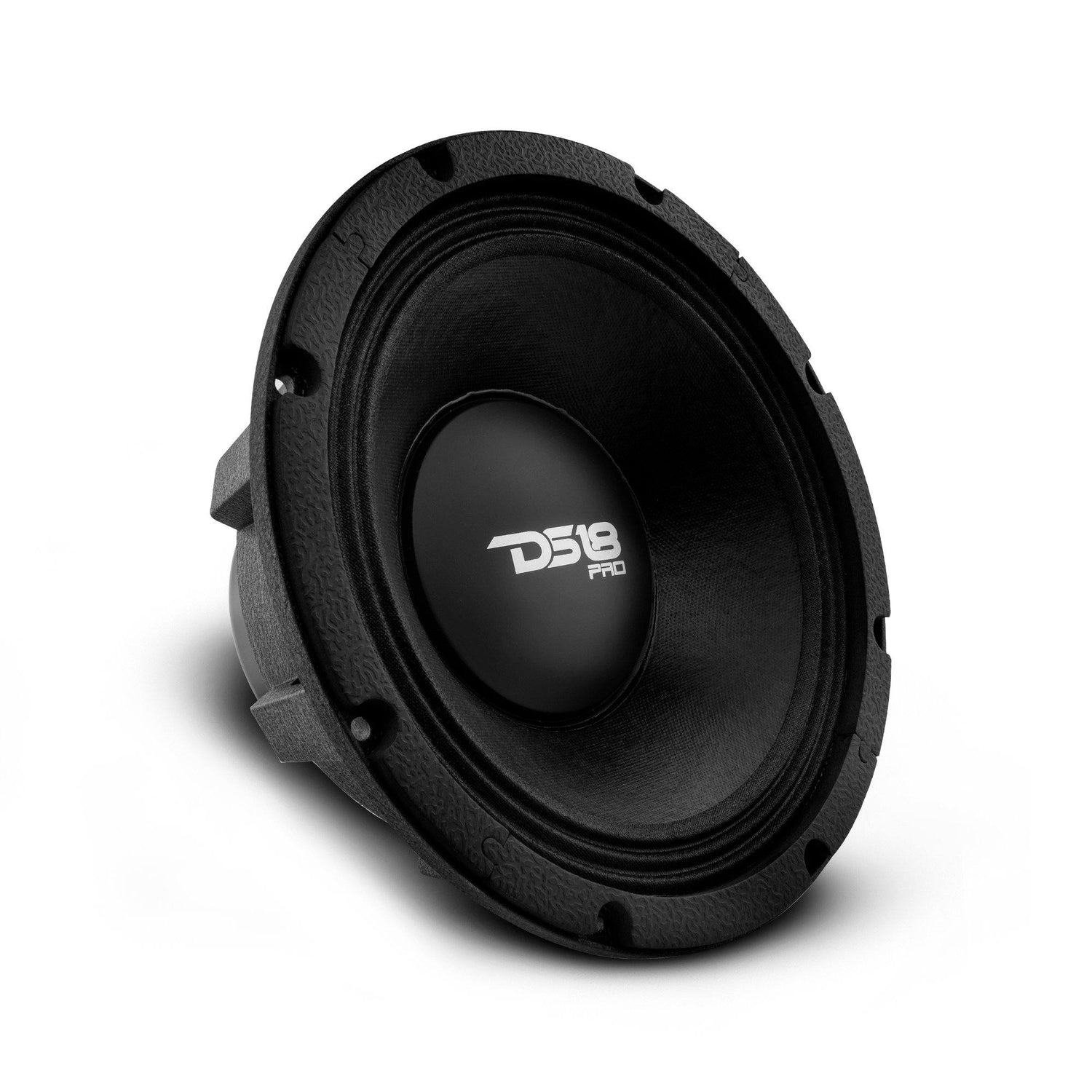

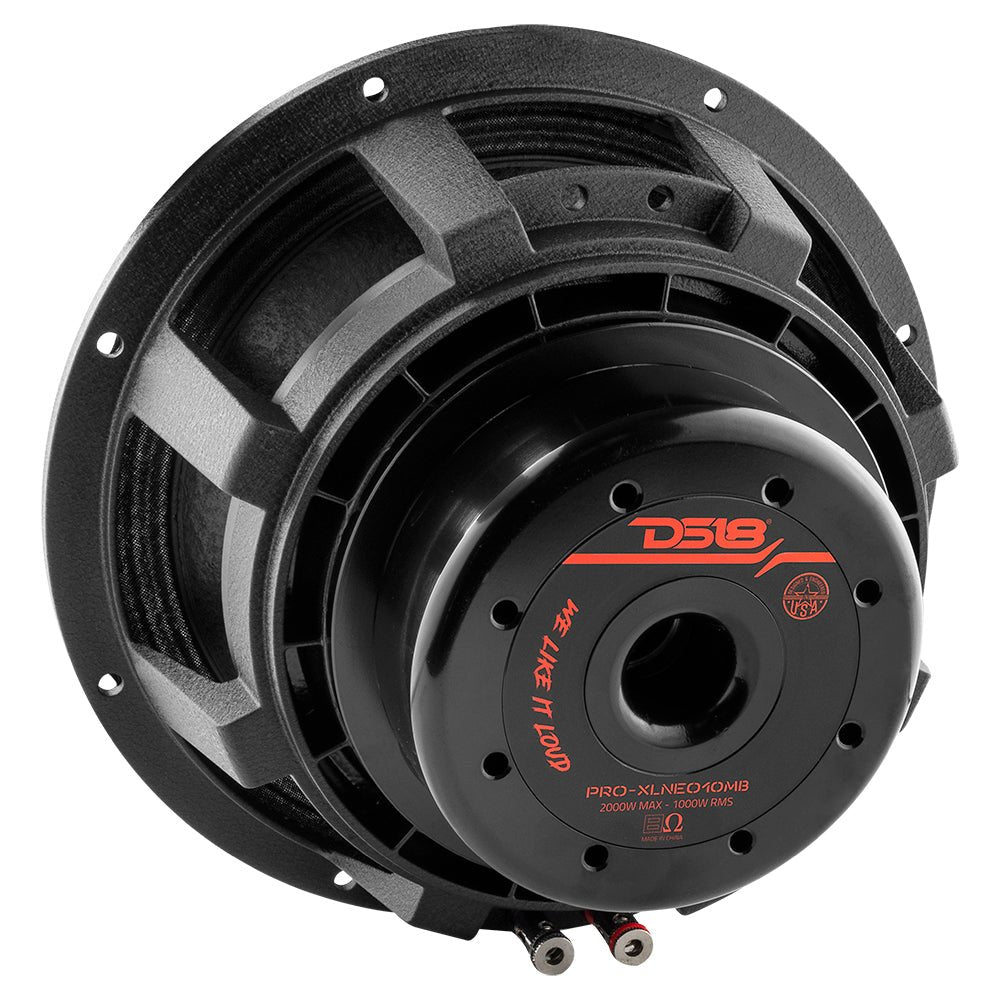

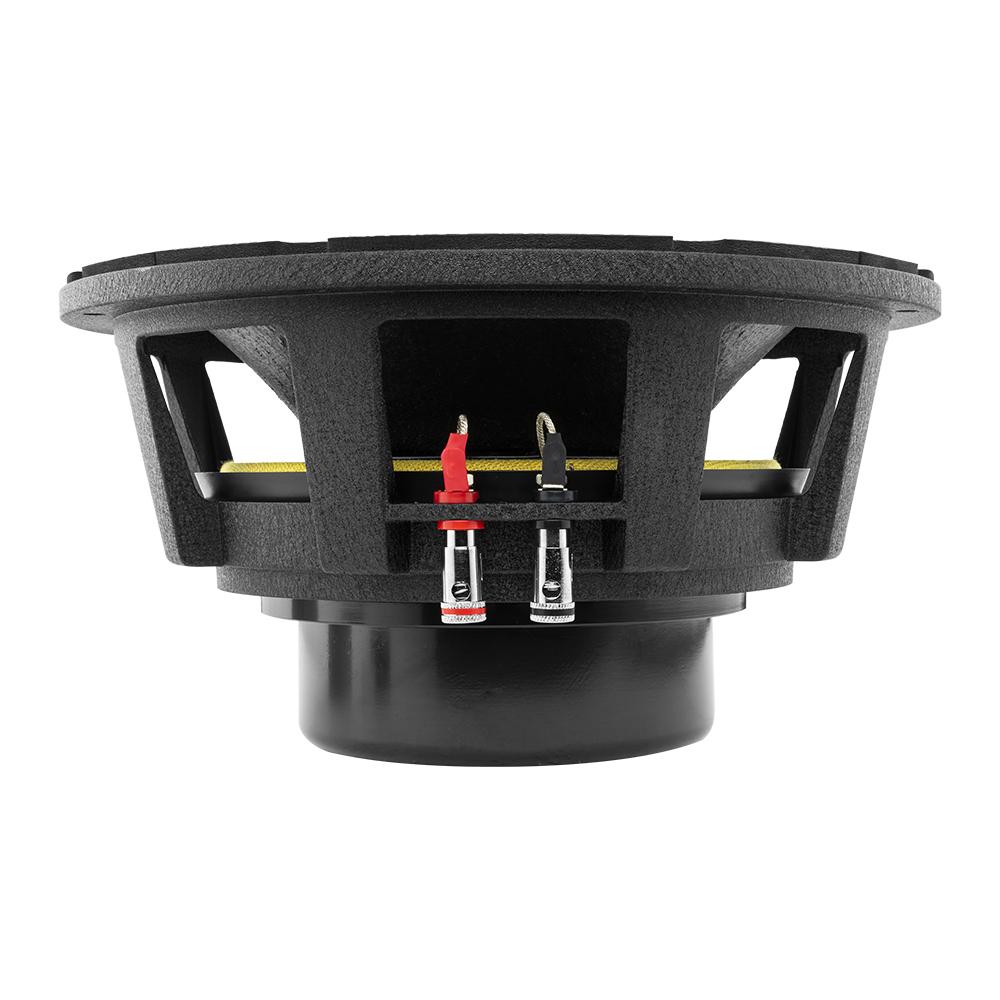

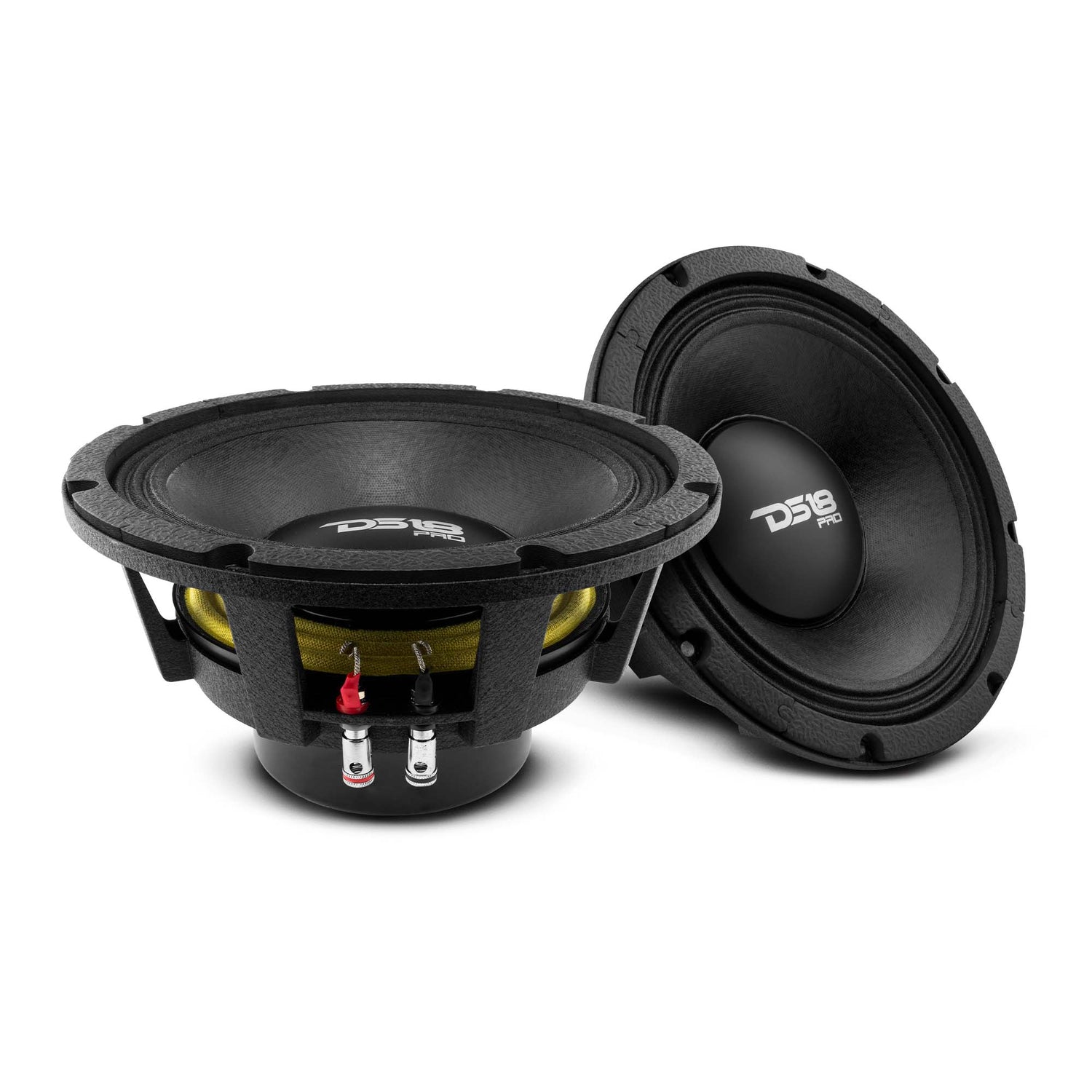

DS18 PRO-XLNEO10MB 10" Neodymium Mid-Bass Loudspeaker 1000 Watts RMS 8 Ohm
Unleash amazing and crazy mid-bass with our new specialty mid-bass Neodymium speaker, the PRO-XLNEO10MB! This mid-bass speaker packs a very powerful punch and is backed with the awesome force of the Neodymium motor structure, which is much more efficient and has better power transition than traditional ferrite motors used in most speakers. These Neo speakers handle 1000w RMS and 2000 Peak while also retaining a 96.5db sensitivity which is rare and really drives these XL NEO speakers to the core. These are guaranteed to bring out all the mid bass you are missing from your pro audio system with great authority and precision.
Highlights
- Mid-bass Neodymium motor structure will deliver more precise precision while also painting great efficiency and power handling all while being lighter than traditional ferrite motor mid-bass speakers.
- Highly durable 8 ohm, 4" voice coil handling 1000w RMS and 2000w Max power ensuring high volume wattage mid-bass loudness when paired with the correct amplifier.
- High quality cone, dust cap, speaker terminals, and basket will ensure long life along with an amazing show quality looks.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 10” / 254mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 1000W |
| MAX Power Handling | 2000W |
| Sensitivity (1w/1m) | 96.5 dB |
| Frequency Response | 50Hz - 7KHz |
| Recommended HI Pass Crossover | 100Hz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 4” / 99.8mm |
| VC Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dustcap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Sandblasted Black |
| Magnet Material | Neodymium |
| Magnet Weight | 18.5 Oz |
| Displacement Volume | 1.83L / 0.064ft3 |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 20.53L / 0.72ft3 |
| Excursion (one way) | 13.8 mm |
| Free Air Resonance | 64Hz |
| Mechanical Factor | 3.03 |
| Electrical Factor | 0.255 |
| Total Factor | 0.235 |
| Mechanical Mass | 78.573g |
| Mechanical Compliance | 0.125mm/N |
| BL Factor | 20.072 |
| Voice Coil Inductance | 32.64mH |
| Cone Area | 339.795CM² |
| DC Resistance | 5.2 Ohm |
| Mechanical Mass w/o Air | 65.971g |
| MEASUREMENTS | |

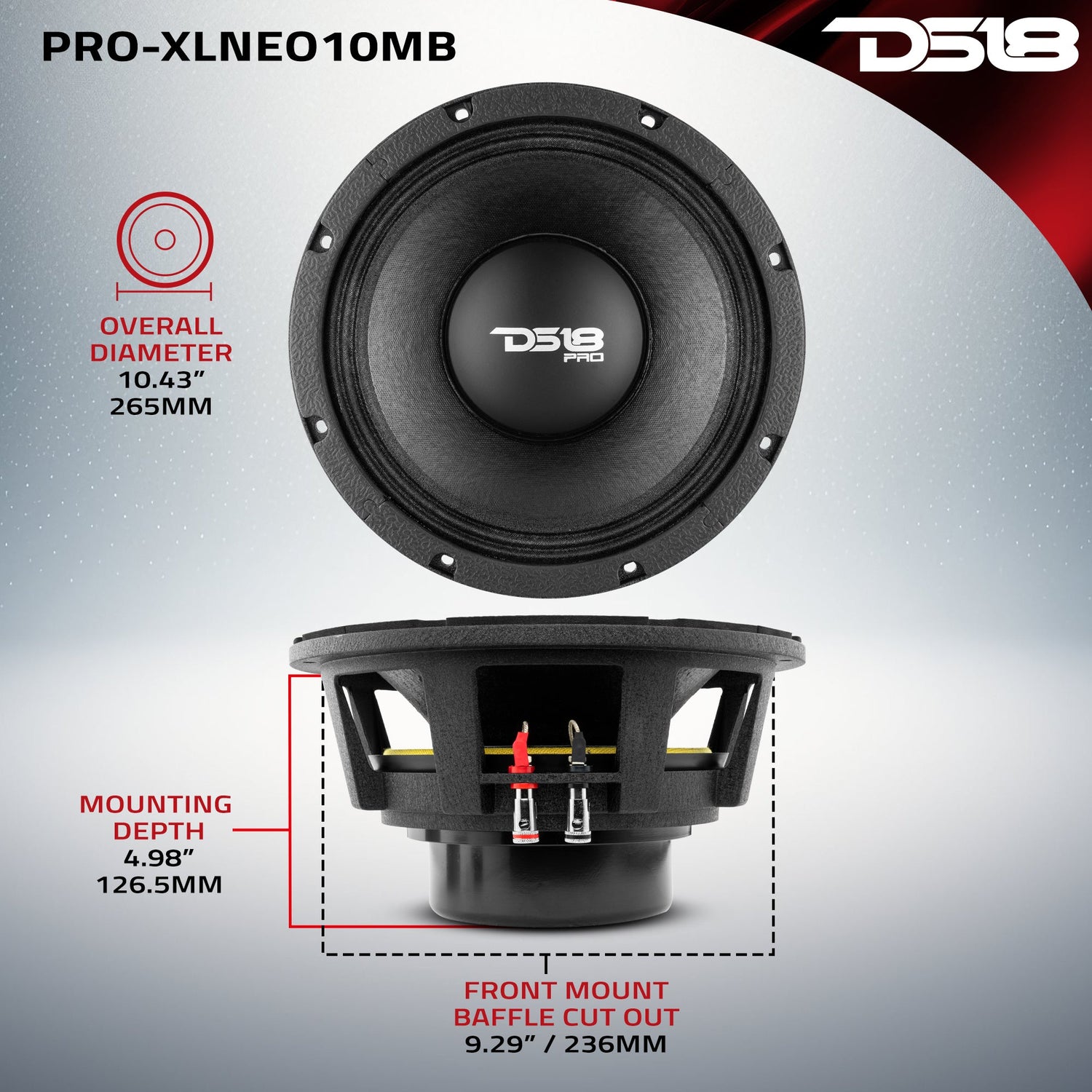

| Overall Diameter | 10.43”/265mm |
| Overall Depth | 5.45” / 138.5mm |
| Front Mount Baffle Cutout | 9.29”/236mm |
| Mounting Depth | 4.98”/126.5mm |
| Motor Diameter | 5.86”/149mm |
