Description
Description

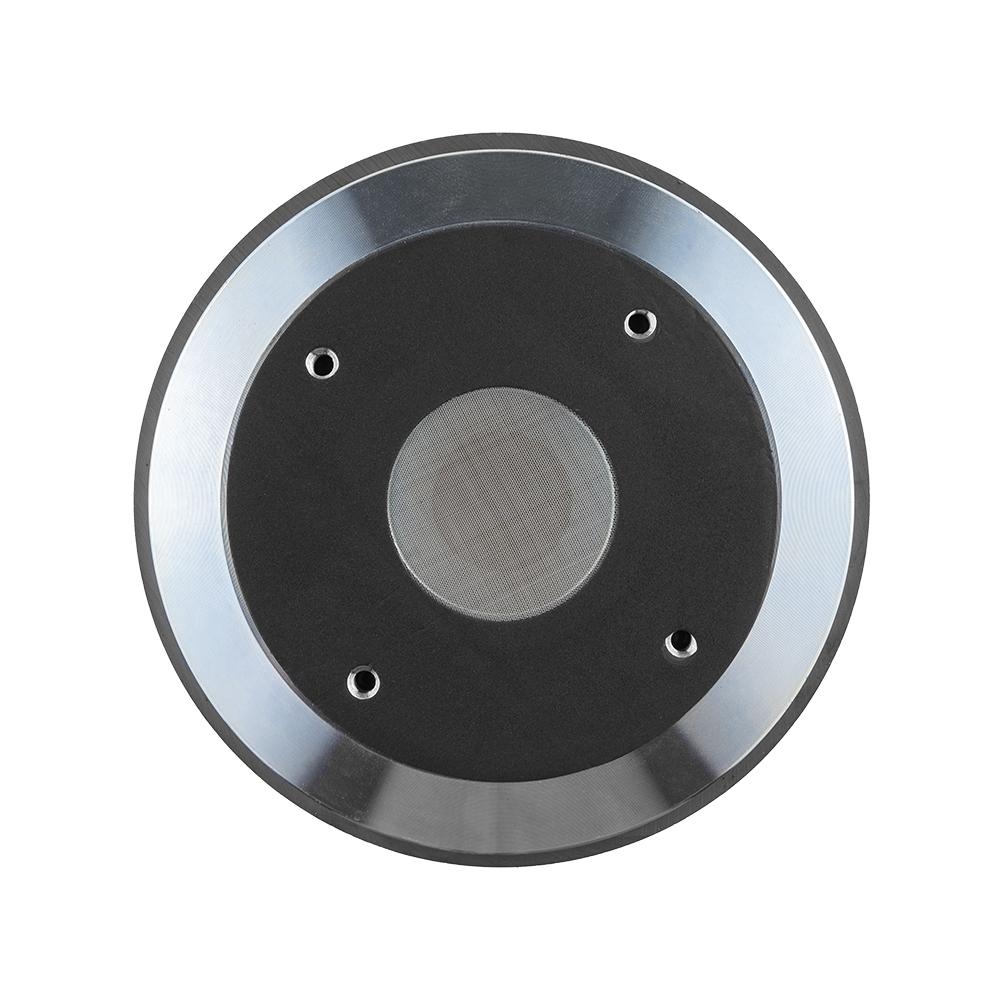

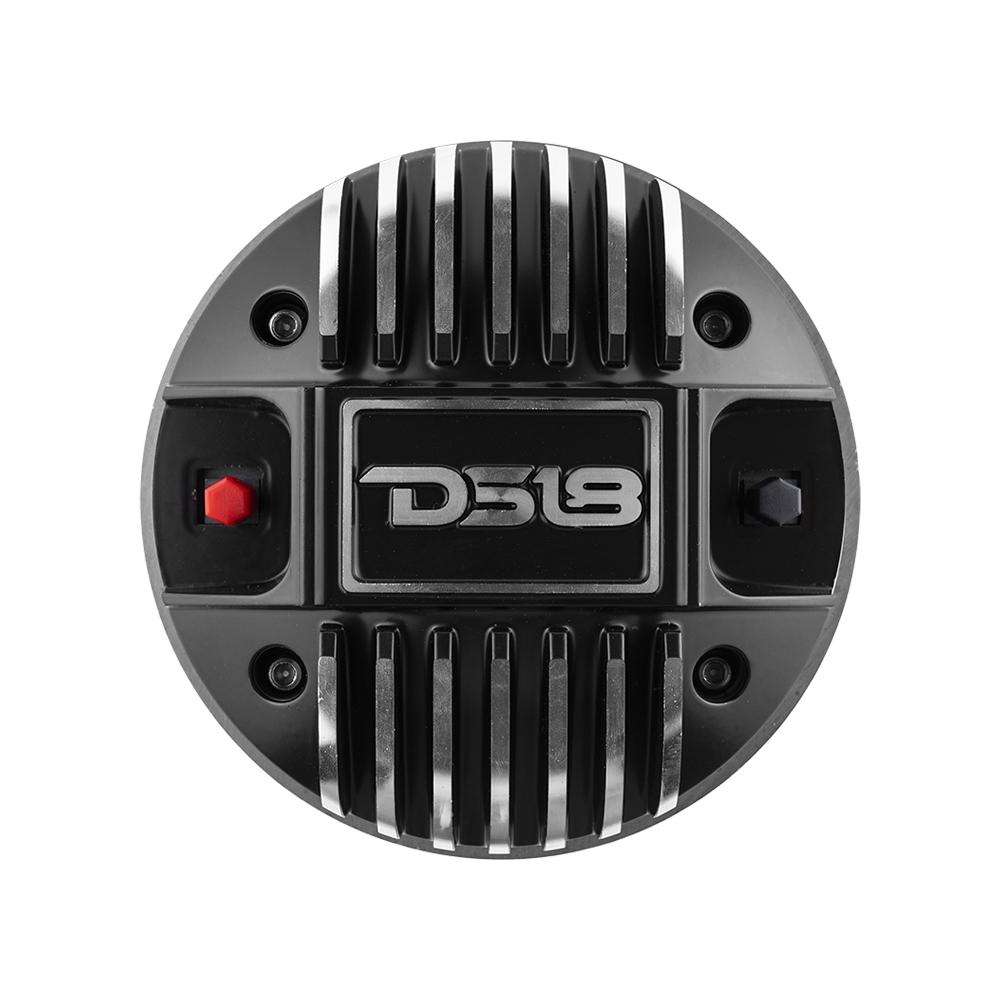

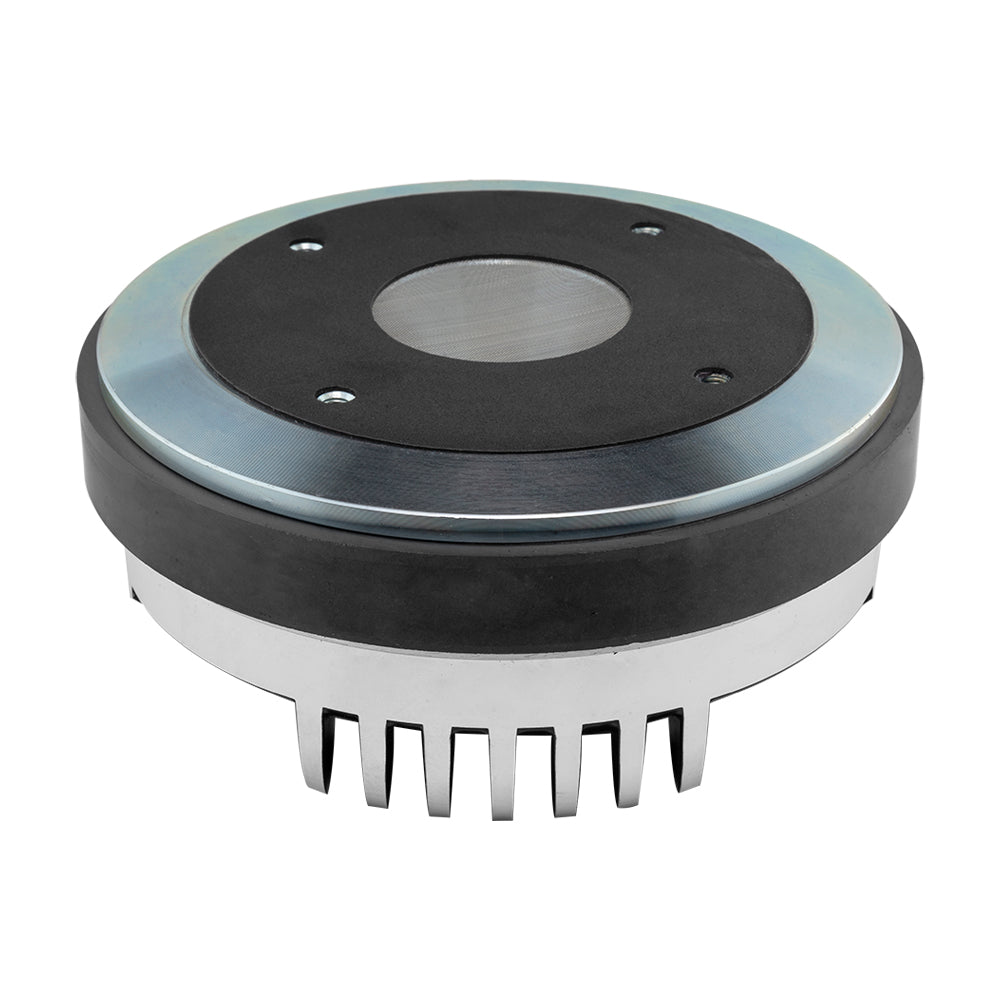

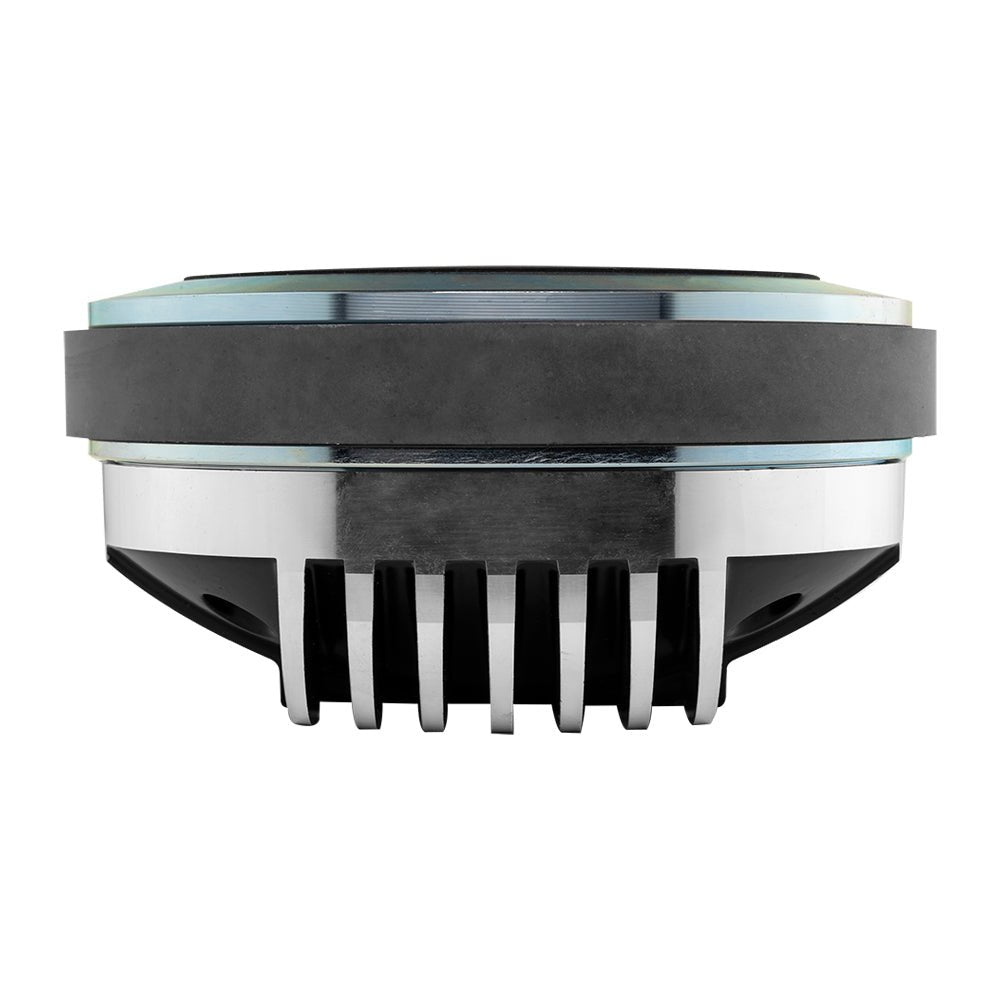

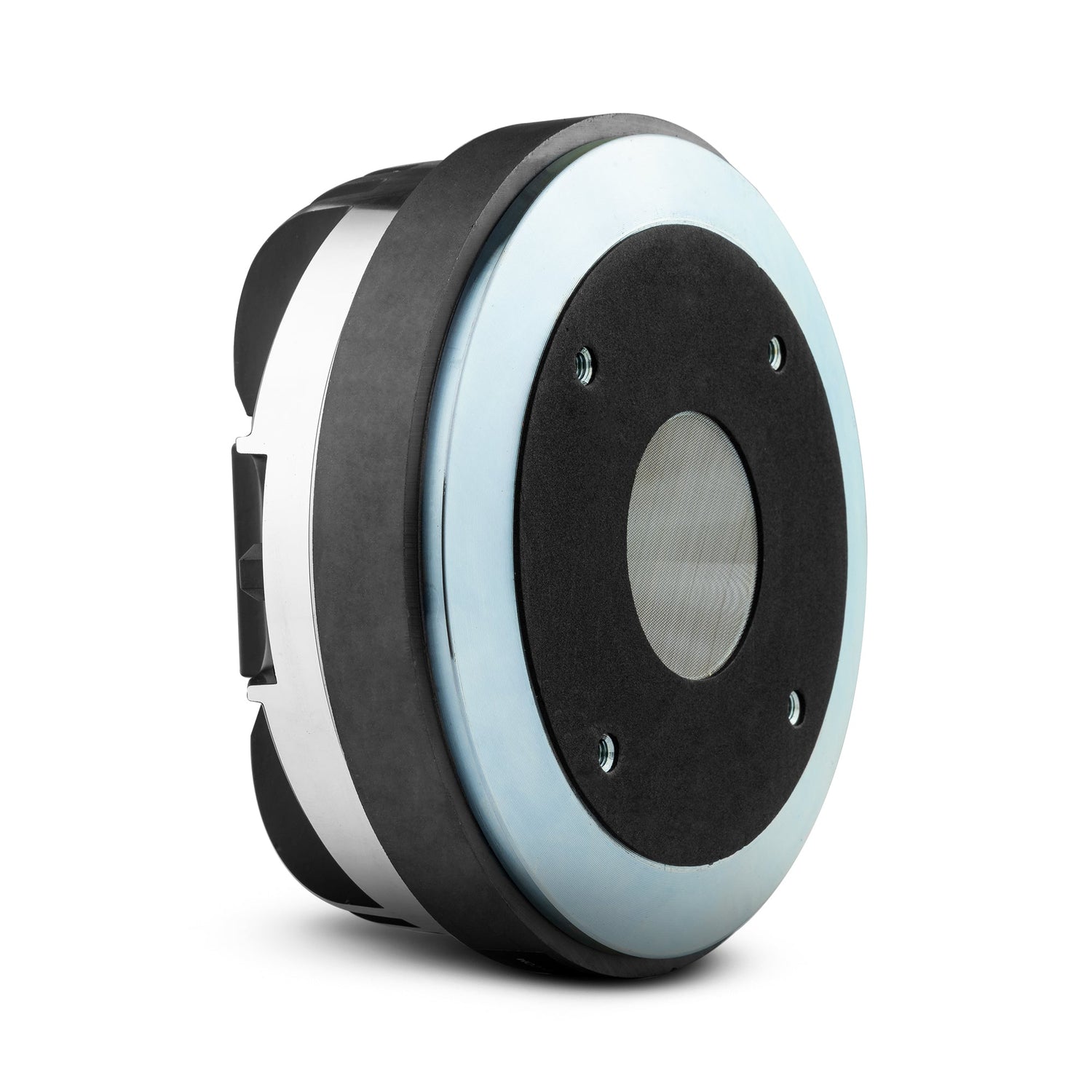

DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic VC 800 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!
This driver comes with a large phenolic 2 inch voice coil that takes 200 AES and 800 Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 200 AES watts and 800 Peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.
Technical Details
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 200W |
| Program Power Handling | 400W |
| Peak Power Handling | 800W |
| Sensitivity | 109 dB |
| Frequency Response | 500Hz - 10KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| MOTOR | |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 65 oz |
| Body Material | Aluminum |
| Body Color / Finish | Black Aluminum / Machined |
| MEASUREMENTS | |
| Overall Diameter | 6.69" / 170mm |
| Overall Depth | 3.2" / 81.4mm |
| Bolt Pattern Type | 4*M6 |
