PRO Bolt On 2" 35° 4.84" Depth Aluminum Horn
PRO Bolt On 2" 35° 4.84" Depth Aluminum Horn - Black is backordered and will ship as soon as it is back in stock.
Description
Description

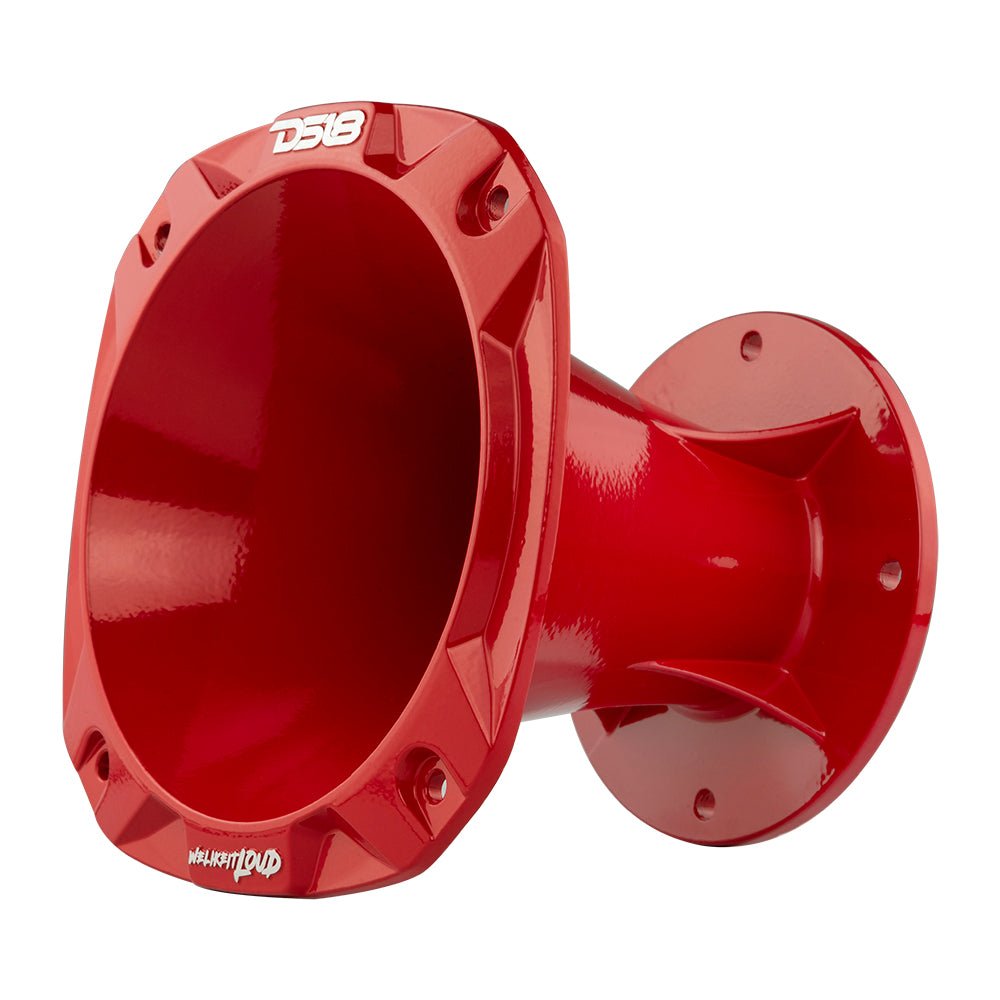

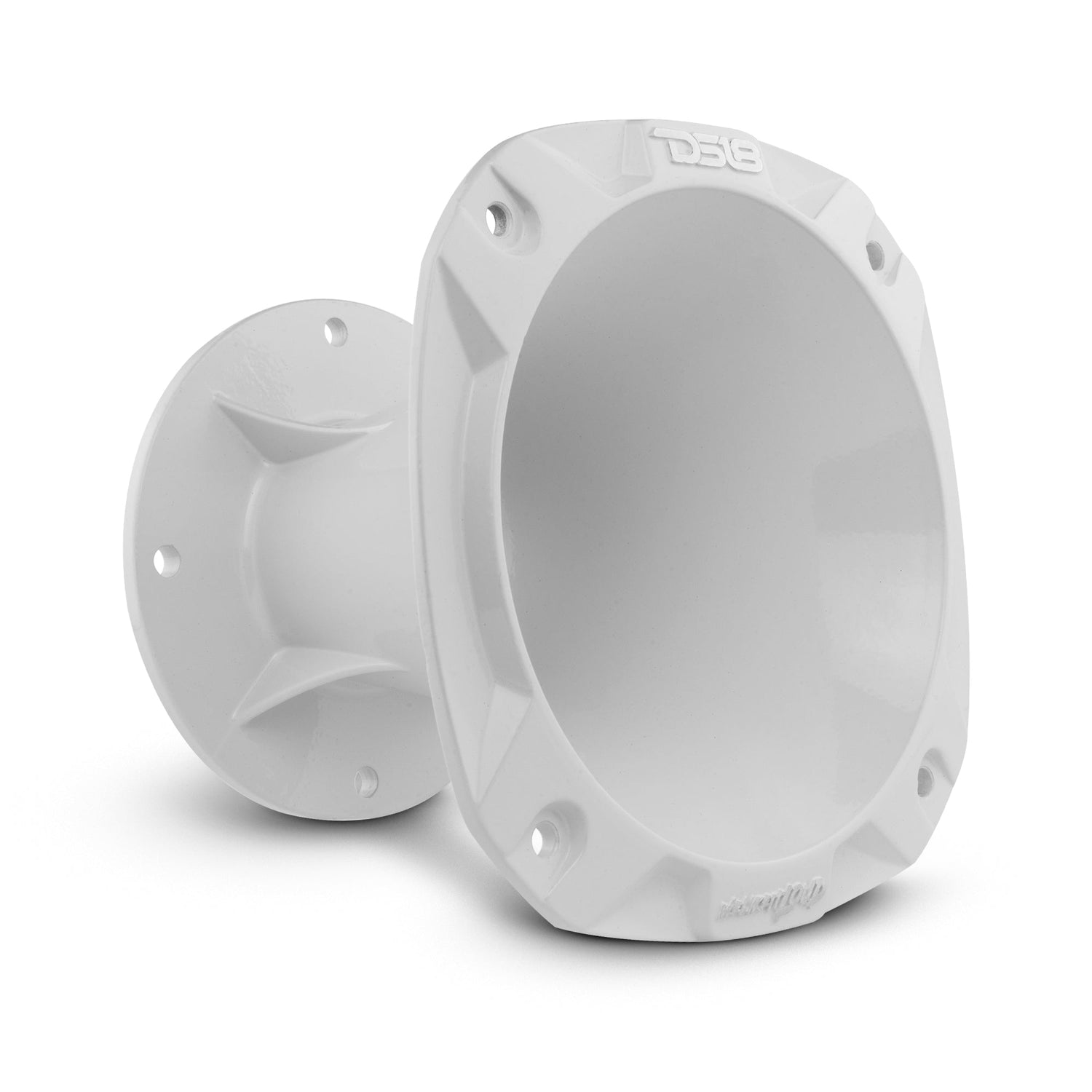

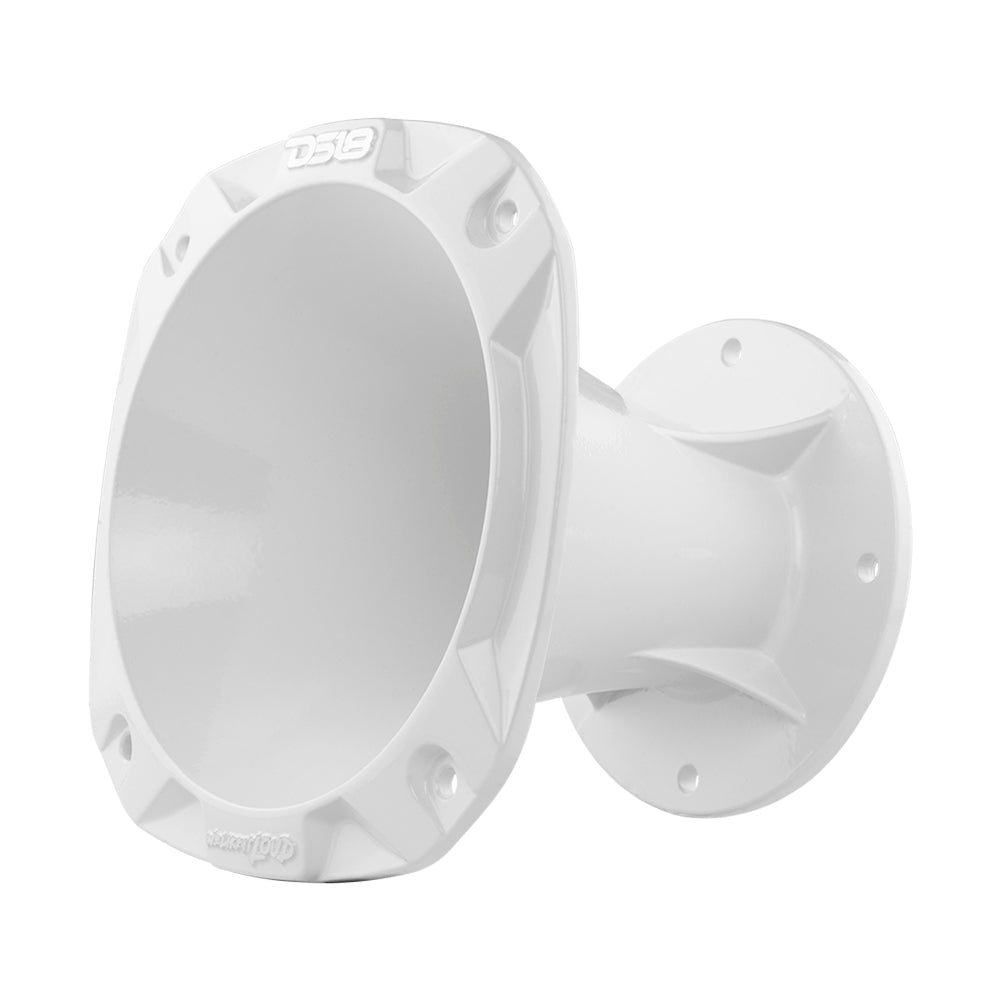

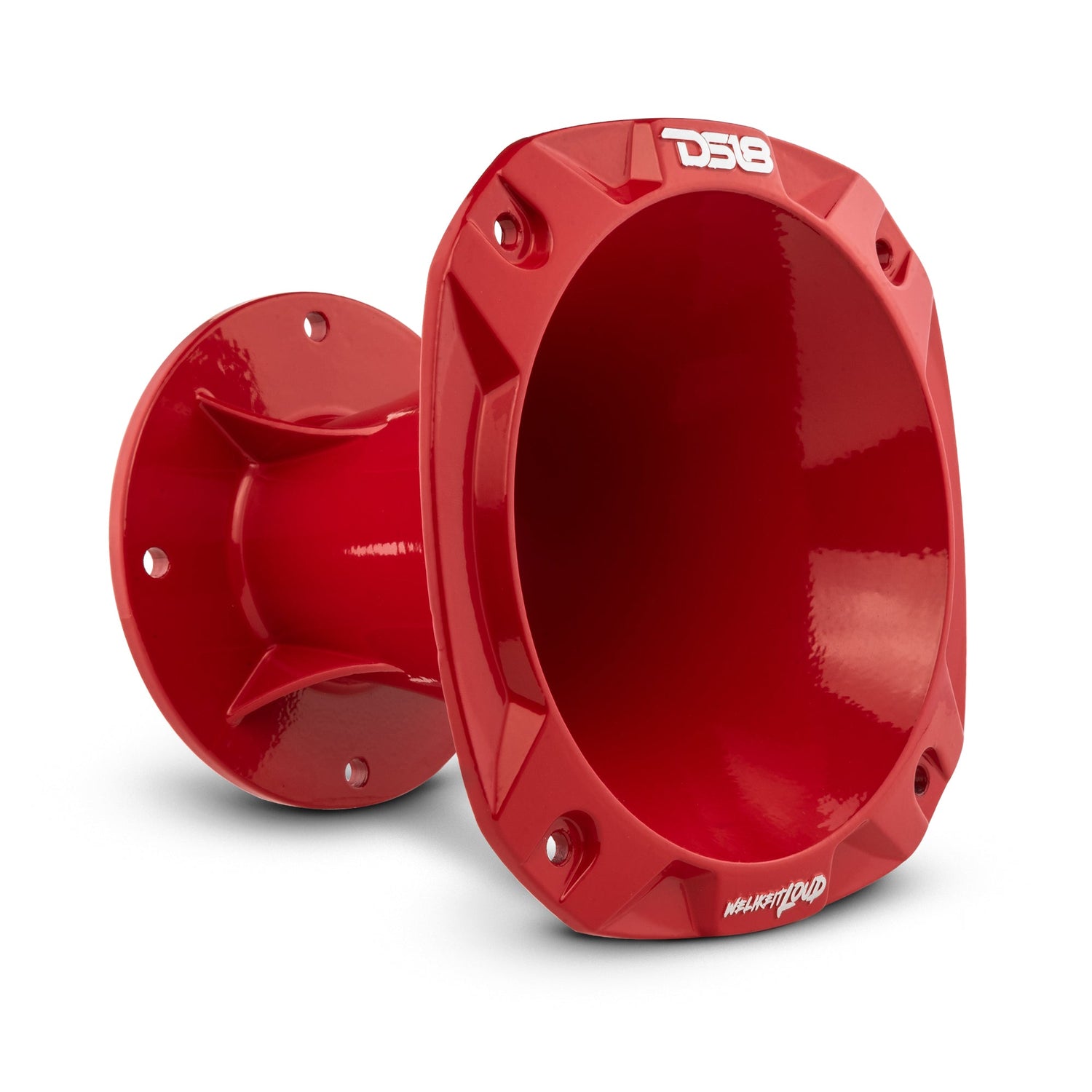

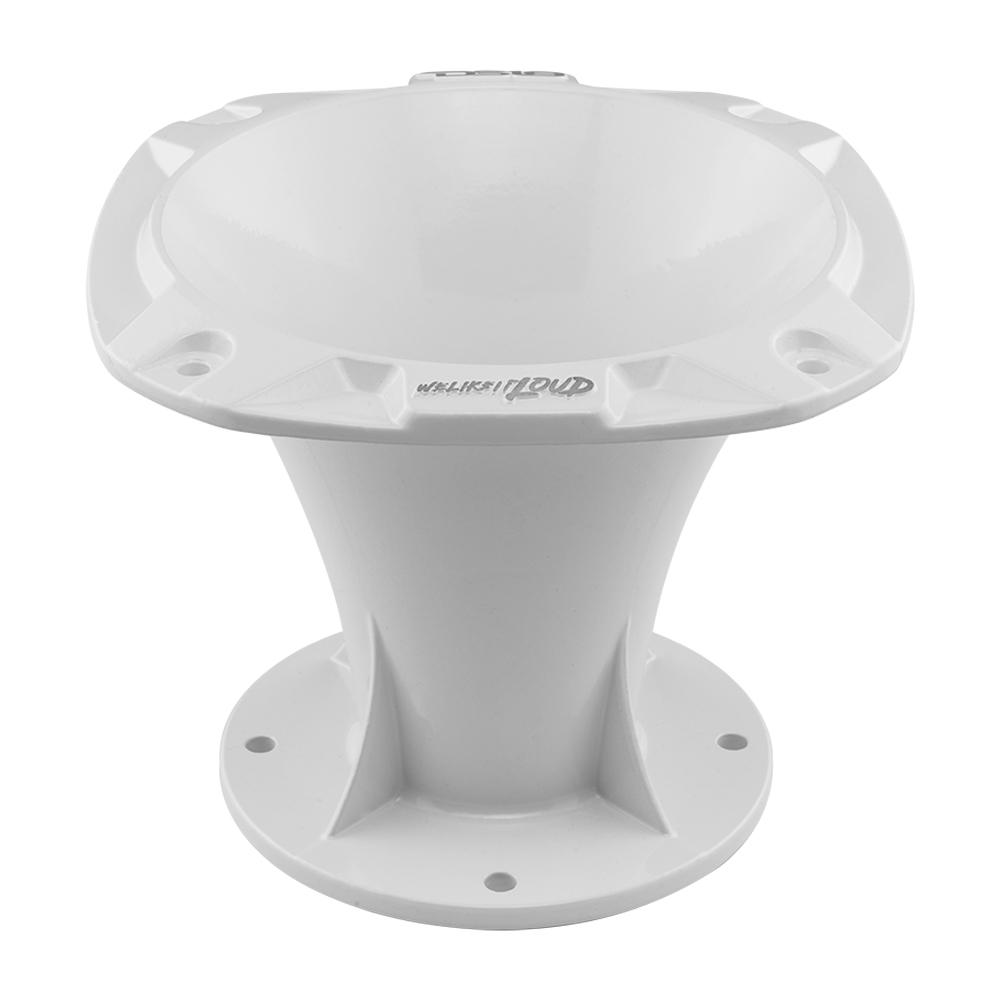

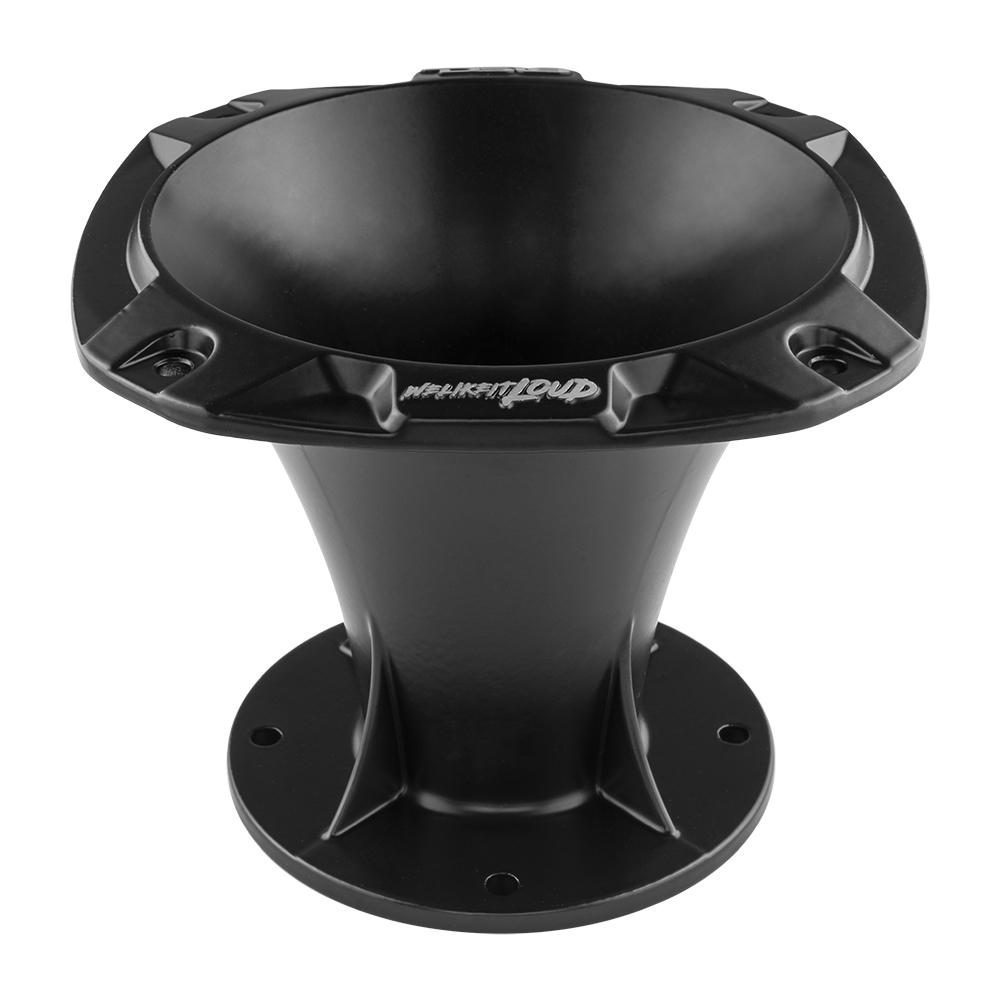

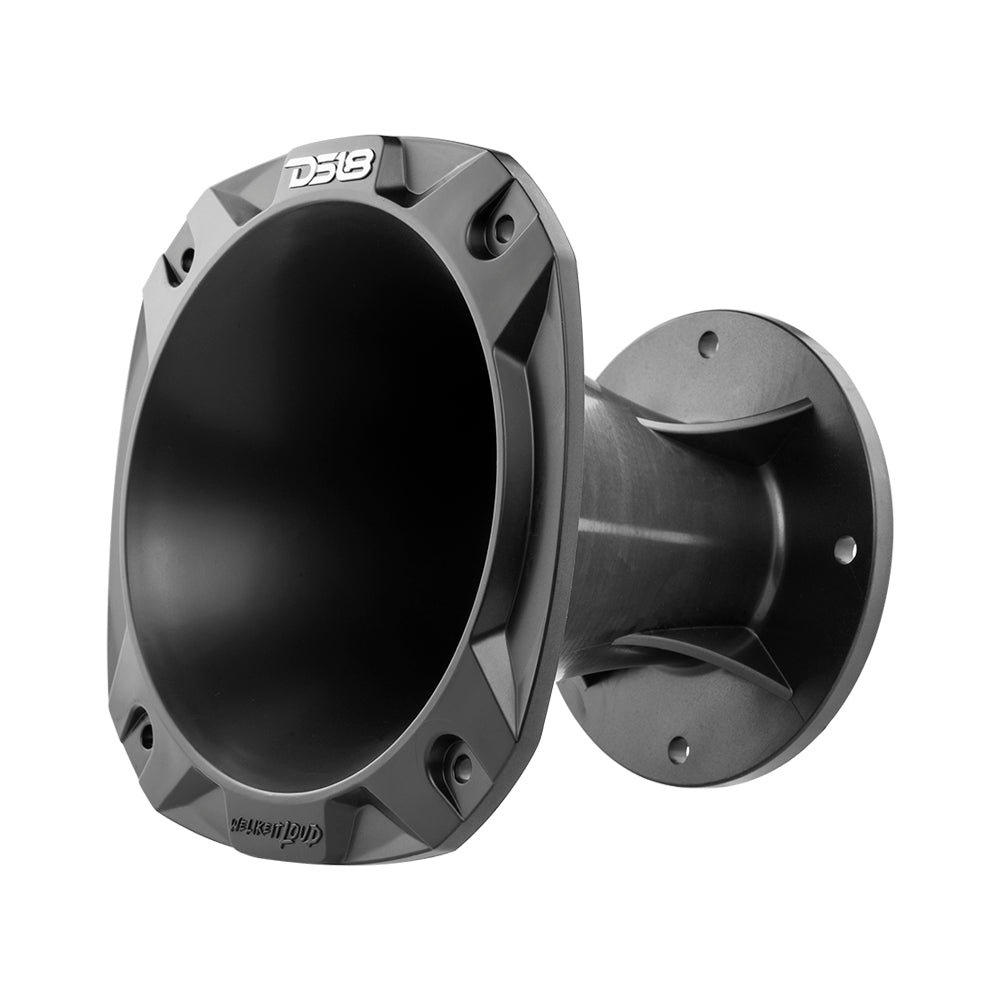

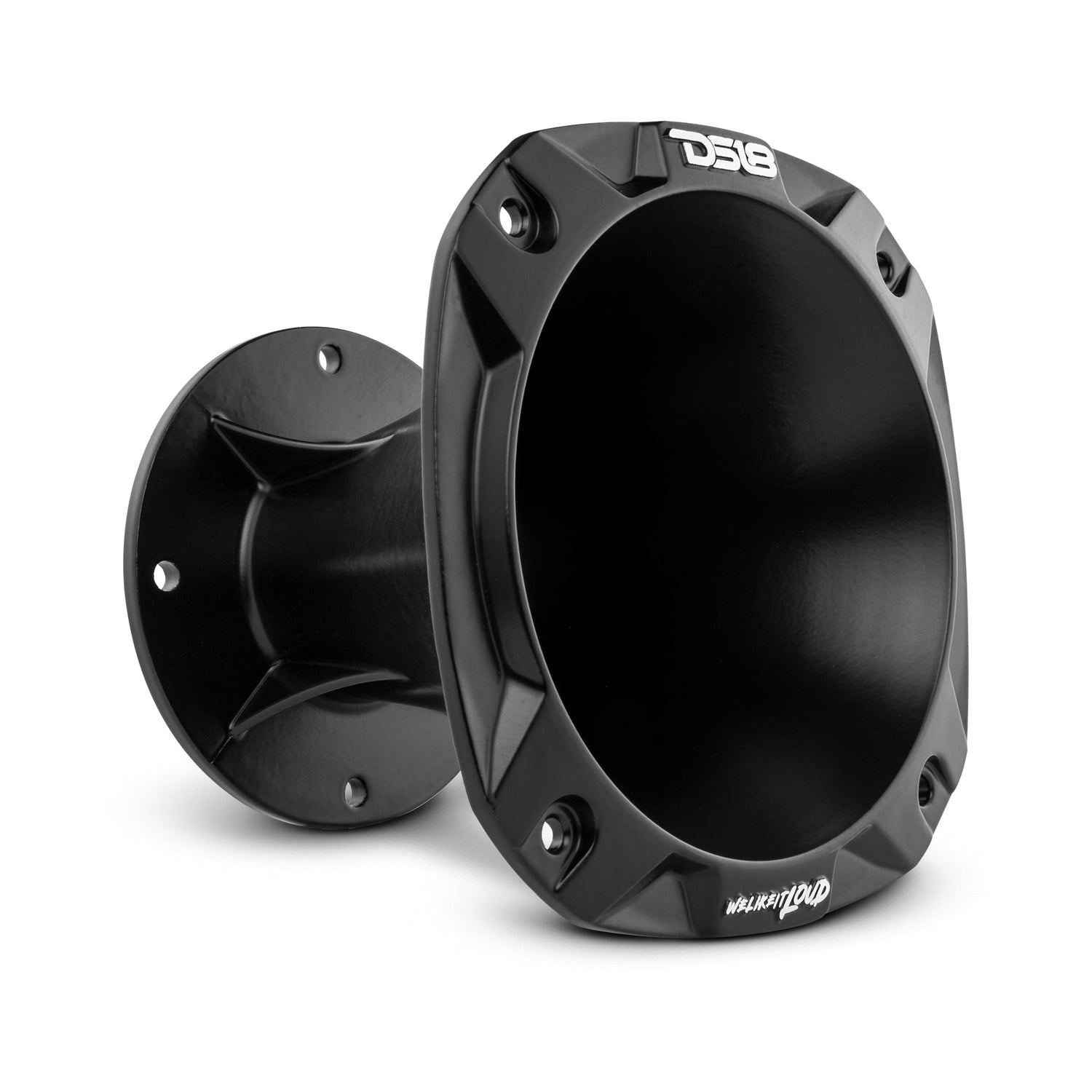

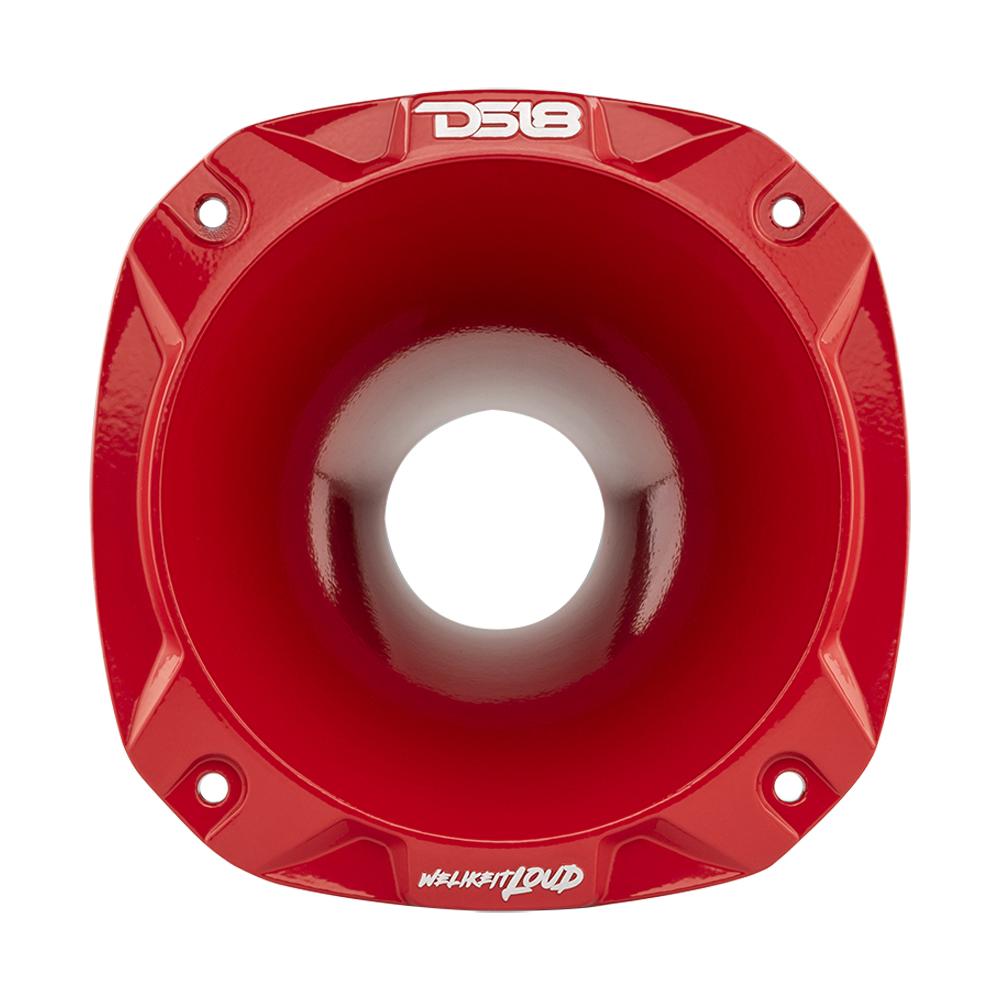

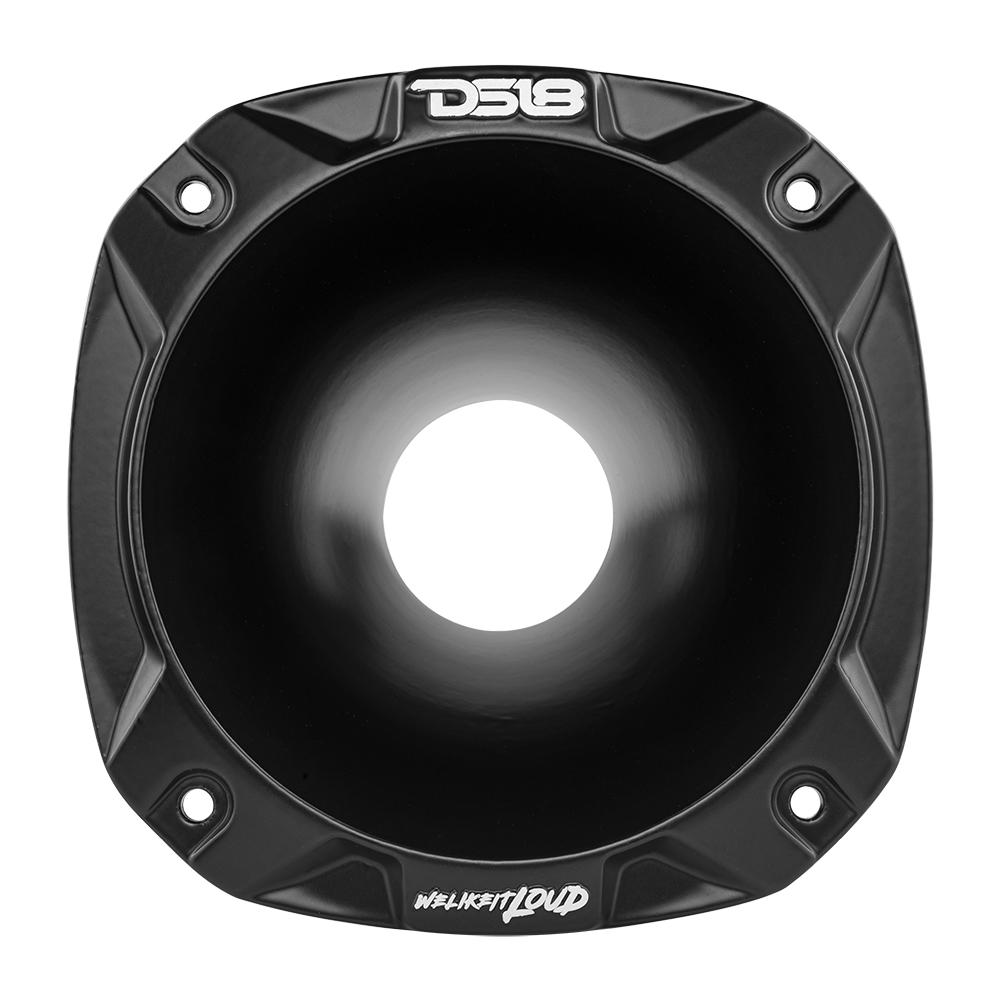

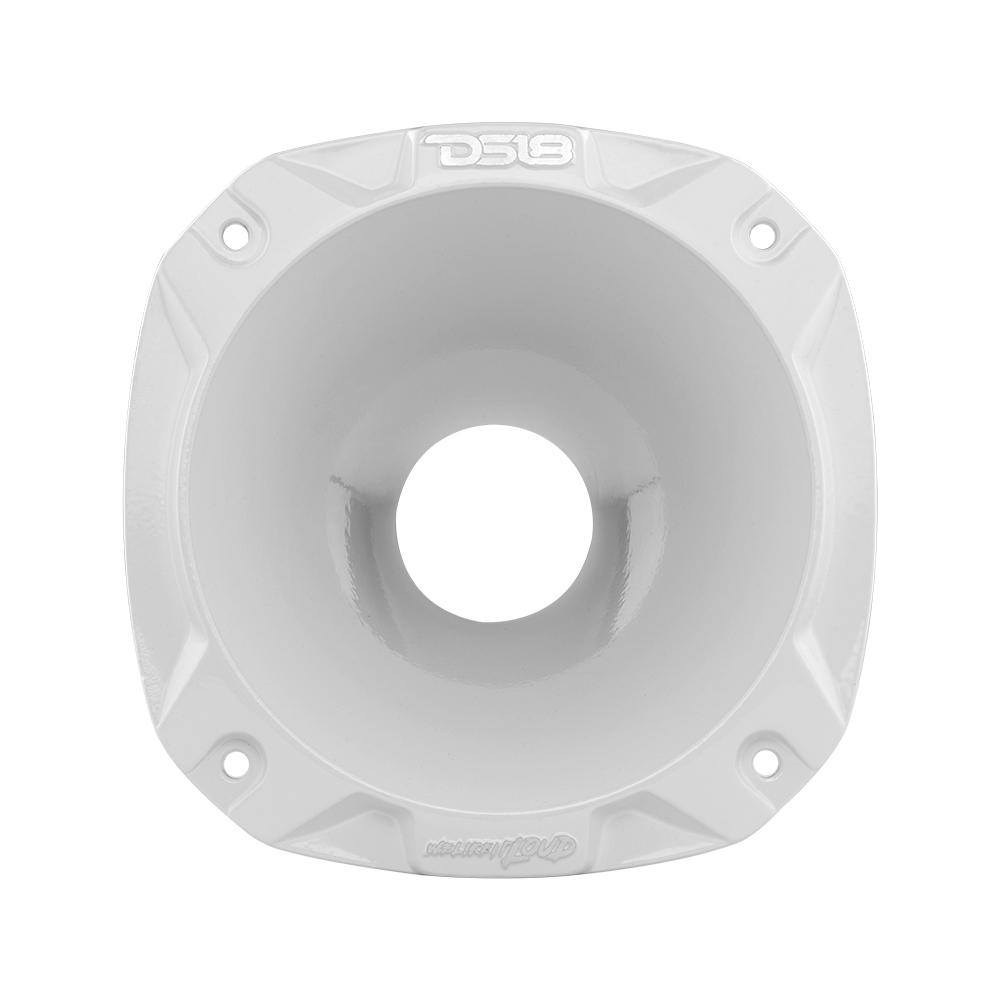

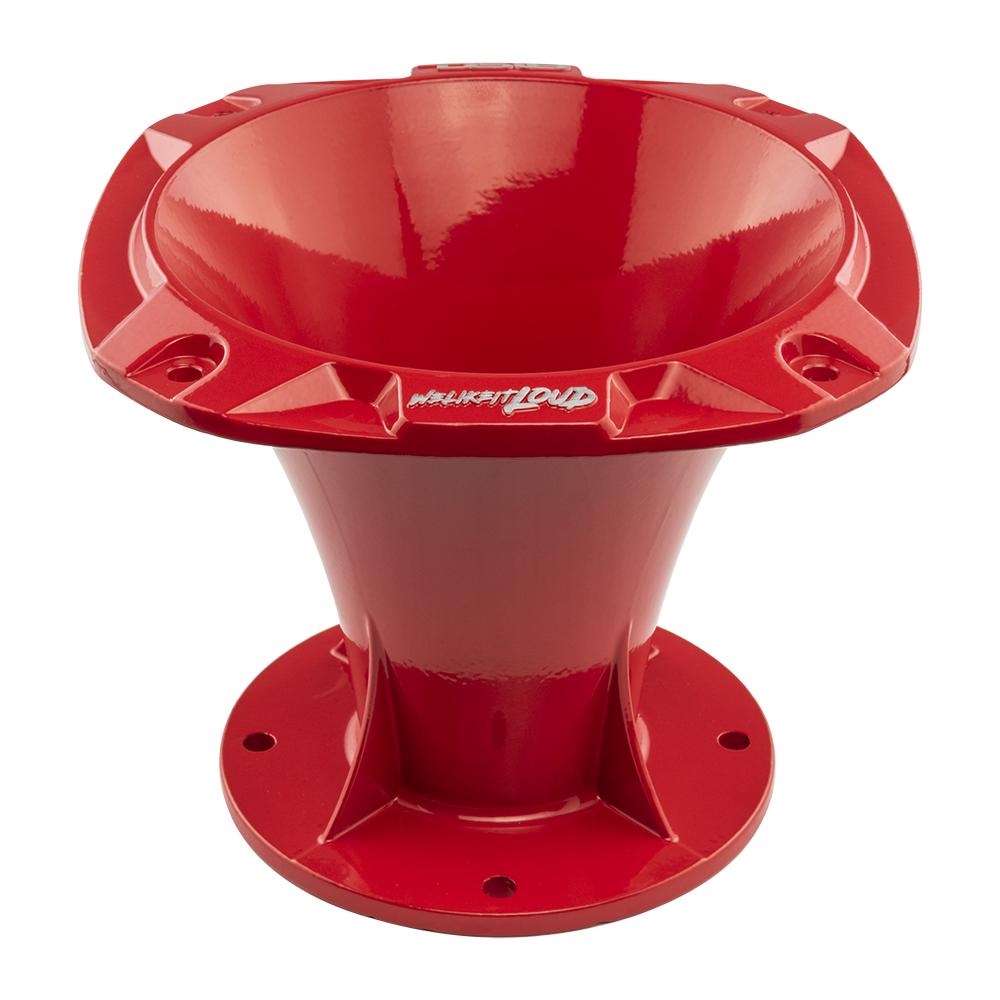

DS18 PRO-HA102 Bolt On 2" 35° 4.84" Depth Aluminum Horn

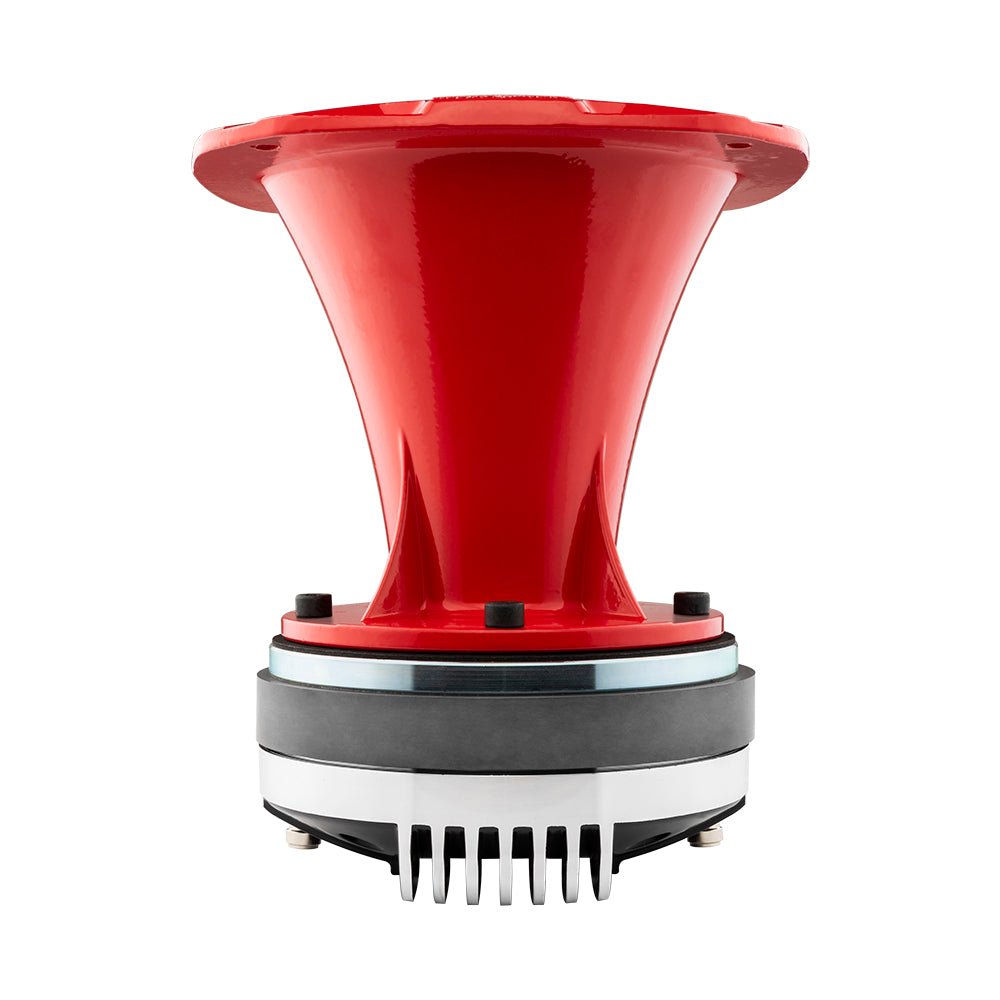

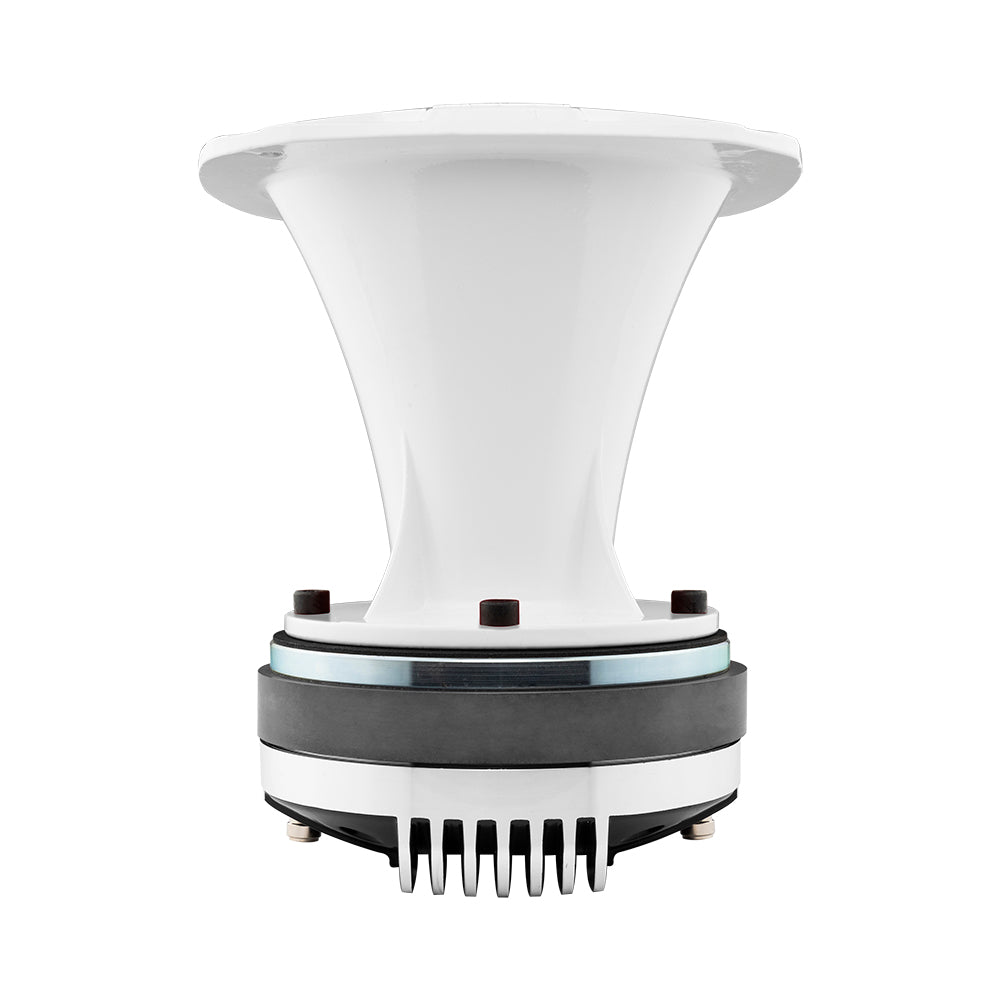

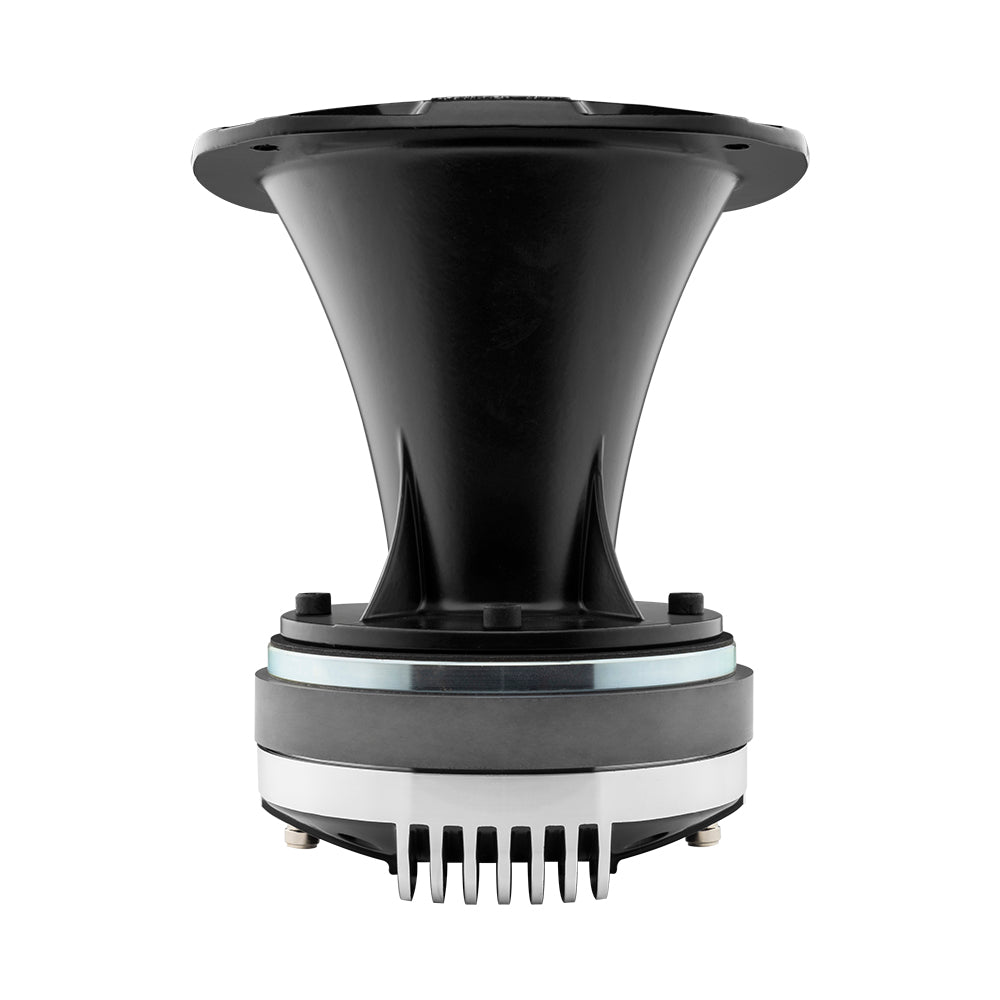

All aluminum casing with brushed DS18 logo. This throat will require a 4 bolt pattern on your driver to attach correctly. Now you can save some space while having crazy loud directional sound from your drivers.
Highlights
- Aluminum frame with brushed DS18 logo
- 4 bolt pattern for compatibility for most bolt on drivers
- Installation Type: Bolt-on
- Throat Diameter: 2" / 50.8mm
- Nominal Horn Diameter: 6.5"
- Sound Coverage: 35° Rounded
Technical Details
Measurements
- Overall Diameter: 7.08" / 180mm
- Overall Depth: 5.18’’ / 131.50mm
- Driver Bolt Pattern: 4.05"/ 102mm x 4-0.26" / 6.8mm
- Mounting Bolt Pattern: 6.33" / 161mm x 4- 0.21" / 5.5mm
