SKU: 1030238

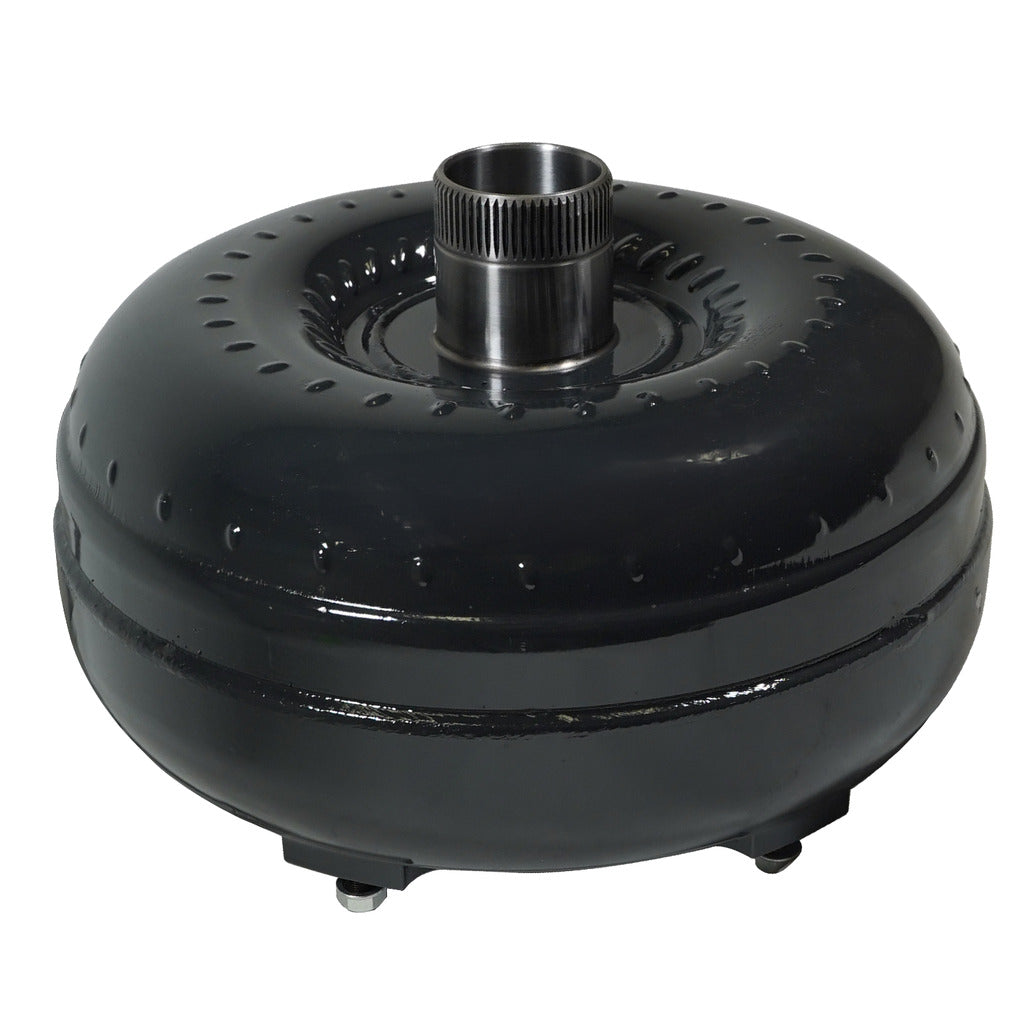

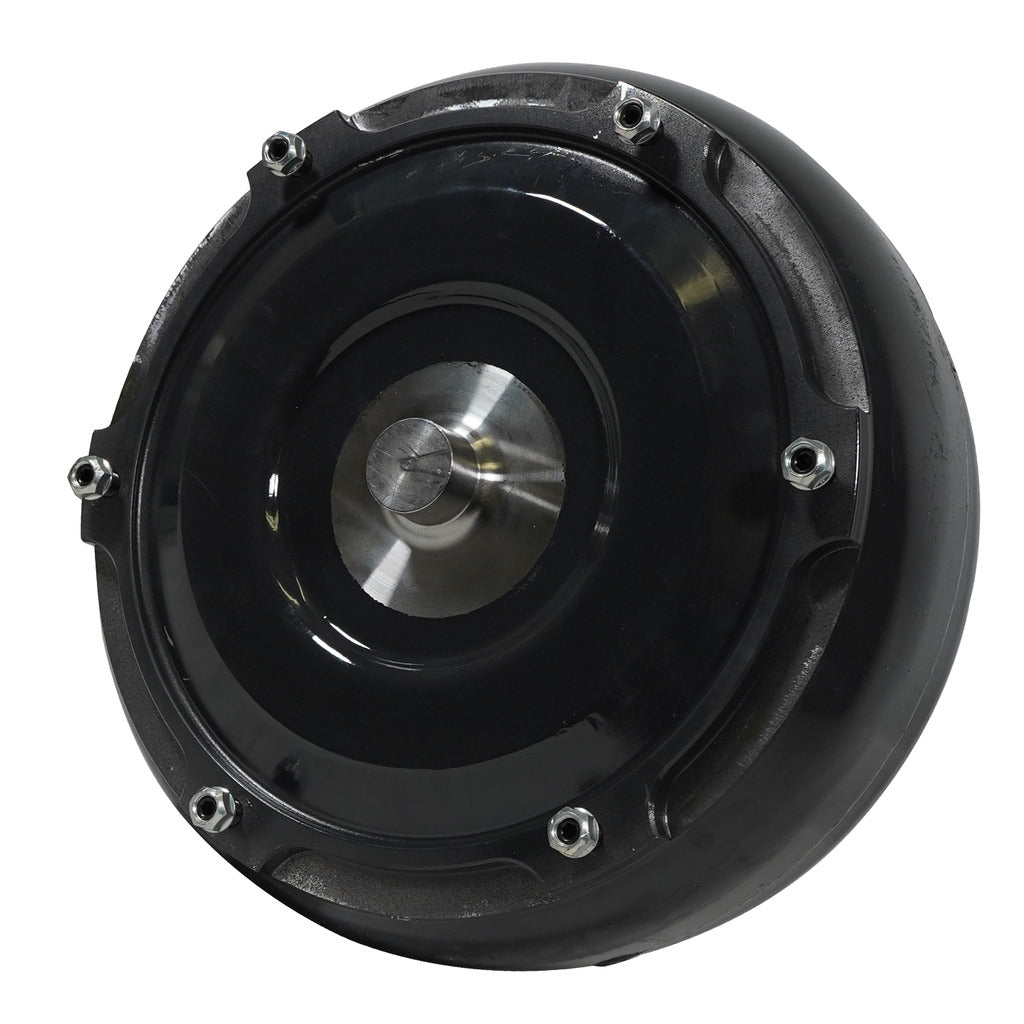

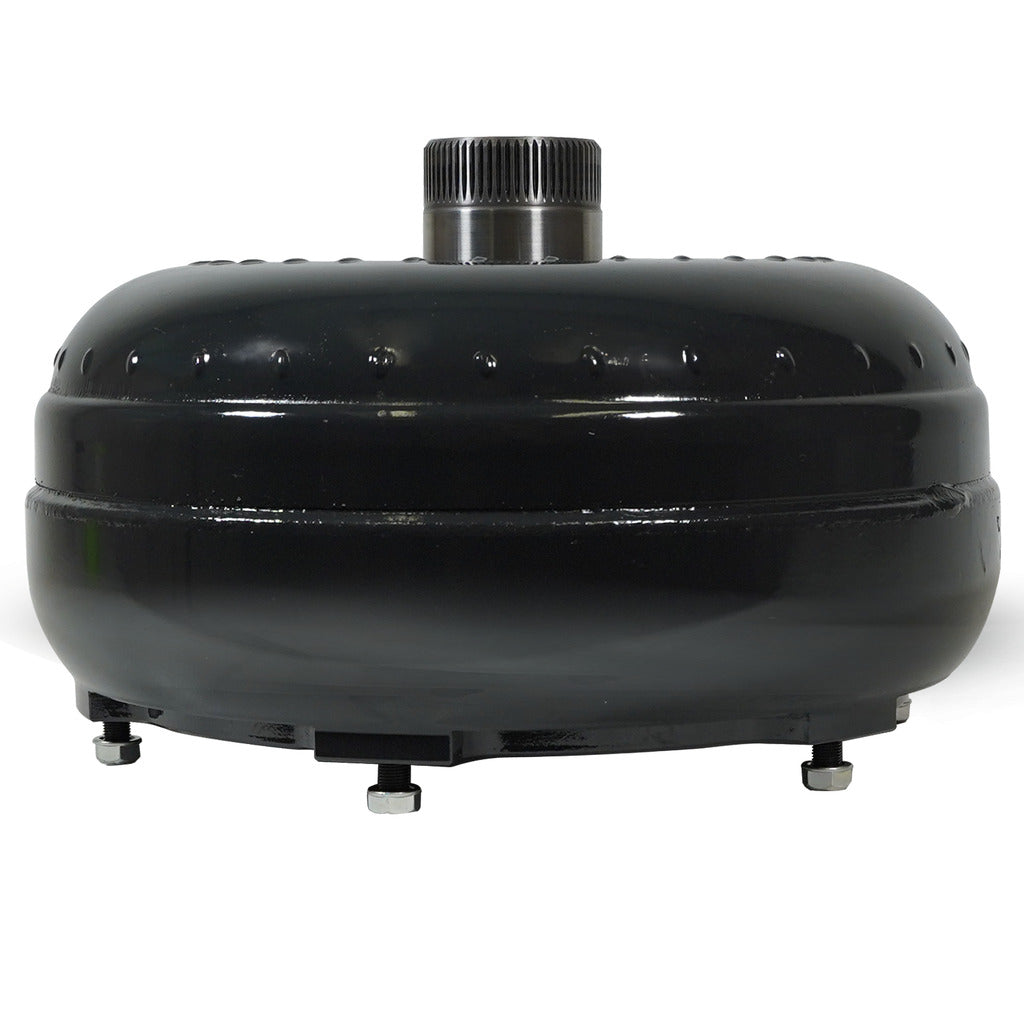

PROFORCE 4D TORQUE CONVERTER FORD F250/F350/F450/F550 6.7L 2011-2019 6R140

No reviews yet. Bought this? Write the first review
Regular price $2,245.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

[shortdesc]

The BD 6R140 ProForce 4D Torque Converter is designed for hard-working and modified 6.7L PowerStroke Diesels. This torque converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower. Our in-house CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength. In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.

FEATURES

  • 23% increased piston area for additional clutch clamping force
  • Billet bearing hub, piston and clutch retainer
  • Captured clutch design with clutch return springs
  • Increased clutch and steel plate count for improved heat dissipation
  • Comes with hardware
  • Factory furnace-brazed pump and turbine fins
  • Four friction surfaces instead of the factory two surfaces
  • Stamp forged 1-piece cover
INSTALL TIME

  • 7 Hours
WARRANTY

Parts
  • 36-Months
Labor
  • 12,000 miles
Note
  • No Race abuse covered
NOTE

  • Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.
EMISSIONS

  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
