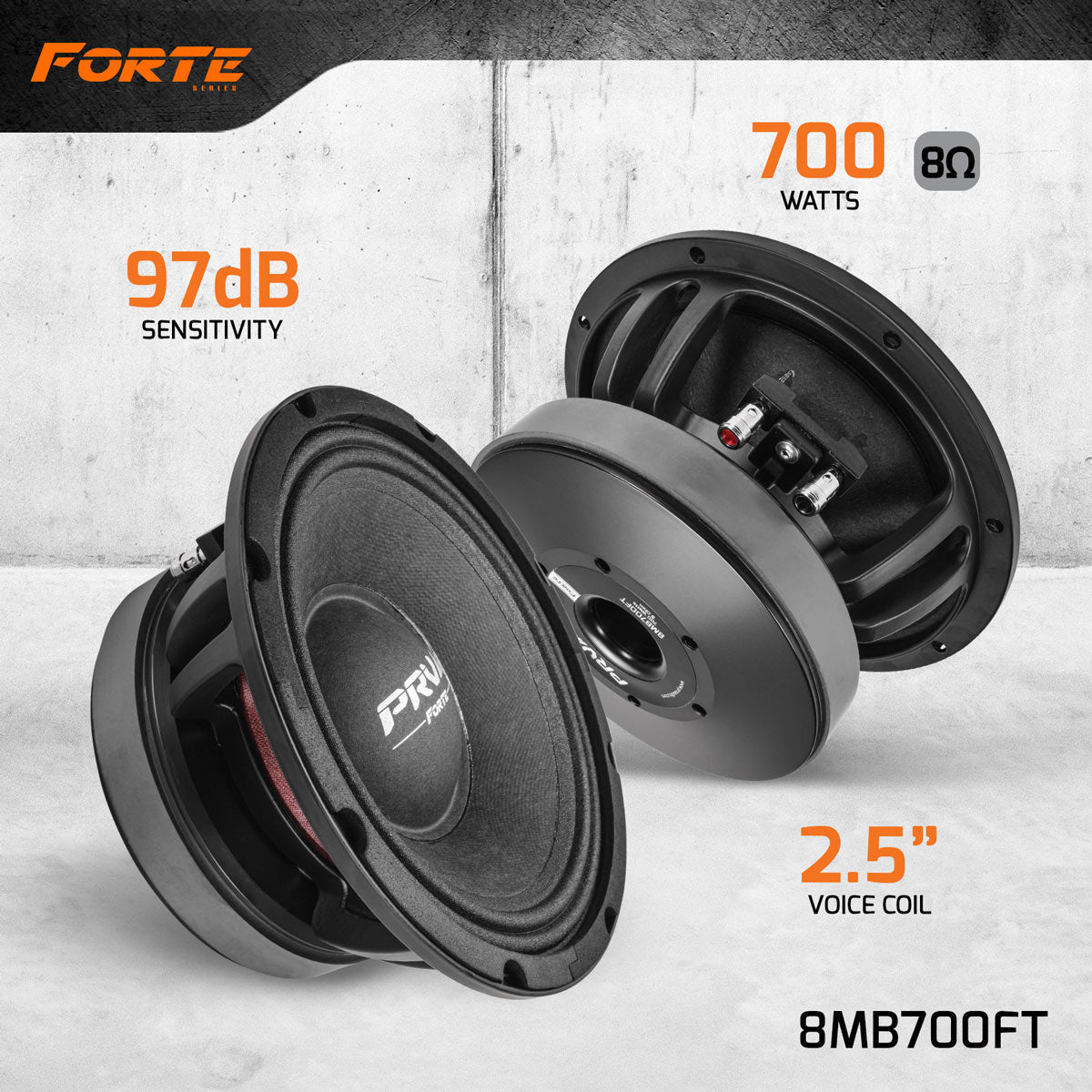

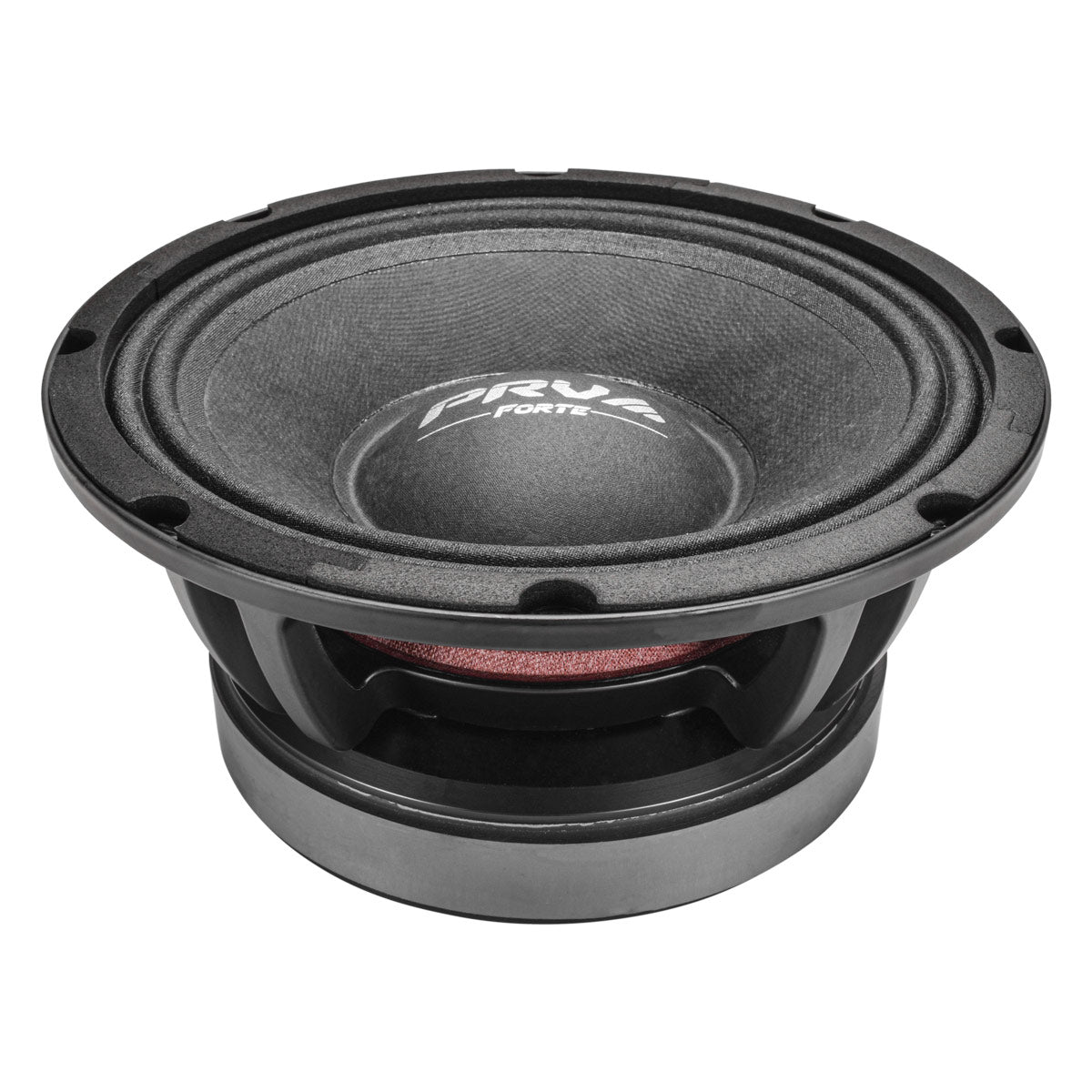

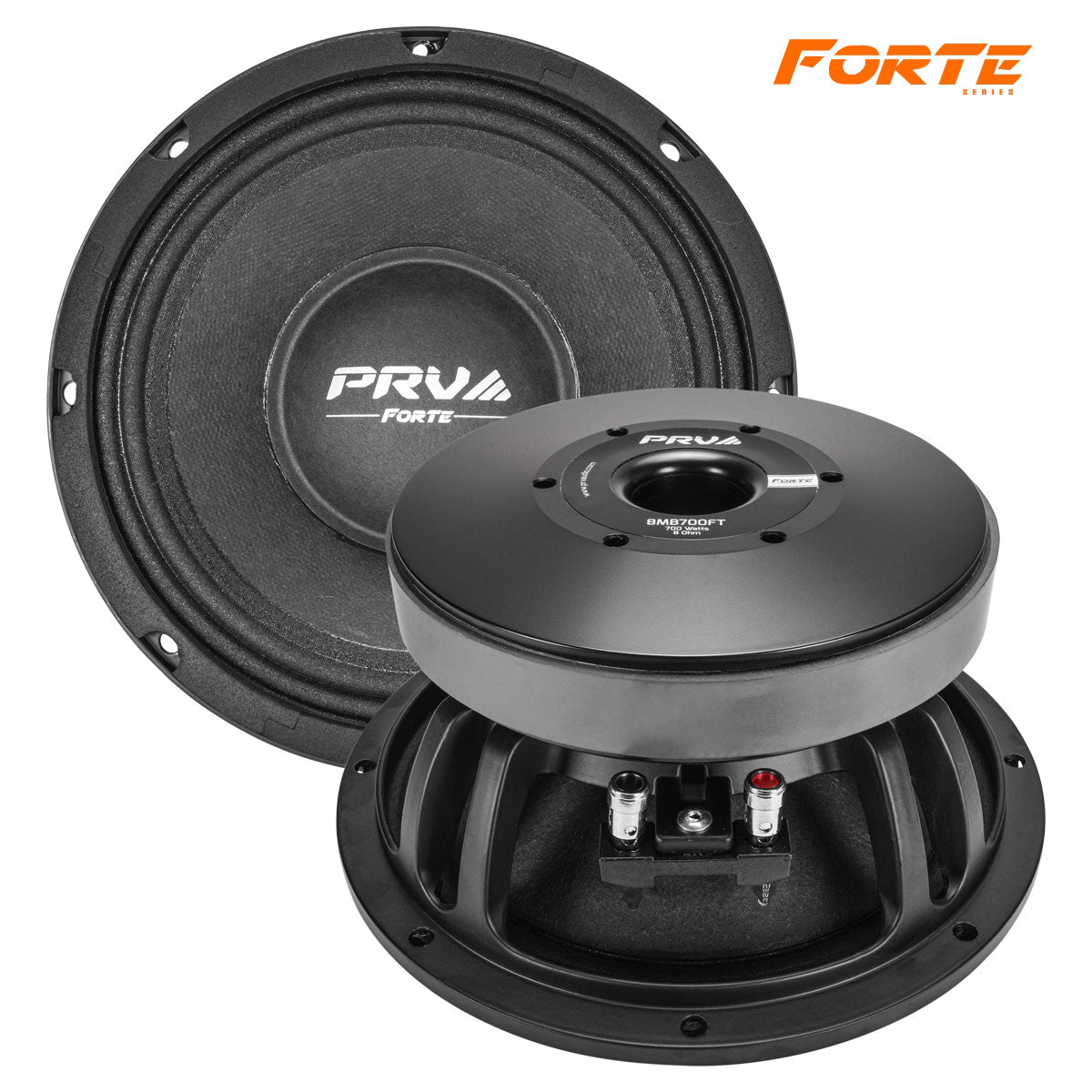

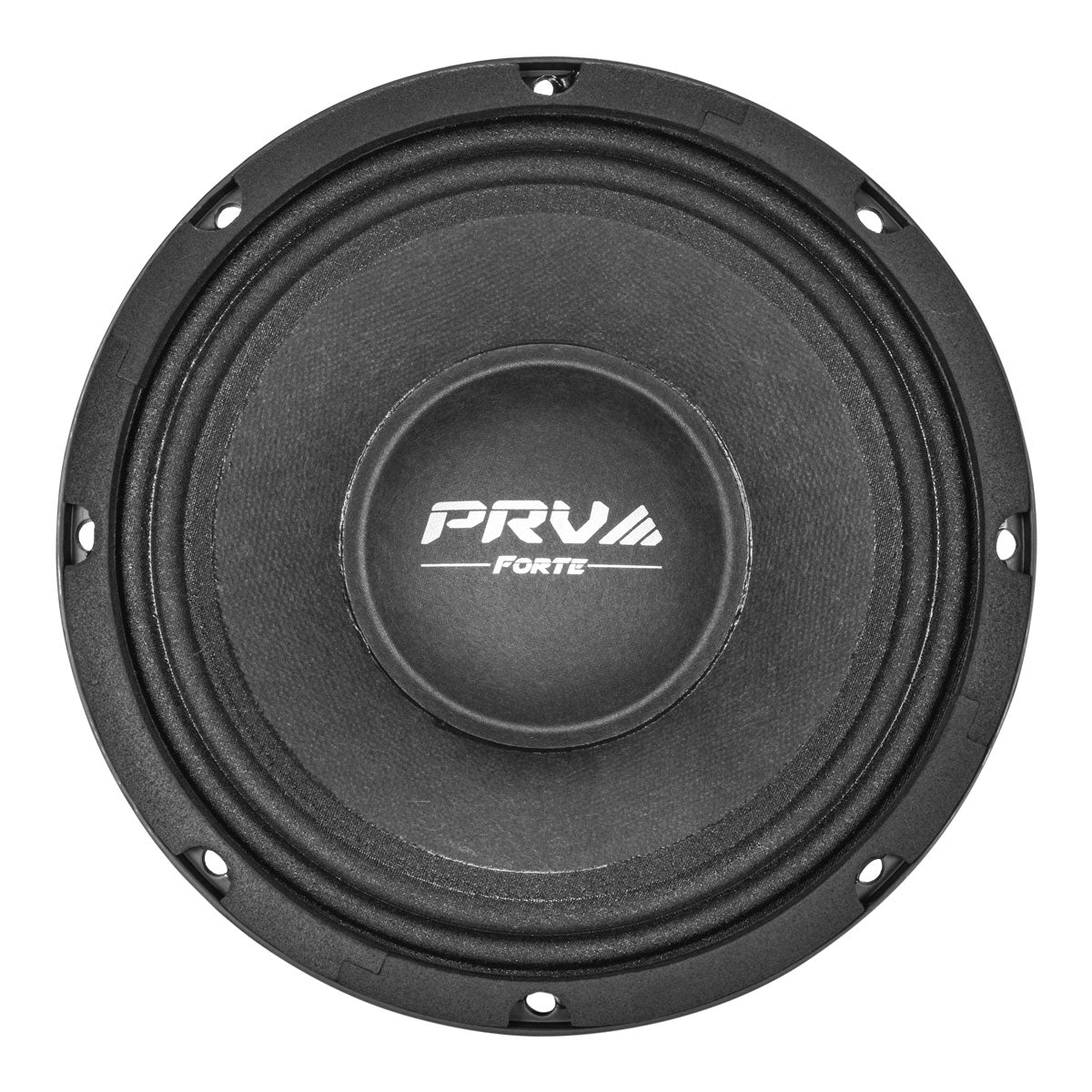

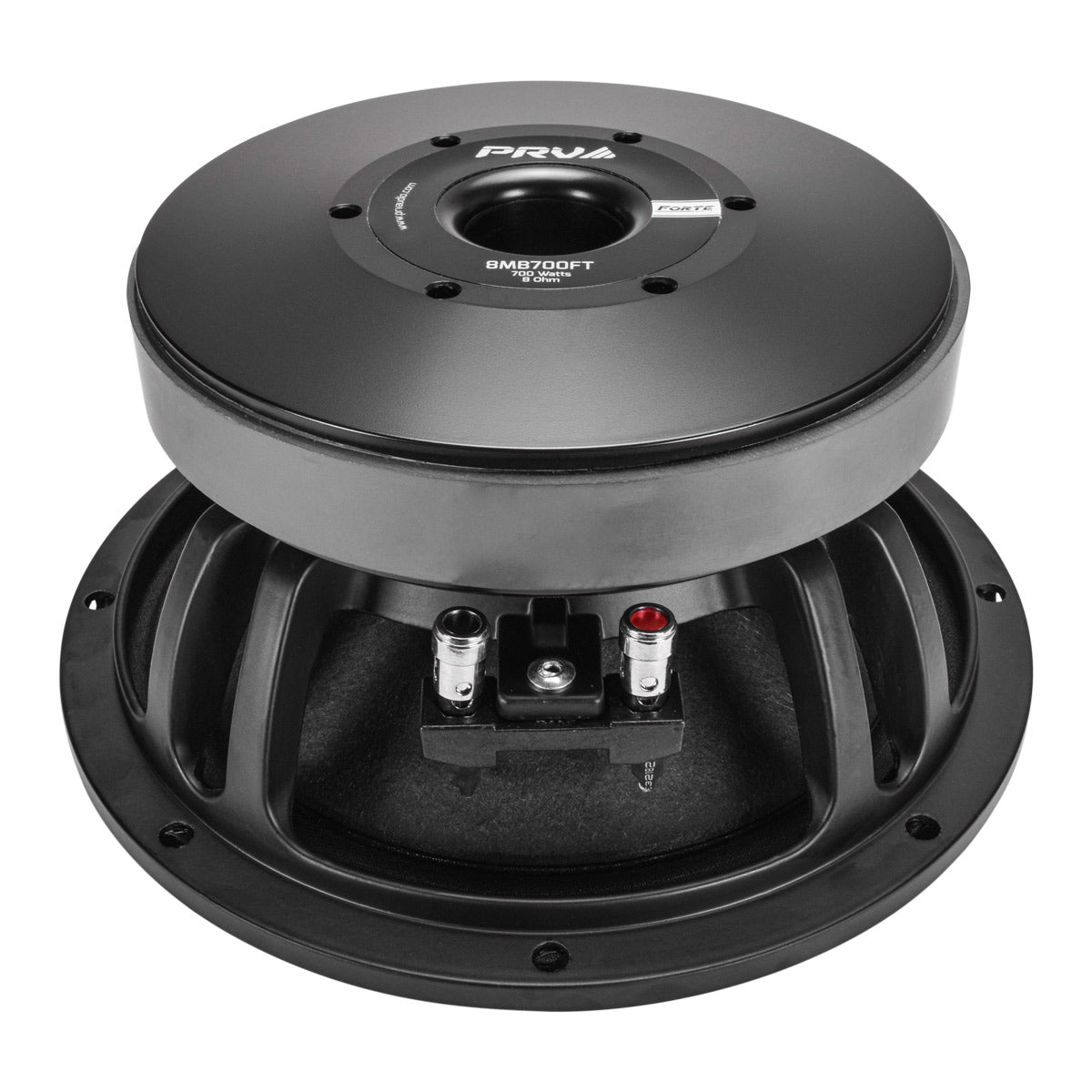

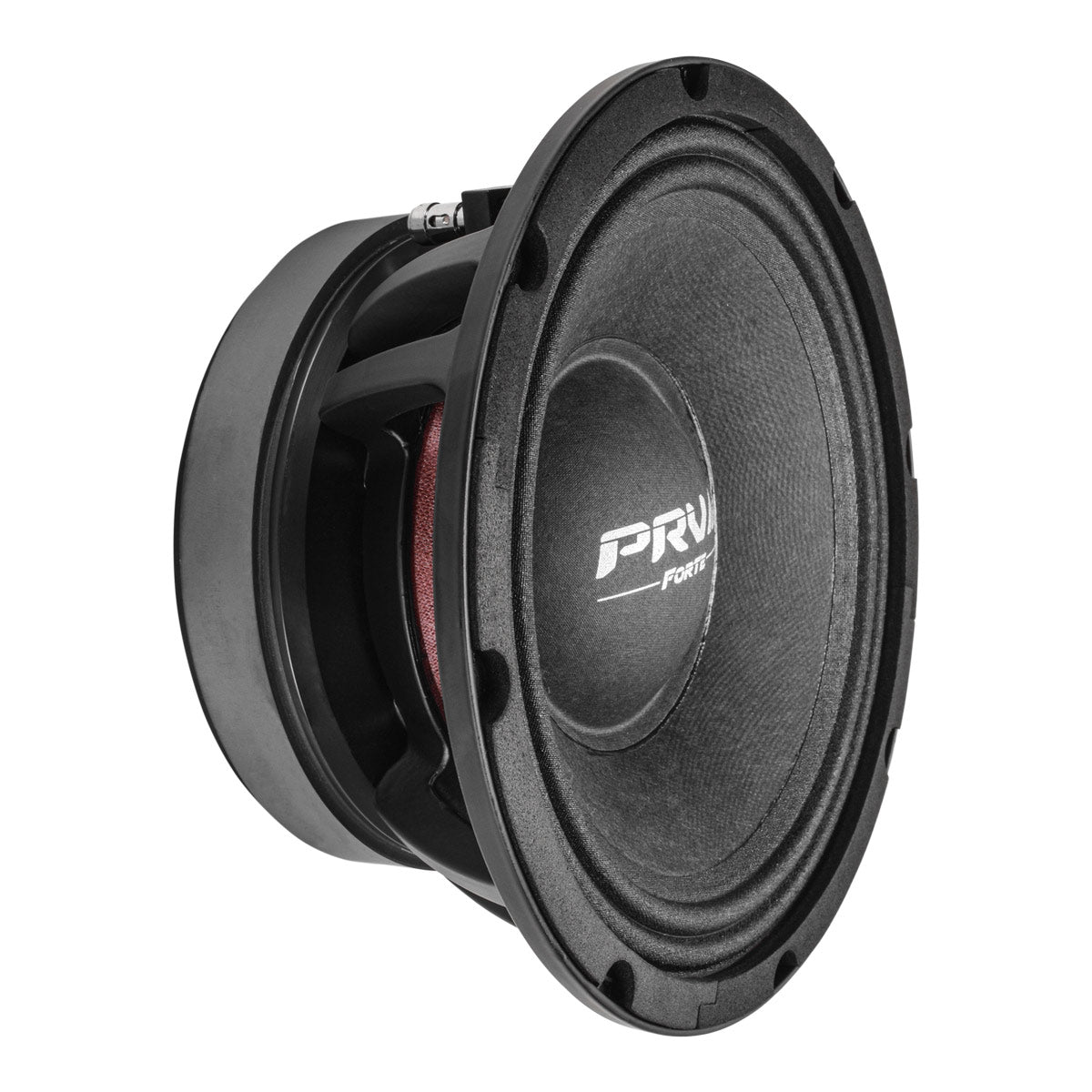

PRV 8″ Midbass Speaker 8MB700FT 700 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker
PRV 8″ Midbass Speaker 8MB700FT 700 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
PRV 8″ Midbass Speaker 8MB700FT 700 Watts / 8 Ohm High Power PRO Au...
PRV 8″ Midbass Speaker 8MB700FT 700 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
PRV Audio’s 8MB700FT Forte Series was specially tailored to give you more power handling and less distortion. The larger voice coil ensures high heat dissipation and the necessary Bl to deliver high sensitivity even at high power with the minimum distortion.
The lower Qts allows more precise midbass. Superior fidelity is achieved through a perfect combination of a non-pressed cone with a smooth frequency response and its well ventilated magnet motor specially designed to allow high displacement without increasing distortion.
- 2.5″ Voice Coil – More power handling and less distortion on mid low midbass frequencies
- Ventilated voice coil gap reduces power compression
- 8″ PRO audio Midbass speaker designed for Low Frequencies at High Power – 8 Ohm
- 700 watts RMS program power gives capability of high acoustical output
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 350 Watts |
| Continuous Program Power (RMS) | 700 Watts |
| Max Peak Power | 1400 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover *For Full Power Handling | 95 Hz* *12db Per Octave Crossover |
| Frequency Response | 80 – 5,600 Hz |
| Voice Coil Diameter | 2.5″ (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 20.0 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 72.3 Hz |
| Mechanical Factor | Qms | 6.01 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.31 |
| Cone Area | Sd | 249 cm² |
| Mechanical Mass | Mms | 20.94 g |
| Bl Factor | Bl | 12.25 Tm |
| Dc Resistance | Re | 5.2 Ohms |
| Inductance | Le | 0.46 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 18.71 g |
| Mechanical Compliance | Cms | 0.231 mm/N |
EXTRA INFO

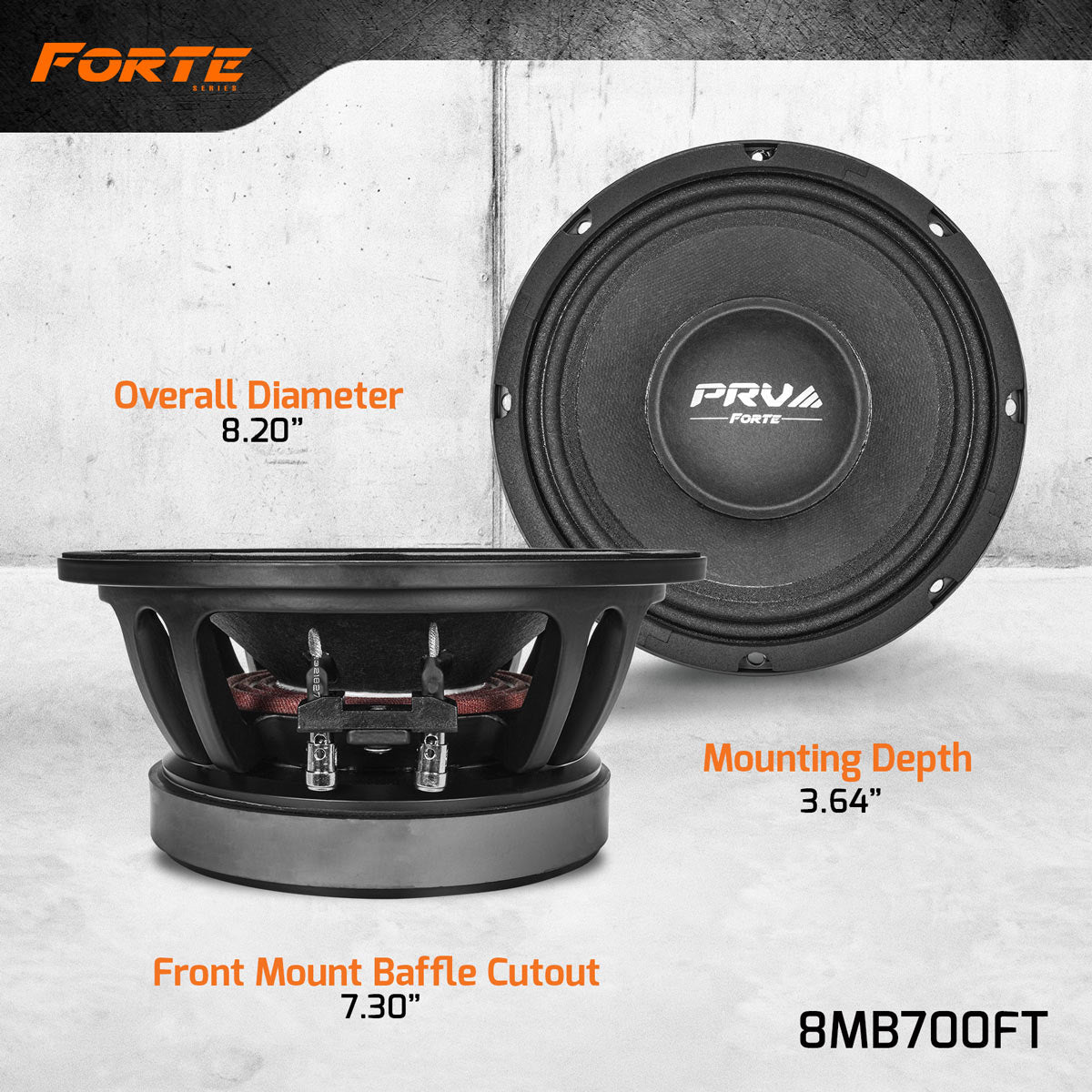

| Overall Diameter | 8.20” (208.5 mm) |
| Front Mount Baffle Cutout | 7.30” (185.5 mm) |
| Mounting Depth | 3.64” (92.5 mm) |
| Overall Depth | 4.00” (101.5 mm) |
| Net Weight | 9.38 Lbs (4.06 kg) |
| Shipping Weight | 9.65 Lbs (4.38 kg) |
| Carton Dimensions W x L x H | 9.05” x 9.05” x 5.0” (230 x 230 x 127 mm) |
