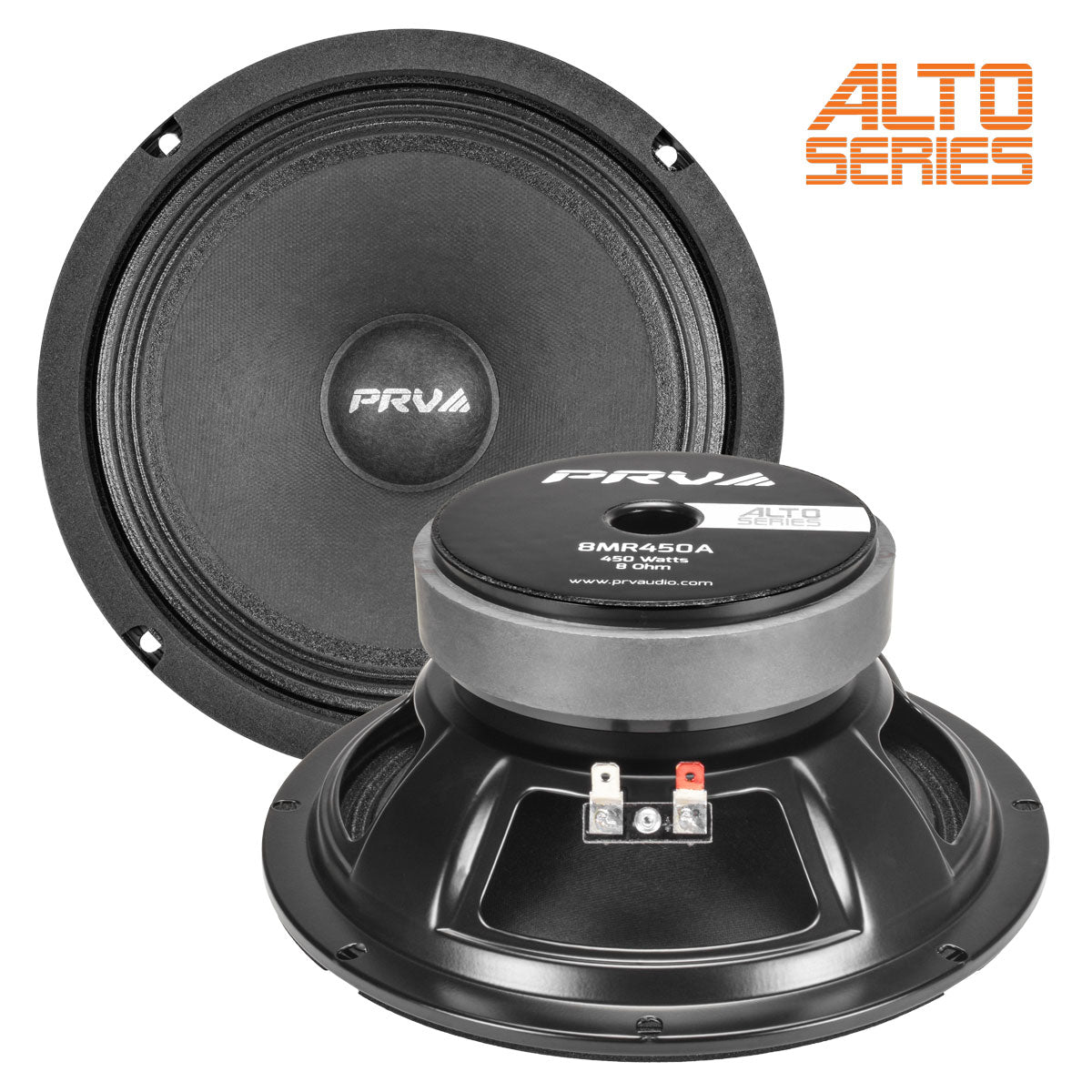

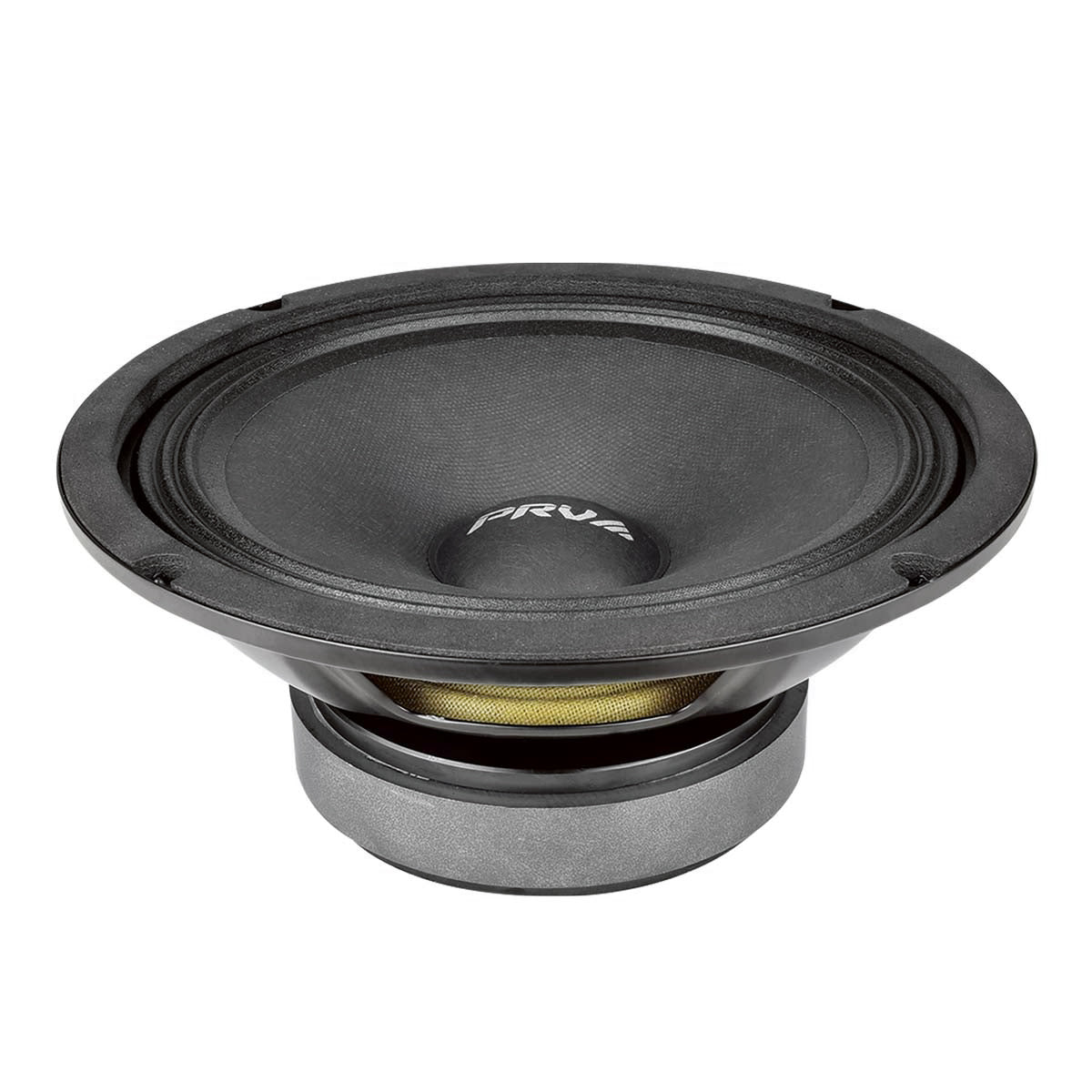

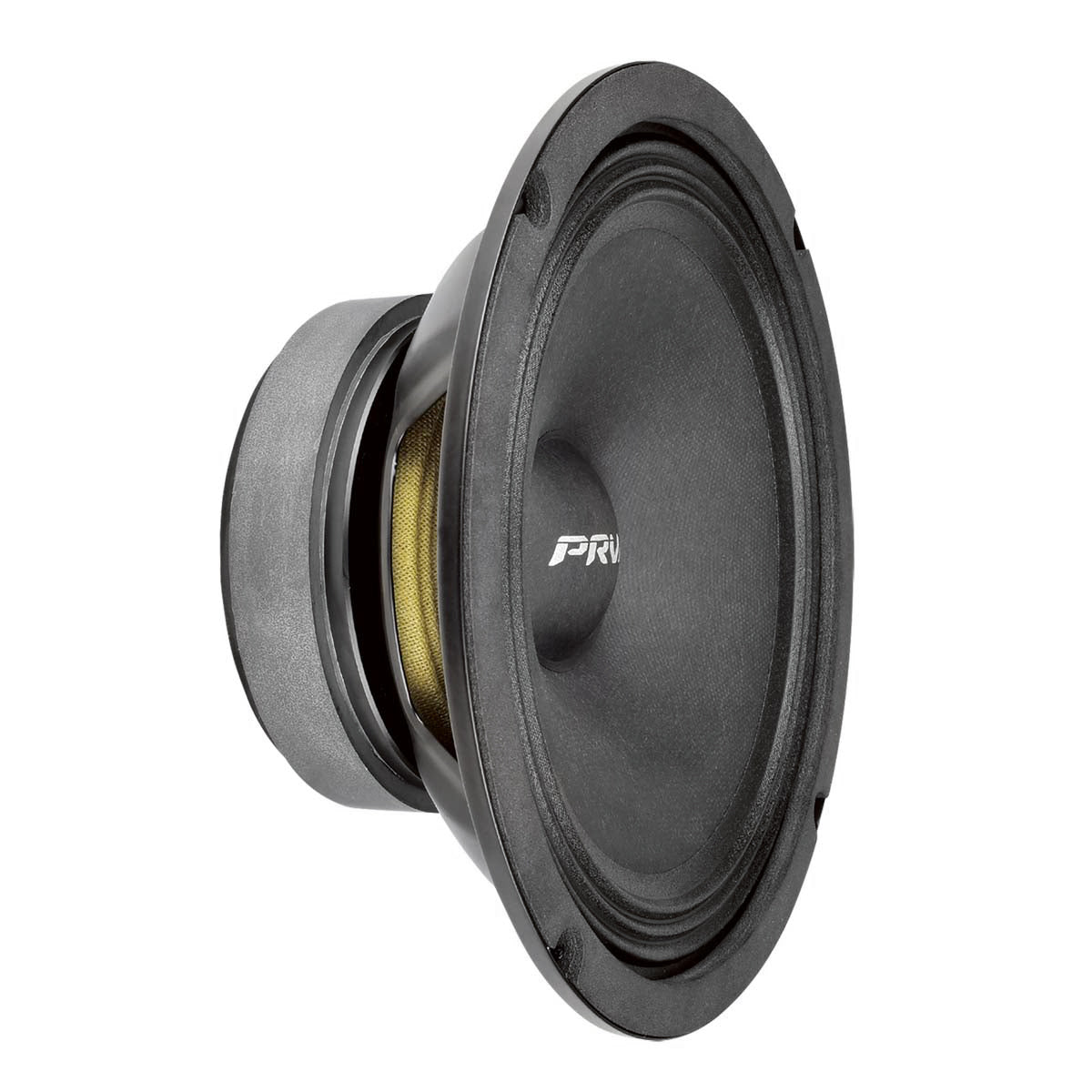

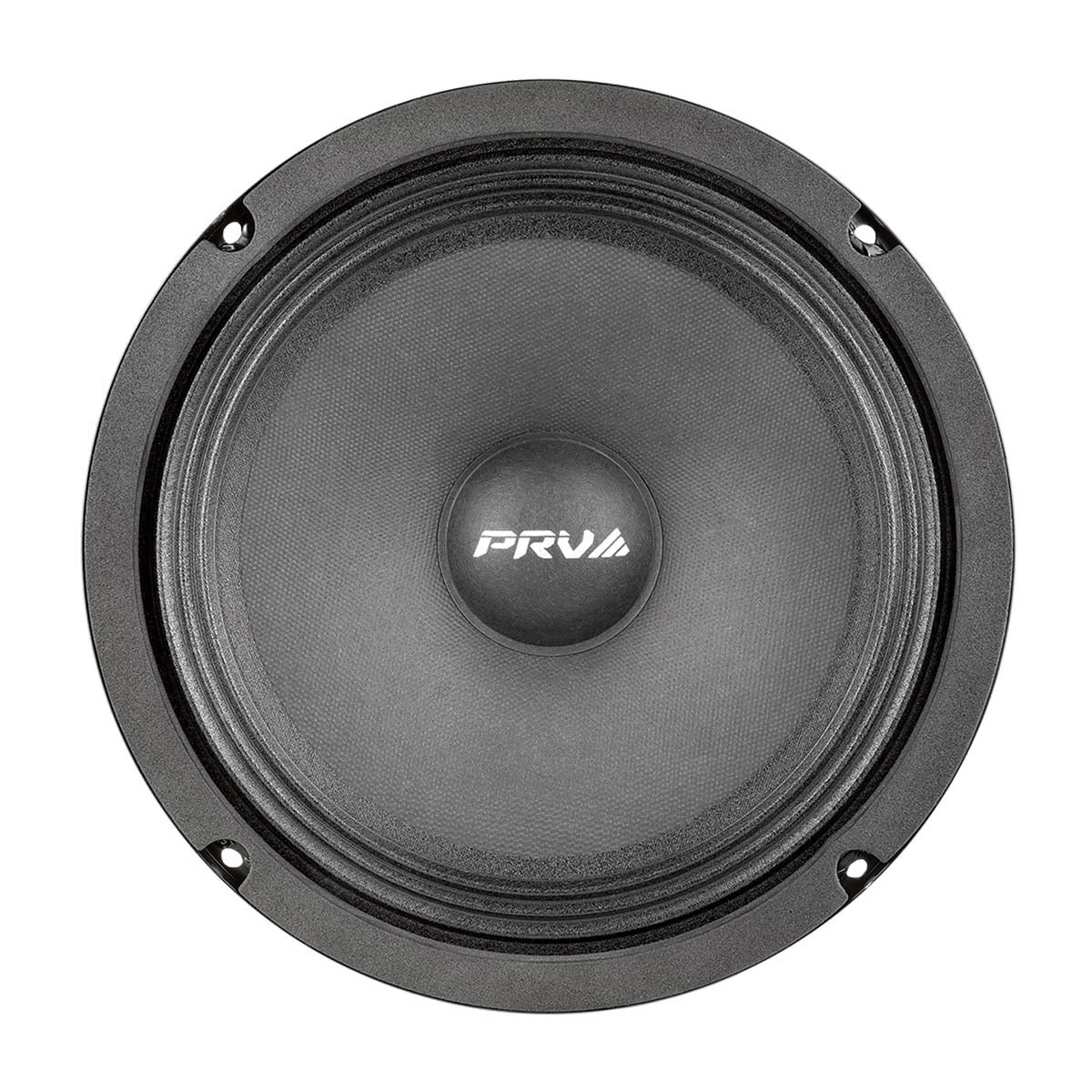

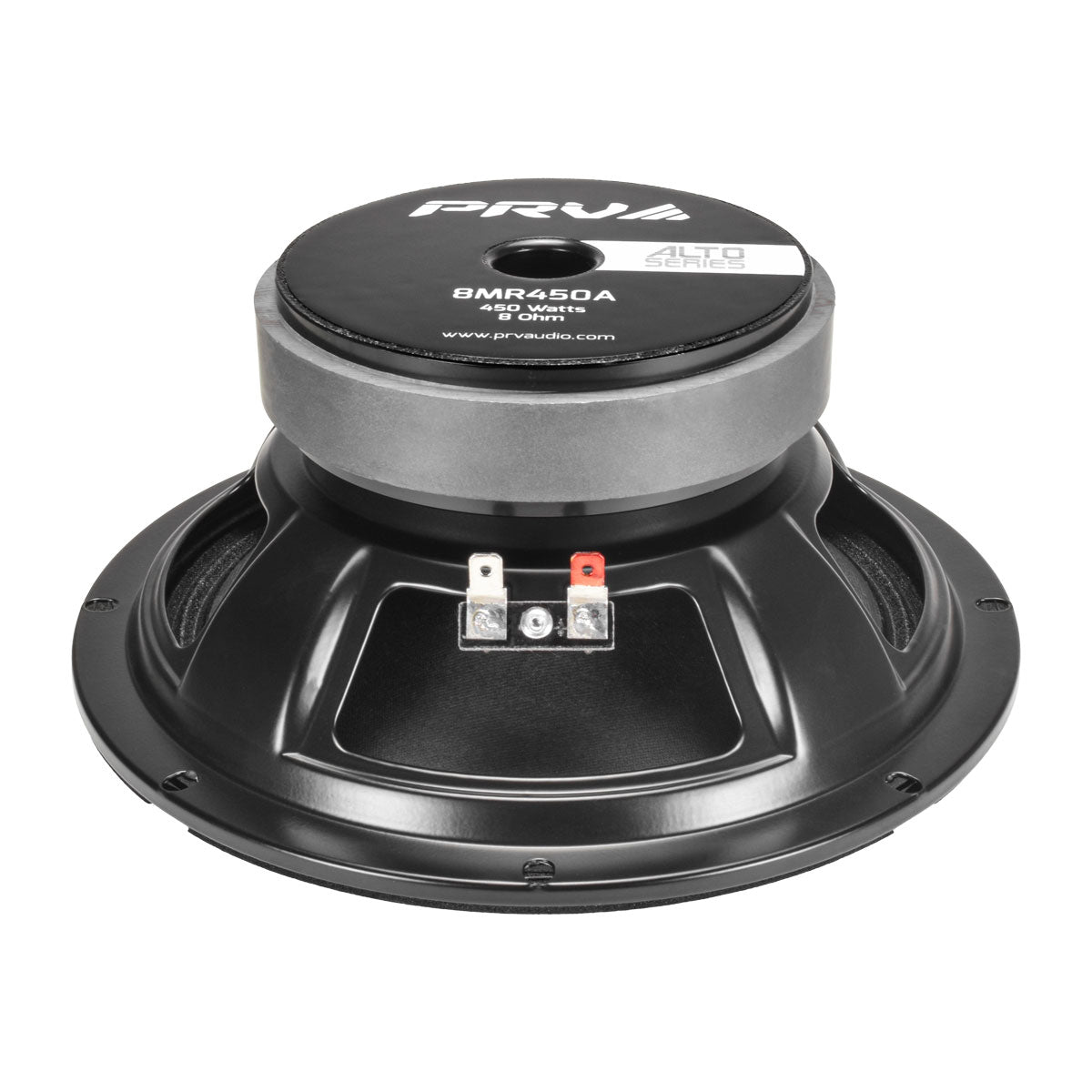

PRV AUDIO 8MR450A 8 Inch Midrange Speaker, 8 Ohms, 450 Watts
PRV AUDIO 8MR450A 8 Inch Midrange Speaker, 8 Ohms, 450 Watts is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
PRV AUDIO 8MR450A 8 Inch Midrange Speaker, 8 Ohms, 450 Watts
PRV AUDIO 8MR450A 8 Inch Midrange Speaker, 8 Ohms, 450 Watts is backordered and will ship as soon as it is back in stock.
Description
Description
PRV Audio’s ALTO Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.
- 2″ DUAL layer CCAW voice coil wound on a glass fiber former, 8 ohms
- Low inductance for great transients and extended high frequency response up to 9,500 Hz
- Large voice coil winding has improves power handle giving it 450 watts RMS continuous program power rating

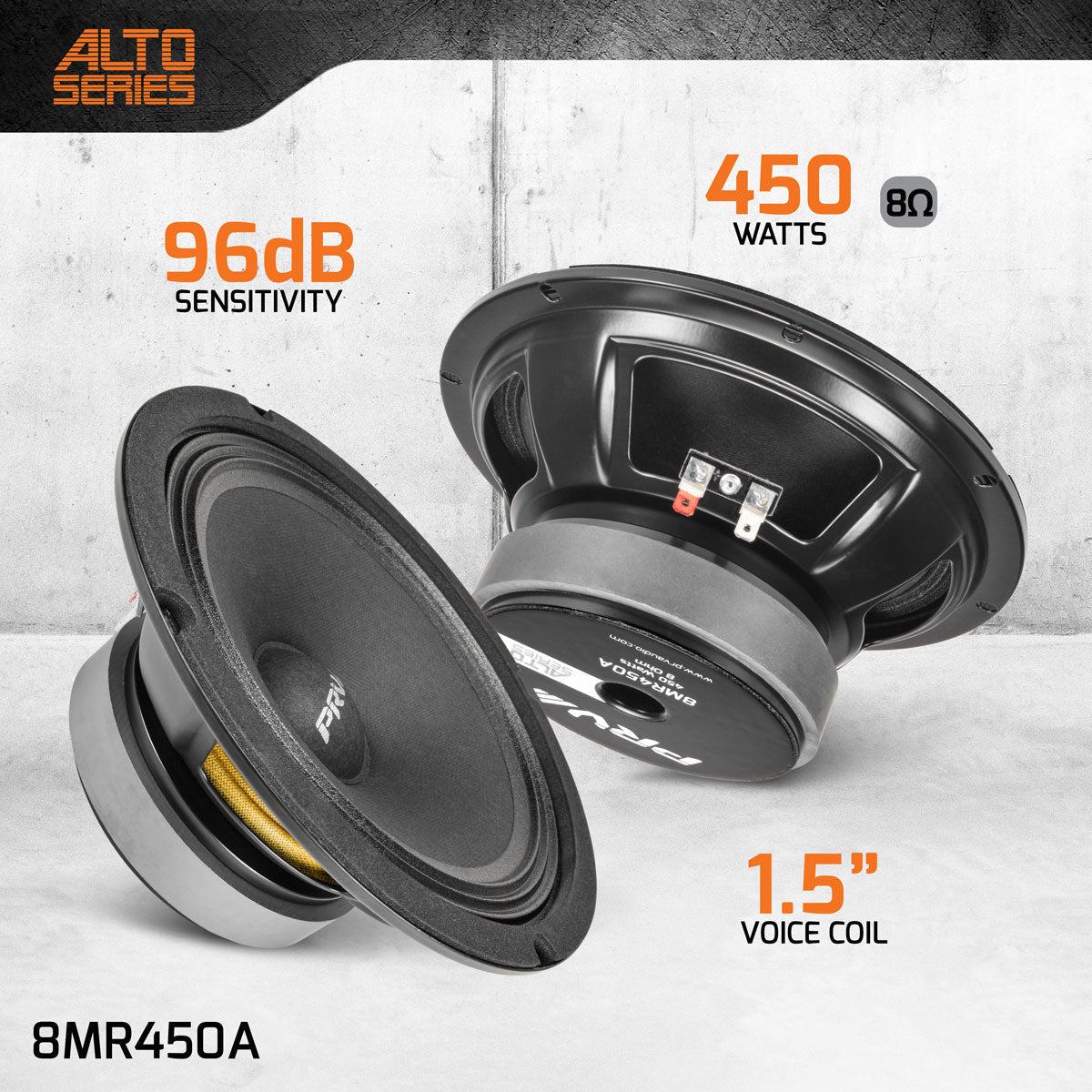

- High sensitivity of 96 db makes this a great budget choice for high output home, car, and professional audio systems
- Full copper sleeve on the pole-piece for low distortion and inductance
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling | 225 Watts |
| Continuous Program Power (RMS) | 450 Watts |
| Max Peak Power | 900 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 140 Hz** **12db Per Octave Crossover |
| Frequency Response | 80 – 9,500 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 34.86 l |
| Excursion (mathematical)*** | Xmax | 4.00 mm |
| Free Air Resonance | Fs | 65.26 Hz |
| Mechanical Factor | Qms | 15.19 |
| Electrical Factor | Qes | 0.57 |
| Total Factor | Qts | 0.55 |
| Cone Area | Sd | 241 cm² |
| Mechanical Mass | Mms | 13.78 g |
| Bl Factor | Bl | 7.58 Tm |
| Dc Resistance | Re | 5.8 Ohms |
| Inductance | Le | 0.257 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.67 g |
| Mechanical Compliance | Cms | 0.432 mm/N |
EXTRA INFO

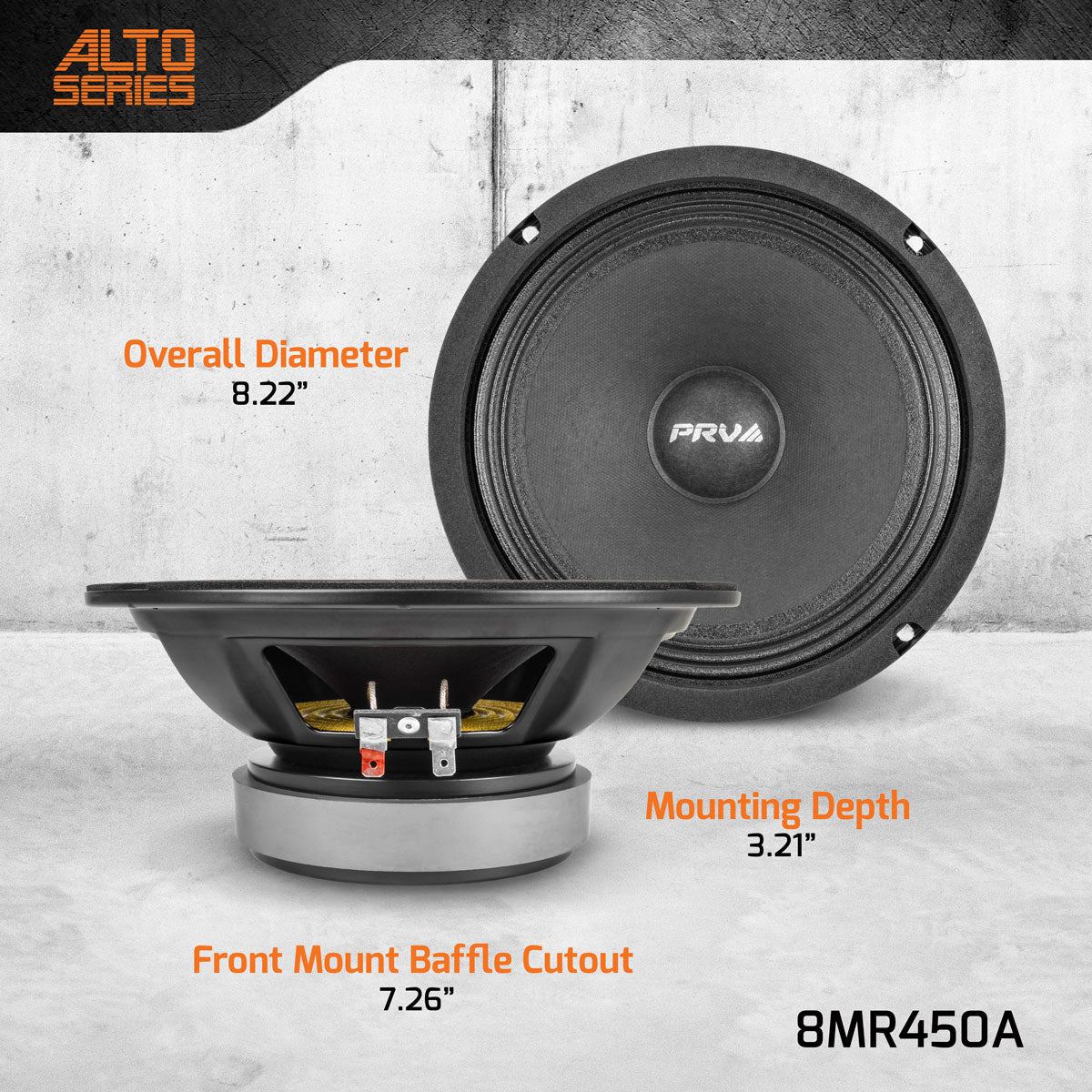

| Overall Diameter | 8.22″ (209 mm) |
| Front Mount Baffle Cutout | 7.26″ (184.5 mm) |
| Mounting Depth | 3.21″ (81.5 mm) |
| Overall Depth | 3.50″ (89 mm) |
| Net Weight | 4.63 Lbs (2.1 kg) |
| Shipping Weight | 5.07 Lbs (2.3 kg) |
| Carton Dimensions W x L x H | 8.66 x 8.66″ x 4.17″ (220 x 220 x 106 mm) |
