PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm ...
PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
The 8MR500SEAL PRO offers very smooth midrange response to the upper midrange up to 7,500 Hz. Designed to provide definition and high output on midrange frequencies, perfect for use in any high output 3-way system.
Now you can pair this 8″ speaker with any 10″ or 12″ speaker from our PRO Series, to build the ultimate custom Chuchero® or PRO Audio systems.
- A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.
- Capable of handling 500 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).
- Its naturally damped paper cone is coated with a waterproof coating, ensuring high performance even in harsh damp or wet weather conditions.
- Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 7,500Hz. A powerful output peak at 400hz reaches 104dB of sensitivity at 1w/1m.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 250 Watts |
| Continuous Program Power (RMS) | 500 Watts |
| Max Peak Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 400 Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 400 – 7,500 Hz |
| Voice Coil Diameter | 2″ (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 0.97 l |
| Excursion (mathematical)*** | Xmax | 4.00 mm |
| Free Air Resonance | Fs | 392.2 Hz |
| Mechanical Factor | Qms | 18.14 |
| Electrical Factor | Qes | 2.58 |
| Total Factor | Qts | 2.26 |
| Cone Area | Sd | 241 cm² |
| Mechanical Mass | Mms | 13.63 g |
| Bl Factor | Bl | 8.83 Tm |
| Dc Resistance | Re | 6.0 Ohm |
| Inductance | Le | 0.25 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 11.53 g |
| Mechanical Compliance | Cms | 0.012 mm/N |
EXTRA INFO

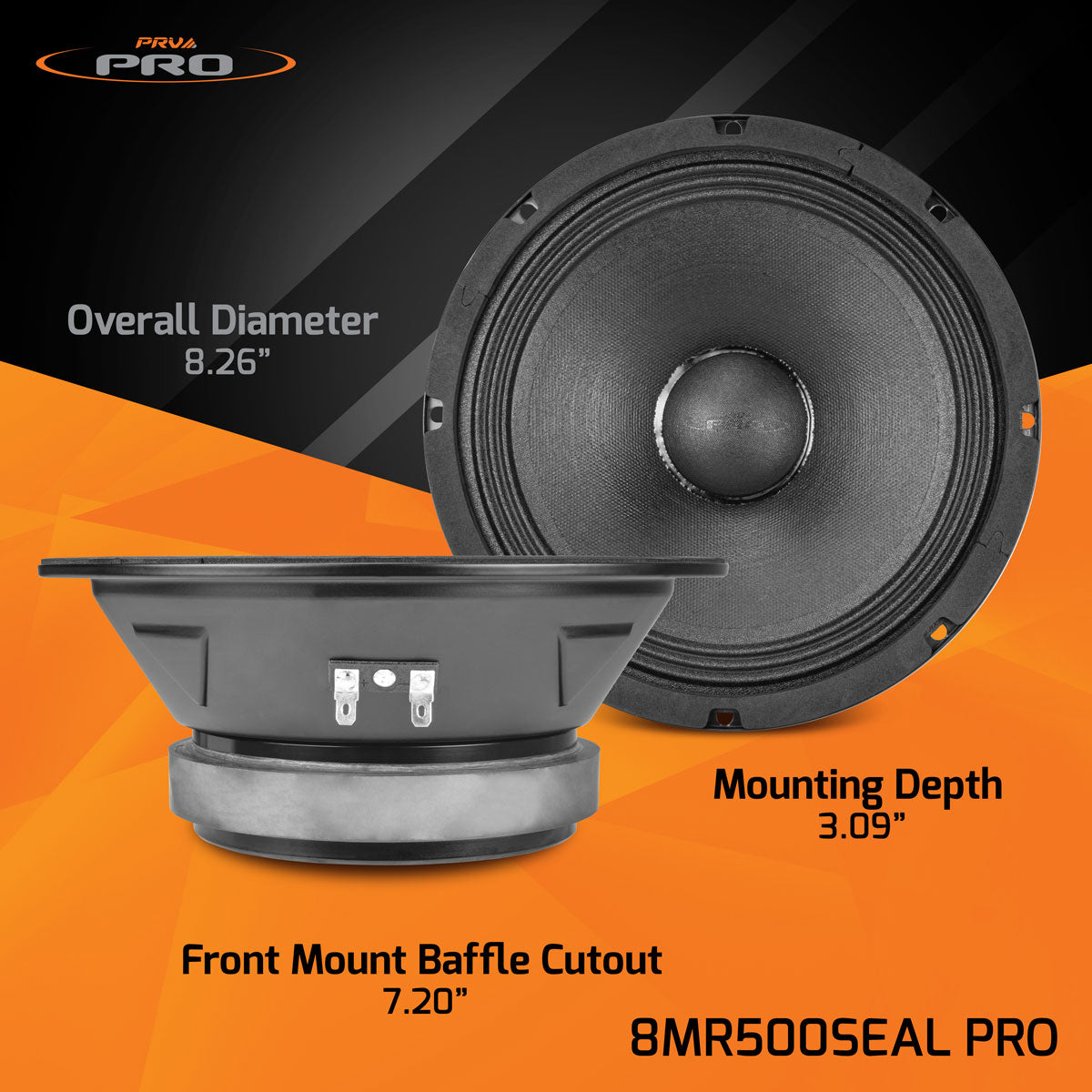

| Overall Diameter | 8.26″ (209.7 mm) |
| Front Mount Baffle Cutout | 7.20″ (183 mm) |
| Mounting Depth | 3.09″ (78.5 mm) |
| Overall Depth | 3.40″ (86.5 mm) |
| Net Weight | 6.40 Lbs (2.90 kg) |
| Shipping Weight | 7.0 Lbs (3.18 kg) |
| Carton Dimensions W x L x H | 9.05″ x 9.05″ x 3.94″ (230 x 230 x 100 mm) |
