Description
Description

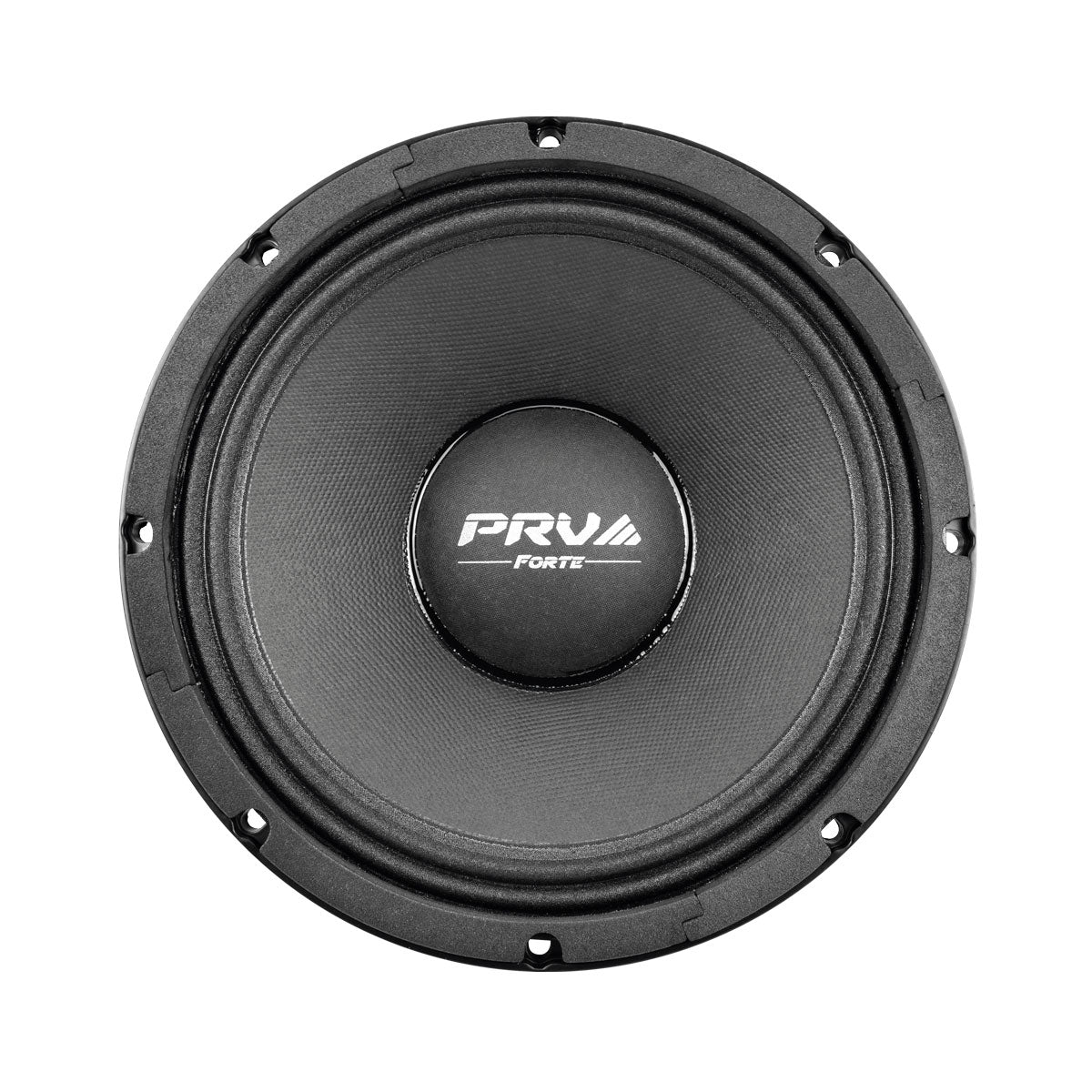

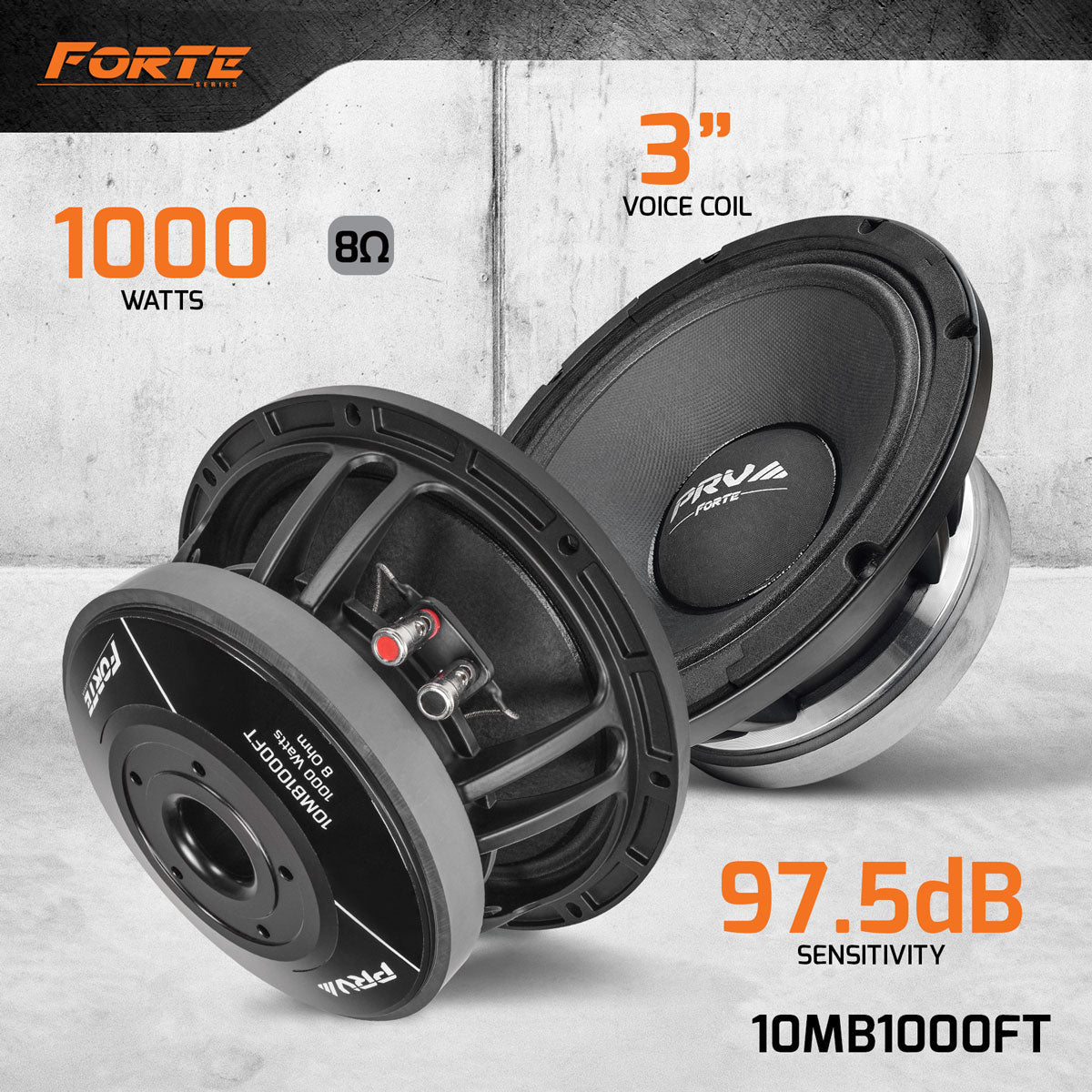

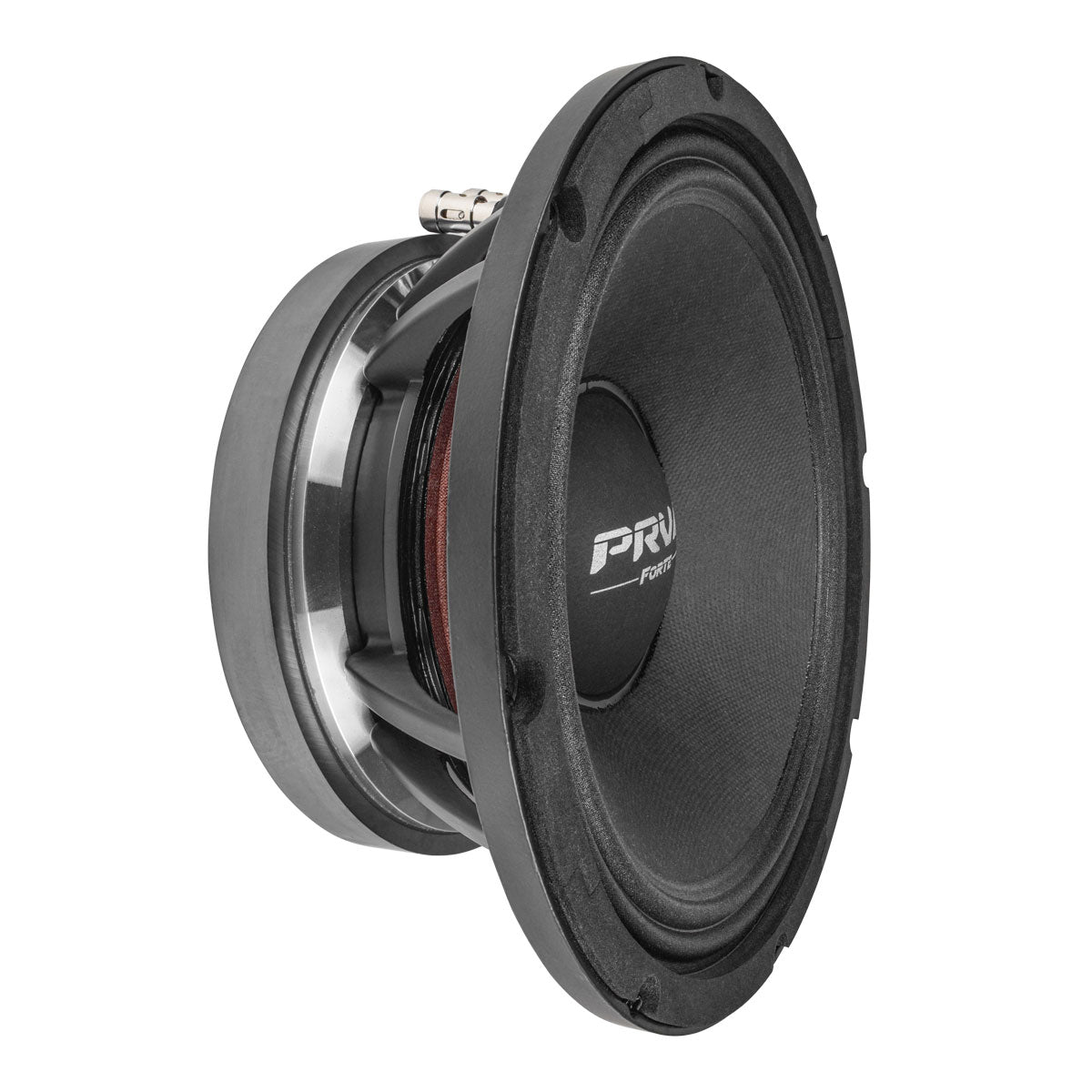

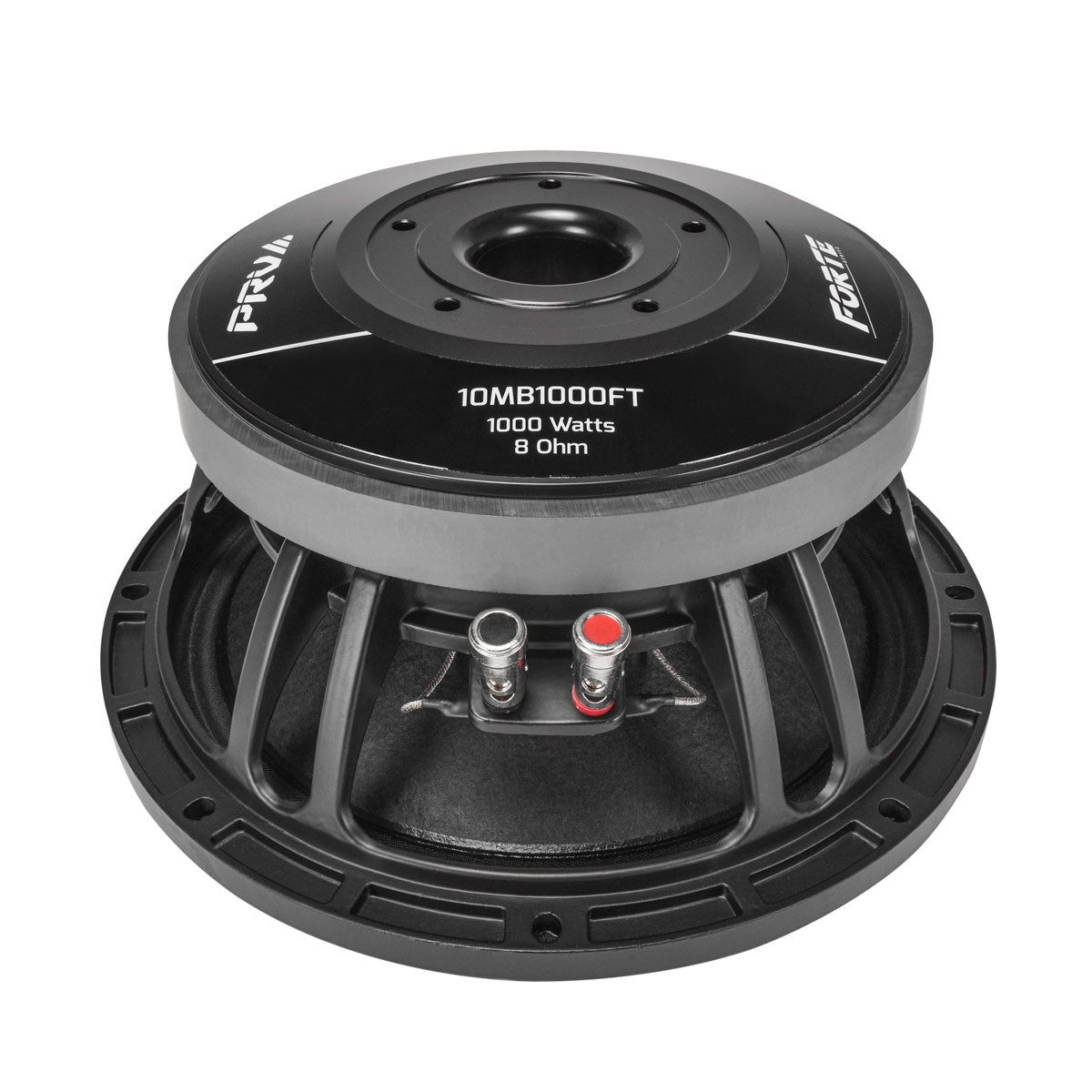

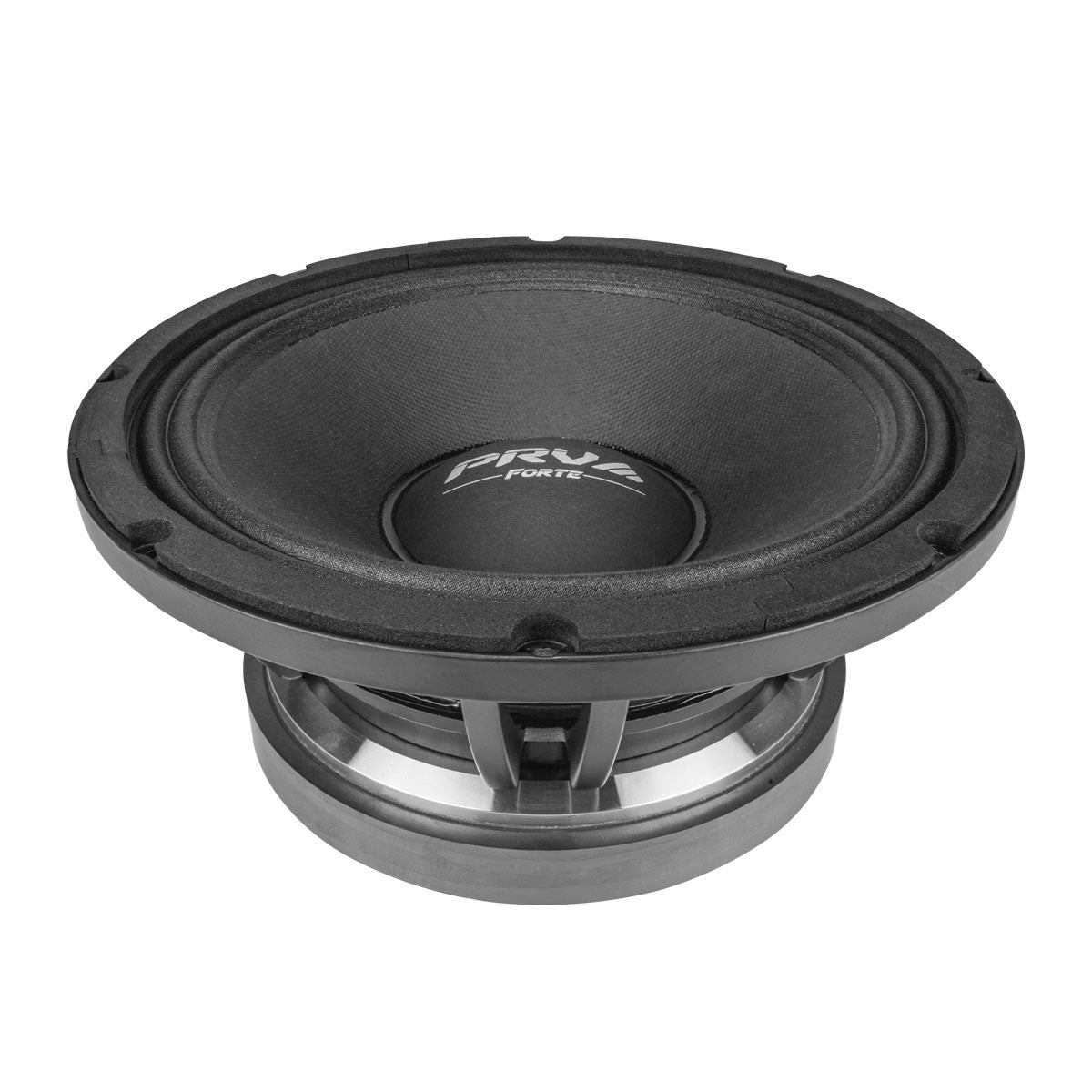

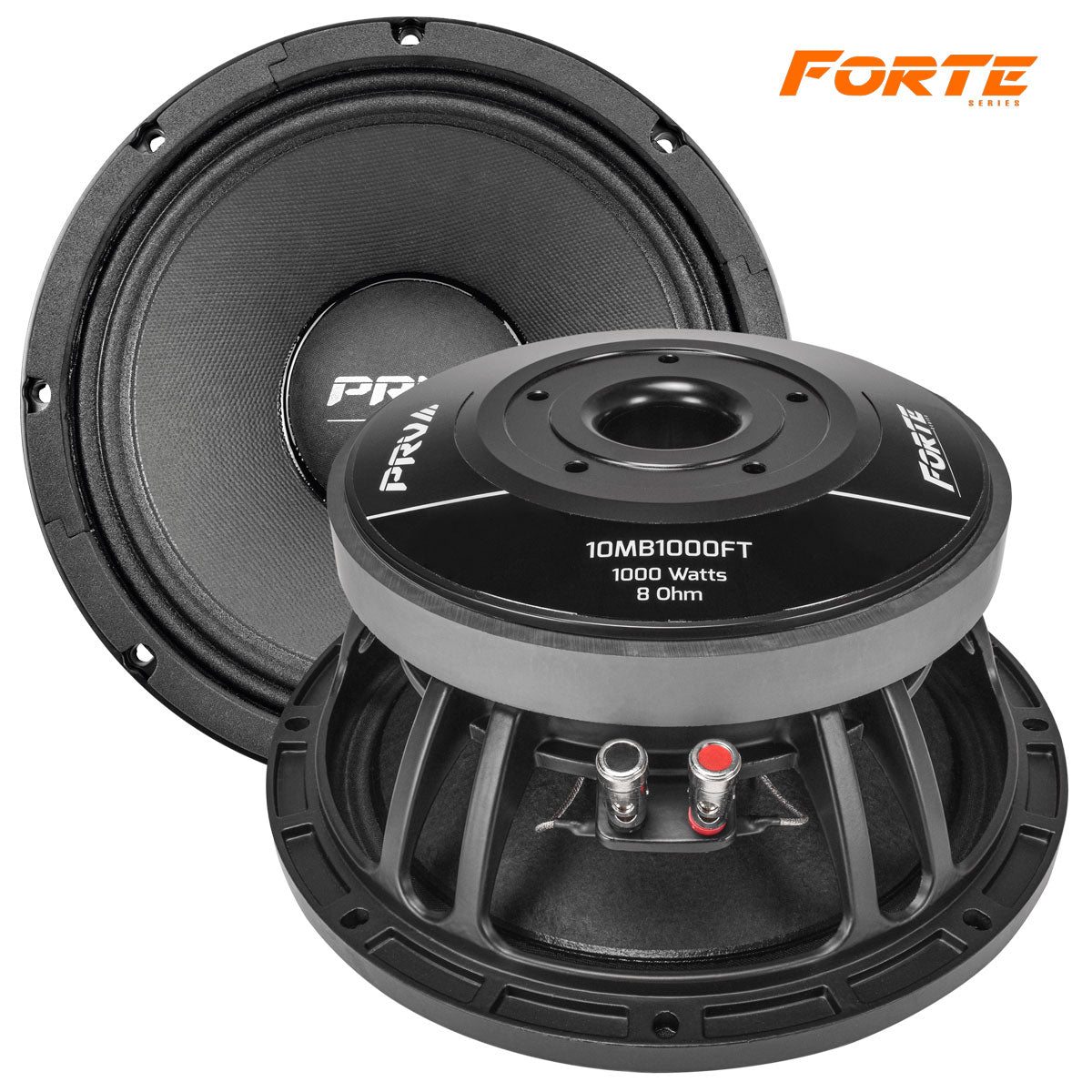

Combining high output with low distortion midbass response, PRV Audio’s 10MB1000FT 10″ professional midbass loudspeaker is the perfect choice for high-powered sound reinforcement speakers, stage monitors, and even high SPL PROAudioOnWheels systems.
A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10″ midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response. Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.
- 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more midbass output
- 1000 watts continuous program power rating makes the high acoustical output
- Built to Perform! It will stand up to considerable use and abuse.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling* | 500 Watts |
| Continuous Program Power (RMS)** | 1000 Watts |
| Max Peak Power*** | 2000 Watts |
| Sensitivity 2.83V at 1m | 97.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 120 Hz 12db Per Octave Crossover |
| Frequency Response | 75- 7,000 Hz |
| Voice Coil Diameter | 3″ (75 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 16.5 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 32.3 l |
| Excursion (mathematical)*** | Xmax | 5.87 mm |
| Free Air Resonance | Fs | 75.0 Hz |
| Mechanical Factor | Qms | 12.41 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.32 |
| Cone Area | Sd | 380 cm² |
| Mechanical Mass | Mms | 28.10 g |
| Bl Factor | Bl | 14.49 Tm |
| Dc Resistance | Re | 5.3 Ohm |
| Inductance | Le | 0.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 23.30 g |
| Mechanical Compliance | Cms | 0.160 mm/N |
EXTRA INFO

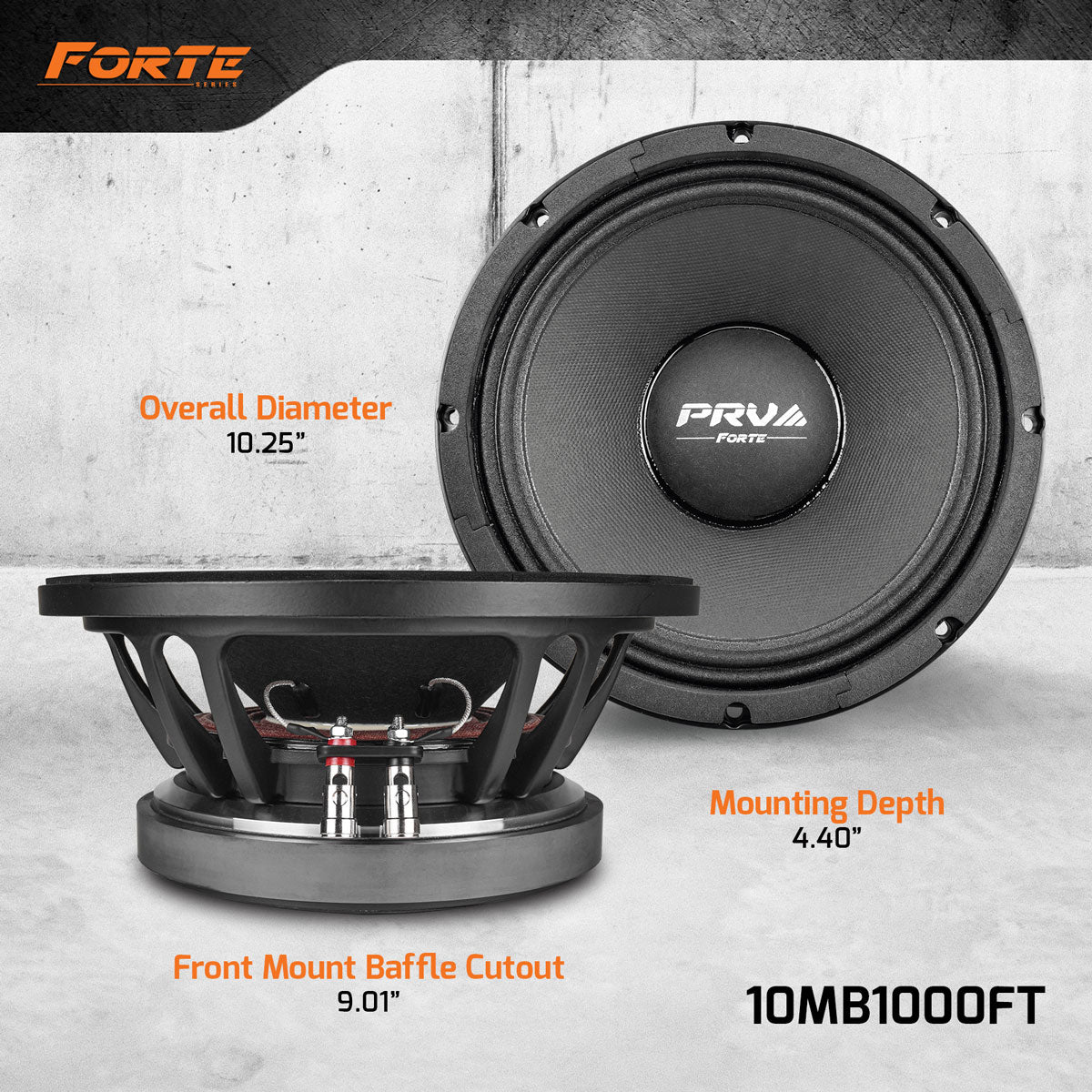

| Overall Diameter | 10.25” (260.5 mm) |
| Front Mount Baffle Cutout | 9.01” (229 mm) |
| Mounting Depth | 4.40” (111.5 mm) |
| Overall Depth | 4.96” (126 mm) |
| Net Weight | 15.0 Lbs (6.8 kg) |
| Shipping Weight | 16.6 Lbs (7.54 kg) |
| Carton Dimensions W x L x H | 11.61”x 11.61” x 6.30” (295 x 295 x 160mm) |
