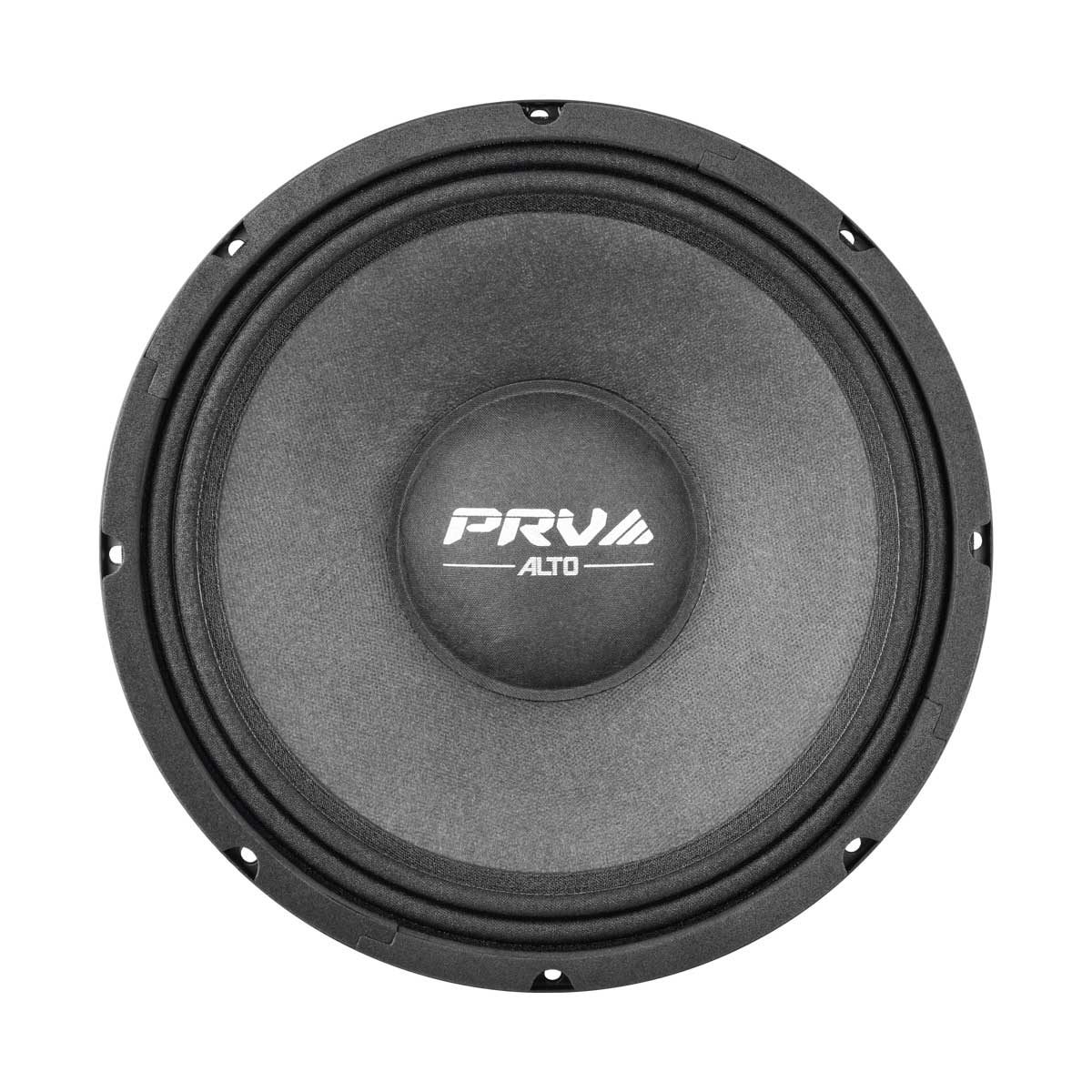

PRV Audio 10MR650A 10" Alto Series Professional Woofer - 8 Ohms

High fidelity meets high output — PRV Audio ALTO Series Woofers.

Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That's why PRV Audio's Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.

To get the right sound, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.
A unique, woven-cloth dustcap helps to achieve high sensitivity by reducing moving mass, while helping to cool the voice coil.

You'll find that Alto Series woofers work remarkably well in vented and sealed cabinets, as woofers in two-way speakers or midrange speakers in three-way systems, and even shine when used as bass guitar and guitar speakers. Upgrade to the PRV Audio ALTO Series...

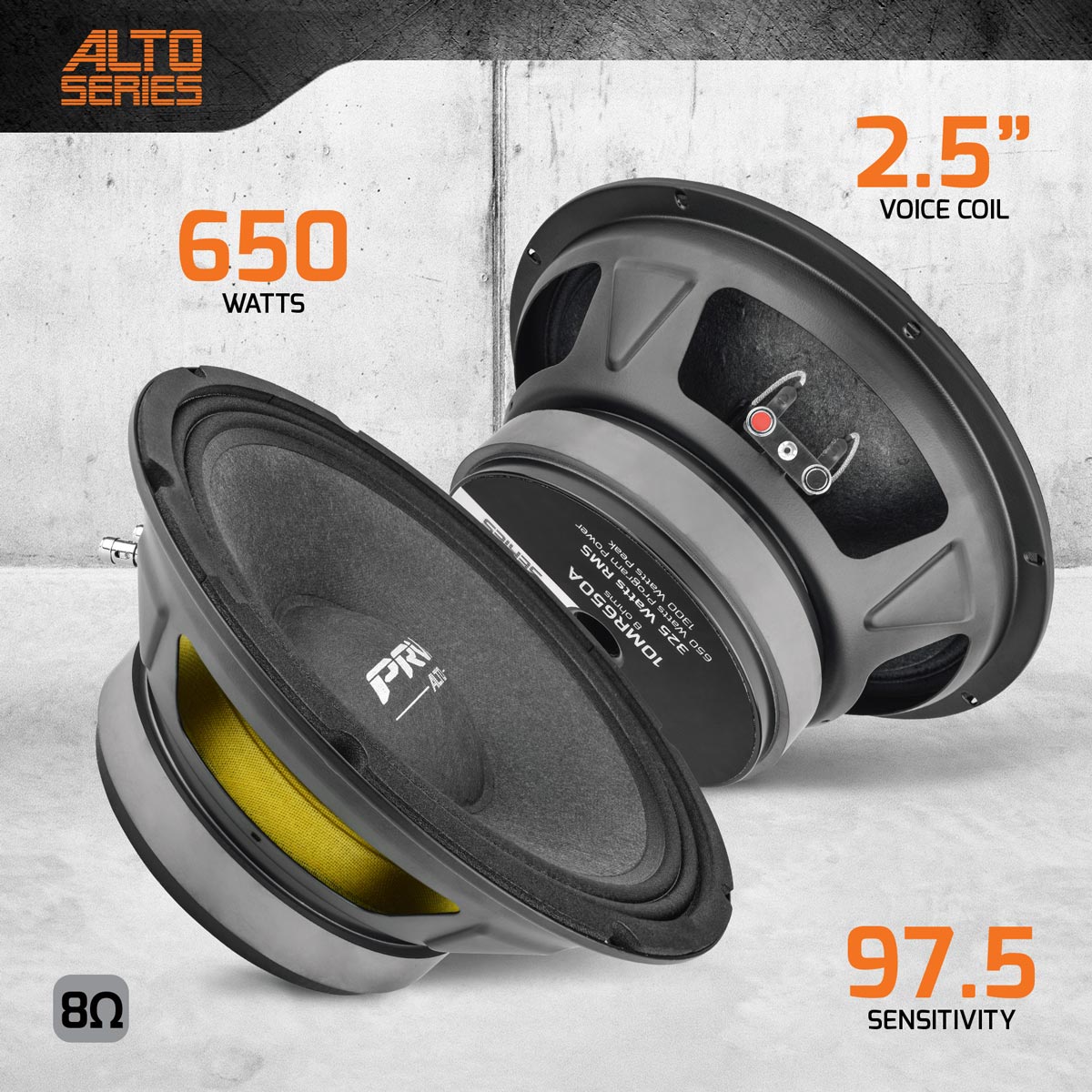

Specification:

• Nominal Diameter: 10" (254 mm)
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 325 Watts
• Program Power: 650 Watts
• Sensitivity (1W/1m): 97 dB
• Recommended Hi Pass X-Over: 150 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 75 - 5,500 Hz
• Voice Coil Diameter: 2.5" (65.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 13.0 mm
• Former Material: Kapton
• Magnetic Gap Depth: 8.0 mm
• Frame Material: Stamped Steel

Thiele-Small Parameters:

• Equivalent Volume (Vas): 34.04
• Xmax: 4.50 mm
• Resonance Frequency (Fs): 72.31 Hz
• Mechanical Factor (Qms): 16.34
• Electrical Factor (Qes): 0.47
• Total Factor (Qts): 0.46
• Cone Area (Sd): 415 cm²
• Mechanical Mass (Mms): 34.04 g

• Bl Factor (Bl): 14.09 Tm
• Dc Resistance (Re): 6.1 Ohms
• Inductance (Le): 0.79 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 29.24 g

• Mechanical Compliance (Cms): 0.142 mm/N

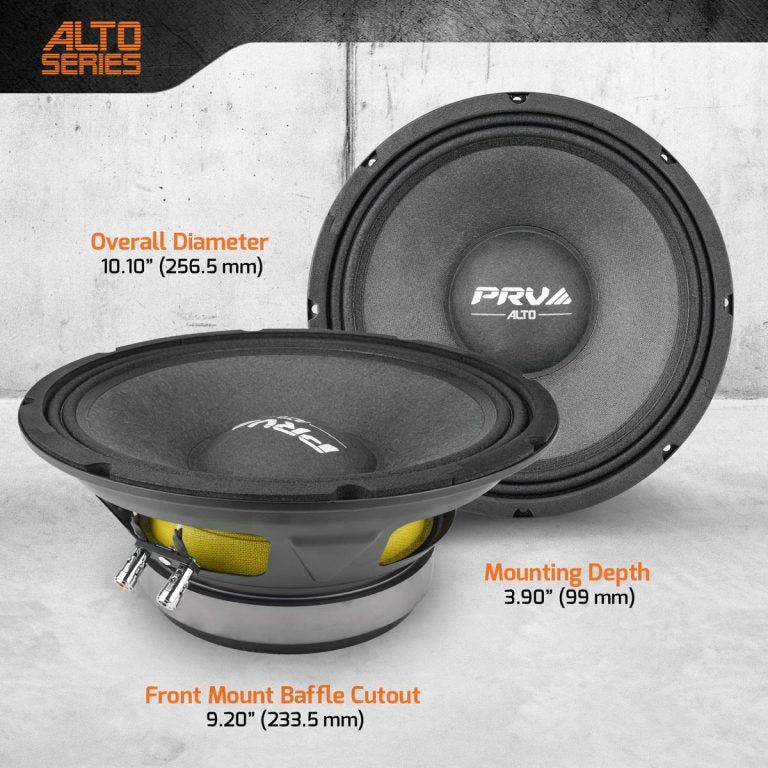

Mounting and Shipping Information:

• Overall Diameter: 10.10" (257 mm)
• Front Mount Baffle Cutout: 9.25" (235 mm)
• Mounting Depth: 4.3” (110 mm)
• Overall Depth: 4.3” (110 mm)
• Weight: 12.8 Lbs
• Sold Individually
