PRV AUDIO 12MB1500 12" Mid Bass 8 ohms
PRV AUDIO 12MB1500 12" Mid Bass 8 ohms is backordered and will ship as soon as it is back in stock.
Description
Description
The PRV 12MB1500 has an excellent linear response, well controlled down to 80 Hz, which makes it a great option for 2-way cabinet systems that require strong BL magnet force and bass punch.
A very strong ferrite magnetic structure of 25 mm guarantees dynamism and precision and a unique 3,5” inside/outside voice coil design provides a very high-power handling especially in comparison to a standard 3” voice coil.
A double silicon spider system ensures excellent control during large excursions of 28 mm peak-to-peak excursion before damage.
The dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 750 Watts
- Program Power: 1500 Watts
- Sensitivity (1W/1m): 98.5 dB
- Voice Coil Diameter: 3.5″
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 750 Watts |
| Program Power | 1500 Watts |
| Sensitivity 2.83V at 1m | 98.5 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
90 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 75 – 5,000 Hz |
| Voice Coil Diameter | 3.5″ (89 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 18.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 48.89 l |
| Excursion (mathematical)*** | Xmax | 6.50 mm |
| Free Air Resonance | Fs | 66.07 Hz |
| Mechanical Factor | Qms | 14.66 |
| Electrical Factor | Qes | 0.43 |
| Total Factor | Qts | 0.42 |
| Cone Area | Sd | 575 cm² |
| Mechanical Mass | Mms | 54.33 g |
| Bl Factor | Bl | 16.39 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 1.02 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 46.57 g |
| Mechanical Compliance | Cms | 0.107 mm/N |
EXTRA INFO

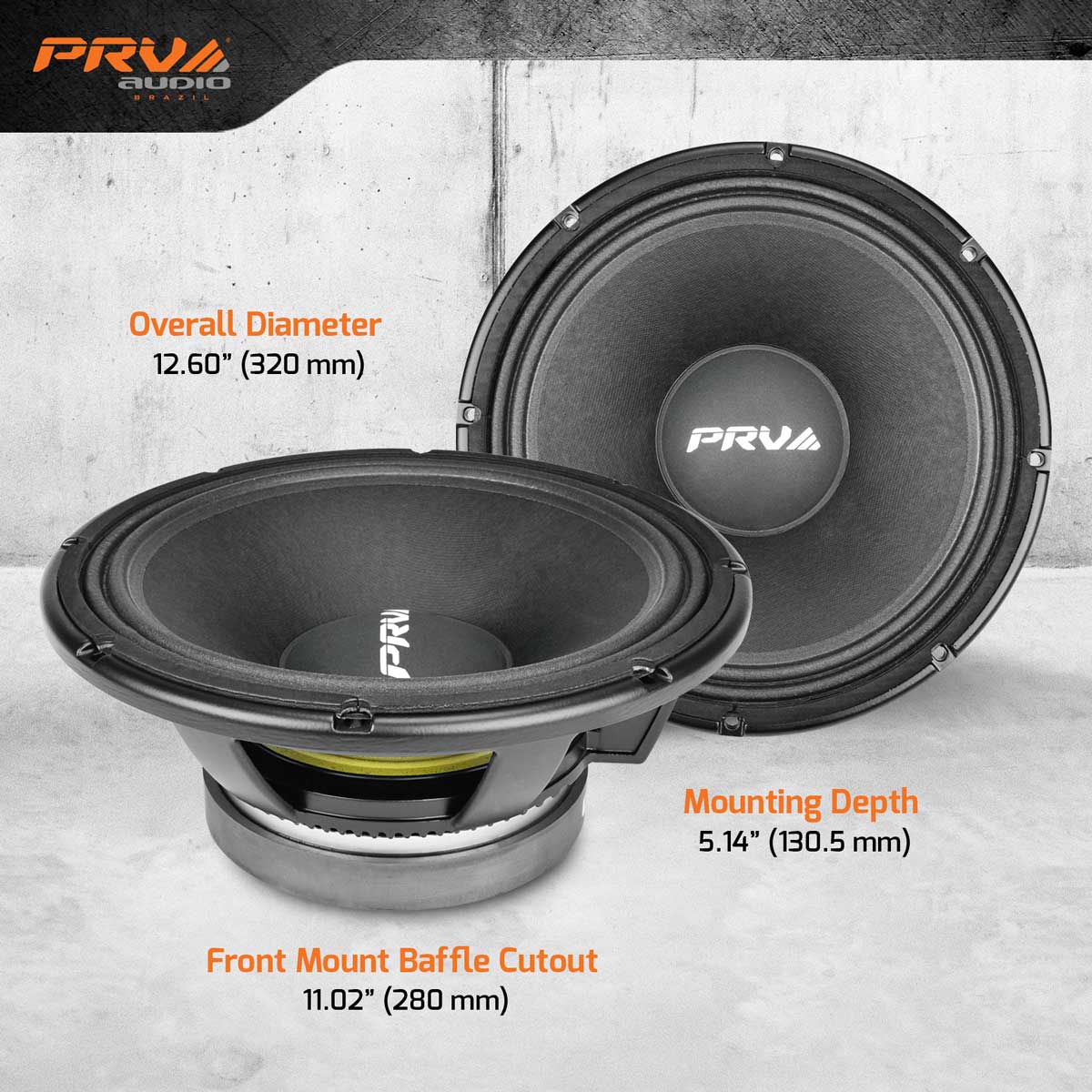

| Overall Diameter | 12.60” (320 mm) |
| Front Mount Baffle Cutout | 11.02” (280 mm) |
| Mounting Depth | 5.14” (130.5 mm) |
| Overall Depth | 5.63” (143 mm) |
| Net Weight | 16.7 Lbs (7.57 kg) |
| Shipping Weight | 18.07 Lbs (8.20 kg) |
| Carton Dimensions W x L x H | 13.97” x 13.97” x 8.07” (355 x 355 x 205 mm) |
