Description
Description

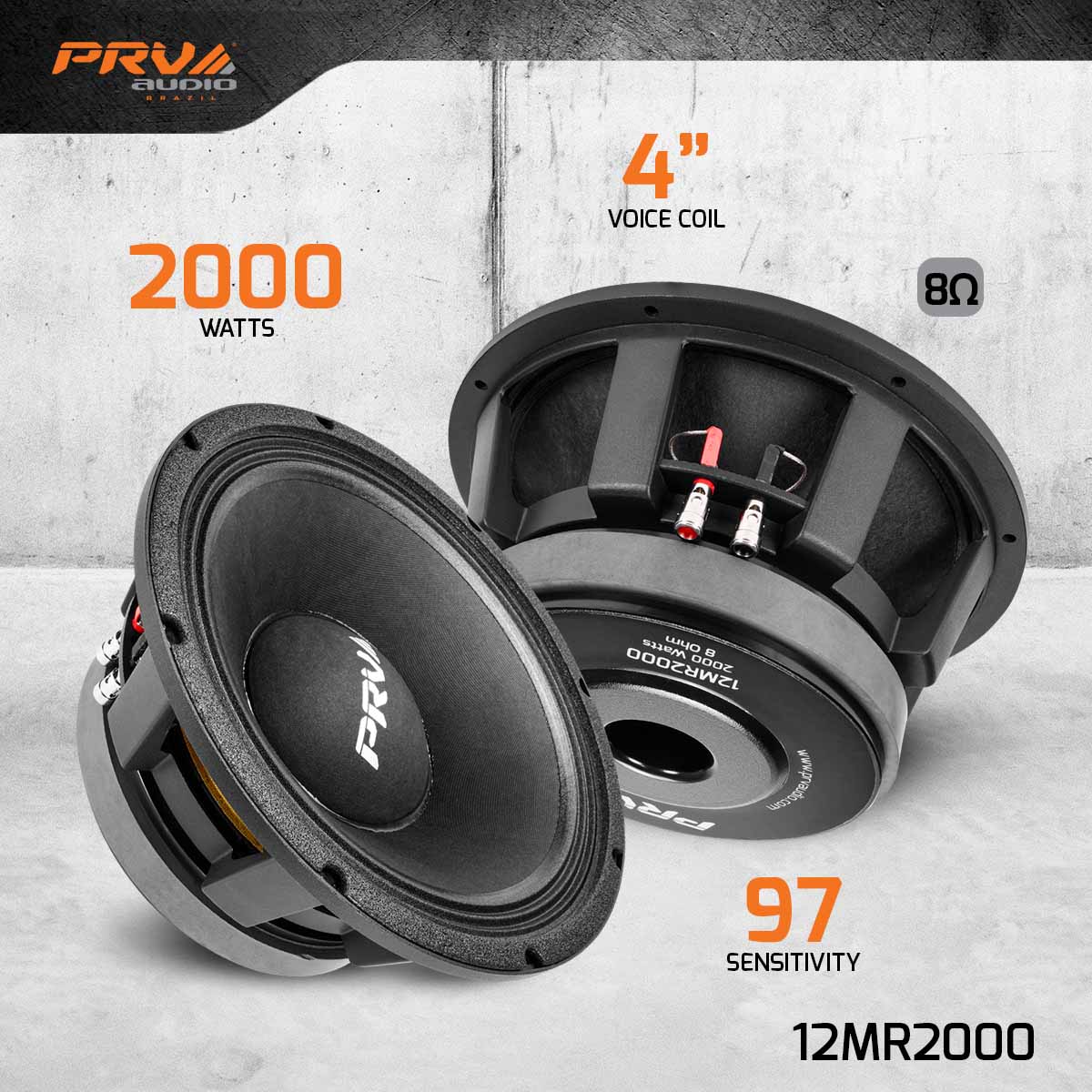

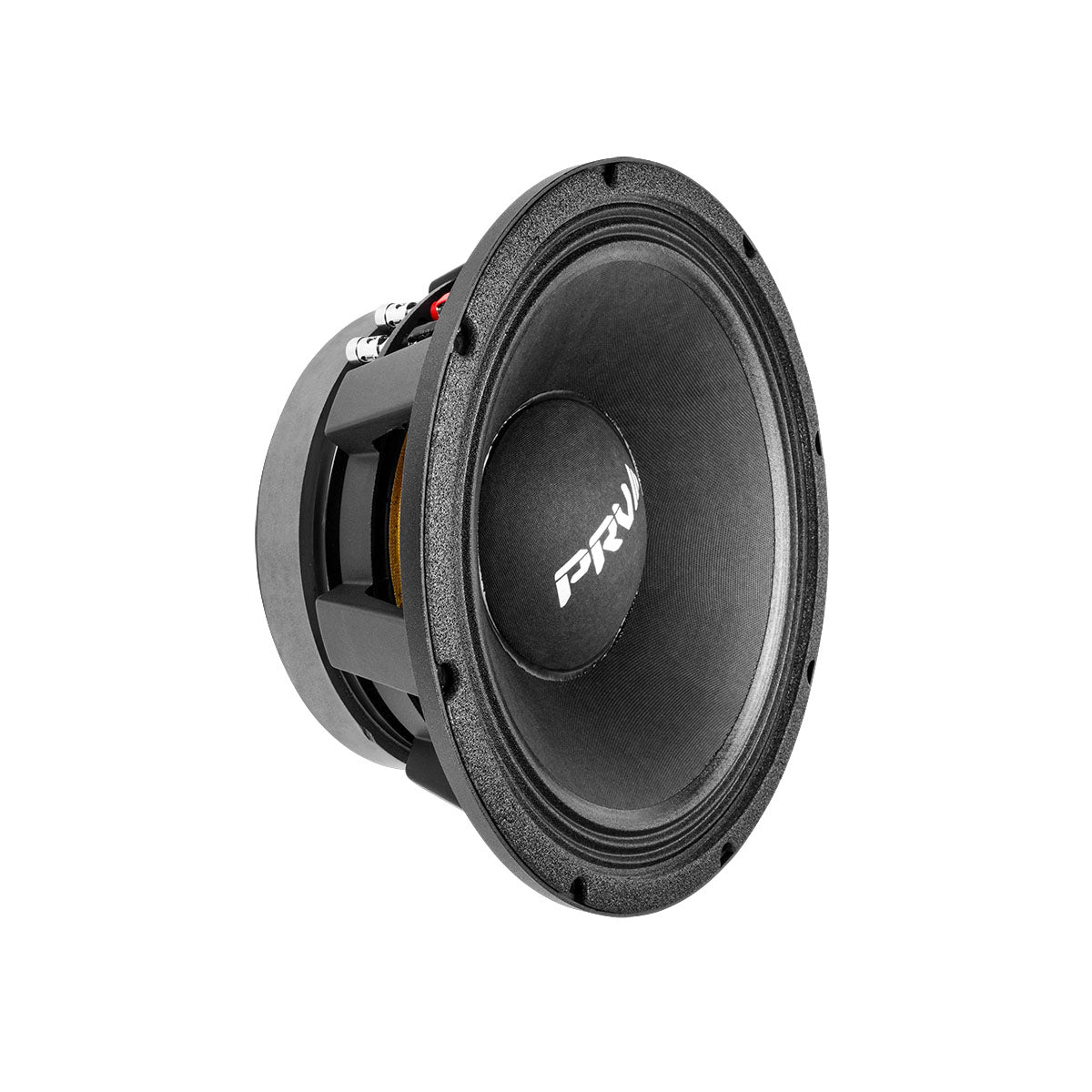

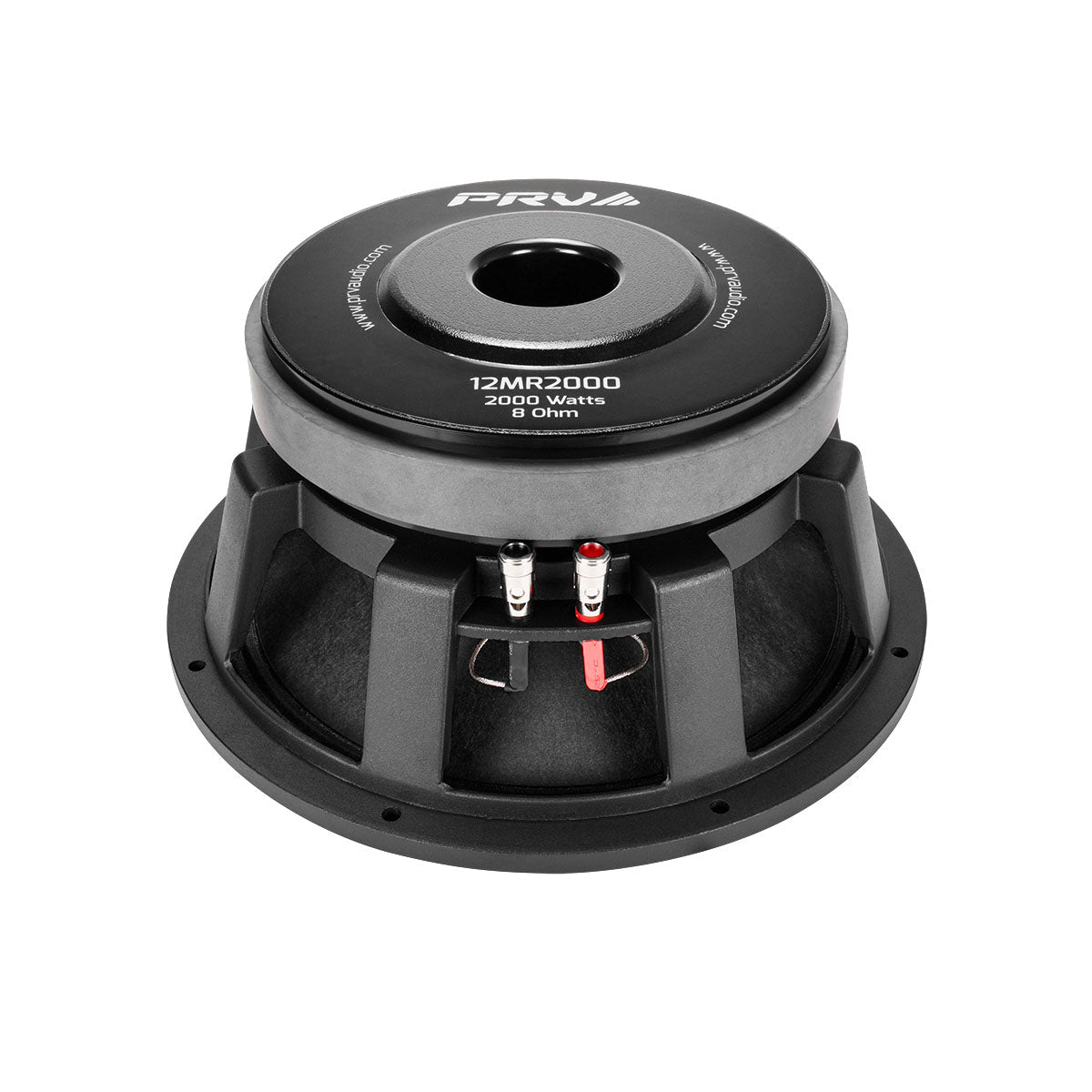

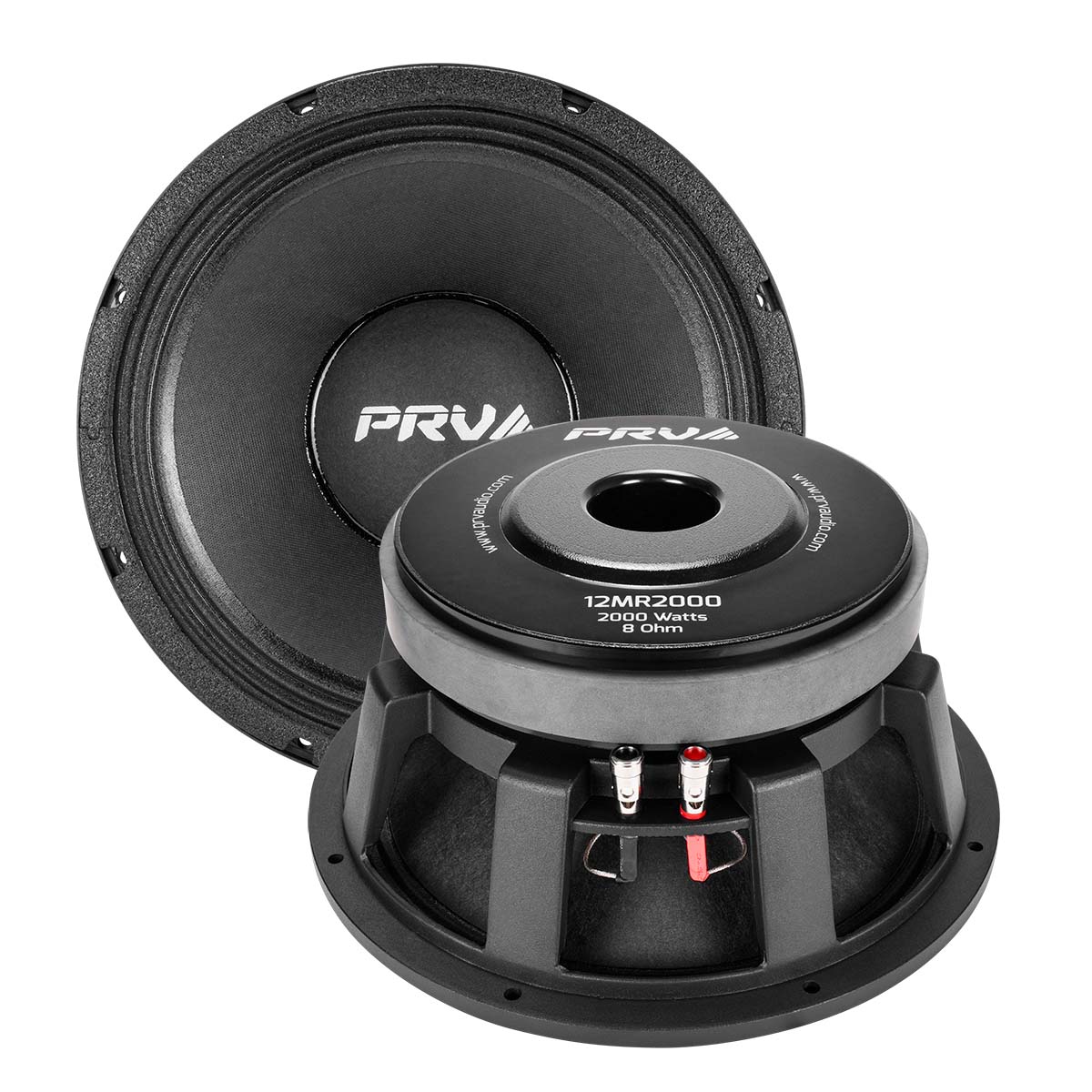

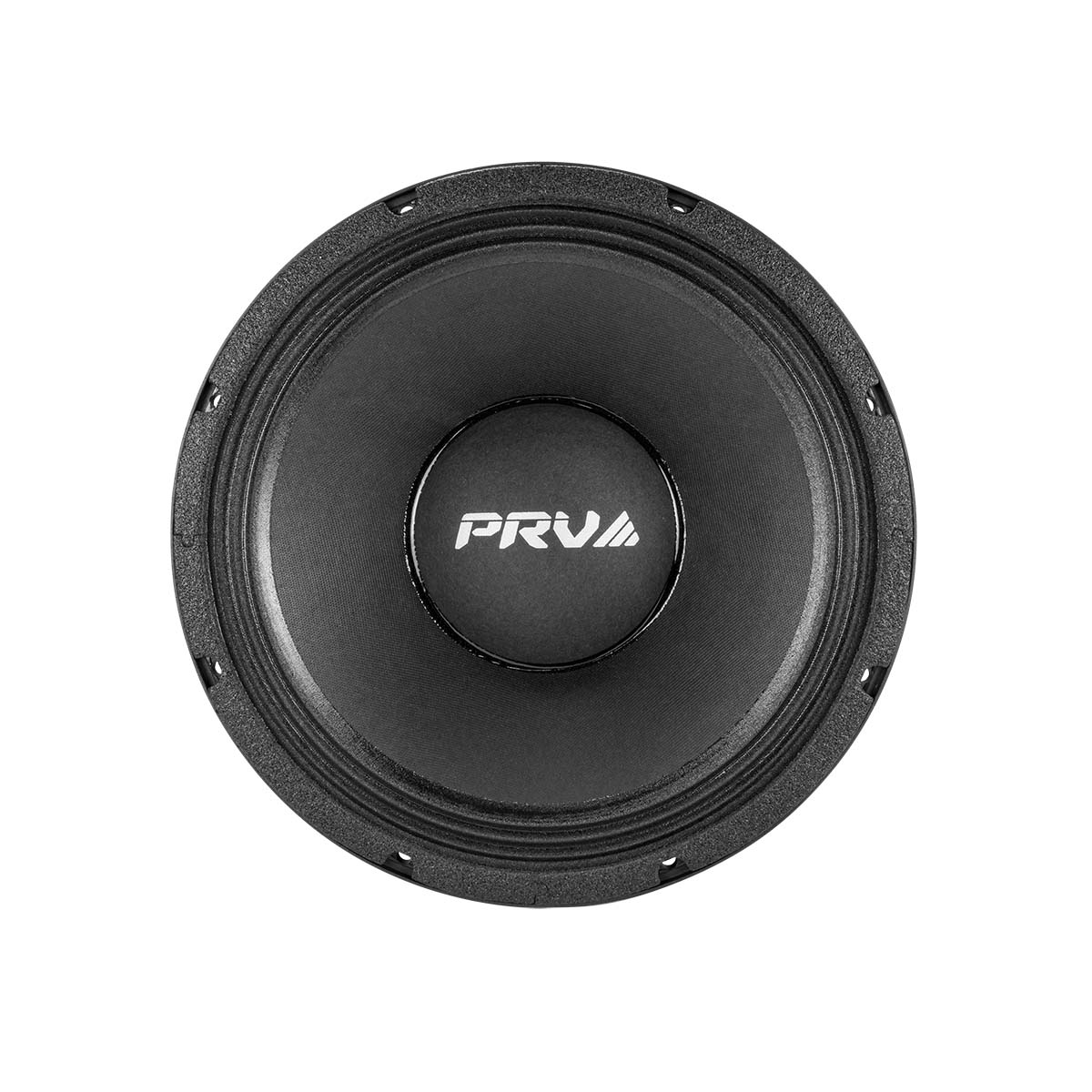

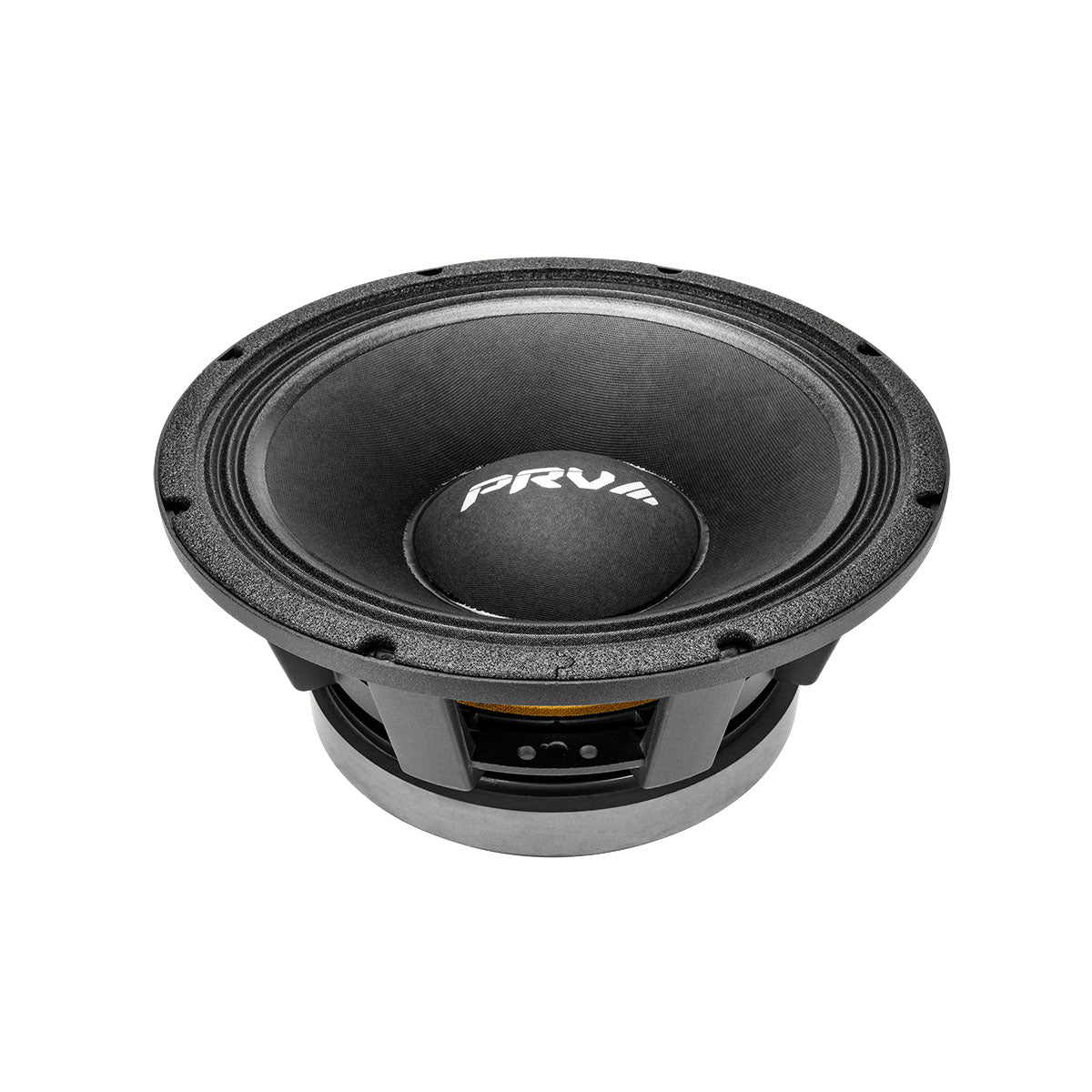

The PRV Audio 12MR2000 midbass woofer offers outstanding durability and is our most powerful midrange driver. This woofer is great for high power 2 or 3-way systems and produces excellent vocal support for stage monitors.
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 1000 Watts
- Continuous Program Power (RMS): 2000 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 4″
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 1000 Watts |
| Continuous Program Power (RMS)** | 2000 Watts |
| Max Peak Power*** | 4000 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
145 Hz 12db Per Octave Crossover |
| Frequency Response | 72 – 5,000 Hz |
| Voice Coil Diameter | 4″ (101 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 17.0 mm |
| Former Material | Aluminum |
| Magnetic Gap Depth | 7.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 52.52 l |
| Excursion (mathematical)*** | Xmax | 6.62 mm |
| Free Air Resonance | Fs | 57.23 Hz |
| Mechanical Factor | Qms | 23.84 |
| Electrical Factor | Qes | 0.34 |
| Total Factor | Qts | 0.33 |
| Cone Area | Sd | 573 cm² |
| Mechanical Mass | Mms | 67.39 g |
| Bl Factor | Bl | 21.25 Tm |
| Dc Resistance | Re | 6.3 Ohms |
| Inductance | Le | 0.83 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 59.64 g |
| Mechanical Compliance | Cms | 0.114 mm/N |
EXTRA INFO

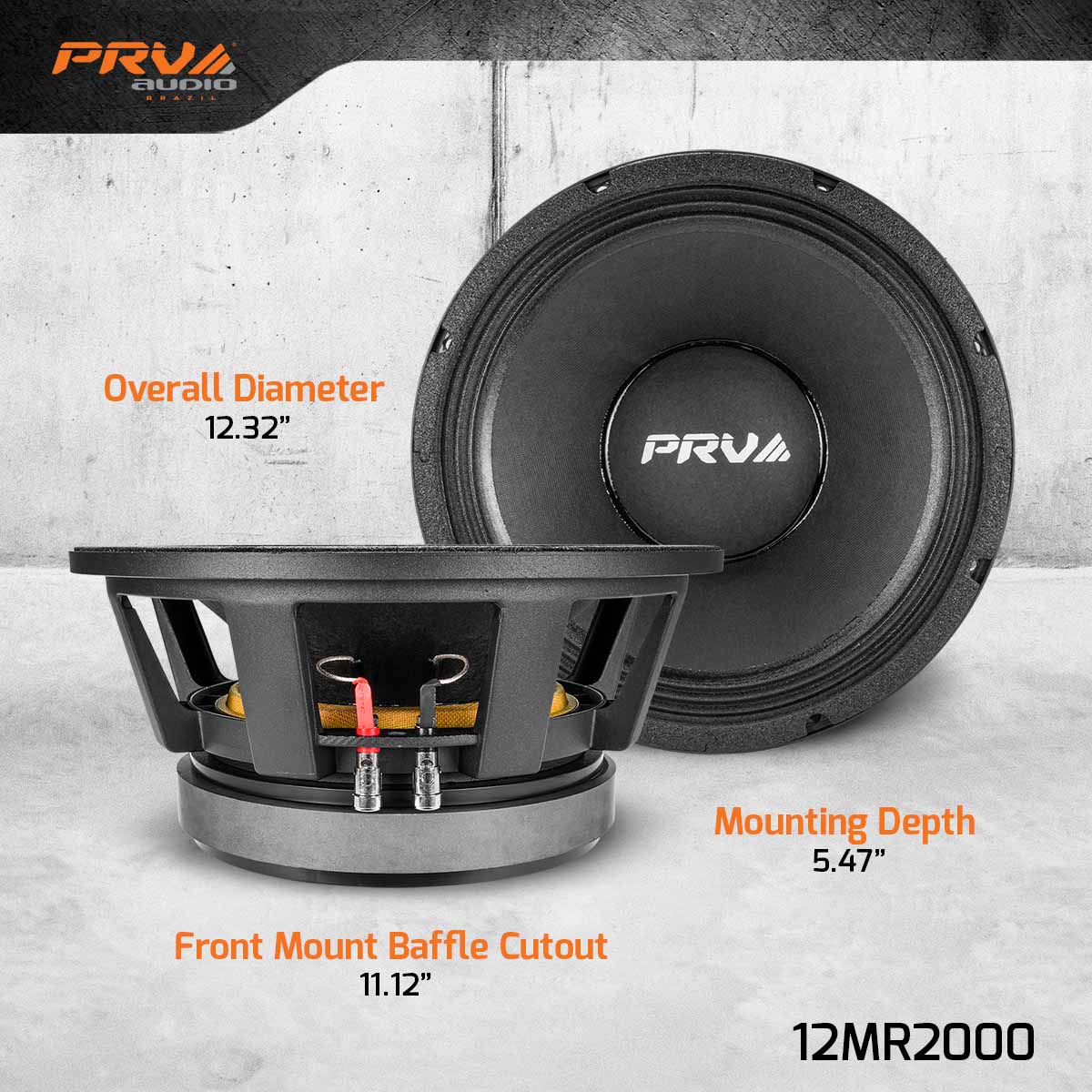

| Overall Diameter | 12.32” (313 mm) |
| Front Mount Baffle Cutout | 11.12” (282.5 mm) |
| Mounting Depth | 5.47” (139 mm) |
| Overall Depth | 5.91” (150 mm) |
| Net Weight | 23.04 Lbs (10.45 kg) |
| Shipping Weight | 24.92 Lbs (11.30 kg) |
| Carton Dimensions W x L x H | 14.37” x 14.37” x 8.07” (365 x 365 x 205 mm) |
