Description
Description

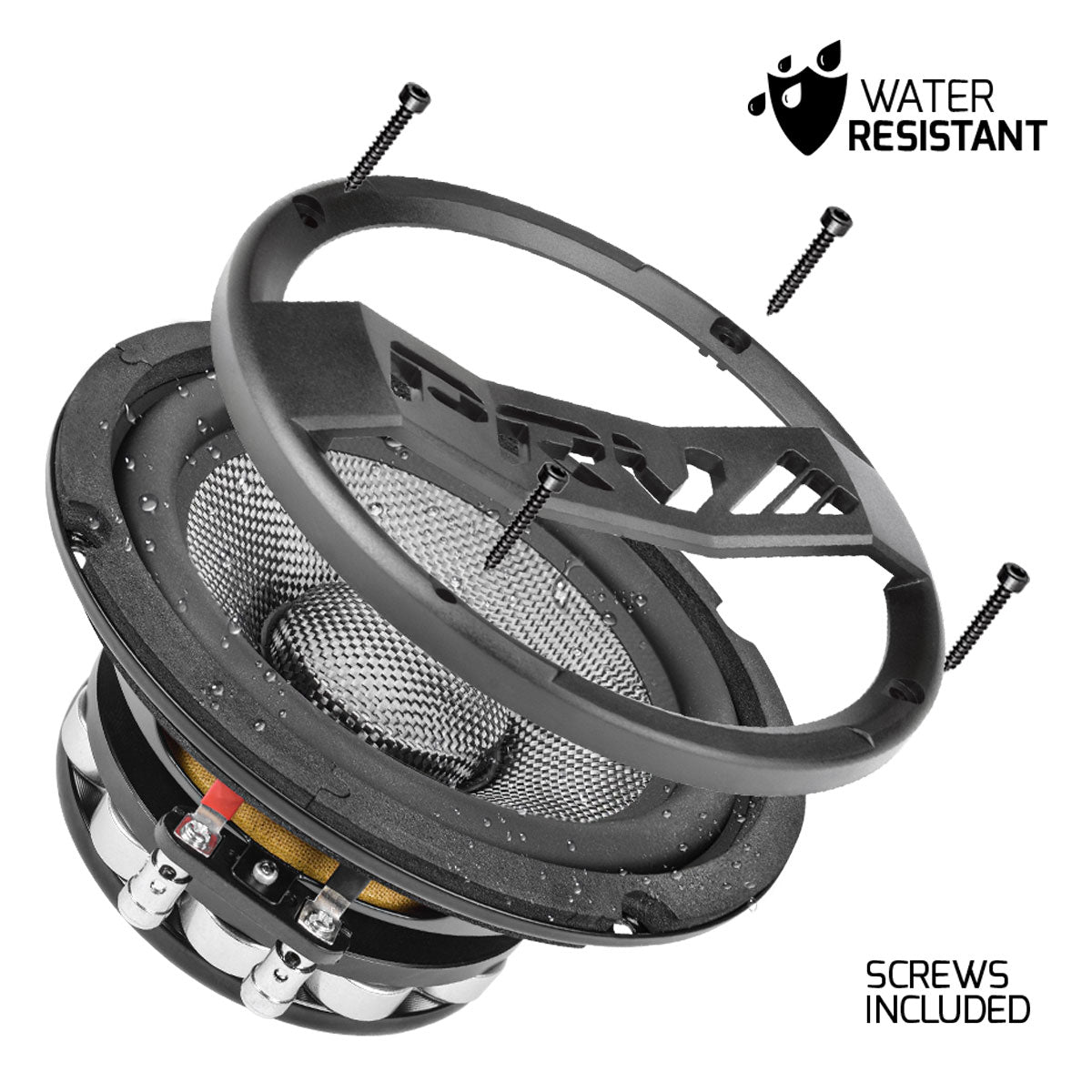

The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!
- Water Resistant with true PRO audio midrange performance
- Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
- Low inductance and extended frequency response
- Powerful neodymium magnet structure features distortion-canceling fixtures
- Fast transient response, minimal tonal coloration, and deep, dynamic midbass

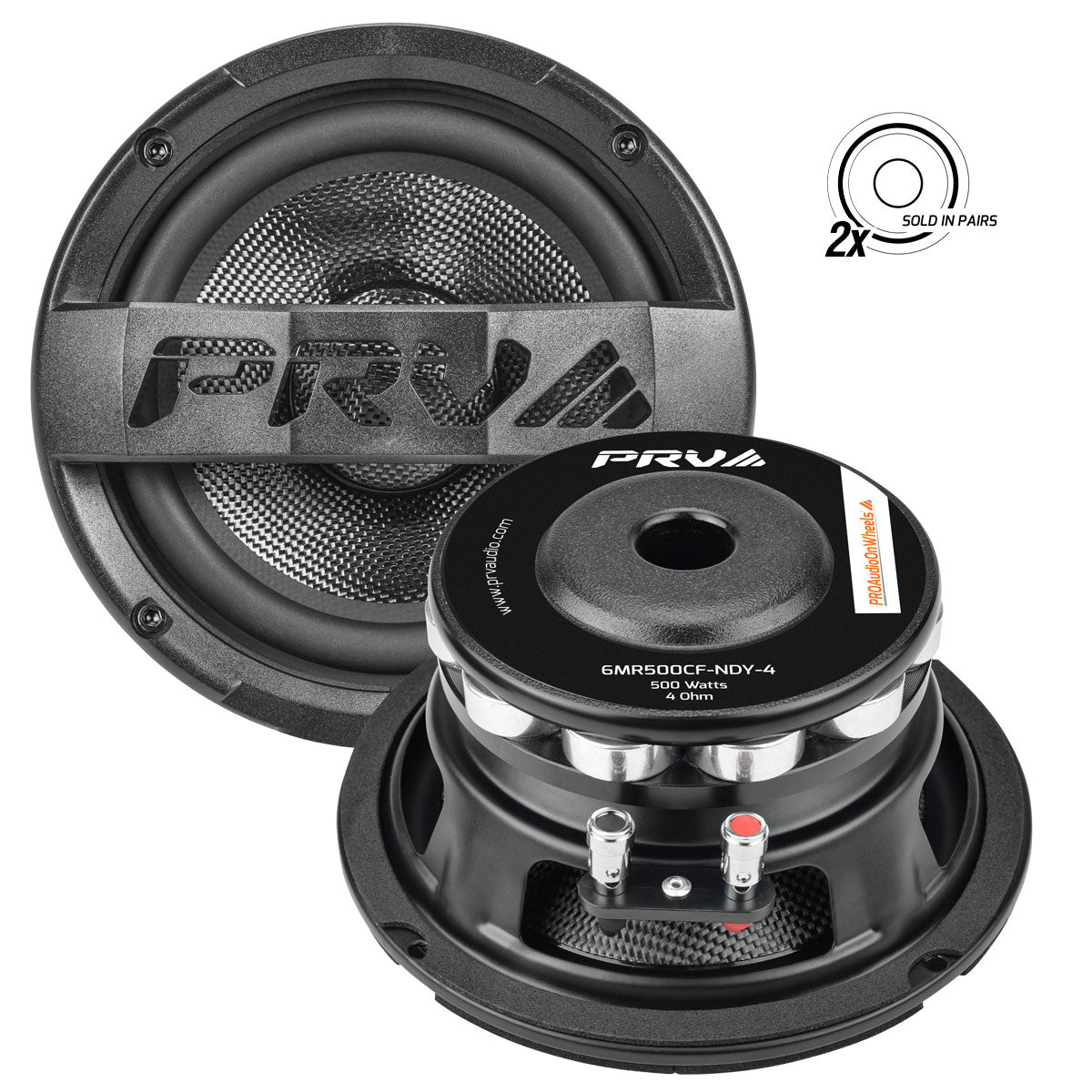

- Sold in pairs – Grill and screws are included
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling | 250 Watts |
| Continuous Program Power (RMS) | 500 Watts |
| Max Peak Power | 1000 Watts |

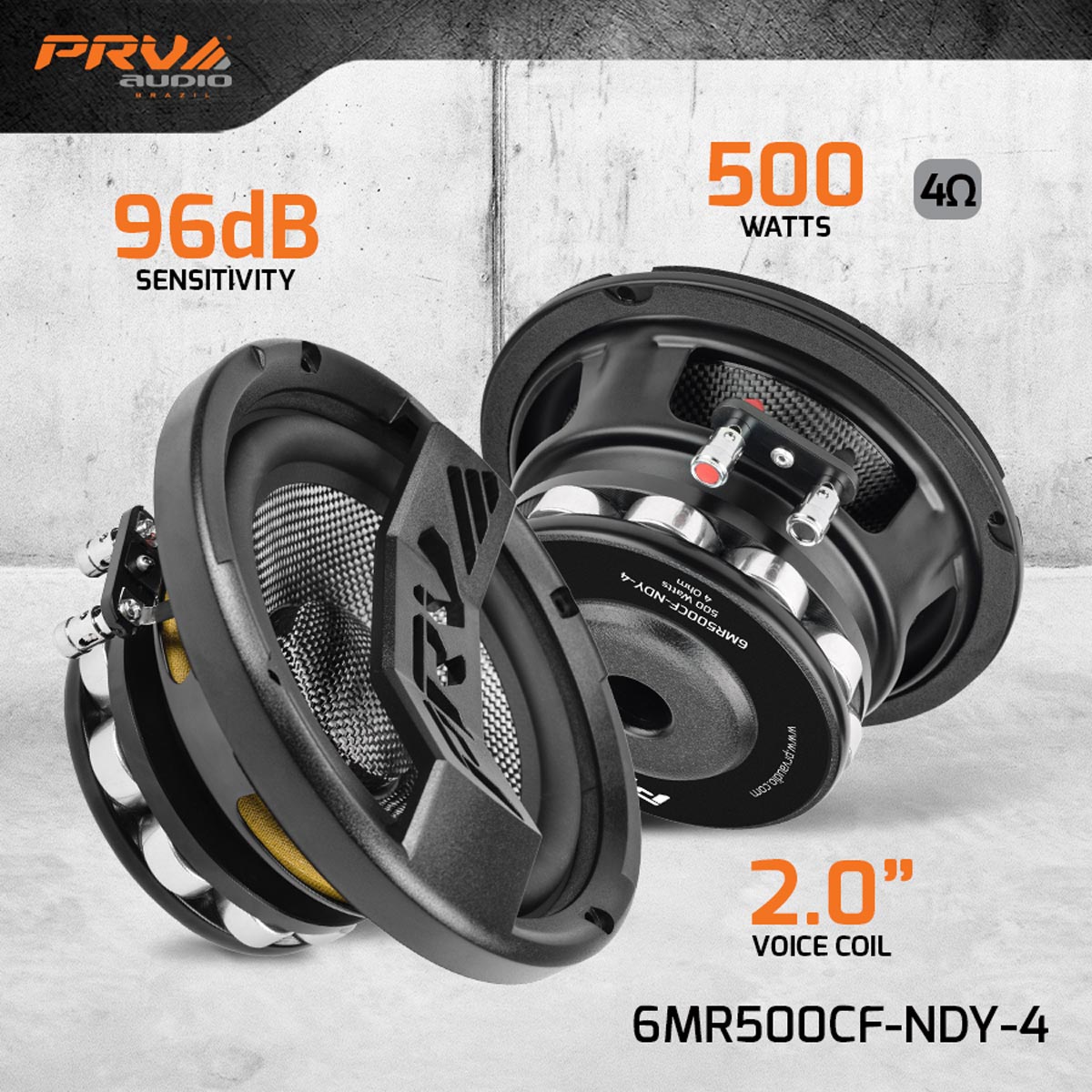

| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 95 Hz** **12db Per Octave Crossover |
| Frequency Response | 95 – 11,000 Hz |
| Voice Coil Diameter | 2.0″ (50.8 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 7.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.14 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 92.5 Hz |
| Mechanical Factor | Qms | 12.85 |
| Electrical Factor | Qes | 0.29 |
| Total Factor | Qts | 0.28 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 16.49 g |
| Bl Factor | Bl | 10.73 Tm |
| Dc Resistance | Re | 3.5 Ohms |
| Inductance | Le | 0.185 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 15.52 g |
| Mechanical Compliance | Cms | 0.179 mm/N |
EXTRA INFO

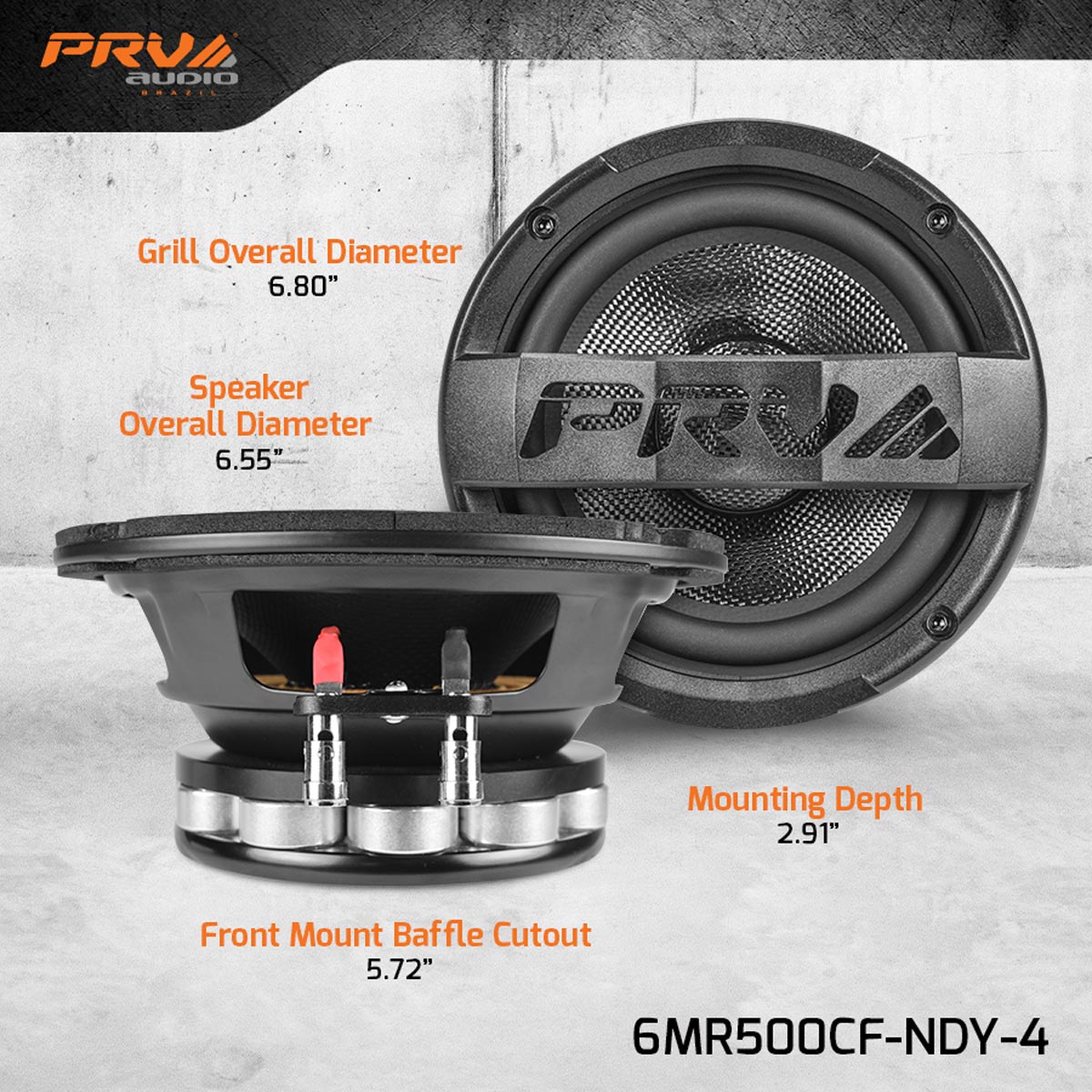

| Overall Diameter | 6.55″ (166.5 mm) |
| Front Mount Baffle Cutout | 5.72″ (145.5 mm) |
| Mounting Depth | 2.91″ (74 mm) |
| Overall Depth | 3.29″ (83.5 mm) |
| Net Weight | 3.85 Lbs (1.75 kg) unit |
| Shipping Weight | 9.15 Lbs (4.15 kg) pair |
| Carton Dimensions W x L x H | 15.7″ x 8.26″ x 5.12″ (400 x 210 x 130 mm) |
