- Type: Super Tweeter
- Nominal Impedance: 4Ω
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Voice Coil Diameter: 1.5″
1
of
4
Loading...
SKU:
PRV-TW700Ti-4

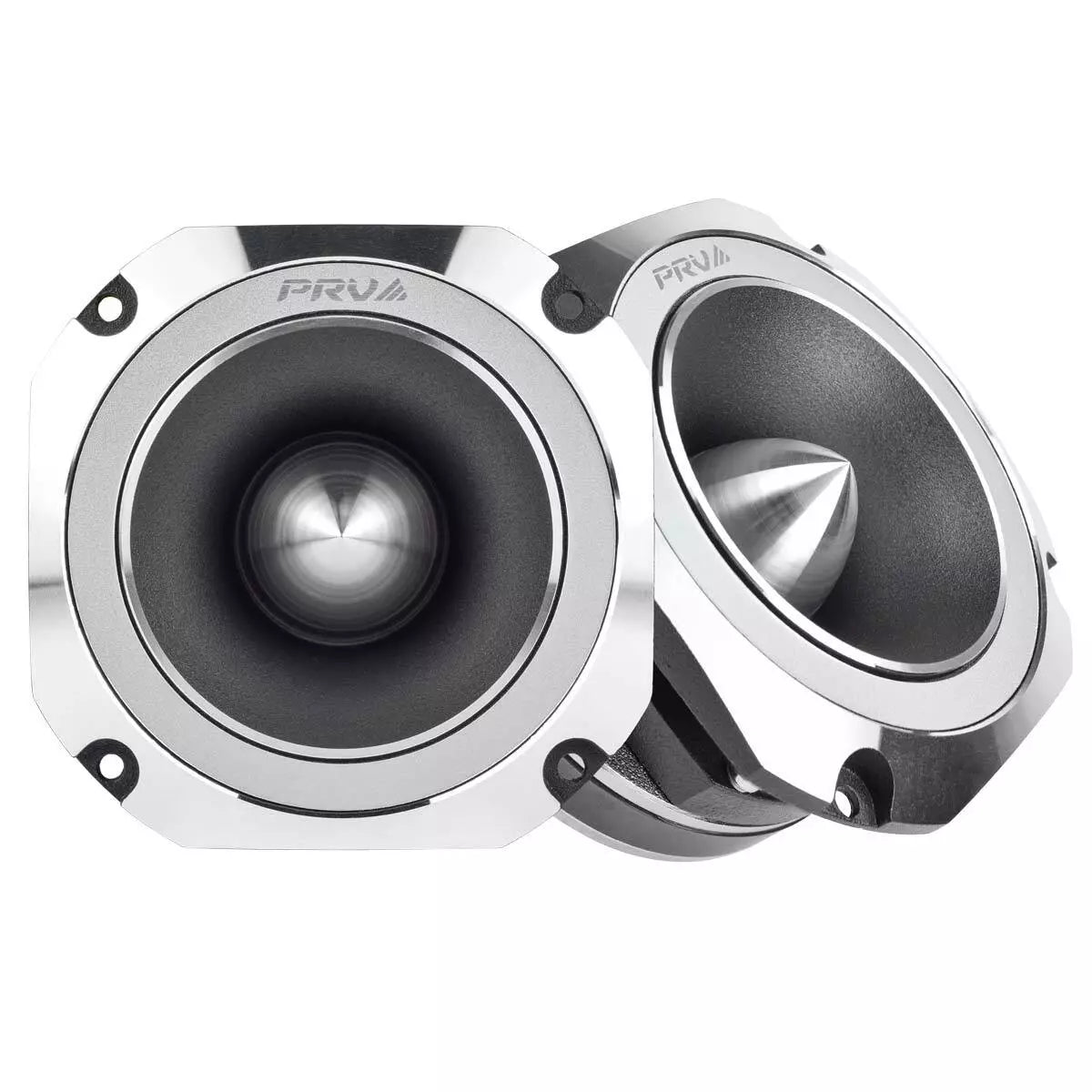

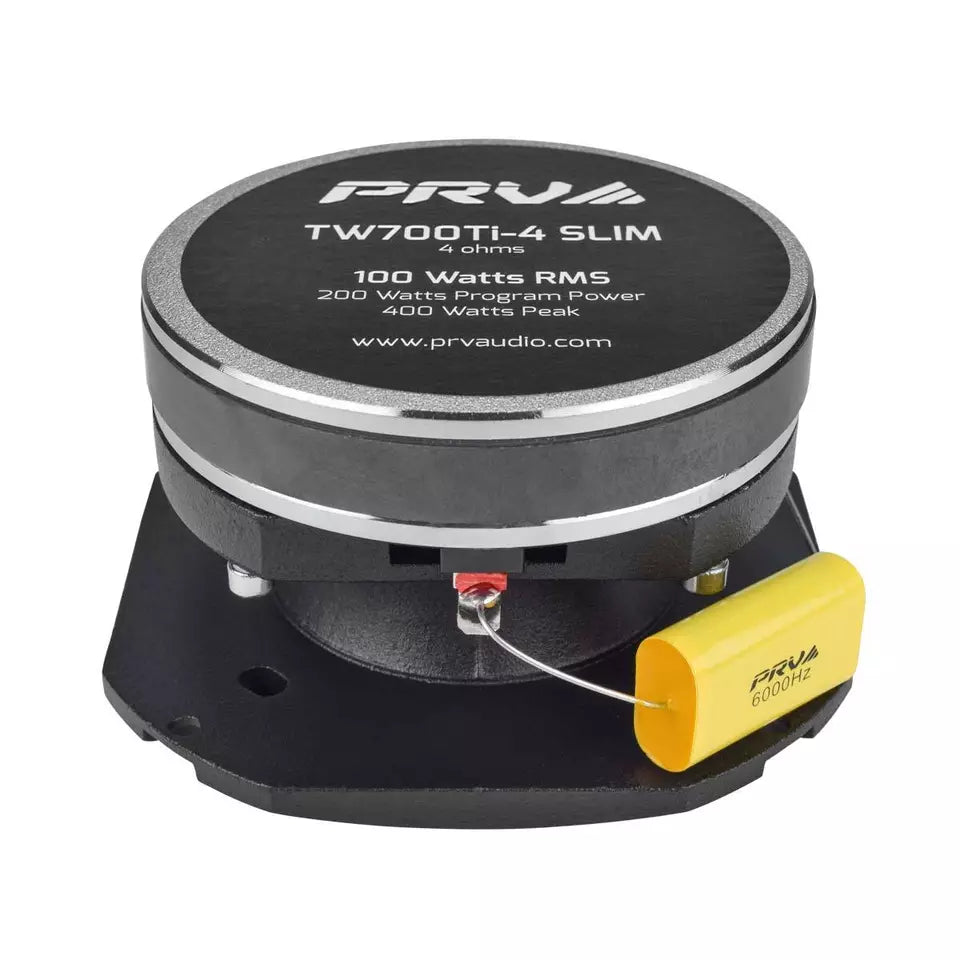

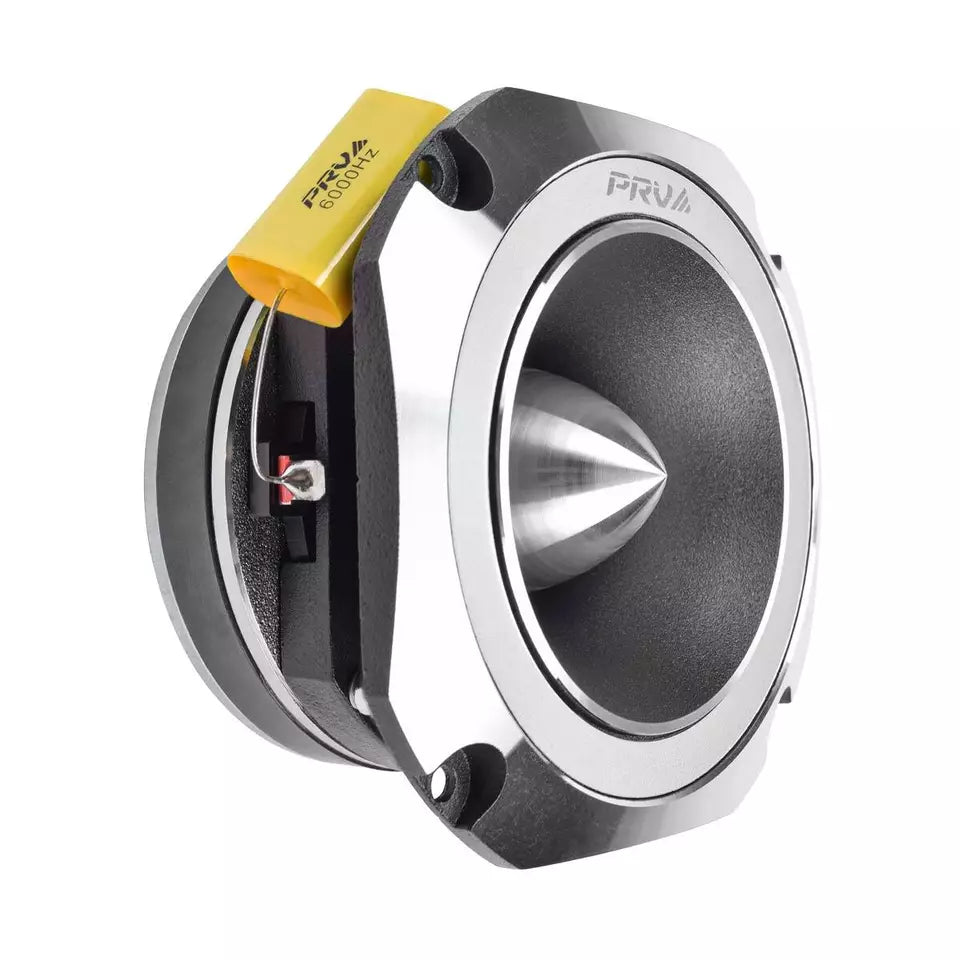

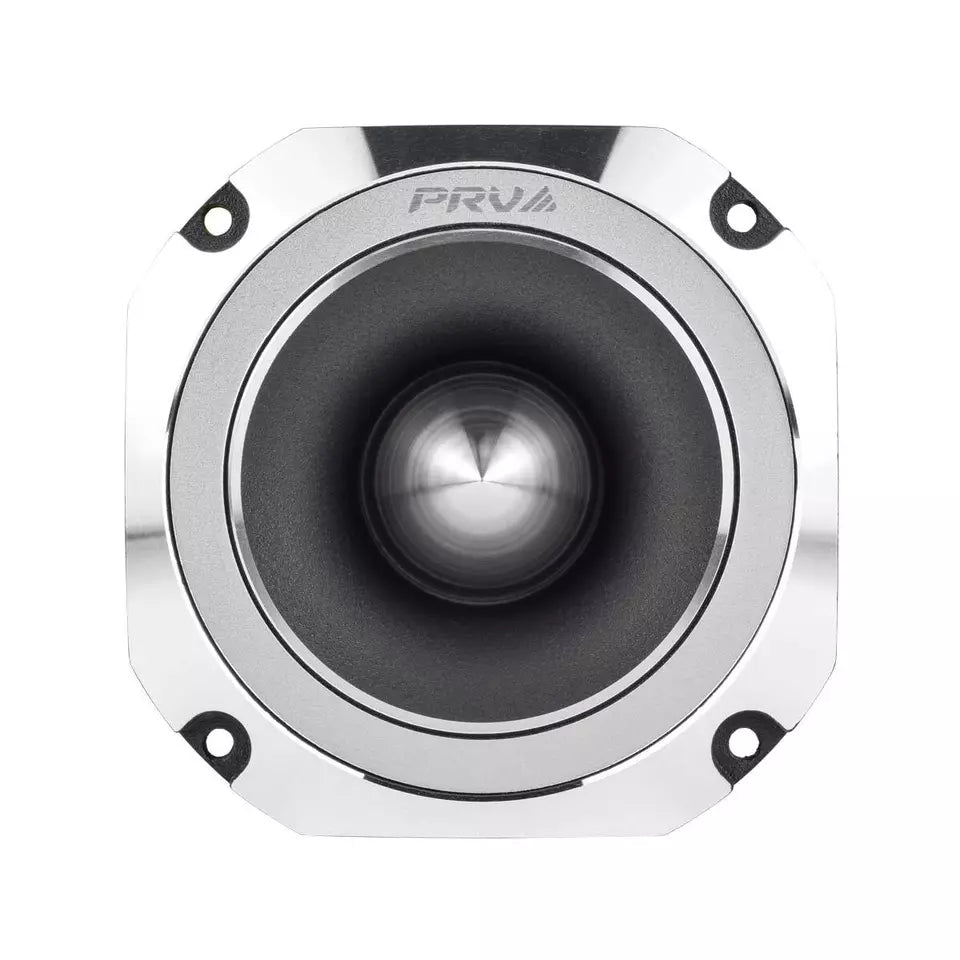

PRV Audio TW700Ti-4 SLIM 100W RMS Super Tweeter 4-Ohm Slim Version (Pair)
Regular price
$59.91
Unit price
Shipping calculated at checkout.
PRV Audio TW700Ti-4 SLIM 100W RMS Super Tweeter 4-Ohm Slim Version (Pair) is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
PRV Audio TW700Ti-4 SLIM 100W RMS Super Tweeter 4-Ohm Slim Version ...
Regular price
$59.91
Unit price
PRV Audio TW700Ti-4 SLIM 100W RMS Super Tweeter 4-Ohm Slim Version (Pair) is backordered and will ship as soon as it is back in stock.
Description
Description
Technical Details
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5” (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Aluminum |
| Flux Density | 1.50 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 2.28” (57.9 mm) |
| Mounting Depth | 1.89” (48.0 mm) |
| Overall Width | 4.0” (101.6 mm) |
| Overall Height | 4.0” (101.6 mm) |
| Cutout Diameter | 3.70” (94 mm) + Terminals |
| Net Weight | 2.19 lbs (0.99 kg) |
| Shipping Weight | 4.45 lbs (2.02 kg) |
| Carton Dimensions W x L x H | 9.64” x 4.72” x 2.56” (245 x 120 x 65 mm) |
